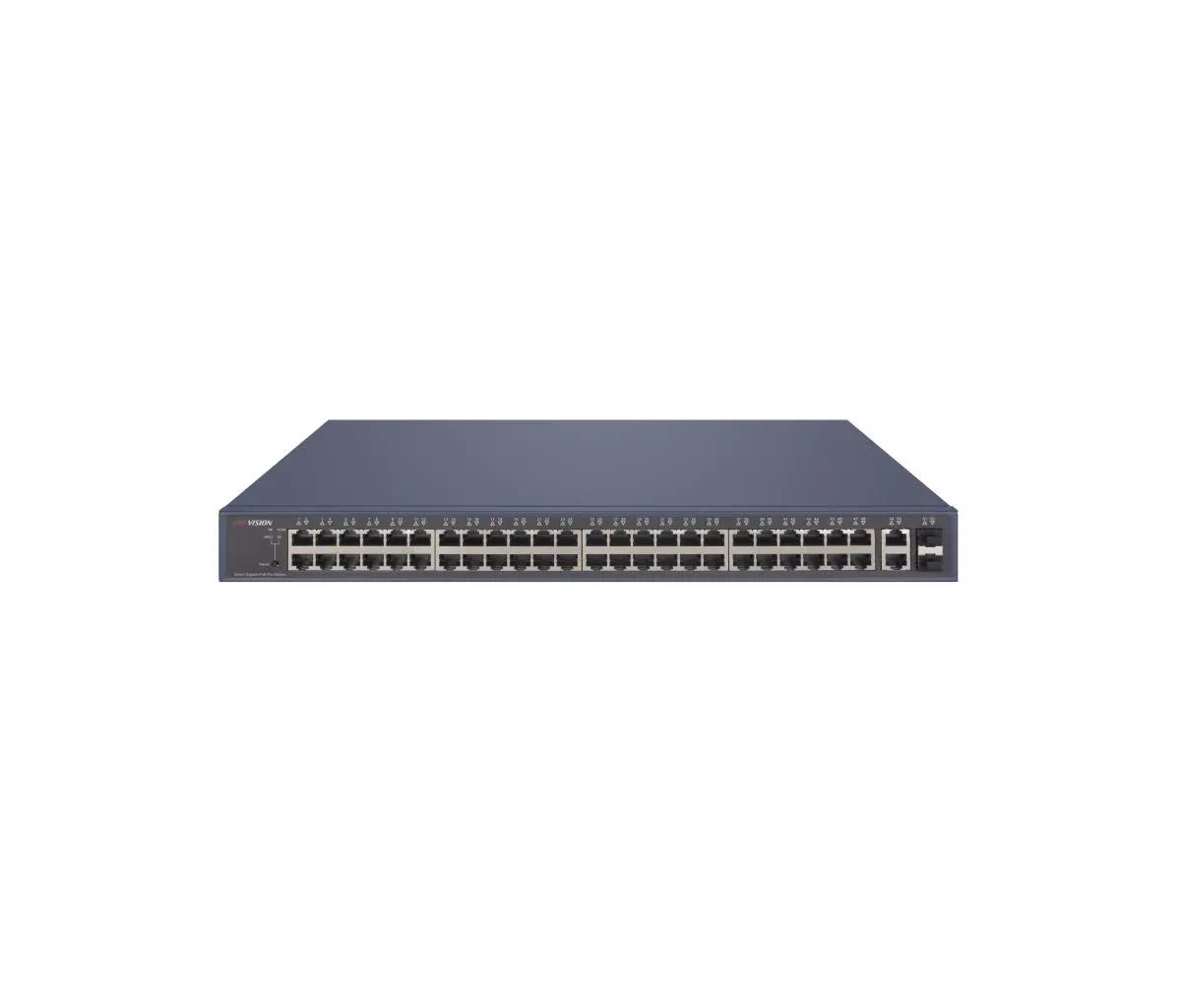

Ds-3e1552p-si 48 Port Gigabit Smart Poe Switch
ITCurry #: T4498308 | Article #: 301802631
slide 1 of 1
Price:
580.34
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 7 to 11 of 14
Product Information
Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 50 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 50 |
| Fiber ports quantity | 2 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77.376 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Yes |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 30 W |
| Power consumption (max) | 500 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 470 W |
| Other features | |
| L2 cache | 12 MB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 323.8 mm |
| Height | 44 mm |
| Weight | 4.35 kg |
| Packaging data | |
| Package weight | 4.5 kg |
| Certificates | |
| Certification | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015 |
| Warranty | |
| Base Warranty | Non Non |
Ds-3e1552p-si 48 Port Gigabit Smart Poe Switch
580.34
