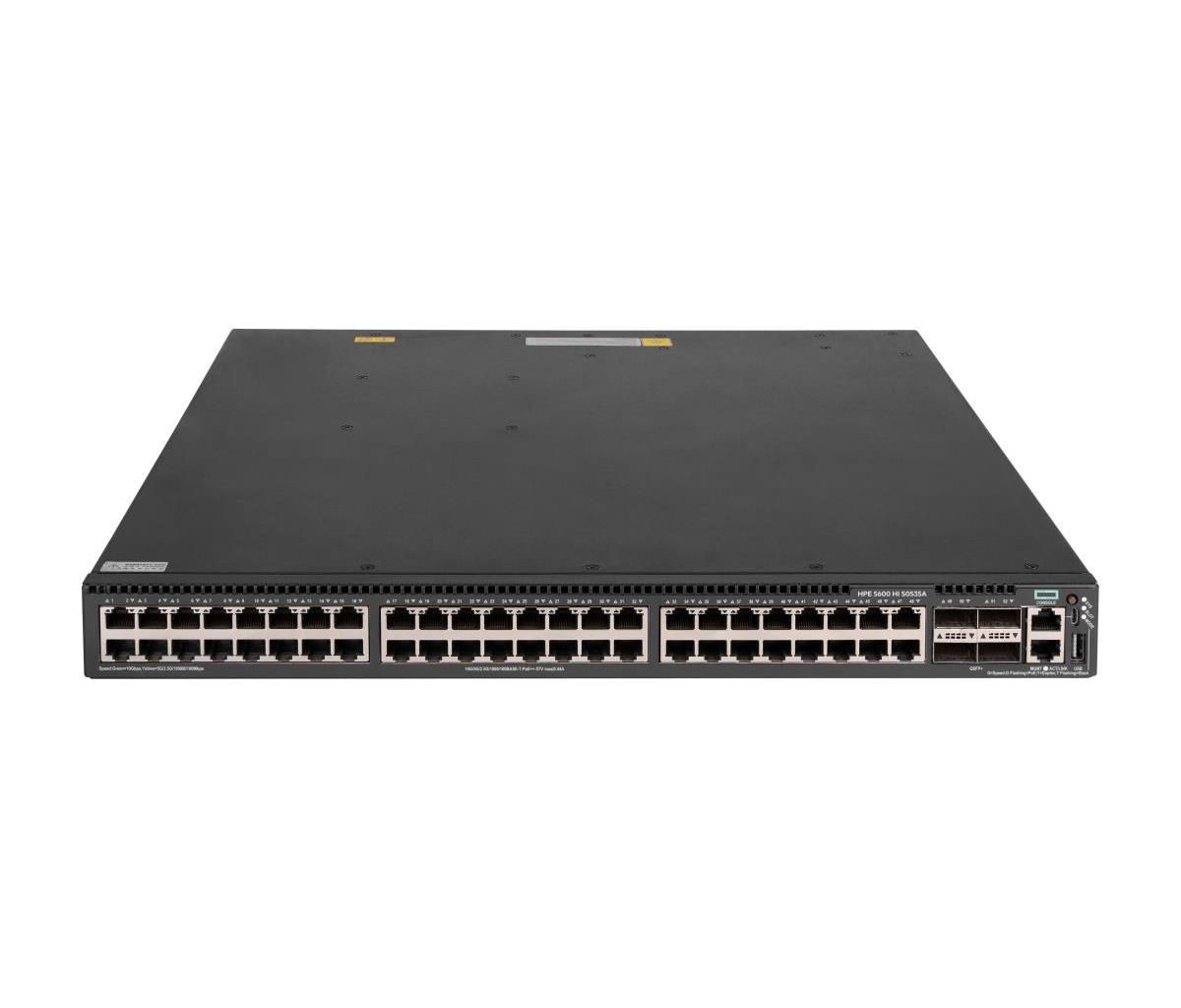

Networking Comware Switch 48P 100M/1G/2.5G/5G/10GBase-T PoE8 4QSFP+ 1 Slot 5600HI
ITCurry #: 1171AKN6 | Article #: S0S35A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HPE FlexNetwork 5600 HI Switch Series delivers superior performance using Multigigabit, PoE8, MACsec, AES 256 encryption, link flexibility, and scalability at the access layer of medium and large enterprise campus networks. Additional modules can be included for increased capacity. This series offers improved resiliency with DRNI and IRF, better reliability and performance in user Quality of Service (QoS), enhanced security with hardware-based MACsec and AAA authentication, impressive efficiency with dual redundant power supplies, embedded network management using Smart MC and enhanced network visibility using IMC.
What is new supporting point:
iNQA measures network packet loss performance and provides visibility into real-time application performance and health.
SmartMC provides centralized network management and maintains dispersed network edge devices at no additional cost.
VXLAN and EVPN enable both isolation and greater scalability of L2/L3 overlay services and multicast.
Multigigabit 100M/1/2.5/5/10G options with PoE8. Granular, higher throughput, and switching capacity of up to 600 Mpps and 1440 Gbps, higher traffic rates and improved network performance.
DRNI combines multiple physical switches into one virtual distributed-relay system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
Industry-standard MACsec AES 256 support, higher MAC port binding, AAA authentications (including RADIUS authentication), and link group capacity for improved end-to-end network security.
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| QSFP+ module slots quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 1440 Gbit/s |
| Throughput | 600 Mpps |
| MAC address table | 32000 entries |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Performance | |
| Internal memory | 2048 MB |
| Flash memory | 1000 MB |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 2 |
| AC input voltage | 90 - 264 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 90 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 øC |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 460 mm |
| Height | 43.7 mm |
| Warranty | |
| Base Warranty | Non Non |
