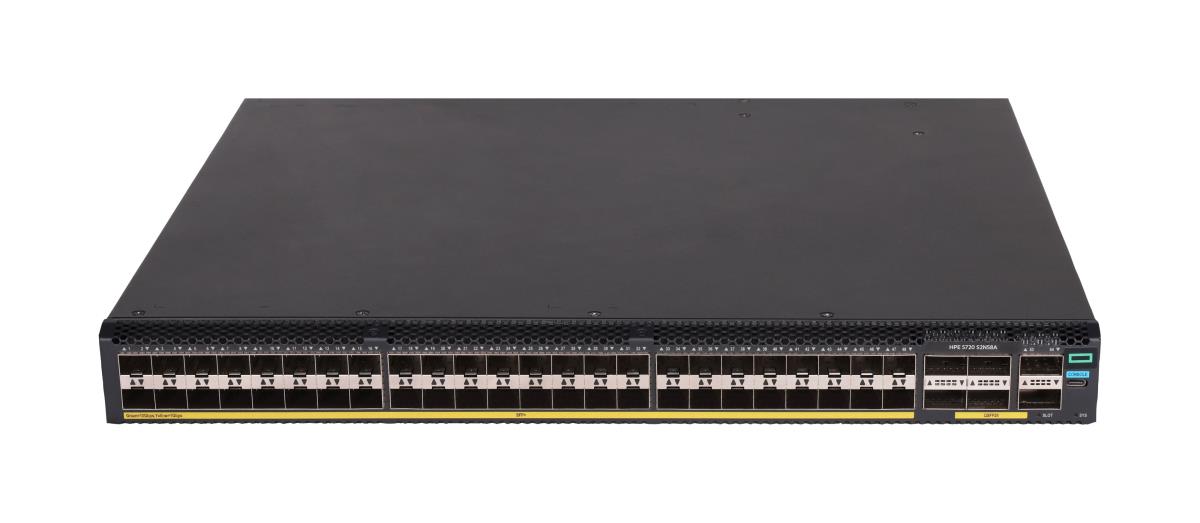

Networking Comware Data Center Switch 48p SFP+ 1G/10G 6p QSFP28 100G 5720
ITCurry #: 1171AND8 | Article #: S2N58A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
HPE Networking Comware Switch Series 5720 is designed to cater to diverse customer needs. This cost-effective access switch offers hybrid SFP+ and 10GBASE-T options, along with multigigabit support on 10GBASE-T ports, allowing scalability from 10GbE SFP+ to 100G QSFP28. These data center leaf / access layer switches come with MACsec support and 10GBASE-T additional modules. Features such as distributed resilient network interconnect (DRNI) and HPE Intelligent Resilient Fabric (IRF) enhance network resiliency while redundant pluggable power supplies provide a dynamic and highly available network. Moreover, these switches support HPE Intelligent Management Center (IMC), which delivers a consistent network manageability experience. Streamline network management processes for greater efficiency through centralized configuration, compliance, policy management, monitoring, and troubleshooting.
What is new supporting point:
Virtual Extensible LAN (VXLAN) with lite Ethernet VPN (EVPN) allows greater flexibility, better performance with wirespeed, enhanced security, and better scalability.
DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
The Intelligent Resilient Fabric (IRF) technology enabling greater resilience and scalability with IRF stacking.
Cost-effective access switch with hybrid SFP+ and 10GBASE-T with multigigabit options on 10GBASE-T port—5G, 2.5G, 1G.
VXLAN and EVPN enable isolation and greater scalability of L2/L3 overlay services and multicast.
Hardware-based MACsec enable end-to-end encrypted security.
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 48 |
| QSFP+ module slots quantity | 6 |
| Network | |
| 10G support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 2560 Gbit/s |
| Throughput | 1001 Mpps |
| MAC address table | 280000 entries |
| Latency (10 Gbps) | 3 æs |
| Jumbo frames support | Yes |
| Packet buffer memory | 8 MB |
| Security | |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Protocols | |
| Routing protocols | RIP |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Performance | |
| Physical stacking (units) | 9 |
| Memory type | SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 4000 MB |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| DC input voltage | 48 - 60 V |
| Power consumption (typical) | 89 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 887 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 7.9 kg |
| Warranty | |
| Base Warranty | Non Non |
