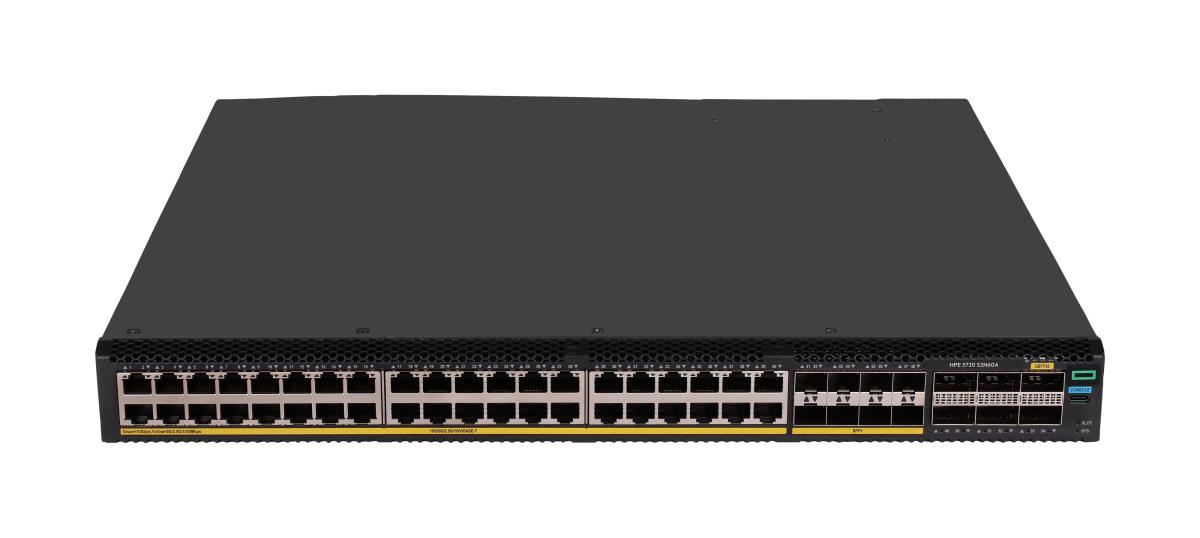

Networking Comware Data Center Switch 40p 10GBASE-T 8p SFP+ 1G/10G 6p QSFP28 100G 5720
ITCurry #: 1171ANE1 | Article #: S2N60A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
HPE Networking Comware Switch Series 5720 is designed to cater to diverse customer needs. This cost-effective access switch offers hybrid SFP+ and 10GBASE-T options, along with multigigabit support on 10GBASE-T ports, allowing scalability from 10GbE SFP+ to 100G QSFP28. These data center leaf / access layer switches come with MACsec support and 10GBASE-T additional modules. Features such as distributed resilient network interconnect (DRNI) and HPE Intelligent Resilient Fabric (IRF) enhance network resiliency while redundant pluggable power supplies provide a dynamic and highly available network. Moreover, these switches support HPE Intelligent Management Center (IMC), which delivers a consistent network manageability experience. Streamline network management processes for greater efficiency through centralized configuration, compliance, policy management, monitoring, and troubleshooting.
What is new supporting point:
The Intelligent Resilient Fabric (IRF) technology enabling greater resilience and scalability with IRF stacking.
Cost-effective access switch with hybrid SFP+ and 10GBASE-T with multigigabit options on 10GBASE-T port—5G, 2.5G, 1G.
DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
Virtual Extensible LAN (VXLAN) with lite Ethernet VPN (EVPN) allows greater flexibility, better performance with wirespeed, enhanced security, and better scalability.
VXLAN and EVPN enable isolation and greater scalability of L2/L3 overlay services and multicast.
Hardware-based MACsec enable end-to-end encrypted security.
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 40 |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 8 |
| QSFP28 ports quantity | 6 |
| Network | |
| 10G support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Data transmission | |
| Switching capacity | 2560 Gbit/s |
| Throughput | 1001 Mpps |
| MAC address table | 280000 entries |
| Latency (10 Gbps) | 3 æs |
| Jumbo frames support | Yes |
| Packet buffer memory | 32 MB |
| Security | |
| DHCP features | DHCP client, DHCP server |
| IGMP snooping | Yes |
| Protocols | |
| Routing protocols | BGP, MPLS, OSPF, RIP |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Performance | |
| Memory type | SDRAM |
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 99 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 921 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 8 kg |
| Warranty | |
| Base Warranty | Non Non |
