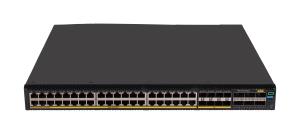

Aruba 8320 48p 1G/10GBASE-T and 6p 40G QSFP+ with X472 5 Fans 2 Power Supply Switch Bundle
ITCurry #: 1171YE27 | Article #: JL581A#ABB-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The Aruba 8320 Switch Series, a campus core and aggregation switch, is a game-changing solution that offers an innovative approach to dealing with the demands of the mobile, cloud and IoT era. The Aruba 8320 is based on ArubaOS-CX, a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. The key innovations in ArubaOS-CX are its micro-services style modular architecture, REST APIs, Python scripting capabilities and the Aruba Network Analytics Engine. The Aruba 8320 Switch Series provides line rate 10GbE and 40GbE in a compact 1U form factor and together with the modular Aruba 8400 Switch, rounds out the Aruba Mobile First switching portfolio with an enterprise core and aggregation solution.
What's new
- High-performance Aruba campus core and aggregation switch with 2.5 Tbps switching capacity.
- ArubaOS-CX automates using REST APIs and Python scripts.
- Monitor and troubleshoot with Aruba Network Analytics Engine.
- High availability, virtualization and simplicity with Aruba VSX.
- Compact 1U switches with 10GbE (SFP/SFP+ or 10GBASE-T) and 40GbE connectivity.
- Advanced Layer 2/3 feature set includes BGP, OSPF, VRF and IPv6.
Features
Game-changing Business Agility
- The Aruba 8320 Switch Series is a campus core and aggregation switch solution with an innovative and powerful approach to dealing with the new applications, security and scalability demands of the mobile, cloud and IoT era.
- Fully programmable with ArubaOS-CX, it brings automation and visibility and helps troubleshoot via simple scripting.
- Aruba Network Analytics Engine provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple python agents and REST APIs.
- Offers high-speed fully distributed architecture with 2.5 Tbps switching capacity for always on networking.
- Provides robust security and QoS with advanced Layer 2 and Layer 3 features including support for BGP, OSPF, and VRF.
Modern Software System Simplifies and Automates
- The Aruba 8320 Switch Series is based on the new ArubaOS-CX, a modern software system for the core that automates and simplifies many critical and complex network tasks.
- The built-in time series database enables customers and developers to develop software modules for historical troubleshooting, as well as analysis of historical trends, to predict and avoid future problems due to scale, security and performance bottlenecks.
- It includes stability, independent monitoring and restart of individual software modules, and enhanced software process serviceability functions. And it allows individual software modules to be upgraded for higher availability.
High Performance and High Availability
- The Aruba 8320 Switch Series includes a high-speed, fully distributed architecture and provides up to 2.5 Tbps switching capacity to meet the demands and bandwidth-intensive applications today and in the future.
- Aruba’s new high availability technology is Aruba VSX which has been designed from ground up to deliver the continuous availability, virtualization and simplicity requirements unique to the core of the network. Redundant and hot-swappable power supplies and fans provide additional resiliency.
- The compact 1U switch series delivers line rate 10GbE and 40GbE connectivity with very low latency for support of full Internet routes. Optimize for your deployment with a model that provides 32 ports of 40GbE, and models with 48 ports of 10GbE (SFP/SFP+ or 10GBASE-T) with 6 ports of 40GbE.
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| QSFP+ module slots quantity | 6 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T |
| Port mirroring | Yes |
| IP routing | Yes |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 2500 Gbit/s |
| MAC address table | 98304 entries |
| Maximum data transfer rate | 40 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 16 MB |
| Security | |
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| Multicast features | |
| Multicast support | Yes |
| IPv4 multicast entries | 4094 |
| IPv6 multicast entries | 4094 |
| MLD entries | 4094 |
| Protocols | |
| Routing protocols | BGP, OSPF |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Airflow direction | Front-to-back airflow |
| Number of fans | 5 fan(s) |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 2000 MHz |
| Internal memory | 16384 MB |
| Flash memory | 8192 MB |
| Noise level | 61.1 dB |
| Mean time between failures (MTBF) | 275339 h |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 348 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 473 mm |
| Depth | 443 mm |
| Height | 43.9 mm |
| Weight | 9.5 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
