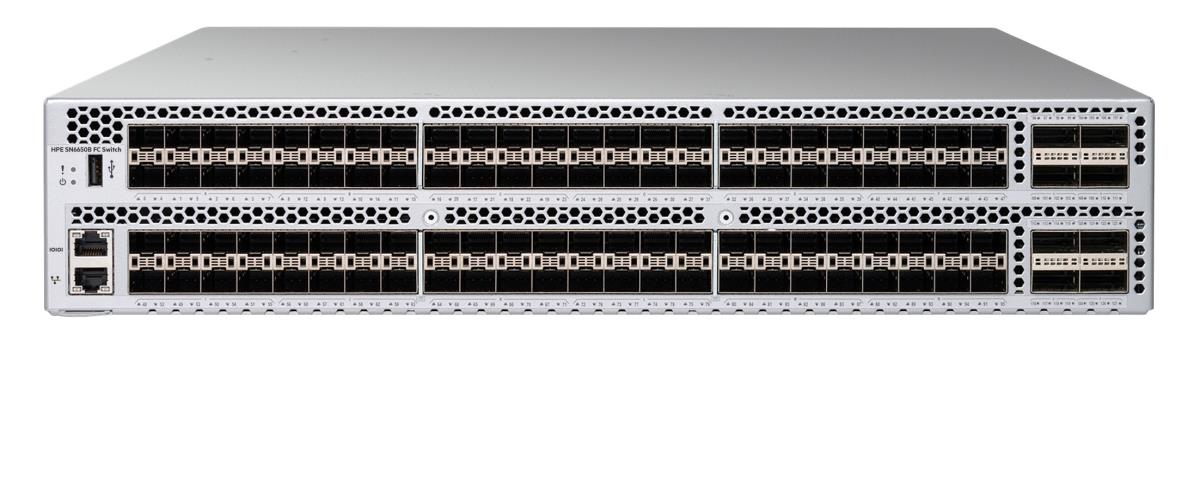

HPE SN6650B 32GB 128/96 Power Pack+ 96-port 32GB Short Wave SFP+ Integrated Fibre Channel Switch
ITCurry #: 1171AJD7 | Article #: Q9V96C-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Is there a need to modernize your storage network? The all-flash data center and emerging NVMe storage requires a modern storage network that can keep up with pace of innovation seen with compute and storage resources. The HPE Storage Fibre Channel Switch B-series SN6650B is a high-port density building block with 128 Fibre Channel ports that provides the tools to help optimize NVMe storage and automate SAN management tasks. It provides 32Gb SAN connectivity with up to 4Tbps of total system bandwidth for data center consolidation, capable of supporting the most demanding all-flash workloads. New automation capabilities enable DevOps resources to automate operations to increase productivity with simple and open automation through open APIs and the Ansible automation engine. HPE Storage Fibre Channel Switch B-series SN6650B enables new insight into NVMe storage fabrics with modern I/O traffic visibility and VM-level granularity to validate and fine-tune performance for better efficiency.
What is new supporting point:
Port On Demand (PoD) kits including a PoD upgrade license, activating 24 ports, and 24 32Gb Fibre Channel optics.
QSFP Port On Demand (PoD) kits including a PoD upgrade license, activating 8 QSFP ports, and 8 32Gb QSFP Fibre Channel optics.
| Protocols | |
| Supported protocols | Fibre Channel |
| Design | |
| Form factor | 2U |
| Performance | |
| Media types supported | Supports 32Gb, 16Gb, 10Gb transceivers and 32Gb & 16Gb QSFP transceivers |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Other features | |
| Technical features | Hot code load, ports on demand with no downtime; hot-swappable redundant power supplies with integrated cooling fans |
| Weight (imperial) | 21.3 kg (47 lbs) |
| Optional software | SANnav, HPE Power Pack+ (Fabric Vision, ISL Trunking, Extended Fabric, Integrated Routing, and FICON CUP) |
| Port speed rating | 32Gb |
| Upgrade type | Activate additional ports using 24 port SFP and 32 port QSFP POD Kit upgrades |
| Dimensions (W x D x H) (imperial) | 439.9 x 86.6 x 609.6 mm (17.3 x 3.41 x 24") |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 86.7 mm |
| Height | 609.6 mm |
| Weight | 21.3 kg |
| Warranty | |
| Base Warranty | Non Non |
