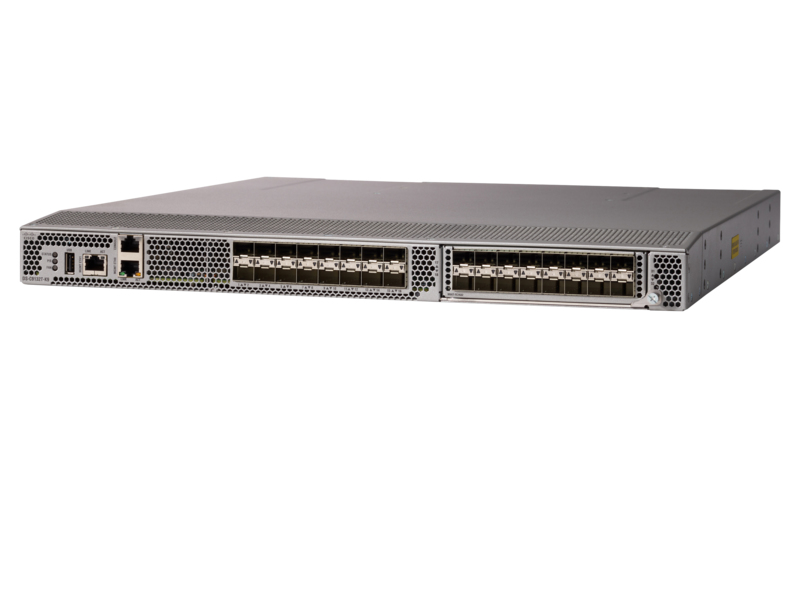

StoreFabric SN6610C 32GB 8-port 16GB Short Wave SFP+ Fibre Channel Switch
ITCurry #: 1171XV52 | Article #: Q9D34A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you looking for a high performance Fibre Channel switch for the modern storage area network? The HPE StoreFabric SN6610C Fibre Channel Switch delivers 32 Gbps Fibre Channel (FC) switching providing high-speed FC connectivity from the server rack to the SAN core. It empowers midsize, enterprise and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. The switch offers state-of-art analytics and telemetry capability built into its ASIC platform. For increased flexibility, the HPE StoreFabric SN6610C Fibre Channel Switch scales from 8- to 32-ports. Additionally, investing in this switch for the lower-speed (8 or 16 Gbps) server rack gives you the flexibility to upgrade to 32 Gbps performance in the future.
Features
High Performance for All-flash Arrays and Virtualized Workloads
- The HPE StoreFabric SN6610C Fibre Channel Switch provides consistent 32 Gbps low-latency performance across every FC port on the switch.
- Delivers increased performance with an aggregate bandwidth of 1024 Gbps for growing and dynamic workloads.
- Delivers the same outstanding availability and reliability as previous generation HPE StoreFabric SN6010C Fibre Channel Switch by providing optional redundancy on all major components such as power supplies and fans.
- Provides visibility into each virtual machine logged into the fabric through HBAs capable of priority tagging the Virtual Machine Identifier (VMID) on every FC frame.
- On-board hardware that protects the entire system from malicious attacks by limiting access to critical components such as the bootloader, system image loader and Joint Test Action Group (JTAG) interface.
Investment Protection
- The HPE StoreFabric SN6610C Fibre Channel Switch provides an option to deploy as few as eight 32 Gbps Fibre Channel (FC) ports which can grow from 8 ports to 16 ports, and thereafter with a port expansion module. Expanding up to a maximum of 32 ports.
- Configurable with 16 Gb FC SFP+ or 32 Gb FC SFP+ optics to accommodate your budget while being fully prepared for tomorrow.
- Lower initial investment and power consumption for entry-level configurations of up to 8 ports compared to a fully loaded 32-port switch.
Intelligent Network Services for Modern SAN
- The HPE StoreFabric SN6610C Fibre Channel Switch supports slow-drain detection and isolation, VSAN technology, access control lists for hardware-based intelligent frame processing, smartzoning and other various services.
- Includes VSAN technology provides a cost-effective way to consolidate resources while providing high resiliency to potential fabric disruptions.
- Provides powerful Representational State Transfer (REST) and NX-API capabilities to enable flexible and rapid programming of utilities for the SAN.
Easy Manageability
- The HPE StoreFabric SN6610C Fibre Channel Switch provides intelligent diagnostics tools such as inter-switch link diagnostics, read diagnostic parameters, protocol decoding, network analysis tools, and others for improved reliability, faster problem resolution, and reduced service costs.
- Consolidate separate physical SAN fabrics into one large fabric for ease of management and reduced total cost of ownership.
- Cisco Data Center Network Manager (Essentials Edition) software, included with switch, provides a centralized management tool with task-based wizards. Additional advanced features are available with the DCNM licensed version, sold separately.
| Warranty | |
| Base Warranty | Non Non |
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| Fiber ports quantity | 8 |
| Fiber optic connector | SFP+ |
| Network | |
| Auto-sensing | Yes |
| Data transmission | |
| Switching capacity | 1024 Gbit/s |
| Security | |
| Security algorithms | 128-bit AES |
| SSH/SSL support | Yes |
| Authentication type | RADIUS |
| Protocols | |
| Management protocols | SNMP 1, SNMP 3, SMI-S, SSH, SSH-2, CLI |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Power | |
| Power supply included | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 650 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | -60 - 2000 m |
| Weight & dimensions | |
| Width | 435.9 mm |
| Depth | 415 mm |
| Height | 43.7 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
