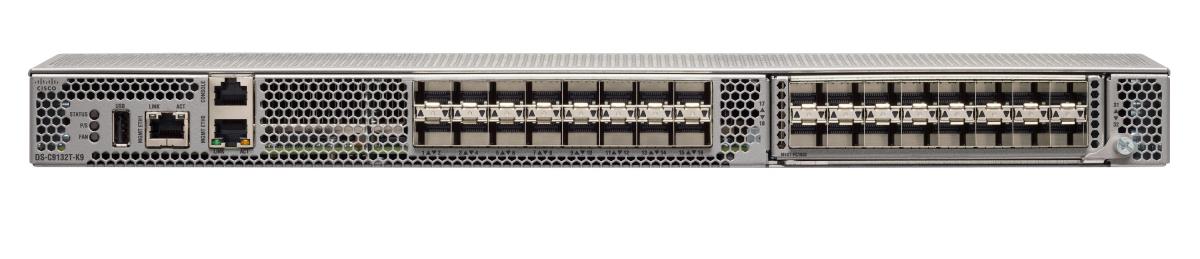

HPE SN6610C 32GB 32/24 32GB Short Wave SFP+ Fibre Channel v2 Switch
ITCurry #: 1171AHT7 | Article #: S1R84B-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you looking for a high performance Fibre Channel switch for the modern storage area network? The HPE Storage Fibre Channel Switch C-series SN6610C delivers 32 Gbps Fibre Channel (FC) switching providing high-speed FC connectivity from the server rack to the SAN core. It empowers midsize, enterprise, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. The switch offers state-of-art analytics and telemetry capability built into its ASIC platform. For increased flexibility, the HPE Storage Fibre Channel Switch C-series SN6610C scales from 8 to 32 ports. Additionally, investing in this switch for the lower-speed (8 or 16 Gbps) server rack gives you the flexibility to upgrade to 32 Gbps performance in the future.
What is new supporting point:
New subscription-based Advantage and Premier license bundles with Cisco Data Center Network Manager (DCNM) / Cisco Nexuas Dashboard Fabric Controller (NDFC), Enterprise and SAN Analytics.
| Security | |
| Security algorithms | SNMPv3 |
| Protocols | |
| Supported protocols | Fibre Channel |
| Design | |
| Form factor | 1U |
| Performance | |
| Media types supported | Supports 32Gb, 16Gb, and 8Gb transceivers |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Other features | |
| Technical features | Non-disruptive software upgrades, hot-swappable and dual redundant power supplies, hot-swappable fan module, hot-swappable SFP+ optics, stateful process restart |
| Optional software | Port upgrade license, Enterprise Package license, Cisco Data Center Network Manager (DCNM) license, SAN Insights (1, 3, 5 years), Advantage license (1, 3, 5 years), and Premier license (1, 3, 5 years) |
| Port speed rating | 32 Gb |
| Upgrade type | Activate additional ports using 8 port upgrade license |
| Dimensions (W x D x H) (imperial) | 43.7 x 439.4 x 510.8 mm (1.72 x 17.3 x 20.1") |
| Weight & dimensions | |
| Weight | 9.1 kg |
| Warranty | |
| Base Warranty | Non Non |
