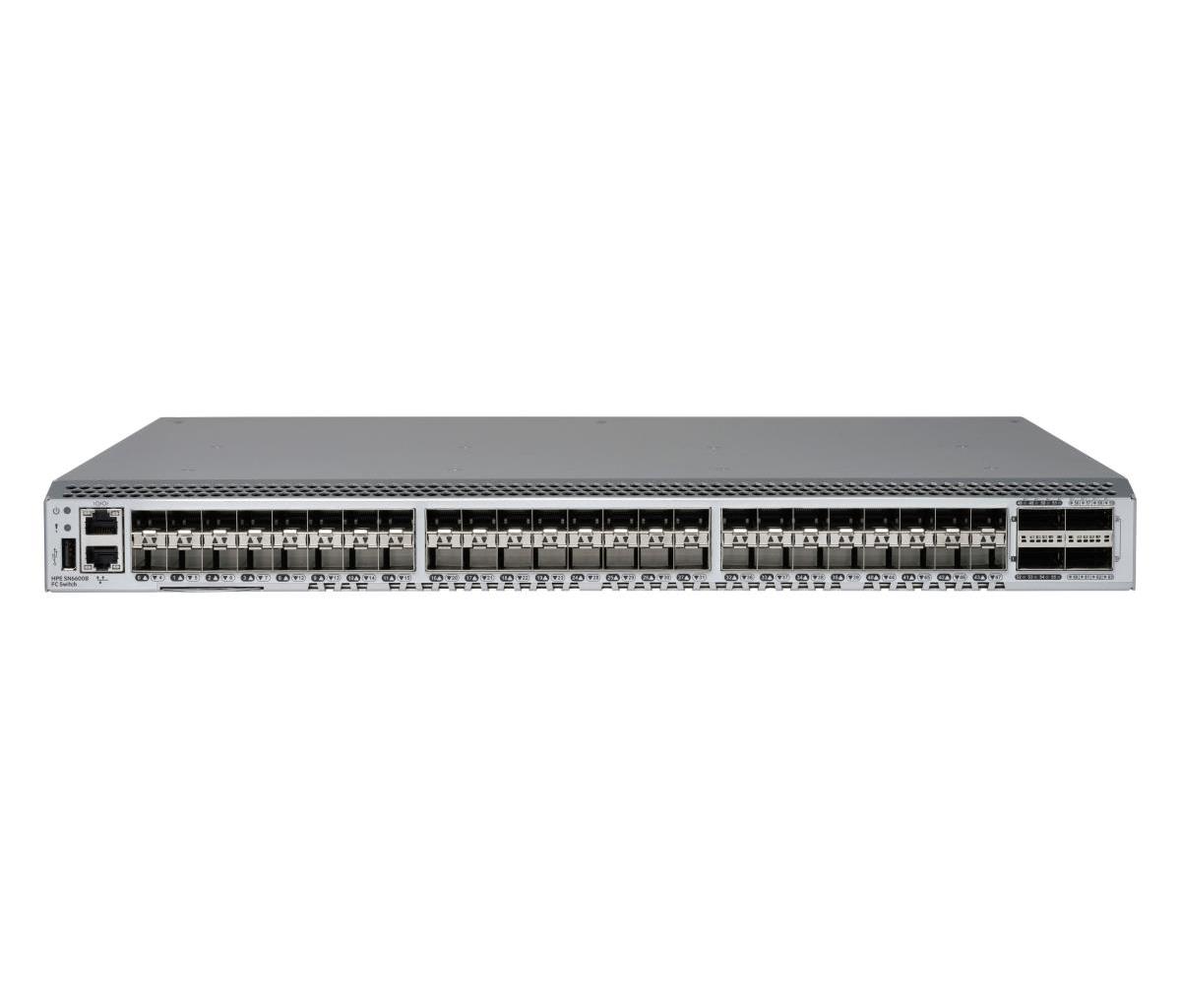

HPE SN6600B 32GB 48/24 16GB Short Wave SFP+ Fibre Channel Switch
ITCurry #: 1171AKM9 | Article #: R6V47A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you struggling to meet the I/O demands of hyper-scale virtualization, large cloud infrastructures, and growing, flash-based storage environments? The HPE Storage Fibre Channel Switch B-series SN6600B is a high-performance, ultra-dense, highly scalable, easy-to-use, and NVMe ready enterprise-class storage networking switch delivering Gen6 Fibre Channel (FC) capabilities. It is designed to support data growth, demanding workloads, and data center consolidation in small- to large-scale enterprise infrastructures. Delivering 32Gb to 128Gb performance, customized high port density, and integrated network sensors, it accelerates data access, adapts to evolving requirements, and drives 24x7 businesses. It can scale from 24 to 64 ports with 48 SFP+ and 4 QSFP+ ports, all in an efficient 1U package. In addition, a simplified deployment process and a point-and-click user interface make the HPE Storage Fibre Channel Switch B-series SN6600B easy to use.
What is new supporting point:
PoD kits including a PoD upgrade license, activating 12 ports, and 12 32Gb Fibre Channel optics.
QSFP Port On Demand (PoD) kits including a PoD upgrade license, activating 4 QSFP ports, and 4 32Gb QSFP Fibre Channel optics.
32Gb short-wave QSFP with break-out capability added.
New 16Gb or 32Gb transceivers bundled with switches.
| Protocols | |
| Supported protocols | Fibre Channel |
| Design | |
| Form factor | 1U |
| Performance | |
| Media types supported | Supports 32Gb, 16Gb, 10Gb transceivers |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Other features | |
| Technical features | Hot code load, ports on demand with no downtime; hot-swappable redundant power supplies with integrated cooling fans |
| Performance management | B-series SAN Network Advisor; Integration with Storage Essentials |
| Weight (imperial) | 7.71 kg (17 lbs) |
| Optional software | SANnav, HPE Power Pack+ (Fabric Vision, ISL Trunking, Extended Fabric, Integrated Routing, and FICON CUP) |
| Port speed rating | 32Gb |
| Upgrade type | Activate additional ports using 12 port SFP and 16 port QSFP POD Kit upgrades |
| Dimensions (W x D x H) (imperial) | 43.9 x 439.9 x 355.6 mm (1.73 x 17.3 x 14") |
| Weight & dimensions | |
| Width | 43.9 mm |
| Depth | 440 mm |
| Height | 355.6 mm |
| Weight | 7.73 kg |
| Warranty | |
| Base Warranty | Non Non |
