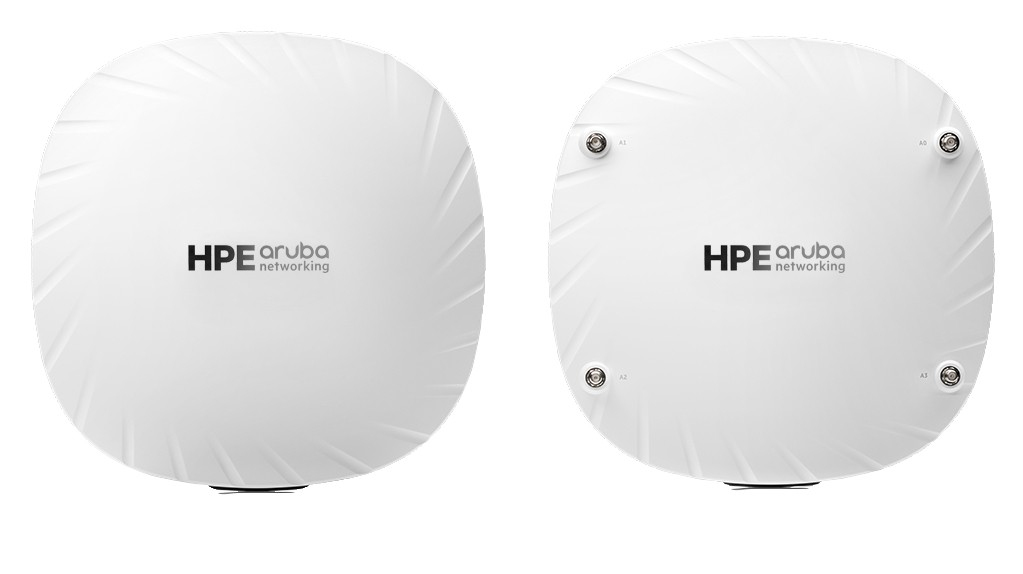

Aruba AP-535 (EG) dual-radio 4 x 4:4 802.11ax internal antennas unified campus AP
ITCurry #: 1171AGD3 | Article #: JZ333A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Aruba 530 Series with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software features are designed to deliver high performance connectivity in extreme density deployments of mobile and IoT devices.
The 530 Series is designed to simultaneously serve multiple clients and types of traffic, boosting overall network performance by up to 4X versus 802.11ac APs.
In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity and WPA3 certified security.
Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.
Enhanced performance
Aruba's ClientMatch feature intelligently groups Wi-Fi 6 clients onto the best AP's to leverage 802.11ax multi-user capabilities.
Smart power management
Aruba Intelligent Power Monitoring (IPM) allows APs to operate even if existing Ethernet switches lack adequate PoE power.
IoT and location ready
Leverage your Wi-Fi infrastructure to support Zigbee and Bluetooth use cases, devices and applications.
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 3550 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| Spread spectrum method | DSSS, OFDM |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Security | |
| Security algorithms | WMM, WPA, WPA2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 23.3 W |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5.4 dBi |
| Weight & dimensions | |
| Width | 240 mm |
| Depth | 240 mm |
| Height | 57 mm |
| Weight | 1.27 kg |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Storage relative humidity (H-H) | 5 - 93% |
| Warranty | |
| Base Warranty | Non Non |
