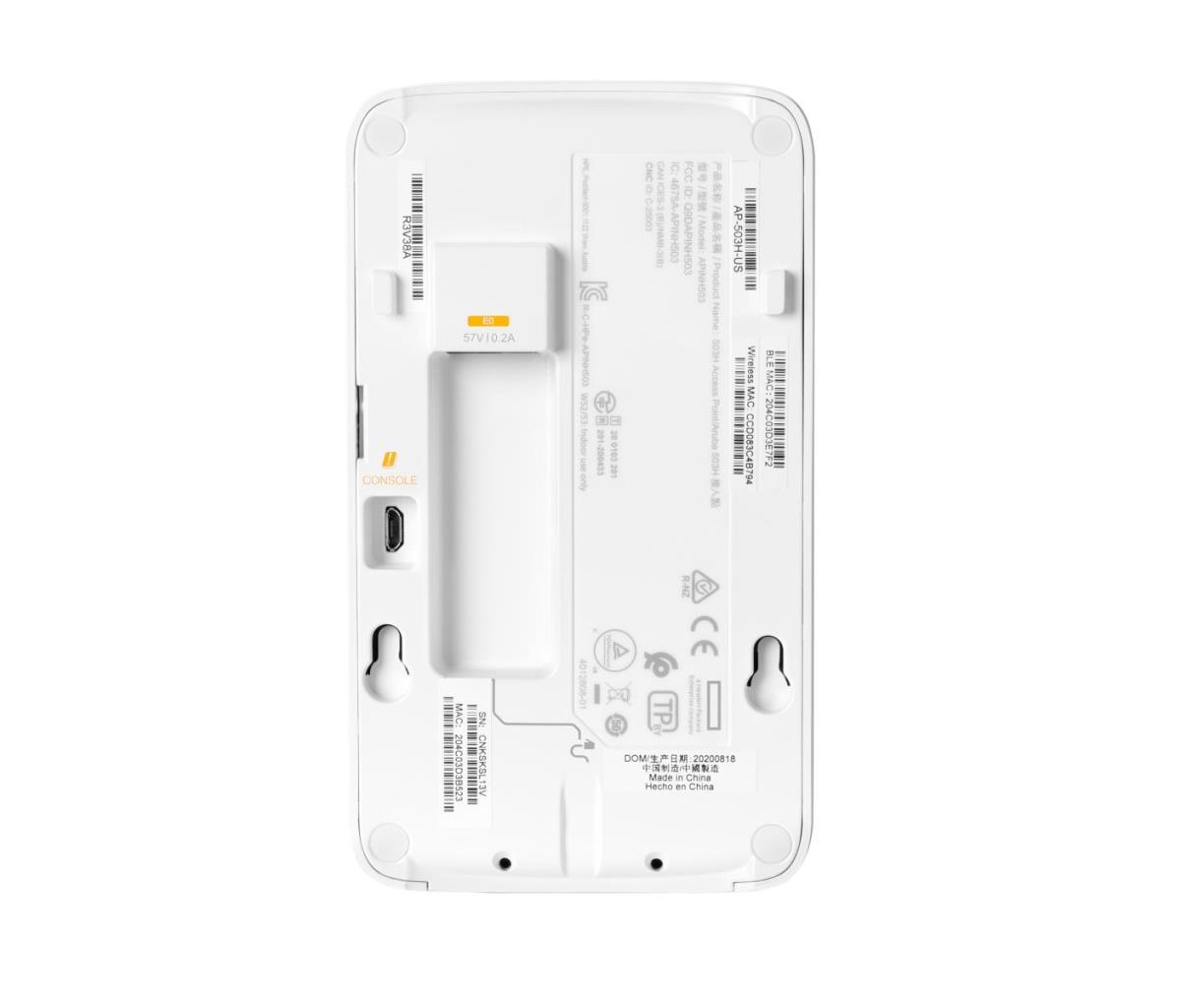

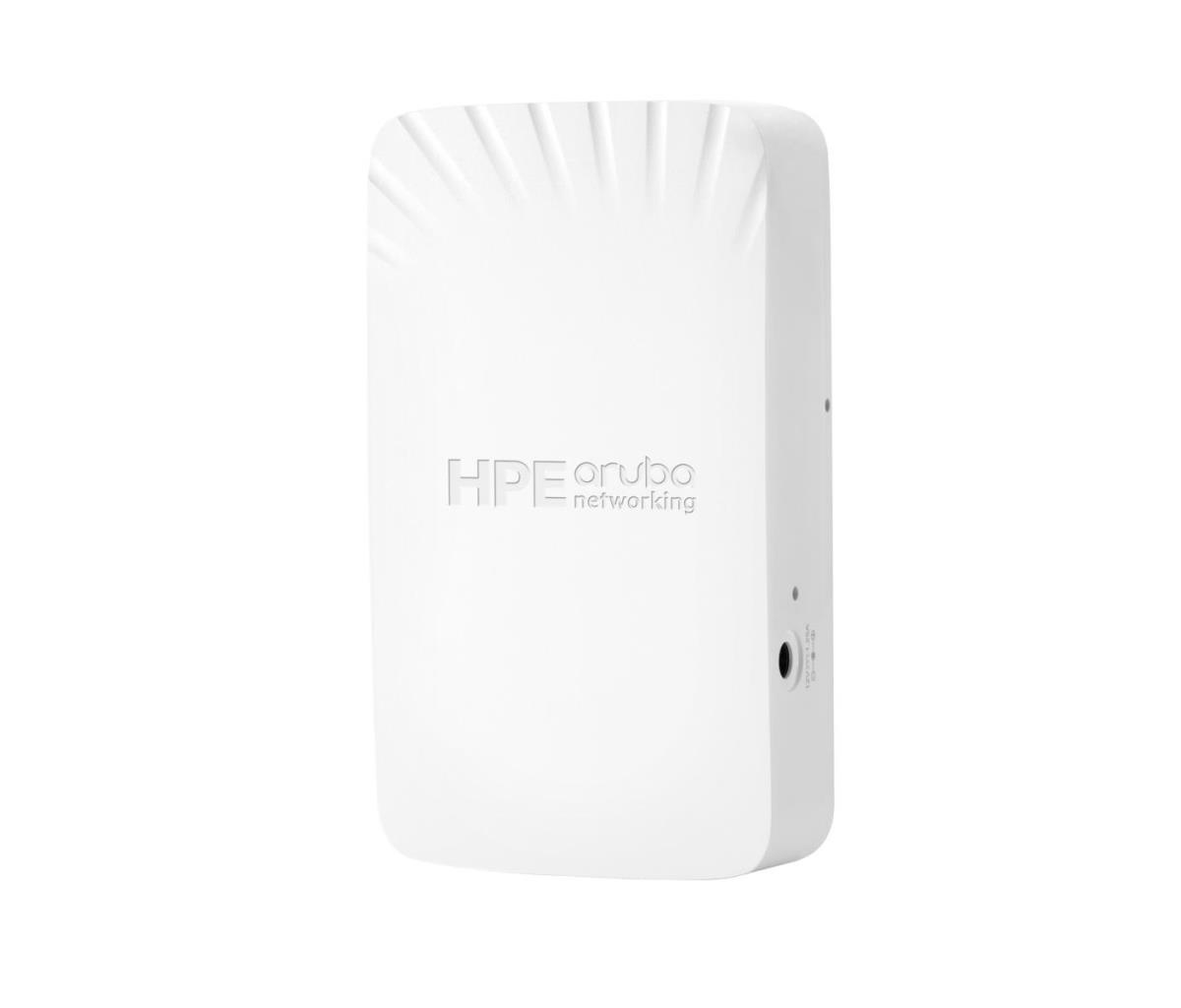

Aruba AP-503H (RW) Dual-radio 802.11ax 2x2 Unified Hospitality AP with 1+2 Ethernet
ITCurry #: 1171YW52 | Article #: R3V36A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
HPE Aruba Networking 500H Series Hospitality Access Points deliver cost-effective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.49 Gbps maximum combined speed, zero touch provisioning (ZTP), and wired ports, the 500H series is ready to improve wireless experiences for guests, employees, students, and teleworkers. The 500H series is Wi-Fi CERTIFIED and supports 802.11ax features; orthogonal frequency-division multiple access (OFDMA) for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500H series includes a limited lifetime warranty.
What is new supporting point:
Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support
The AP provides IoT-ready Bluetooth 5 and Zigbee support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across the network, enhancing user and device security
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1487 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 1000,5000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| MACsec support | No |
| Security | |
| Security algorithms | WPA2, WPA3 |
| Management features | |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB connector type | Micro-USB B |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 10 W |
| Design | |
| Placement | Table, Wall |
| Product colour | White |
| Recommended usage | Indoor |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Semi-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5.6 dBi |
| Performance | |
| Compatible operating systems | HPE Aruba Networking Operating System and HPE Aruba Networking Instant OS 8.7.1.0 (AP-503H) and 8.7.0.0 (AP-505H), HPE Aruba Networking Operating System 10.3.0.0 (AP-503H), 10.2.0.0 (AP-505H) |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Certification | Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3-Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet Alliance (PoE) |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 47 mm |
| Height | 150 mm |
| Weight | 360 g |
| Other features | |
| I/O ports | 1 x 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX 4 x 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX |
| Weight (imperial) | 0.363 kg (0.8 lbs) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Storage relative humidity (H-H) | 5 - 93% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
