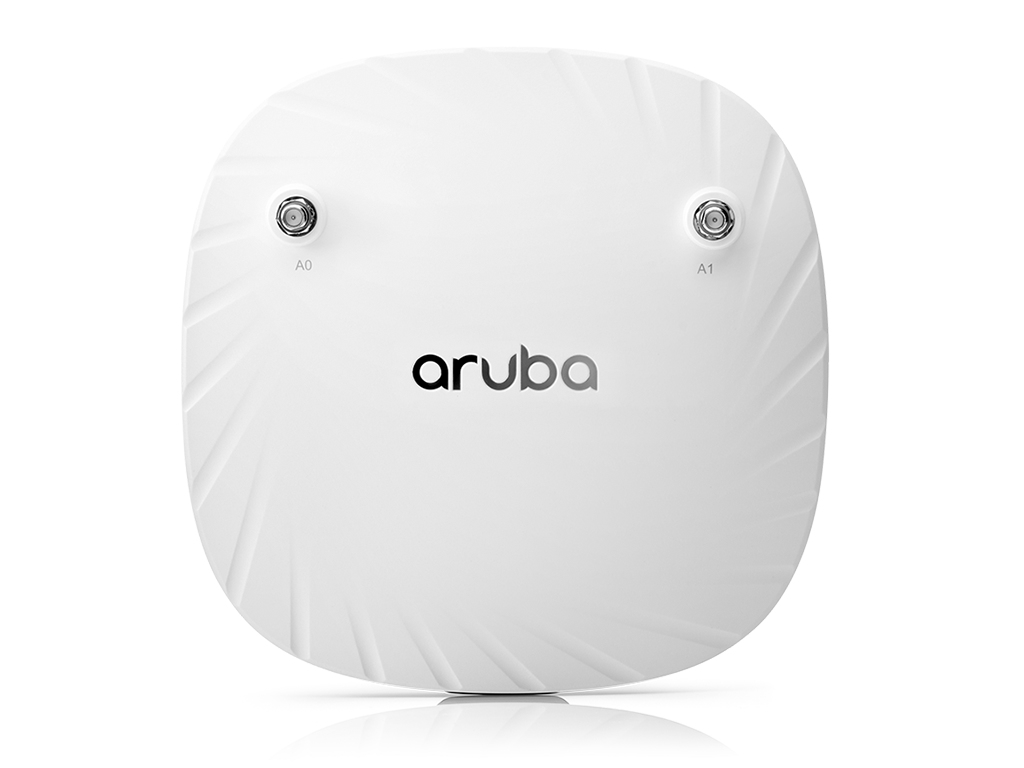

Aruba AP-504 (EG) dual radio 2x2:2 802.11ax External Antenna Unified Campus AP
ITCurry #: 1171ADD4 | Article #: R2H19A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With 1.49 Gbps maximum combined data rate, the 500 Series delivers reliable Wi-Fi for medium density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control. The 500 Series is Wi-Fi CERTIFIED™ and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500 Series includes a limited lifetime warranty.
What is new supporting point:
Available in optional eco-friendly 10-packs.
IoT-ready with built-in [1] Bluetooth 5 and Zigbee support.
Entry level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate.
Support for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
Dynamic Segmentation and policy enforcement firewalls automatically enforce consistent policies across wired and wireless networks, enhancing user and device security.
Built-in technology that resolves sticky client issues and improves performance of mobile Wi-Fi clients.
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1774 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11ax |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Security | |
| Security algorithms | WPA3, WPA, WPA2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | External |
| Antenna connector type | RP-SMA |
| Number of connectors | 2 |
| Certificates | |
| Compliance certificates | Low Voltage Directive (LVD) |
| Certification | None |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 161 mm |
| Height | 37 mm |
| Weight | 500 g |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Storage relative humidity (H-H) | 5 - 93% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
