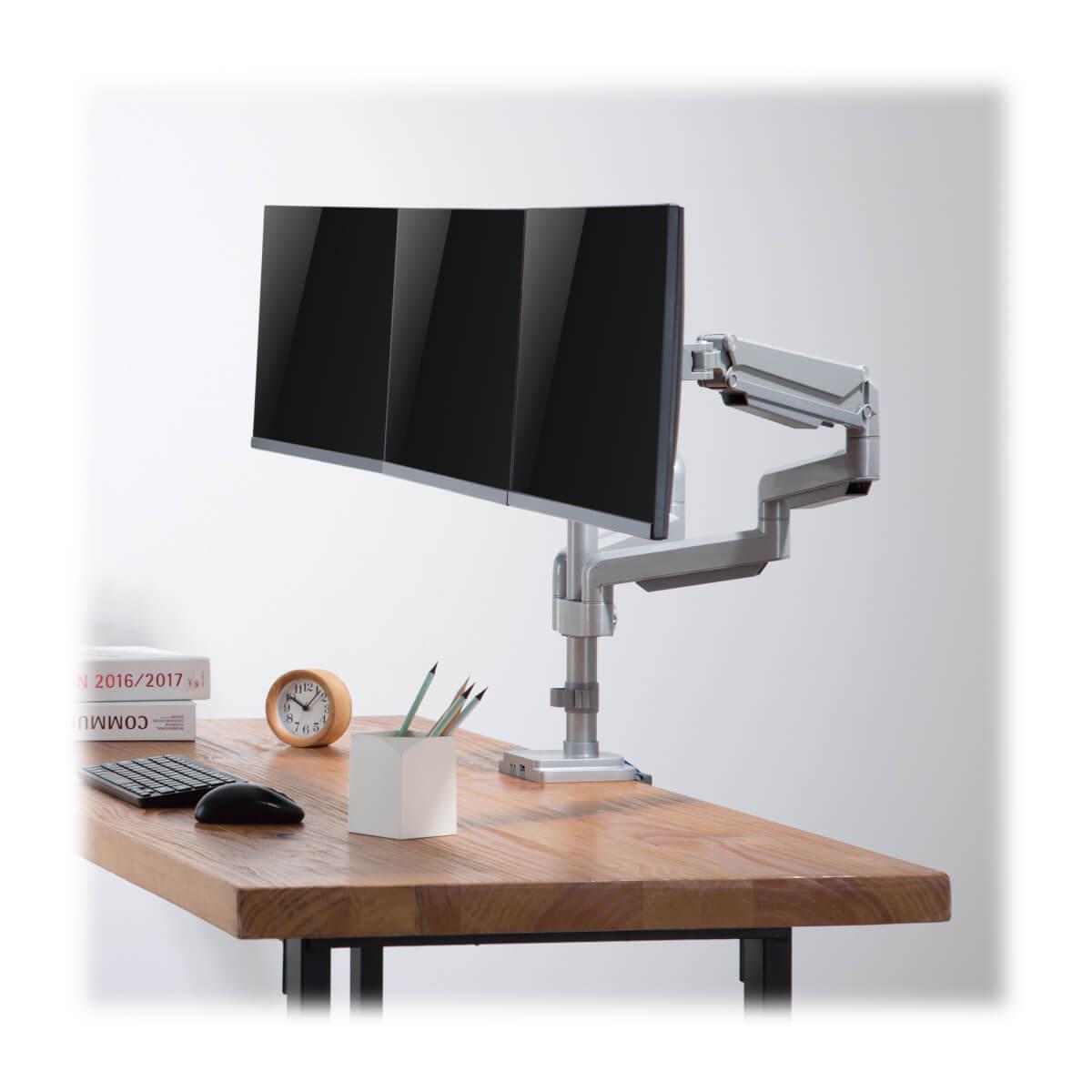

Rugged Aluminum Desk Clamp Lifts Your Monitors Above Your Work Area’s Surface

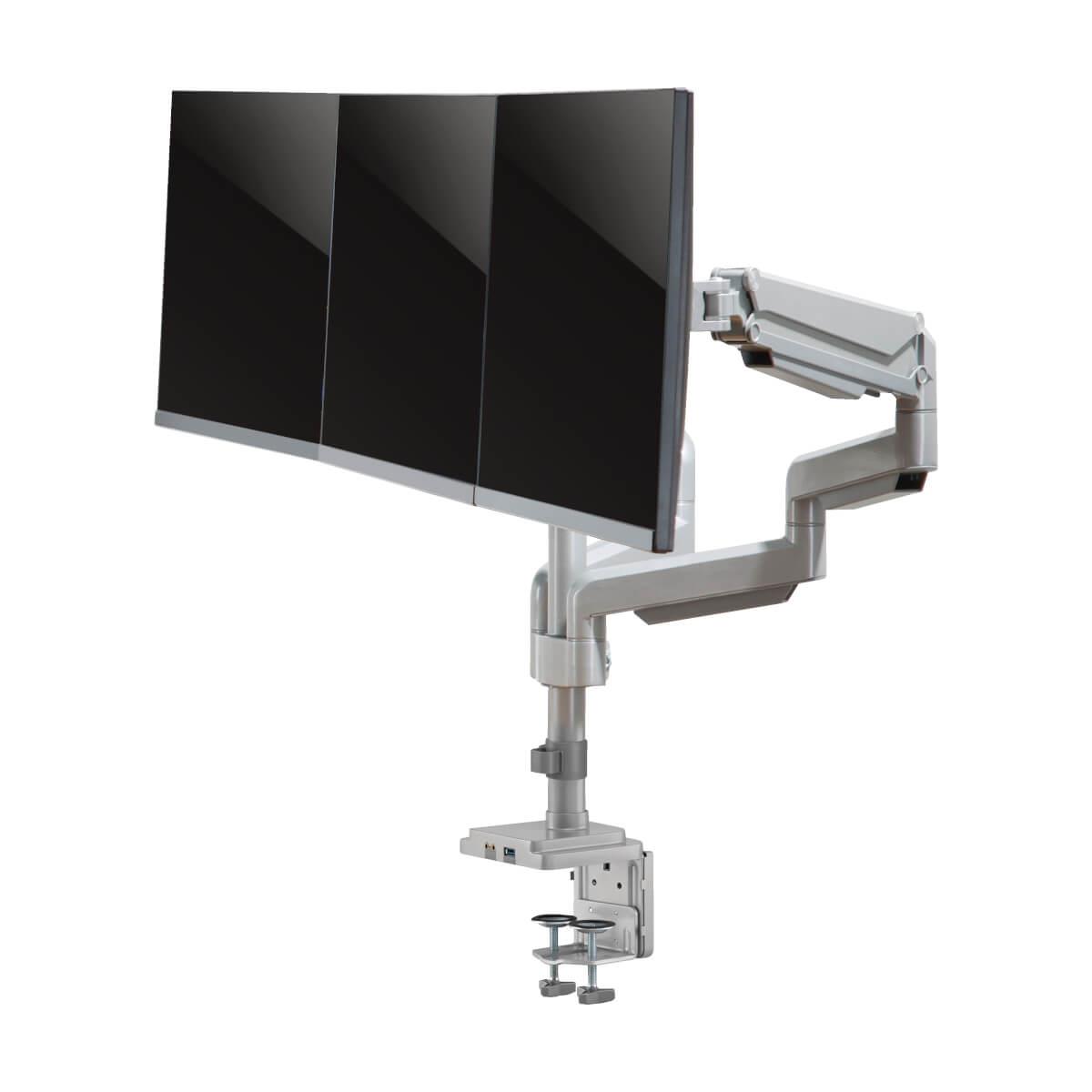

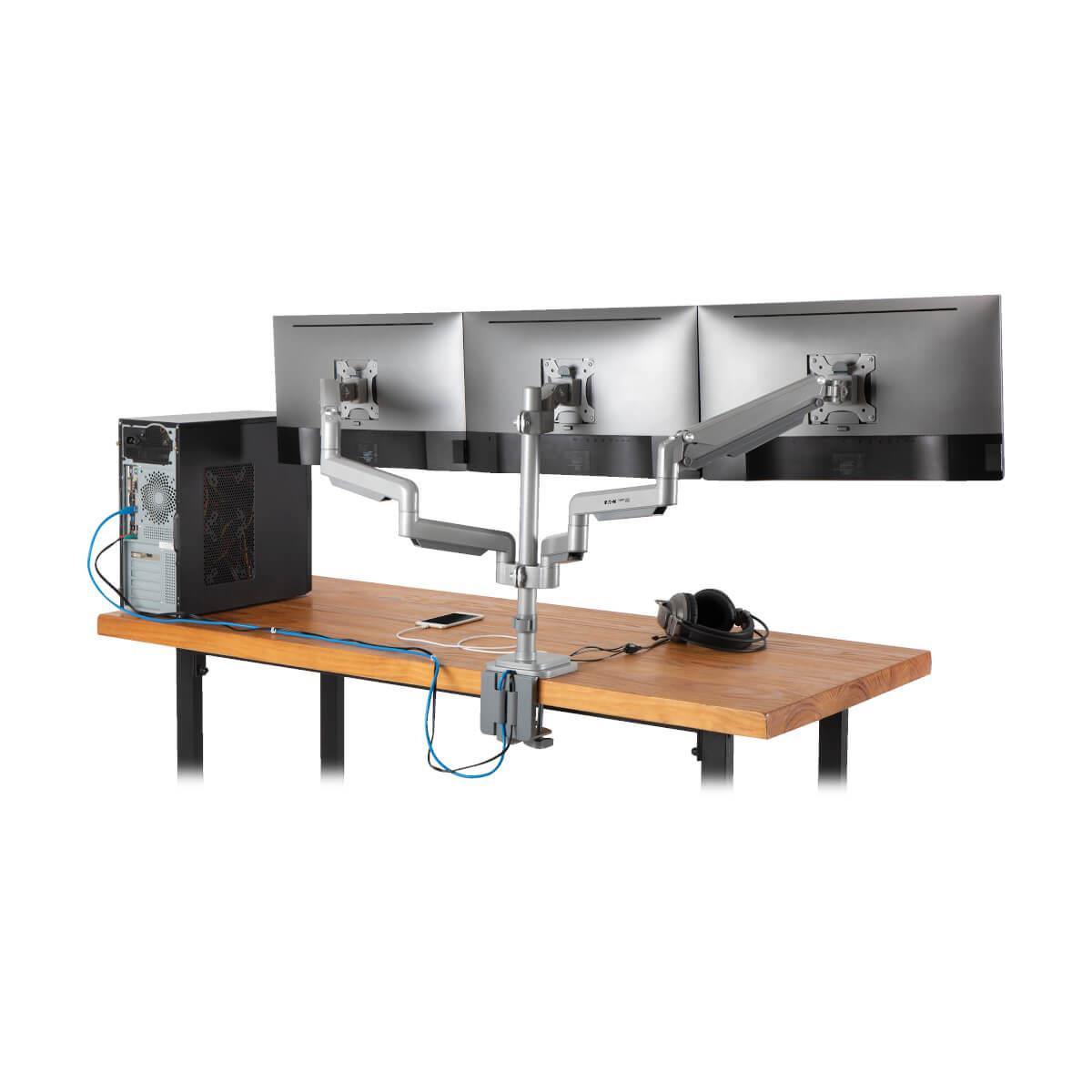

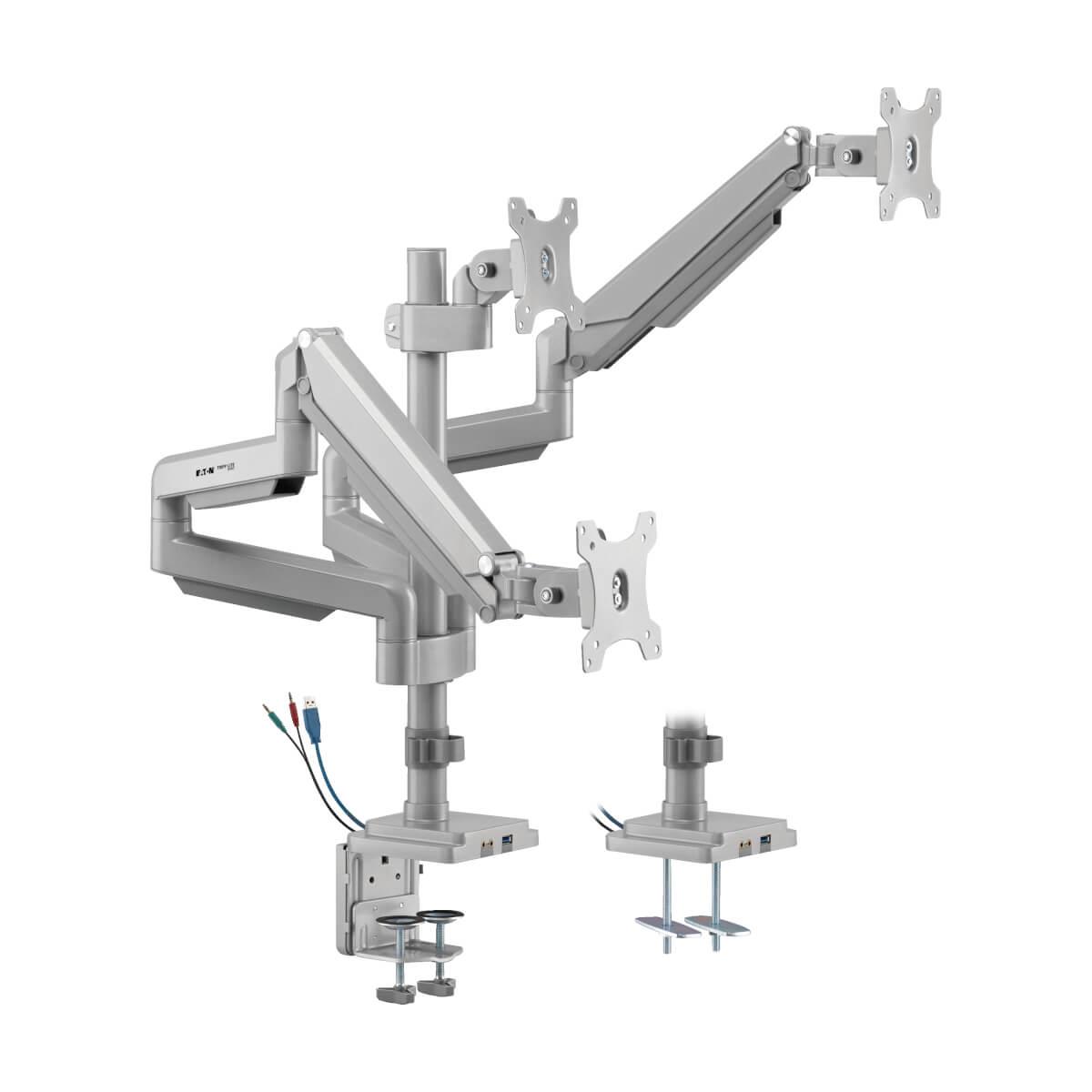

This VESA-compliant desktop clamp or grommet mounts three flat-screen displays above your desk, table or workstation, allowing you to free up valuable surface space. Recommended for home or office use, the DDR1730TAL fits most flat-panel monitors from 17 to 30 inches. The durable aluminum frame tolerates frequent adjustments, and the two swiveling aluminum arms support up to 15.4 pounds apiece. Instead of clamping the unit to your desktop, you may install it using the included grommet. All hardware is included. Cable management brackets along the arms prevent excess cord clutter.

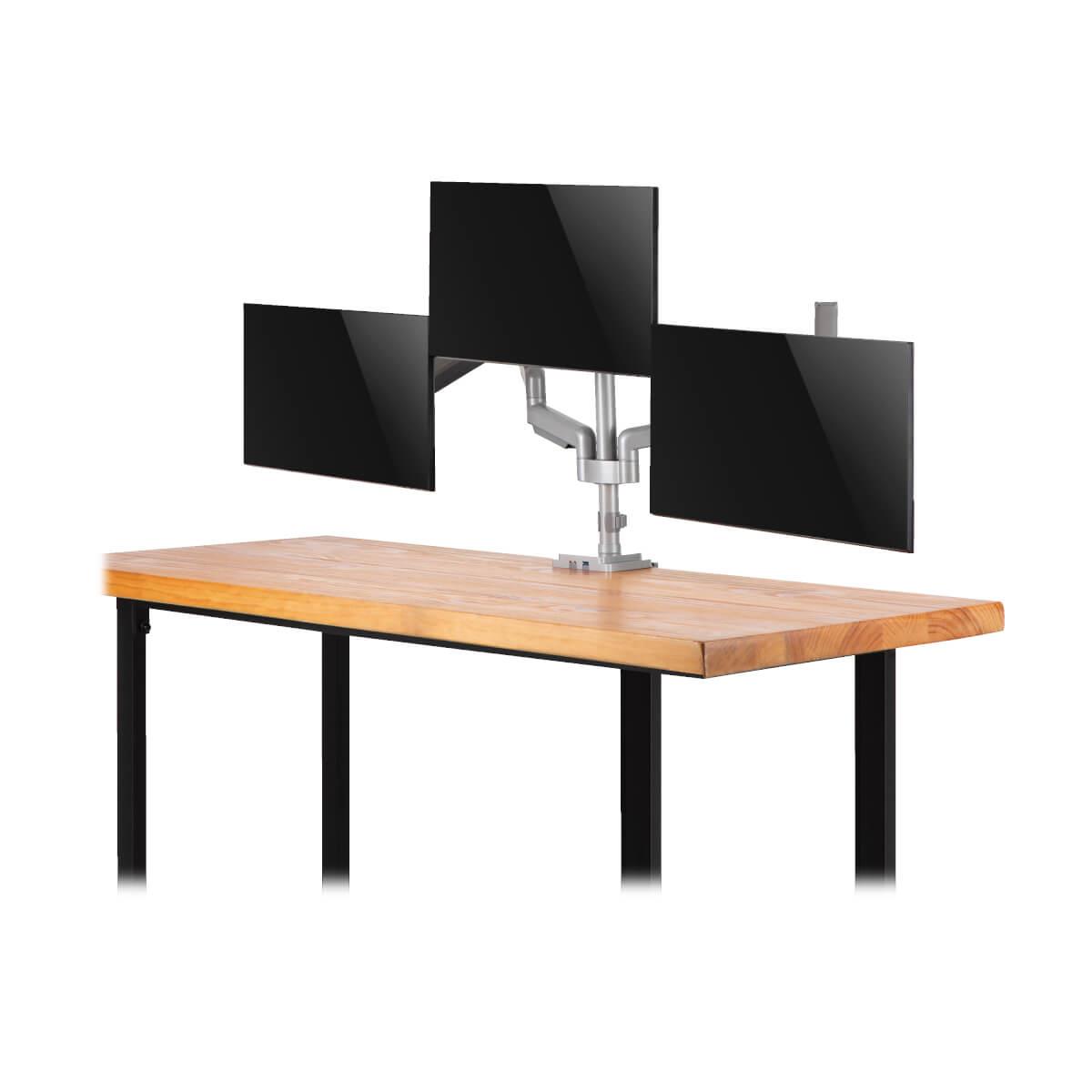

Swivel, Tilt and Rotate the Screens to Find the Most Comfortable Viewing Angles

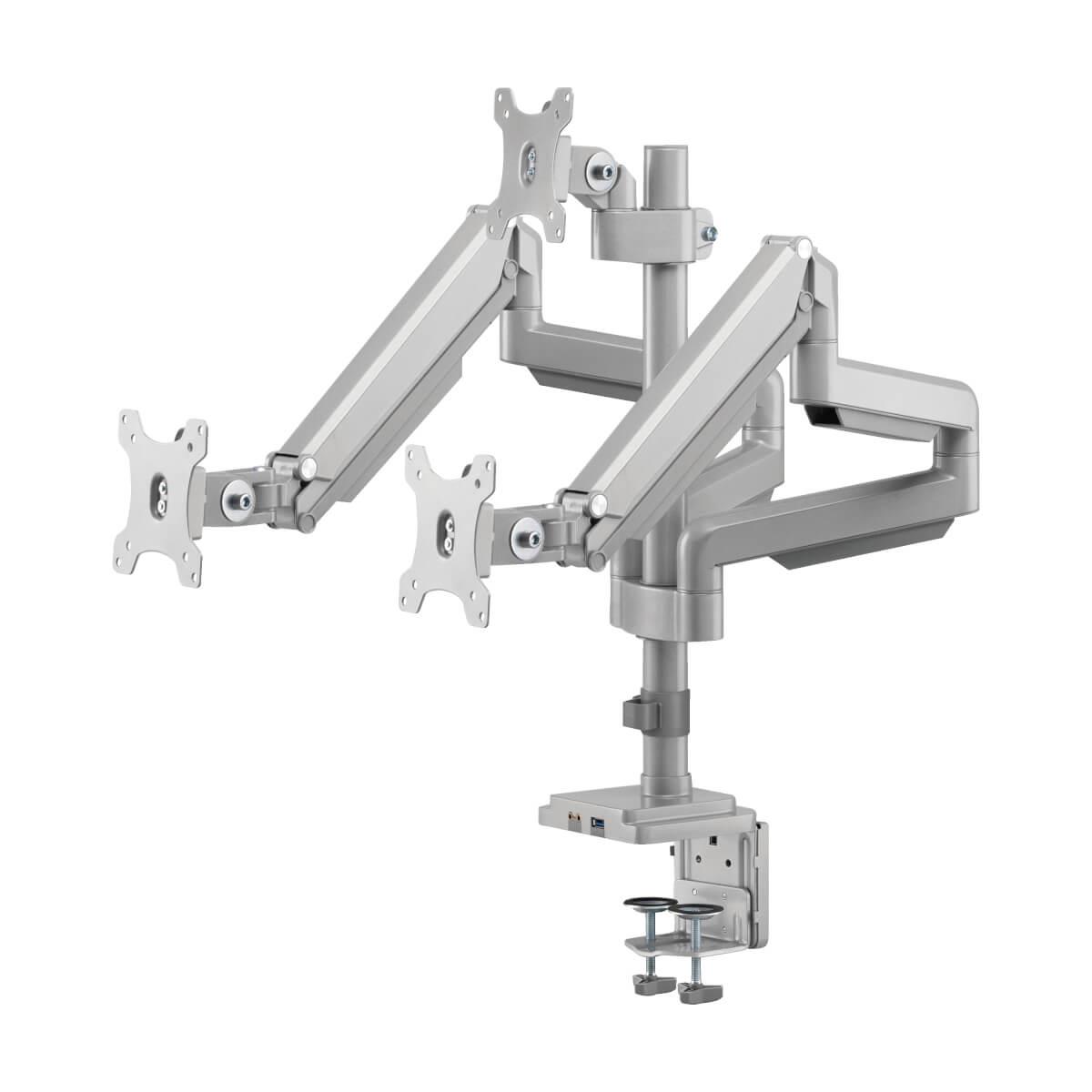

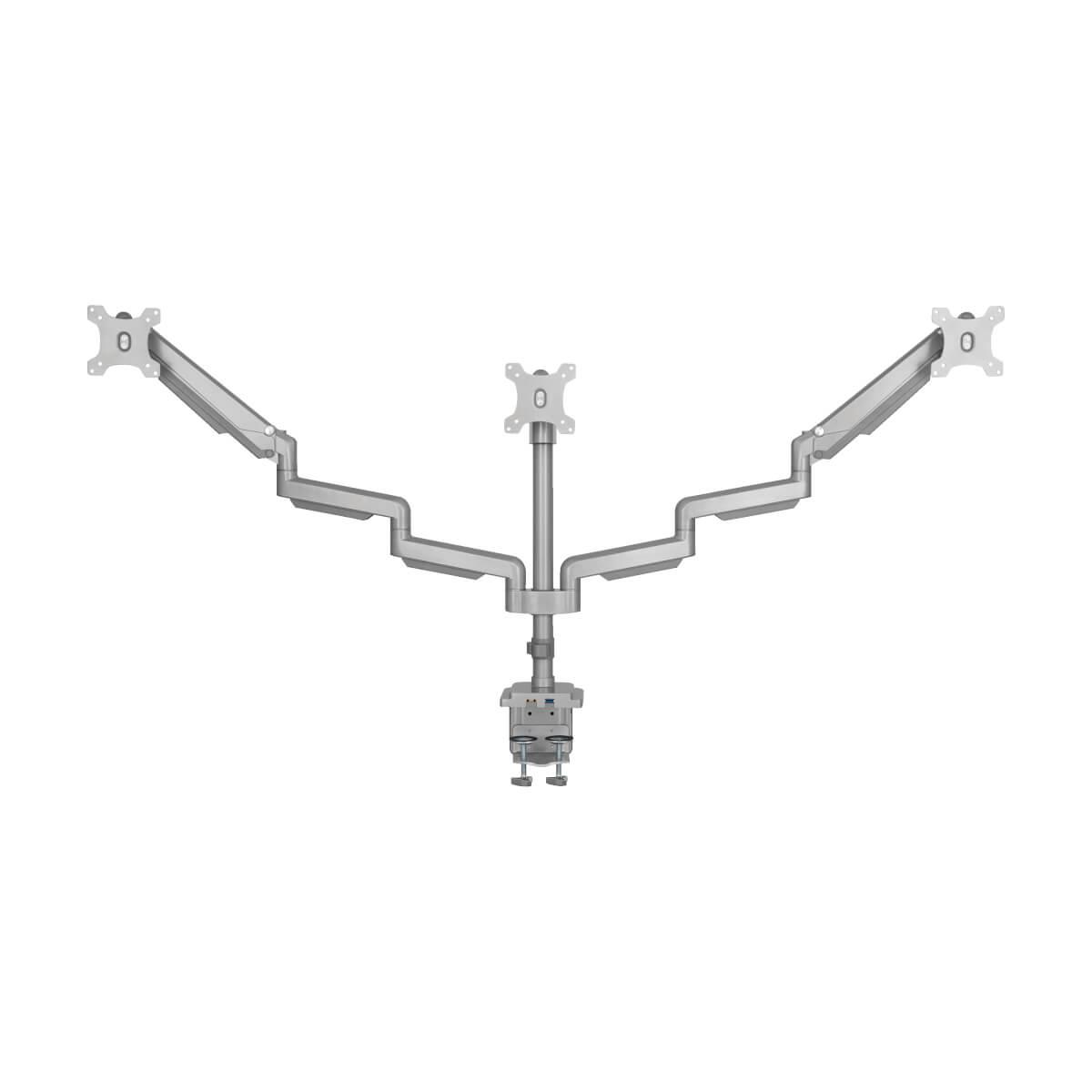

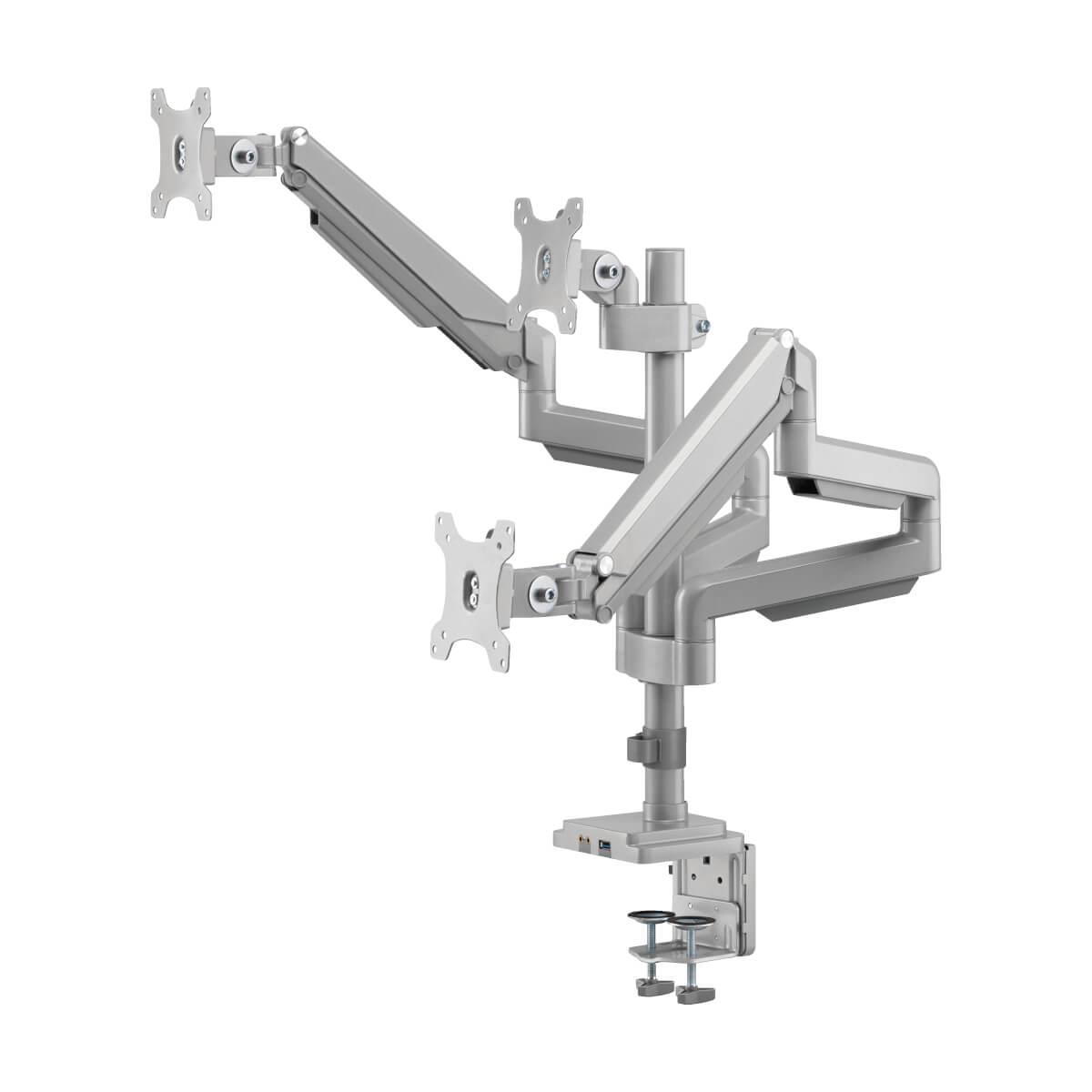

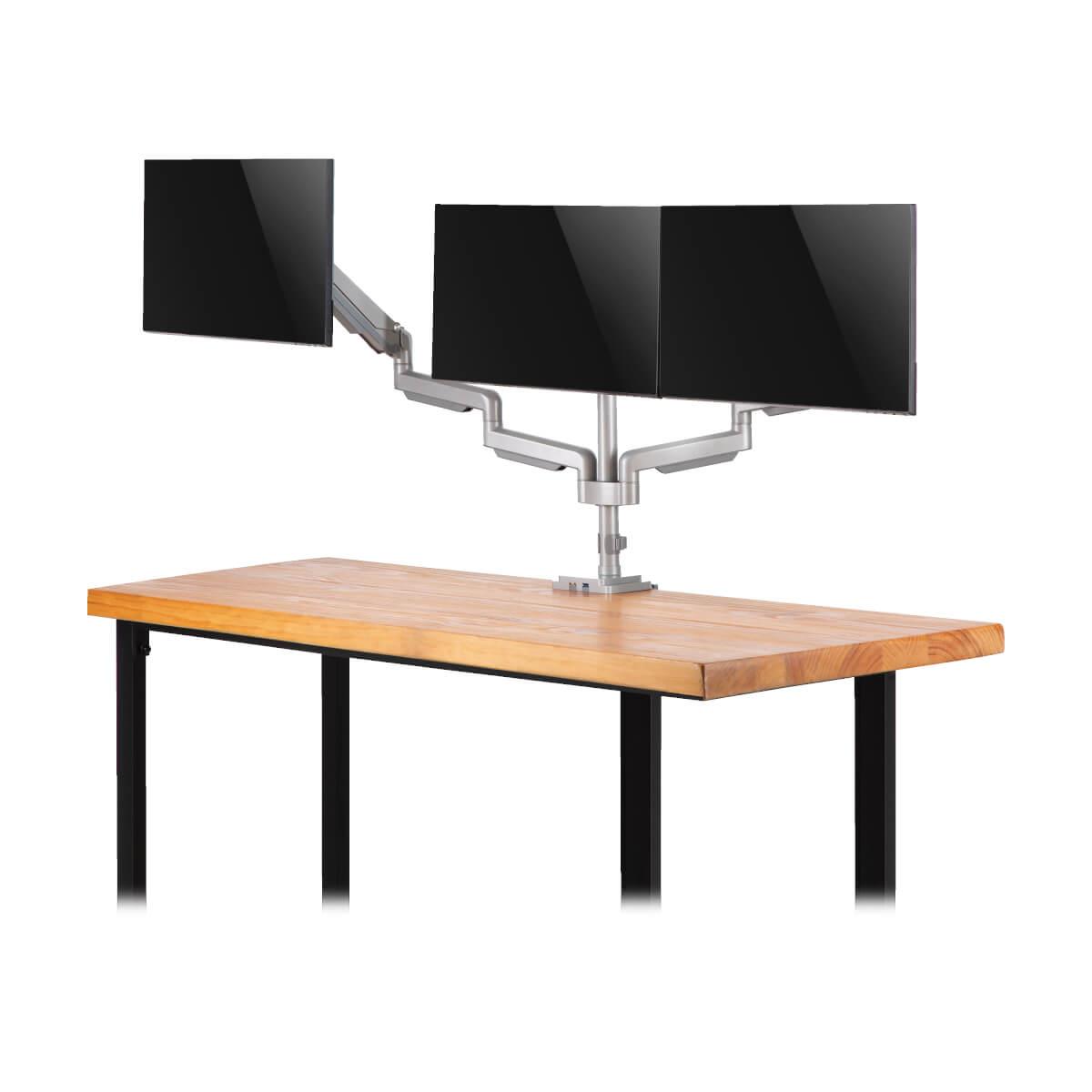

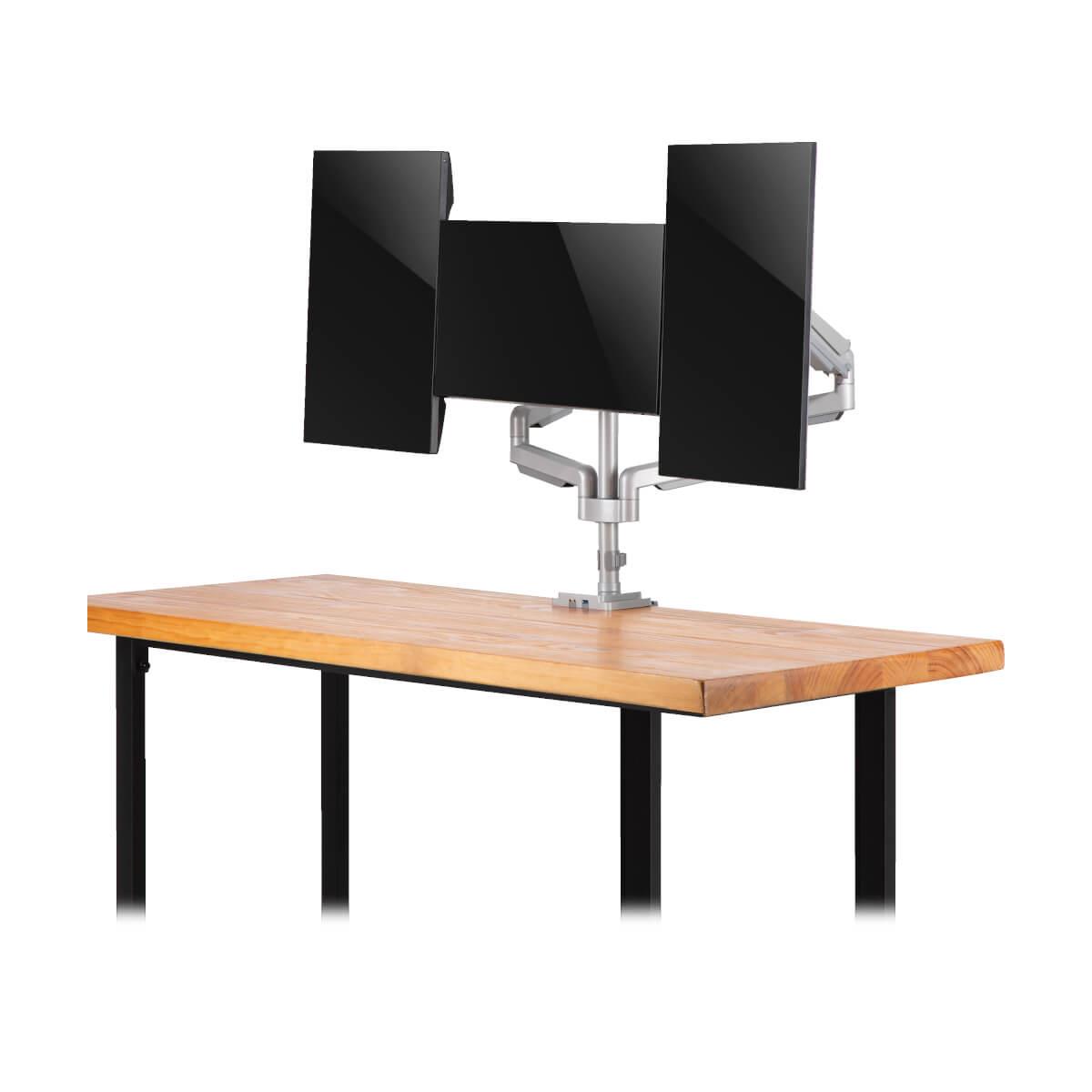

The flex gas-spring arms adjust independently to optimize viewing angles, minimize glare and improve ergonomics. To minimize screen glare, reduce eye fatigue and increase viewing comfort, the mount features -90° to +90° tilt, -90° to +90° swivel and 90° rotation for positioning your screens. Easy screen adjustment lets you quickly find just the right angles without interrupting your workday.

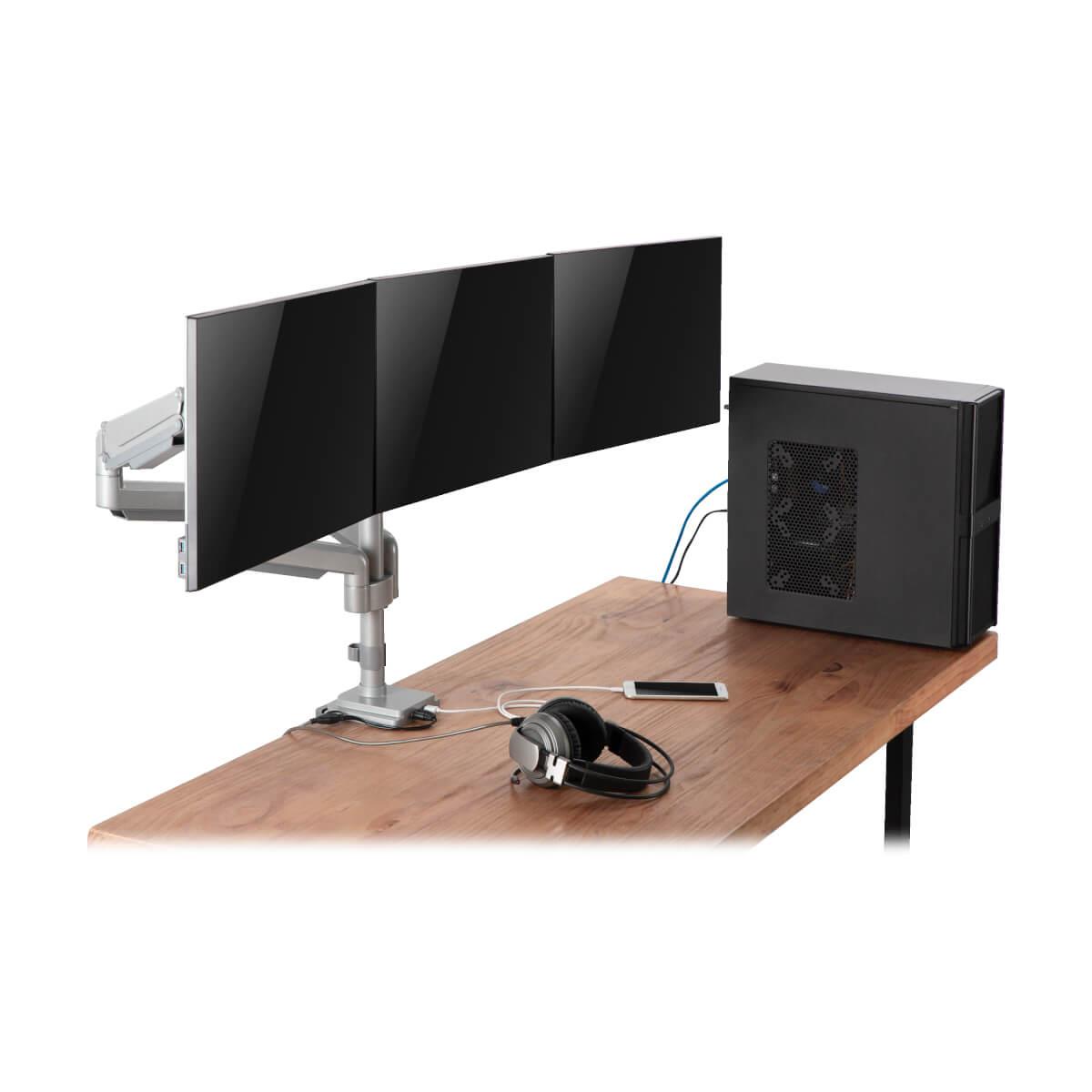

Connect Your Favorite Devices to Help You Get Through the Workday

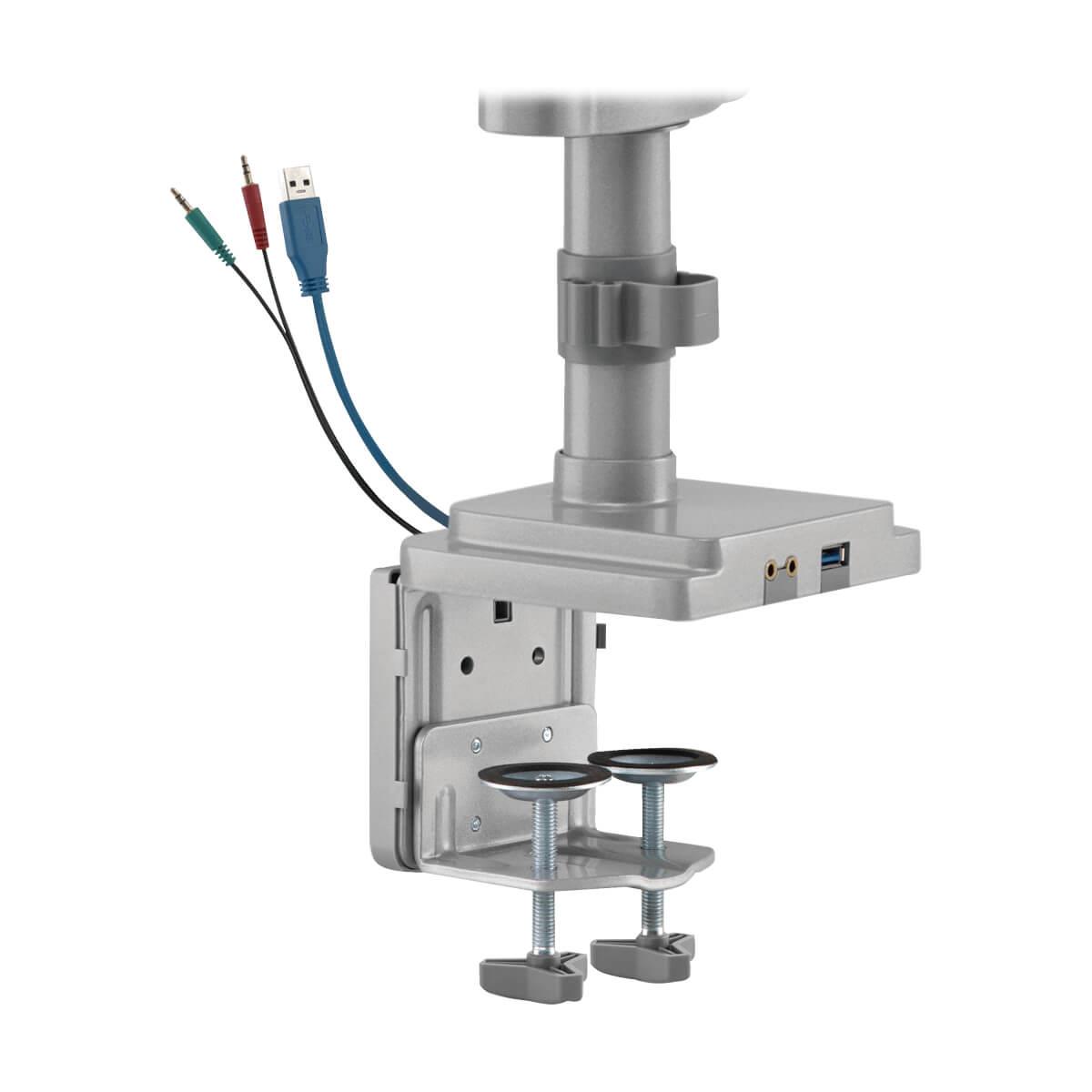

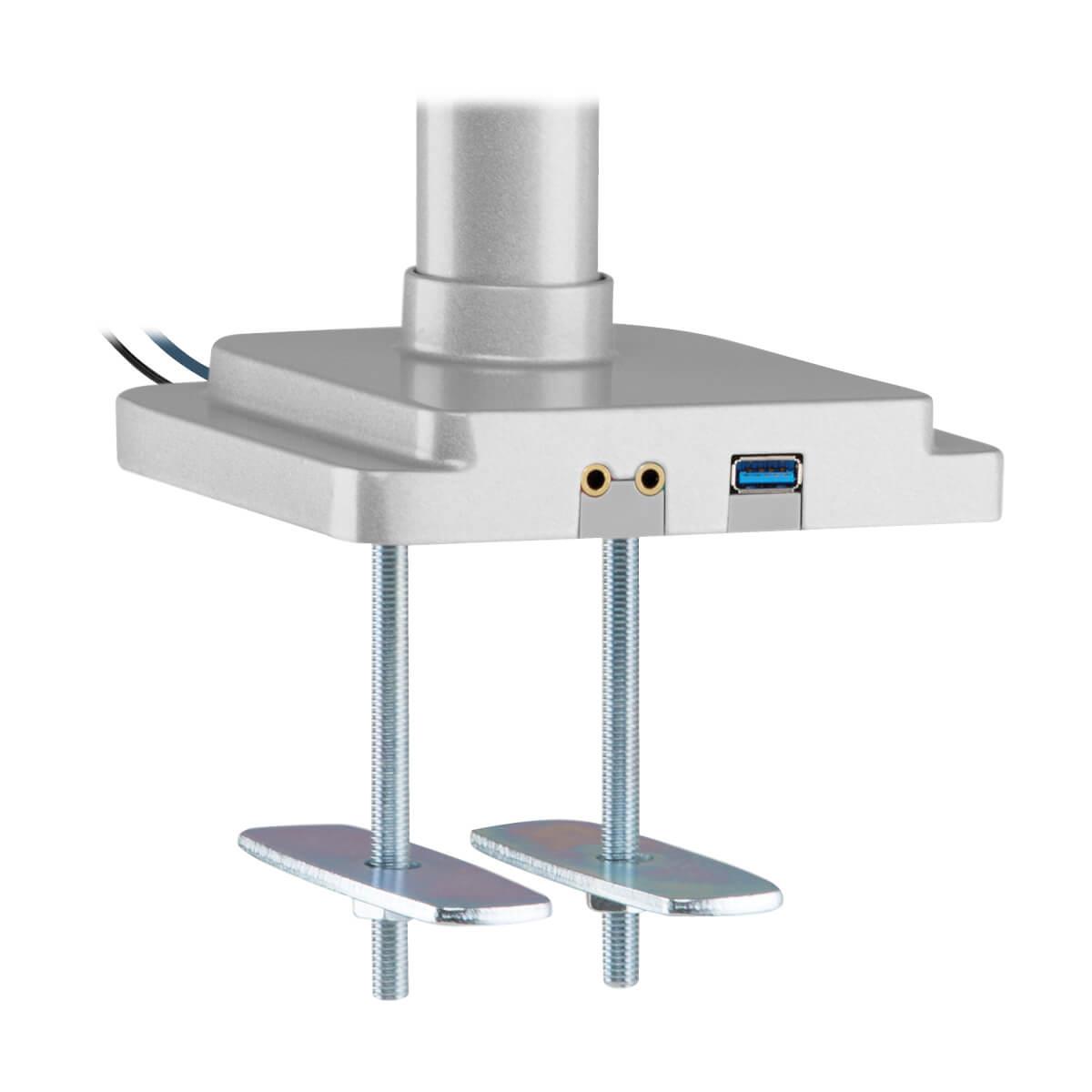

The base of the DDR1730TAL features a USB 3.0 port for connecting a smartphone, tablet or other USB device. Two 3.5 mm audio jacks allow connection of a microphone and speakers.
VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this monitor stand supports the following VESA mounting hole patterns: 75 x 75 and 100 x 100.
| Mounting | |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 21 kg |
| Maximum weight capacity (per display) | 7 kg |
| Maximum screen size | 76.2 cm (30") |
| Mounting | Clamp/Bolt-through |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 3 |
| Ergonomics | |
| Height adjustment | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -90 - 90ø |
| Swivel angle range | -90 - 90ø |
| Angle of rotation | 90ø |
| Cable management | Yes |
| Design | |
| Housing material | Aluminium, Steel |
| Product colour | Silver |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Weight & dimensions | |
| Width | 1518.9 mm |
| Depth | 193 mm |
| Height | 739.1 mm |
| Weight | 9.39 kg |
| Warranty | |
| Base Warranty | Non Non |
| Packaging data | |
| Package width | 159 mm |
| Package depth | 403.9 mm |
| Package height | 541 mm |
| Package weight | 10.6 kg |
| Packaging content | |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 520.7 mm |
| Master (outer) case height | 464.8 mm |
| Master (outer) case gross weight | 22.3 kg |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332262513 |
| Country of origin | China |
| Harmonized System (HS) code | 85299097 |
