TRIPP LITE Dual-Display Flex-Arm Mount for 17in to 32in Monitors - Clamp or Grommet, USB, Audio Ports
ITCurry #: 57906957 | Article #: DDR1732DAL-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

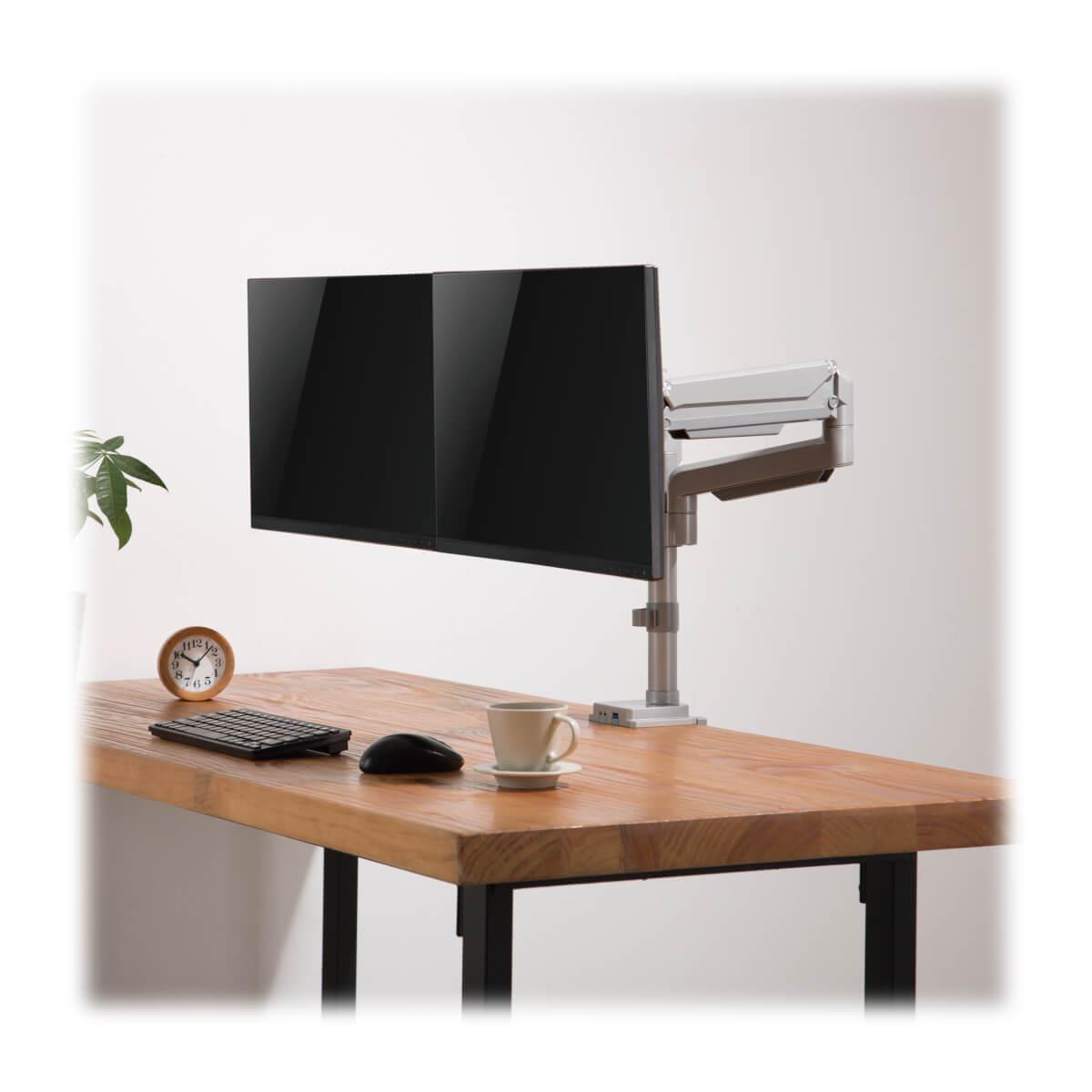

Rugged Aluminum Desk Clamp Lifts Your Monitors Above Your Work Area’s Surface
This VESA-compliant desktop clamp omounts two flat- or curved-screen displays above your desk, table or workstation, allowing you to free up valuable surface space. Recommended for home or office use, the DDR1732DAL will fit most flat- and curved-panel monitors from 13 to 34 inches. The durable aluminum frame tolerates frequent adjustments, and the two swiveling aluminum arms support up to 19.8 pounds (8.9 kg) apiece. Instead of clamping the unit to your desktop, you may install it using the included grommet. All hardware is included.

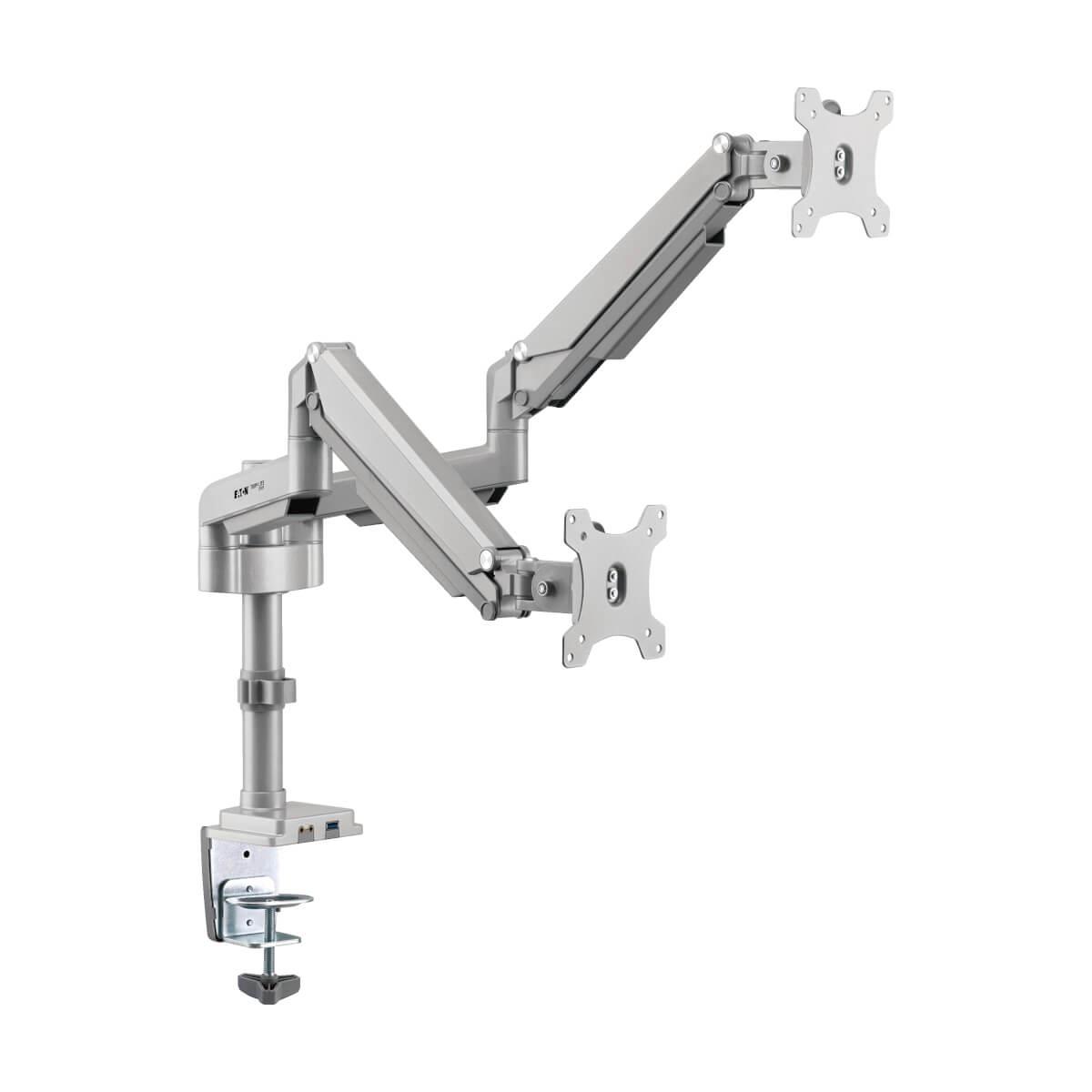

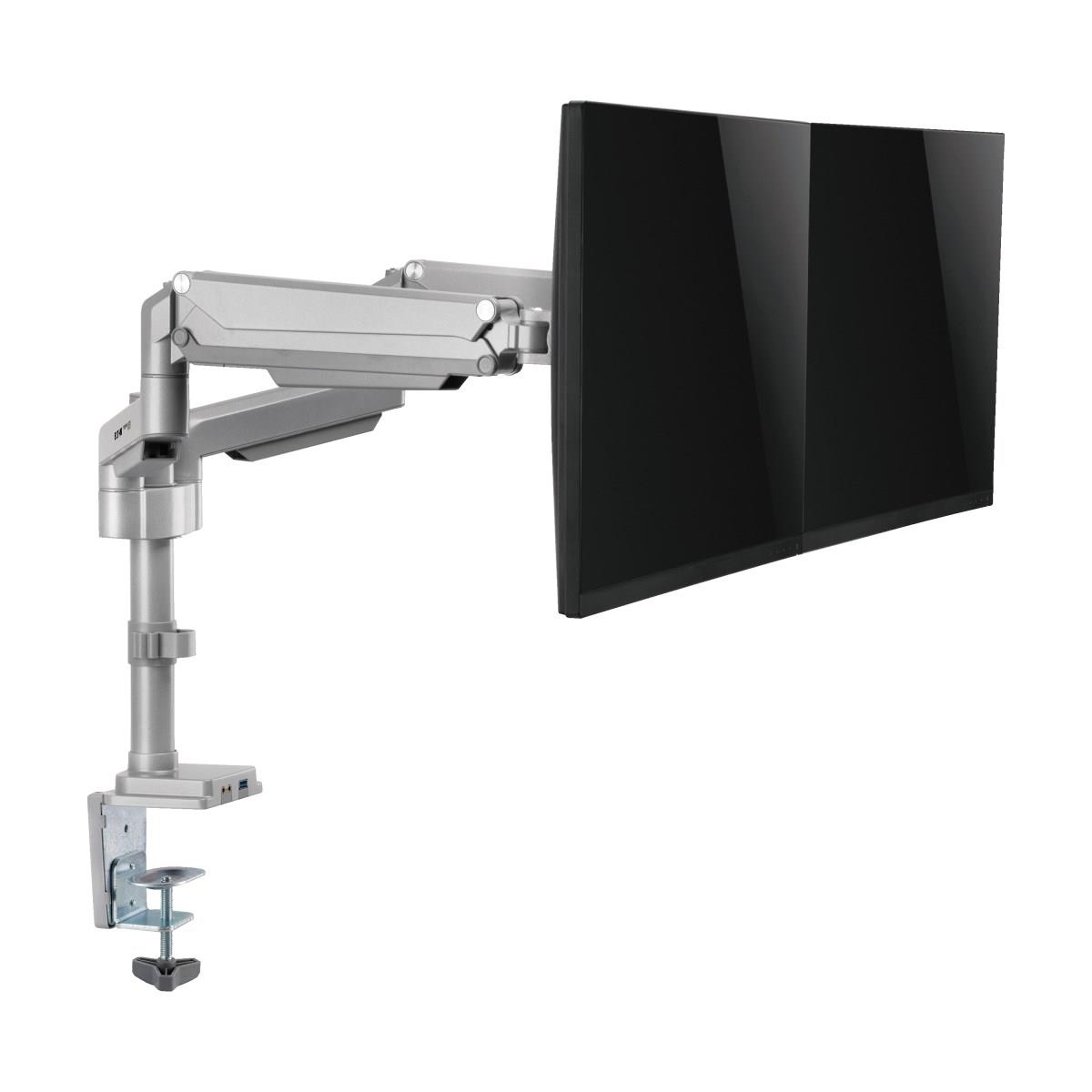

Swivel, Tilt and Rotate the Dual Screens to Find the Most Comfortable Viewing Angles
The premium gas arm adjust independently to optimize viewing angles, minimize glare and improve ergonomics. To minimize screen glare, reduce eye fatigue and increase viewing comfort, the mount features -90° to +90° tilt, -90° to +90° swivel and 90° rotation for positioning your screens. Easy screen adjustment lets you quickly find just the right angles without interrupting your workday.

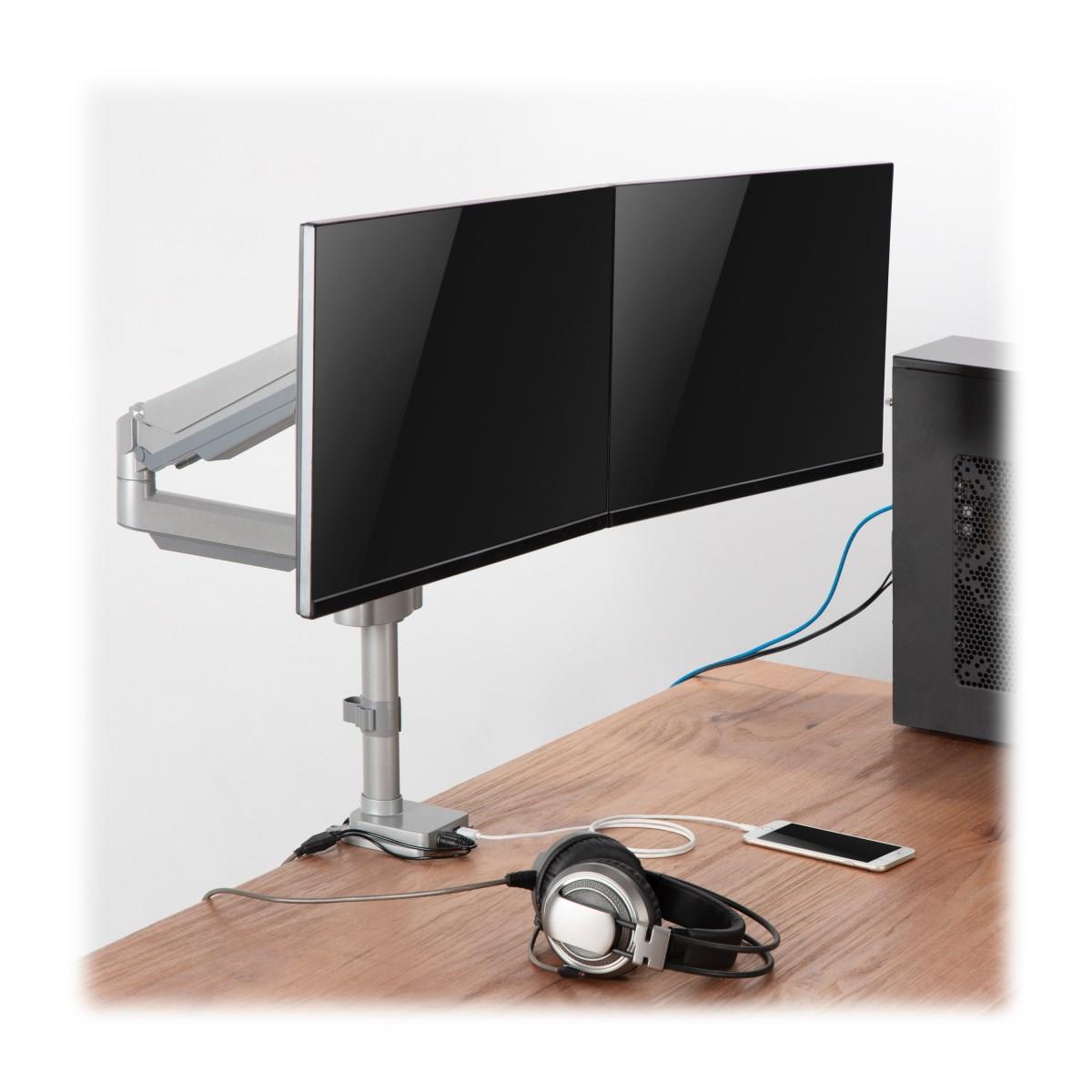

Connect Your Favorite Devices to Help You Get Through the Workday

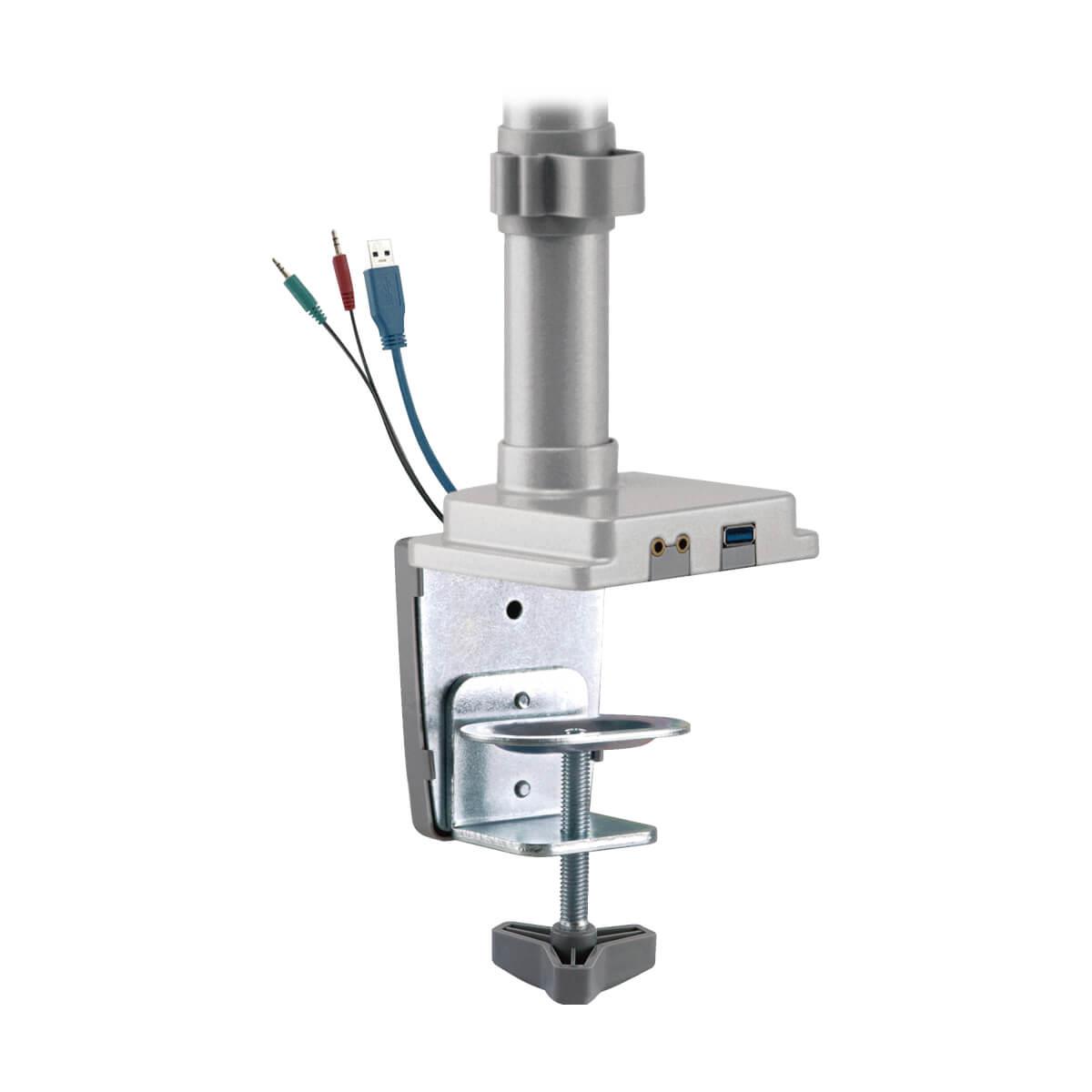

The base of the DDR1732DAL features a USB 3.0 port for connecting a smartphone or other USB device. Two 3.5 mm audio jacks allow connection of a microphone and speakers.
VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this monitor stand supports the following VESA mounting hole patterns: 75 x 75 and 100 x 100.
| Mounting | |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 18 kg |
| Maximum weight capacity (per display) | 9 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Bolt-through |
| Suitable for TV | Yes |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Ergonomics | |
| Tilt angle range | -90 - 90ø |
| Swivel angle range | -90 - 90ø |
| Angle of rotation | 180ø |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Design | |
| Housing material | Steel |
| Product colour | Silver |
| Weight & dimensions | |
| Width | 561.3 mm |
| Depth | 124.5 mm |
| Height | 325.1 mm |
| Weight | 5.81 kg |
| Package width | 299.7 mm |
| Package depth | 165.1 mm |
| Package height | 447 mm |
| Package weight | 7.26 kg |
| Packaging content | |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 475 mm |
| Master (outer) case length | 325.1 mm |
| Master (outer) case height | 464.8 mm |
| Master (outer) case gross weight | 22 kg |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332262506 |
| Harmonized System (HS) code | 85299097 |
| Other features | |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
