TRIPP LITE Single-Display Flex-Arm Desktop Clamp for 17in to 32in Flat-Screen Displays - USB and Audio Ports, Aluminum
ITCurry #: 57906958 | Article #: DDR1732SAL-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

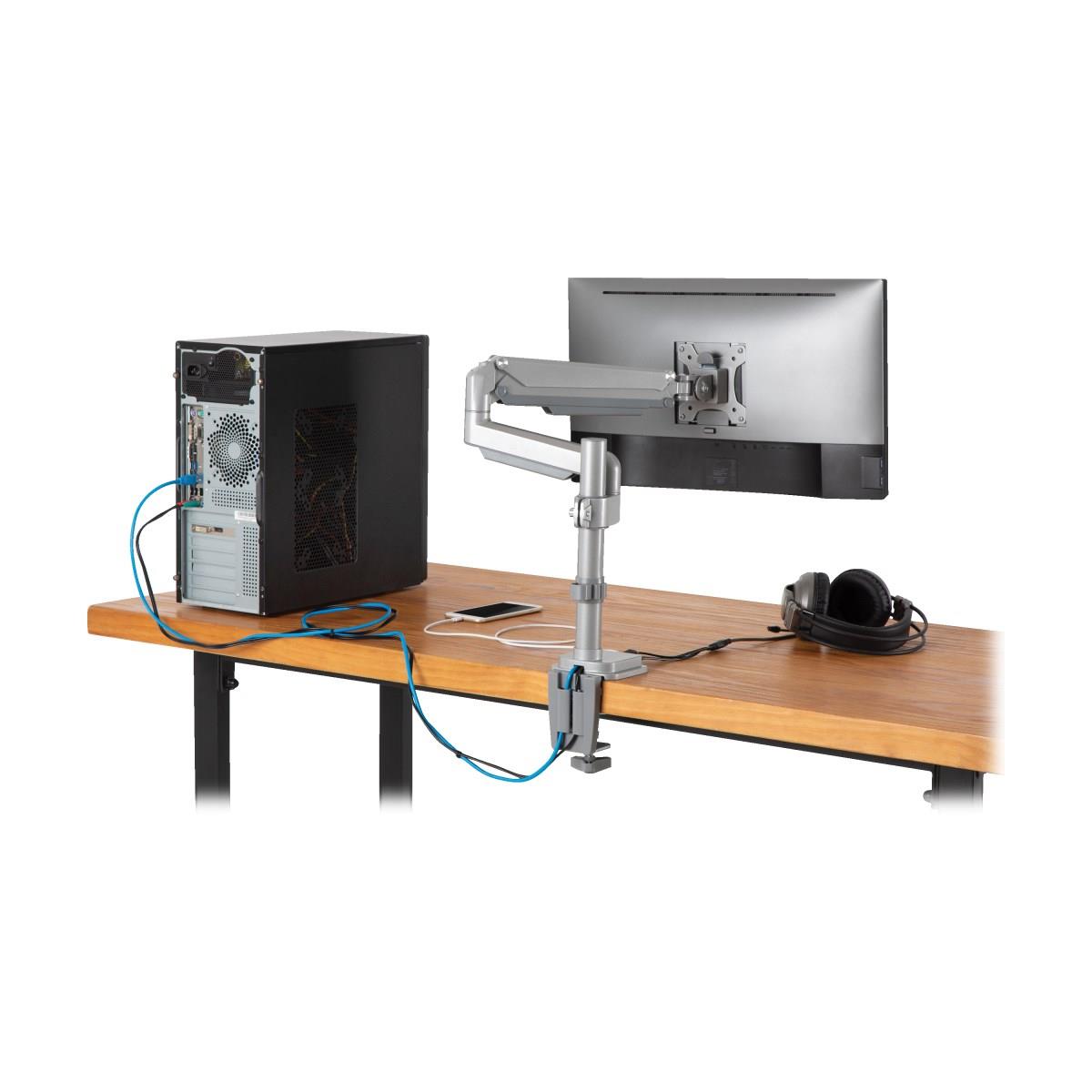

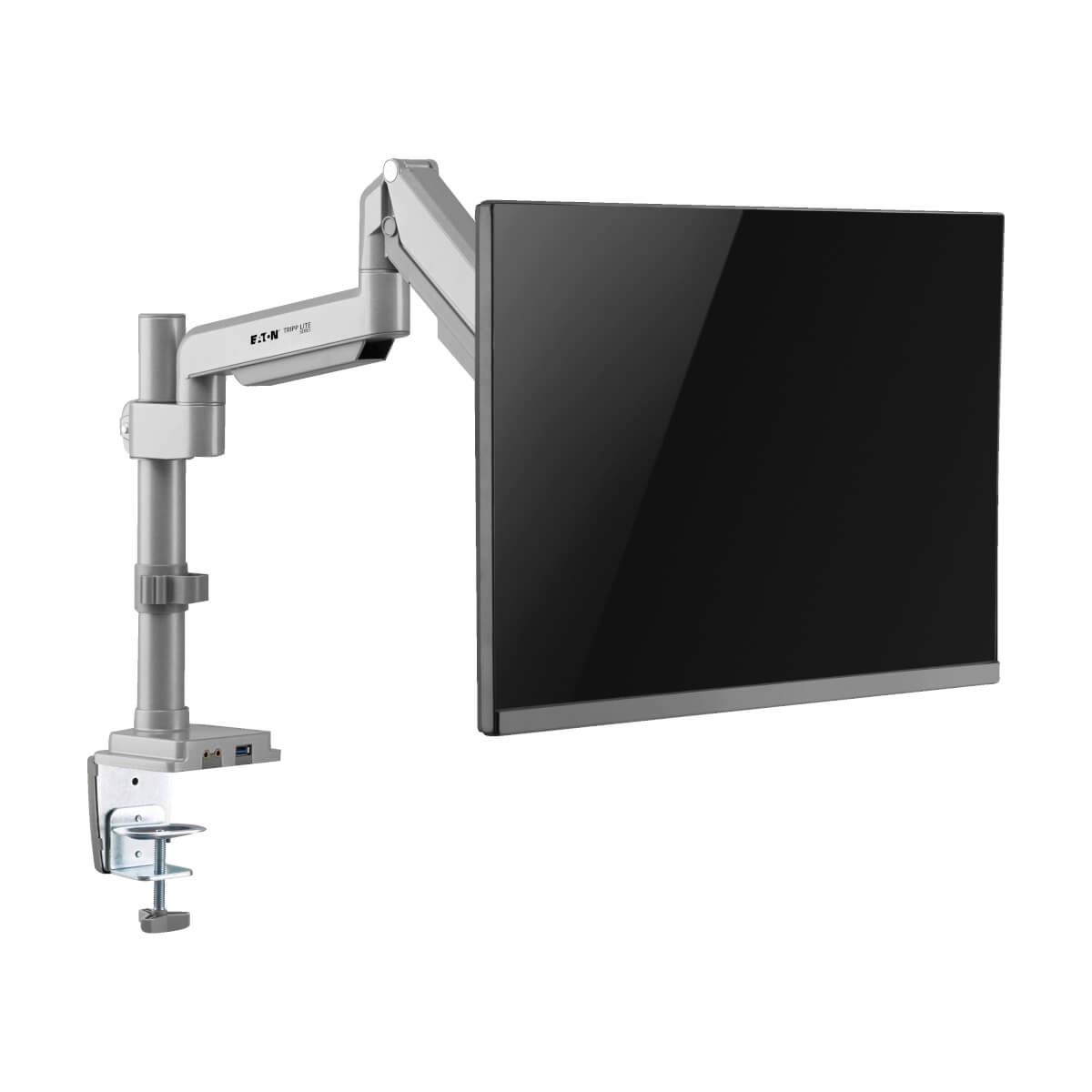

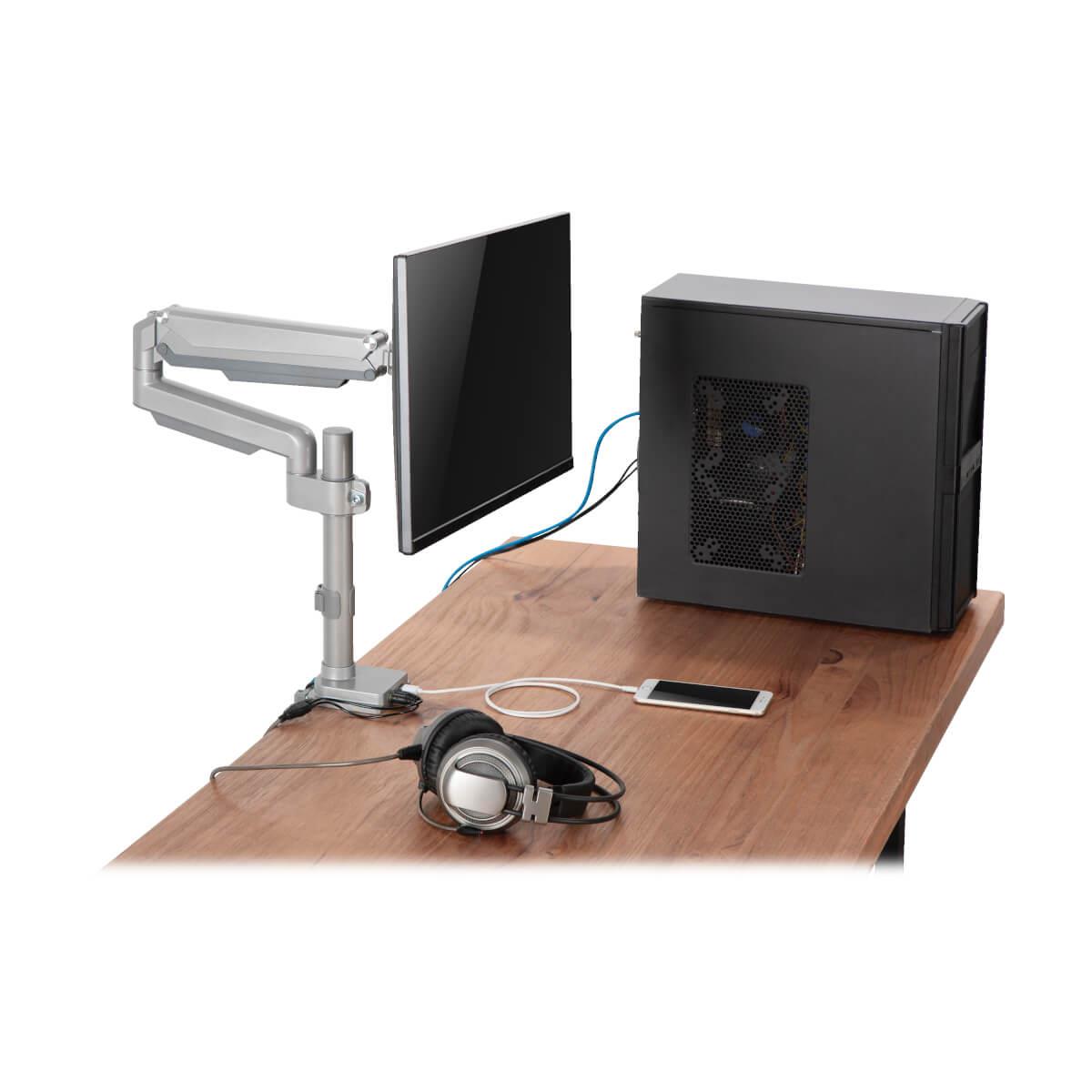

Rugged Aluminum Desk Clamp Lifts Your Monitor Above Your Work Area’s Surface
This VESA-compliant desktop clamp mounts a flat- or curved-screen display above your desk, table or workstation, allowing you to free up valuable surface space. Recommended for home or office use, the DDR1732SAL fits most flat- and curved-panel monitors from 13 to 34 inches. The durable aluminum frame tolerates frequent adjustments, and the swiveling aluminum arm supports up to 19.8 pounds (9 kg). Instead of clamping the unit to your desktop, you may install it using the included grommet. All hardware is included. Cable management brackets along the arms prevent excess cord clutter.
Swivel, Tilt and Rotate the Screens to Find the Most Comfortable Viewing Angles

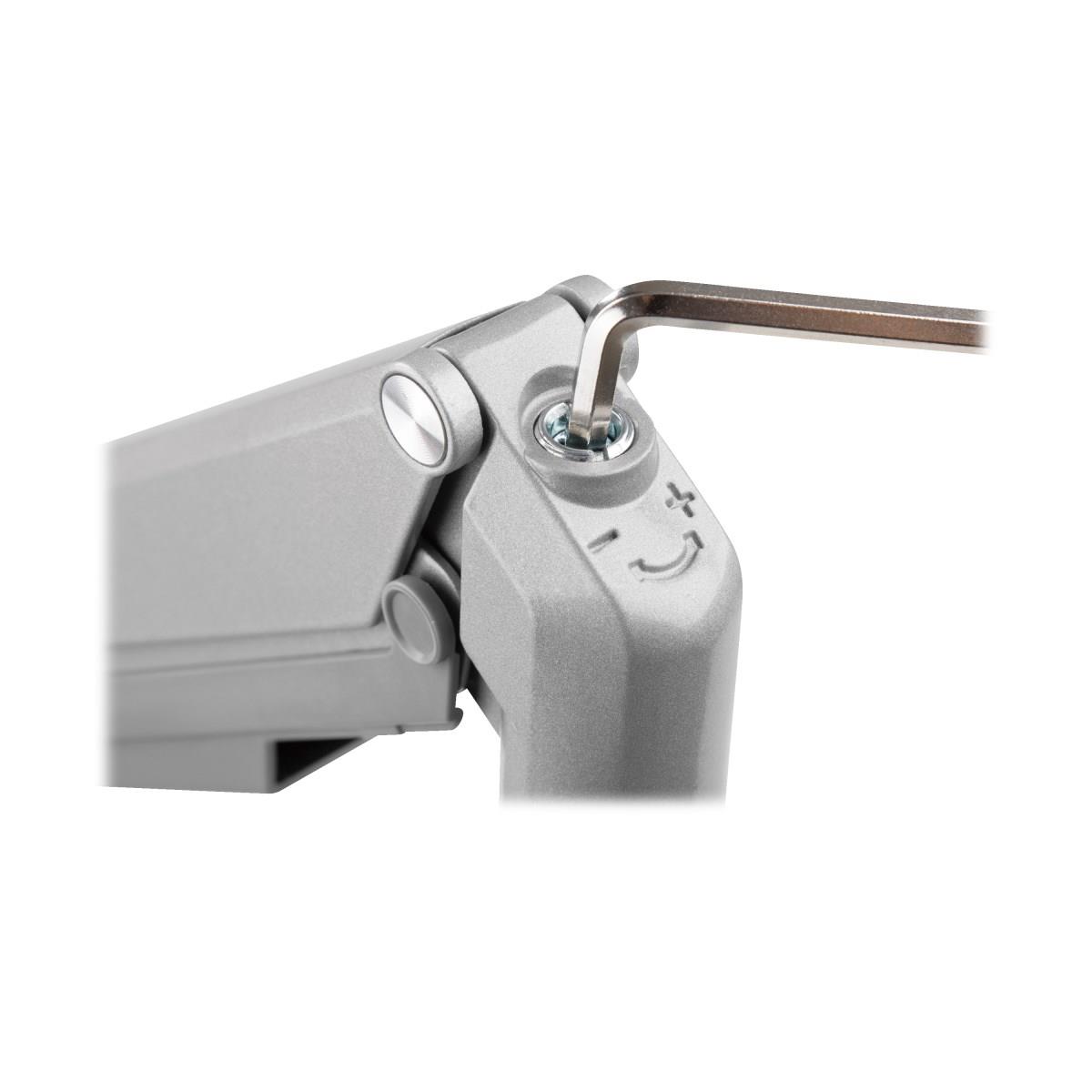

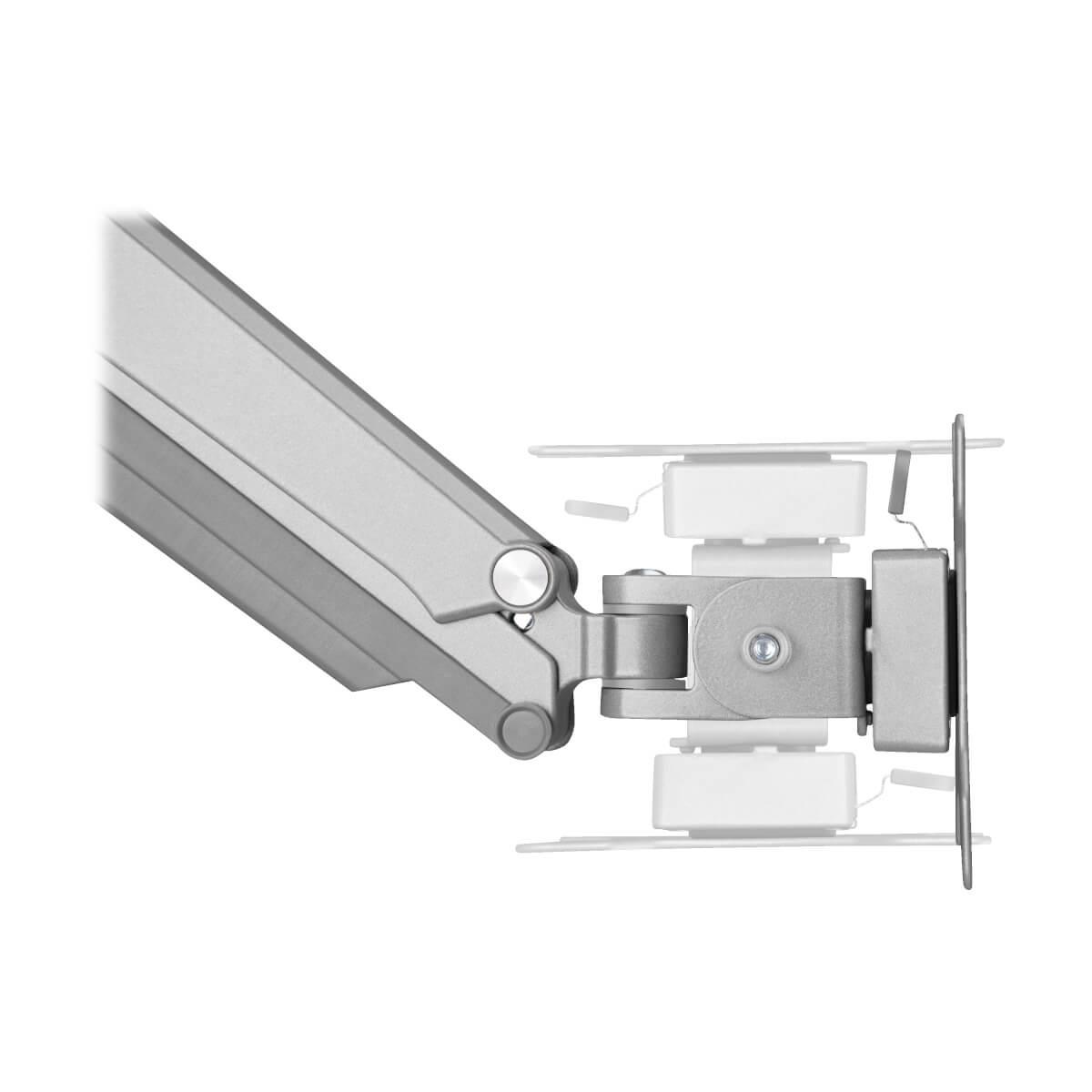

The gas spring arm adjusts independently to optimize viewing angles, minimize glare and improve ergonomics. To minimize screen glare, reduce eye fatigue and increase viewing comfort, the mount features -90° to +90° tilt, -90° to +90° swivel and 90° rotation for positioning your screen. Easy screen adjustment lets you quickly find just the right angle without interrupting your workday.
Connect Your Favorite Devices to Help You Get Through the Workday
The base of the DDR1732SAL features a USB 3.0 port with pass-through charging for connecting a USB mobile device. Two 3.5 mm audio jacks allow connection of a microphone and speakers.

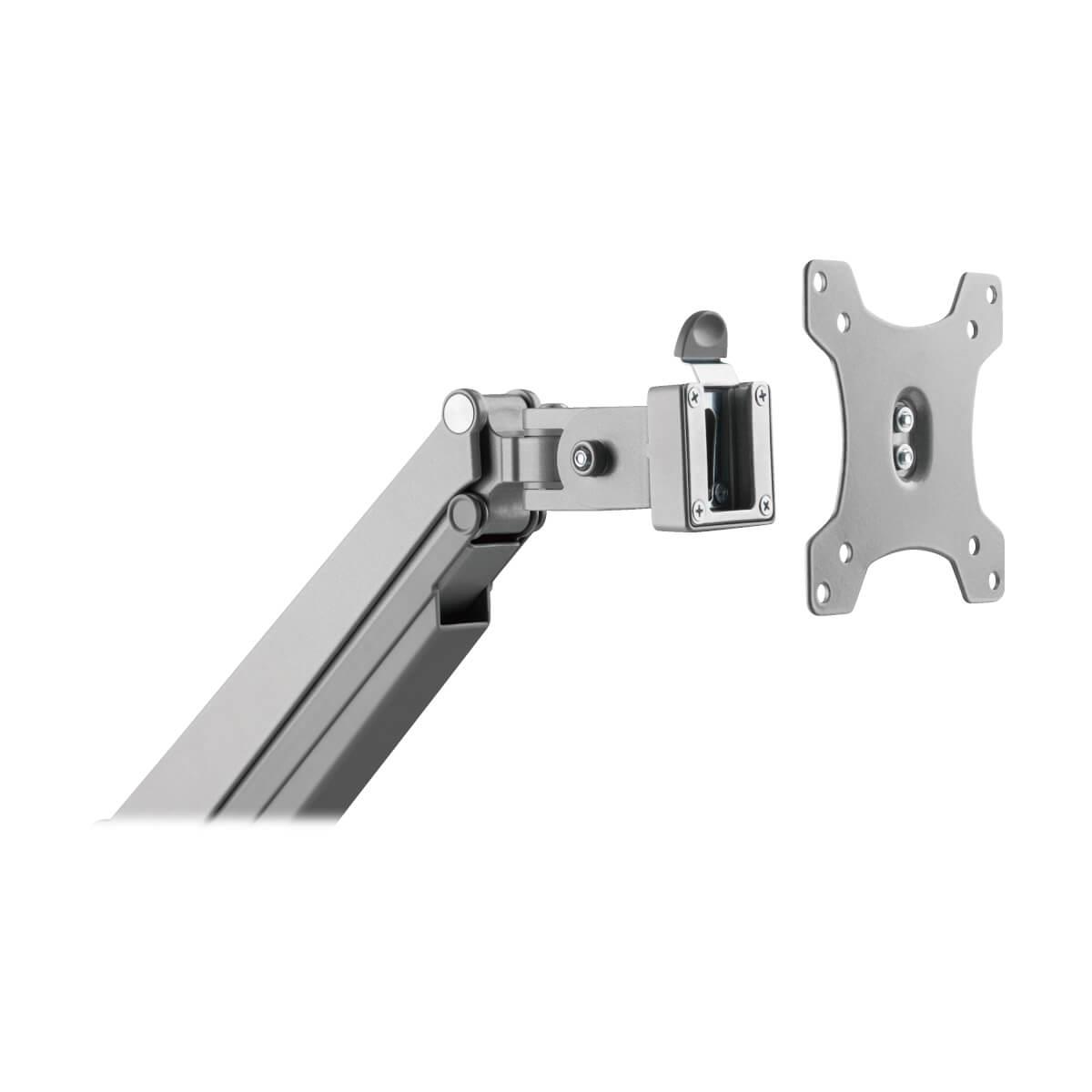

VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this monitor stand supports the following VESA mounting hole patterns: 75 x 75 and 100 x 100.
| Mounting | |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 9 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Bolt-through |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 1 |
| Ergonomics | |
| Height adjustment | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -90 - 90ø |
| Swivel angle range | -90 - 90ø |
| Angle of rotation | 90ø |
| Cable management | Yes |
| Design | |
| Housing material | Aluminium, Steel |
| Product colour | Silver |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Weight & dimensions | |
| Width | 627.4 mm |
| Depth | 114.3 mm |
| Height | 820.4 mm |
| Weight | 3.99 kg |
| Warranty | |
| Base Warranty | Non Non |
| Packaging data | |
| Package width | 447 mm |
| Package depth | 111.8 mm |
| Package height | 464.8 mm |
| Package weight | 4.63 kg |
| Packaging content | |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 464.8 mm |
| Master (outer) case length | 325.1 mm |
| Master (outer) case height | 475 mm |
| Master (outer) case gross weight | 19.5 kg |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332262490 |
| Country of origin | China |
| Harmonized System (HS) code | 85299097 |
