TRIPP LITE SmartRack 6U Vertical Wall-Mount Rack Bracket
ITCurry #: 57905914 | Article #: SRWALLBRKT6U-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

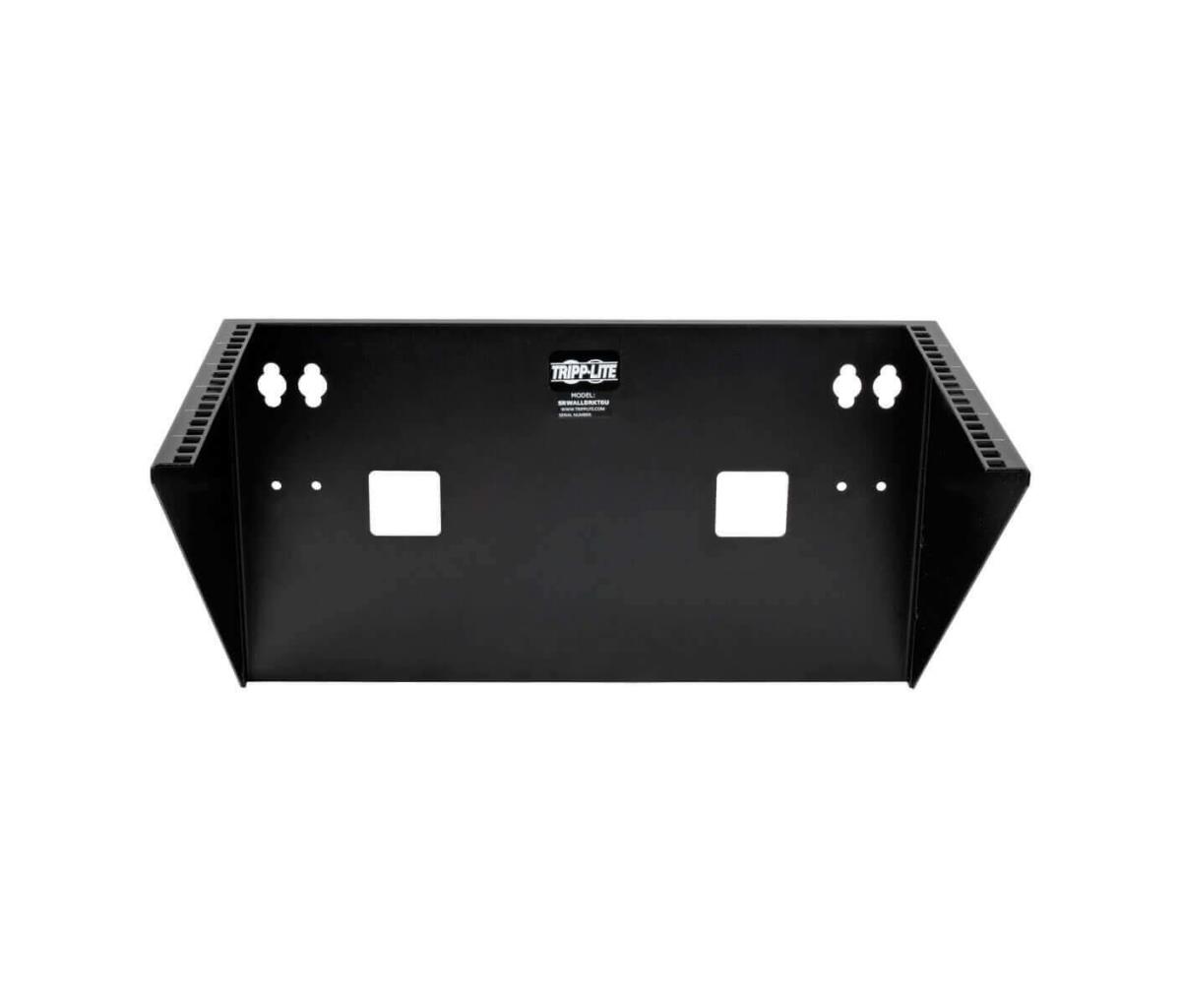

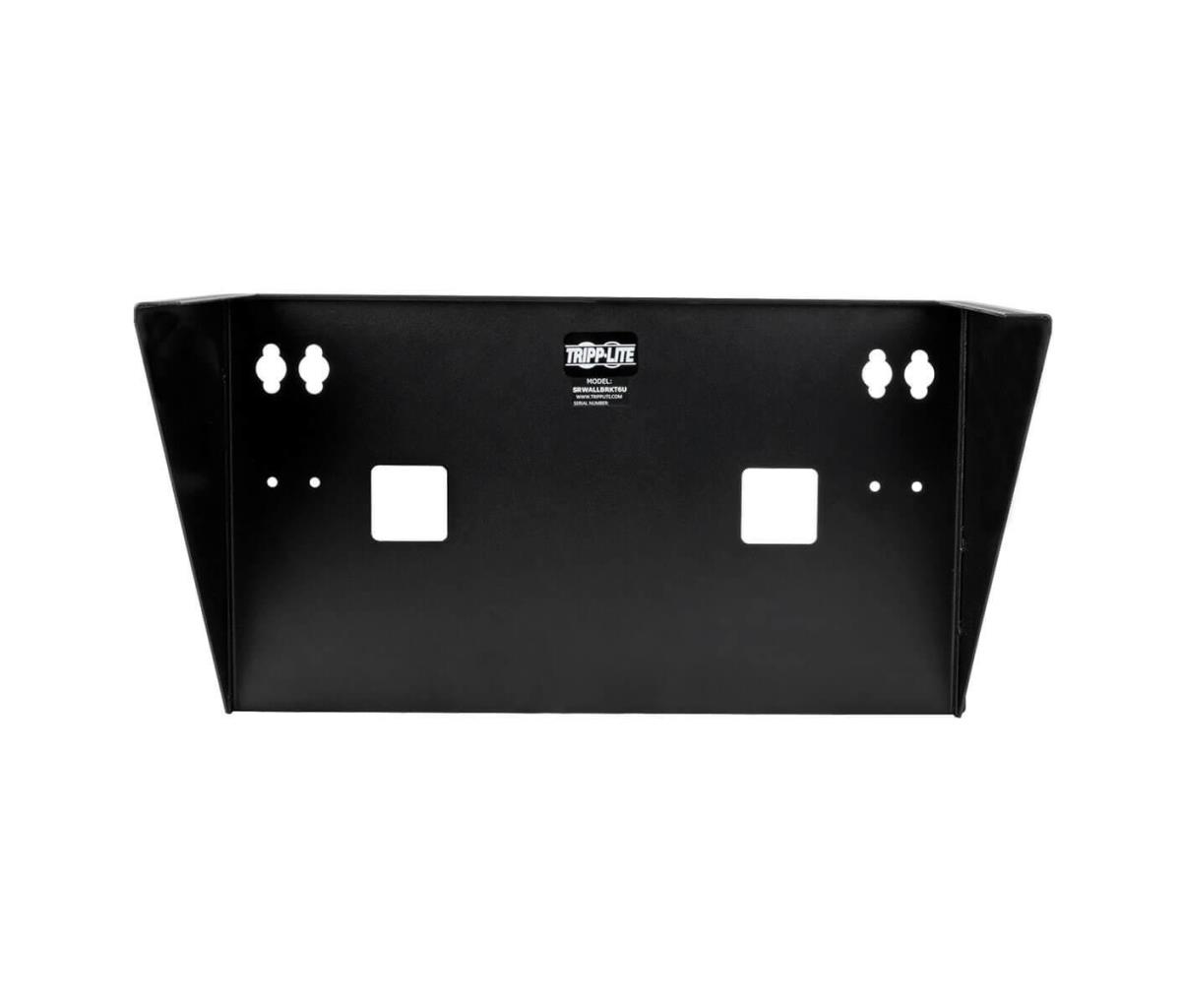

The SRWALLBRKT6U SmartRack® 6U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19-inch server rack.

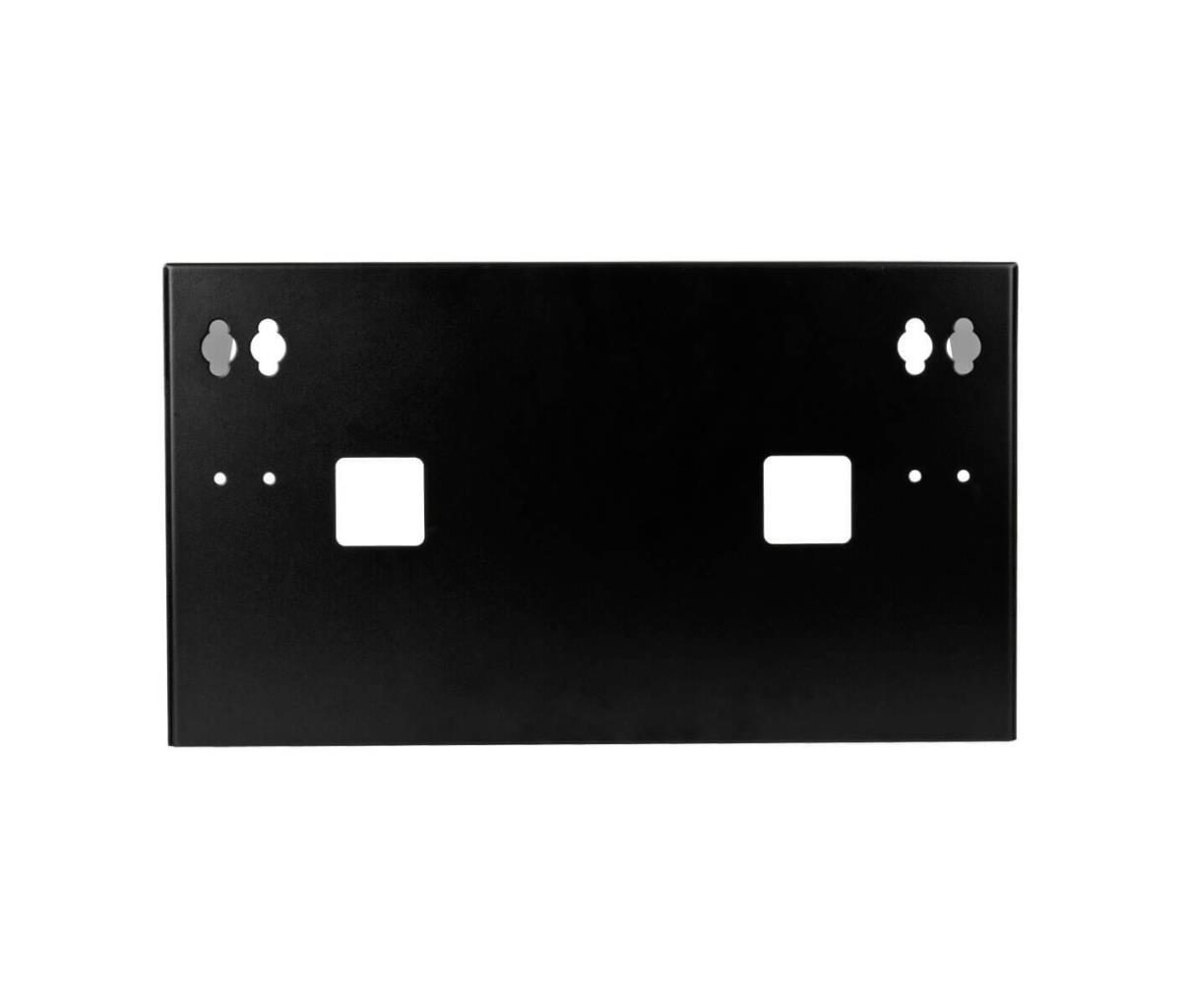

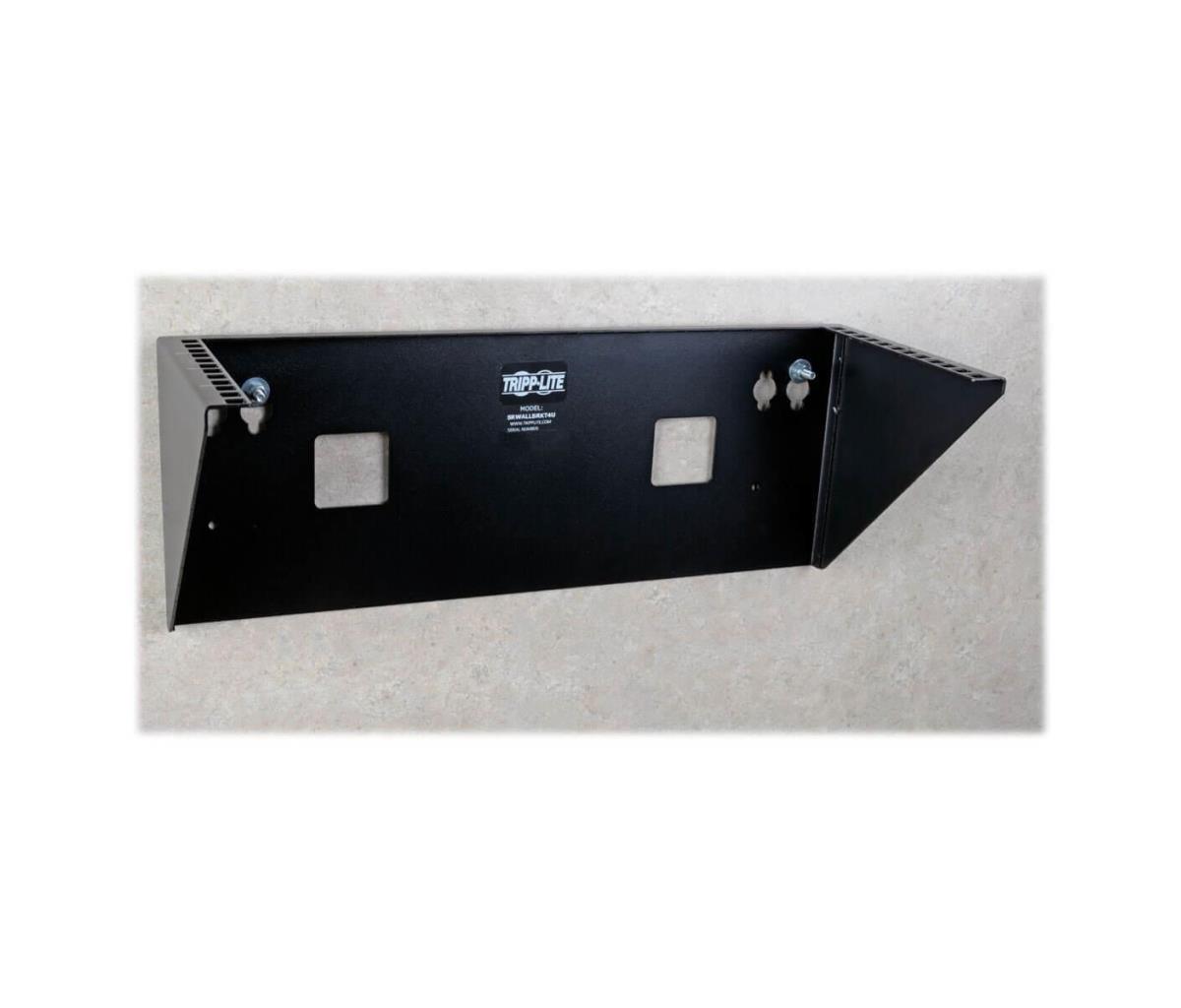

Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 6U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.

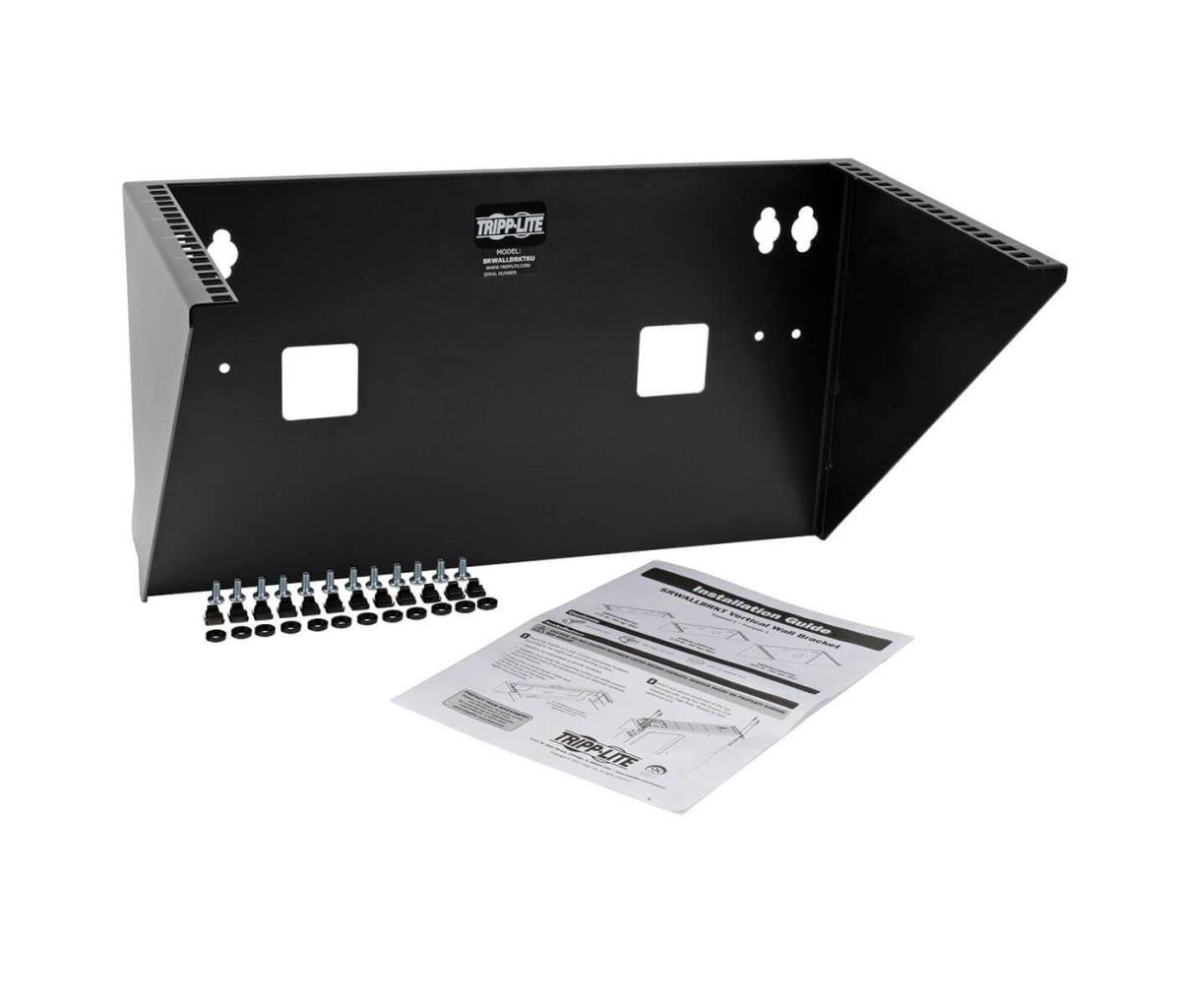

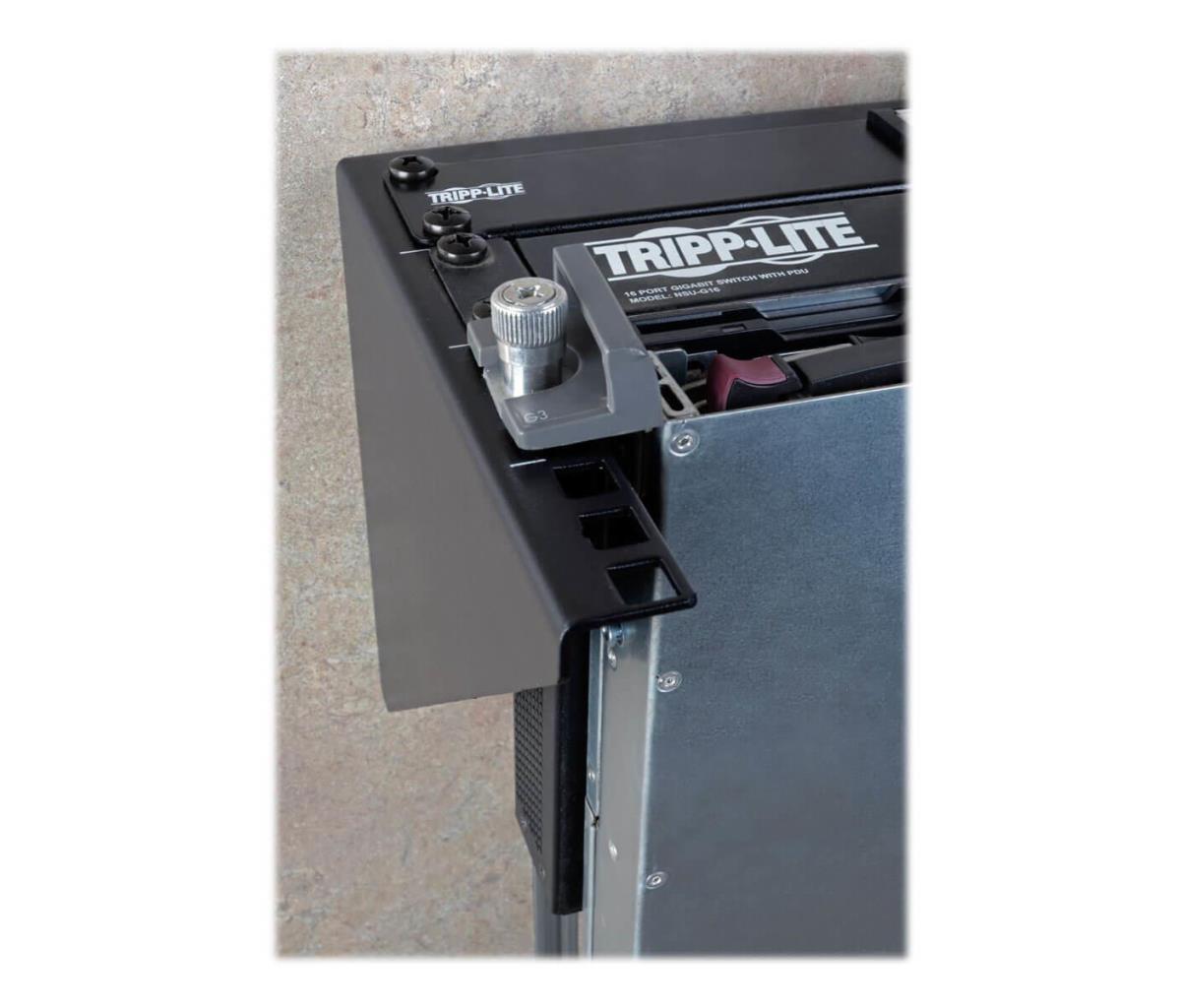

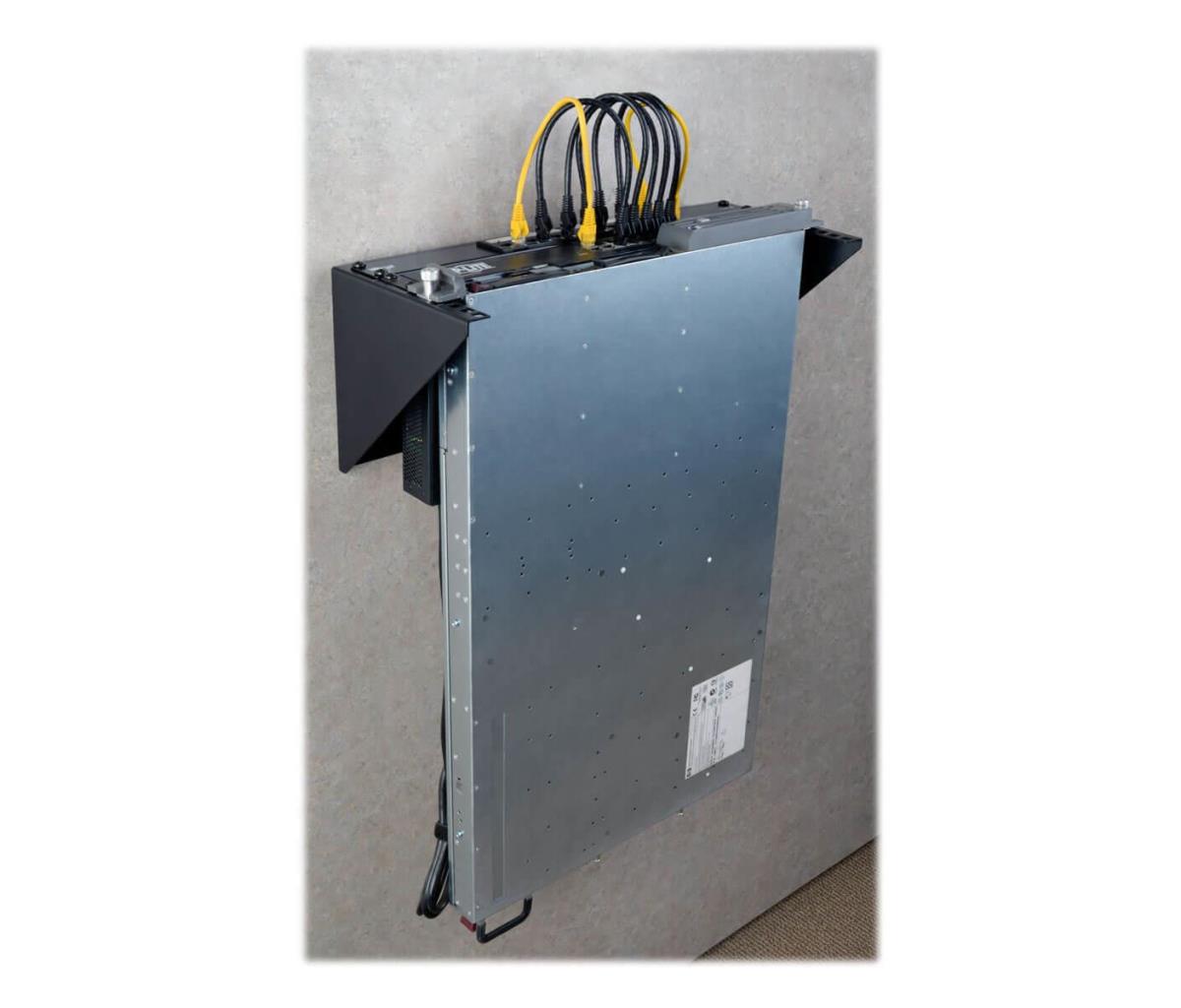

Use the included hardware to attach your 6U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 200 lbs (90.7 kgs). Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT6U is compatible with most EIA-standard 19-inch two-post rack equipment.
| Features | |
| Type | Mounting bracket |
| Product colour | Black |
| Maximum weight capacity | 91 kg |
| Rack capacity | 6U |
| Country of origin | China |
| Weight & dimensions | |
| Size (imperial) | 48.3 cm (19") |
| Width | 500.1 mm |
| Depth | 283.2 mm |
| Height | 283.2 mm |
| Weight | 3.8 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 555 mm |
| Package depth | 465.1 mm |
| Package height | 275.1 mm |
| Package weight | 5.5 kg |
| Packaging content | |
| Mounting kit | Yes |
| Screws included | Yes |
| Number of screws | 12 |
| Nuts included | Yes |
| Number of nuts | 12 |
| Warranty | |
| Base Warranty | Non Non |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332203219 |
| Logistics data | |
| Master (outer) case width | 570 mm |
| Master (outer) case length | 1130 mm |
| Master (outer) case height | 480.1 mm |
| Master (outer) case gross weight | 22 kg |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 7326.90.8688 |
