TRIPP LITE SmartRack 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet with Clear Acrylic Window
ITCurry #: 57905137 | Article #: SRW6UG-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The SRW6UG SmartRack® 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

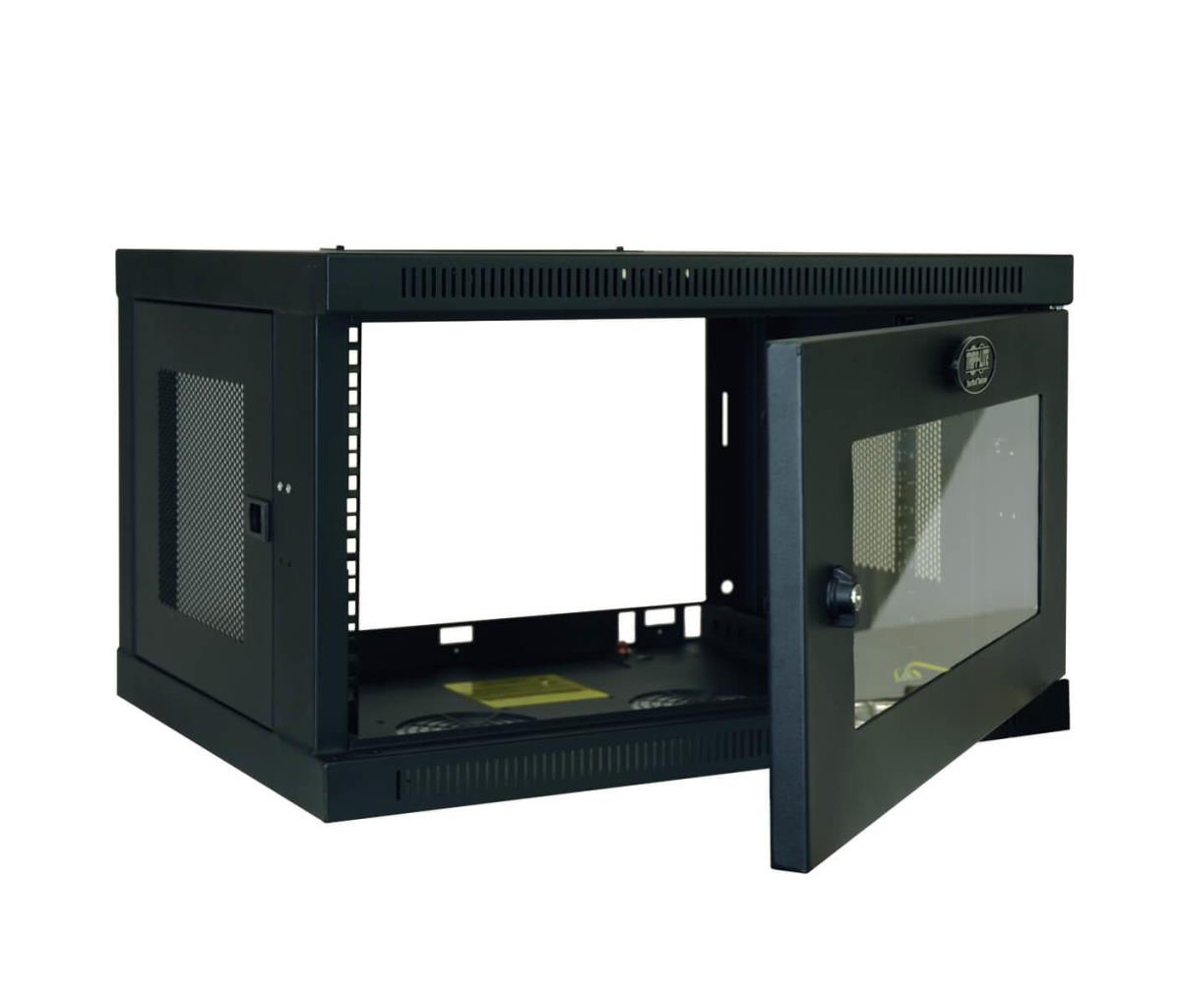

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.
The front door and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW6UG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
| Features | |
| Type | Wall mounted rack |
| Maximum weight capacity | 90.72 kg |
| Product colour | Black |
| Cooling type | Passive |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Size (imperial) | 48.3 cm (19") |
| Width | 596.9 mm |
| Depth | 444.5 mm |
| Height | 368.3 mm |
| Weight | 13.2 kg |
| Packaging data | |
| Package width | 655.3 mm |
| Package depth | 505.5 mm |
| Package height | 439.4 mm |
| Package weight | 15.9 kg |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
| Master (outer) case width | 655.3 mm |
| Master (outer) case length | 505.5 mm |
| Master (outer) case height | 439.4 mm |
| Master (outer) case gross weight | 15.9 kg |
| Products per master (outer) case | 1 pc(s) |
