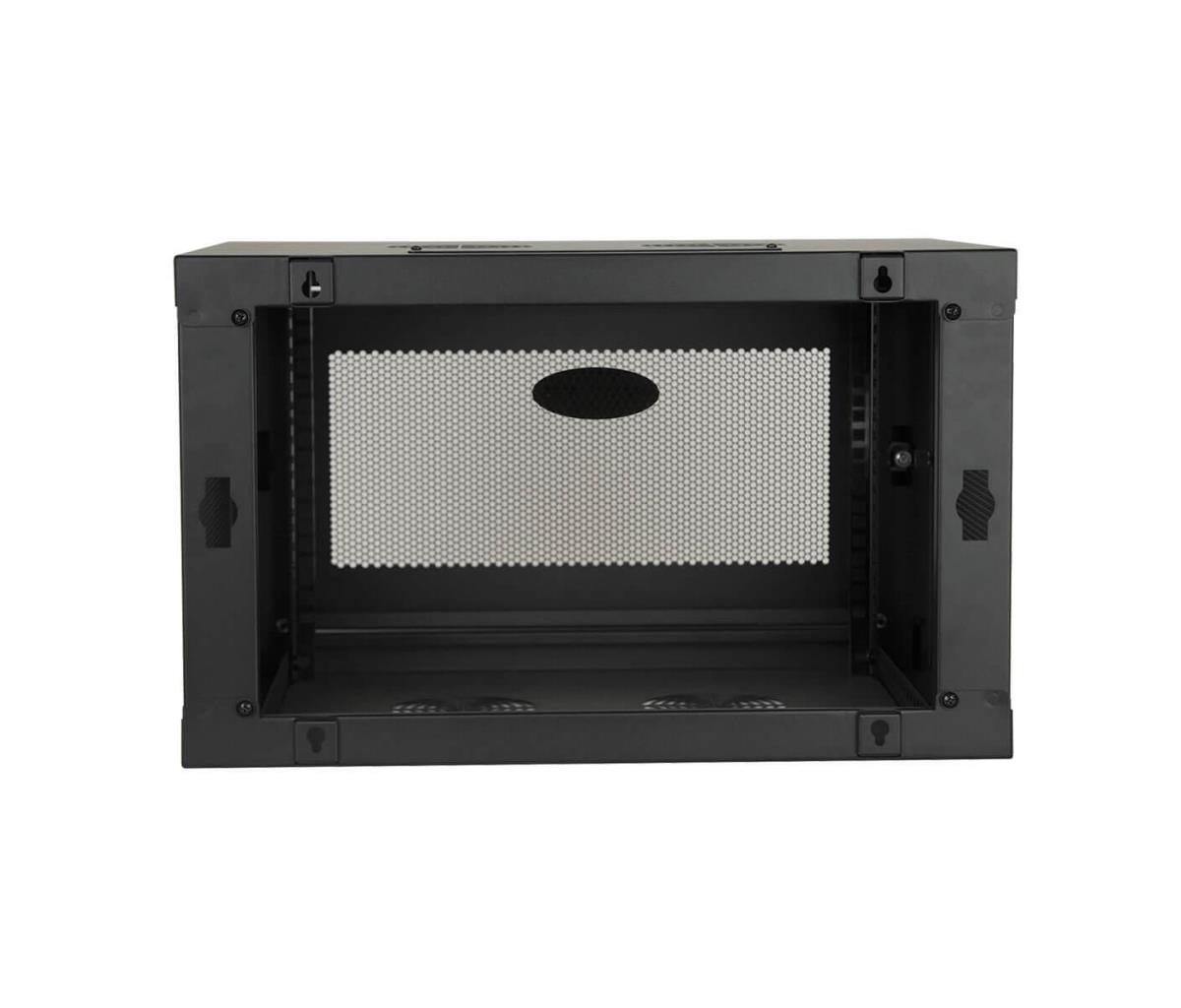

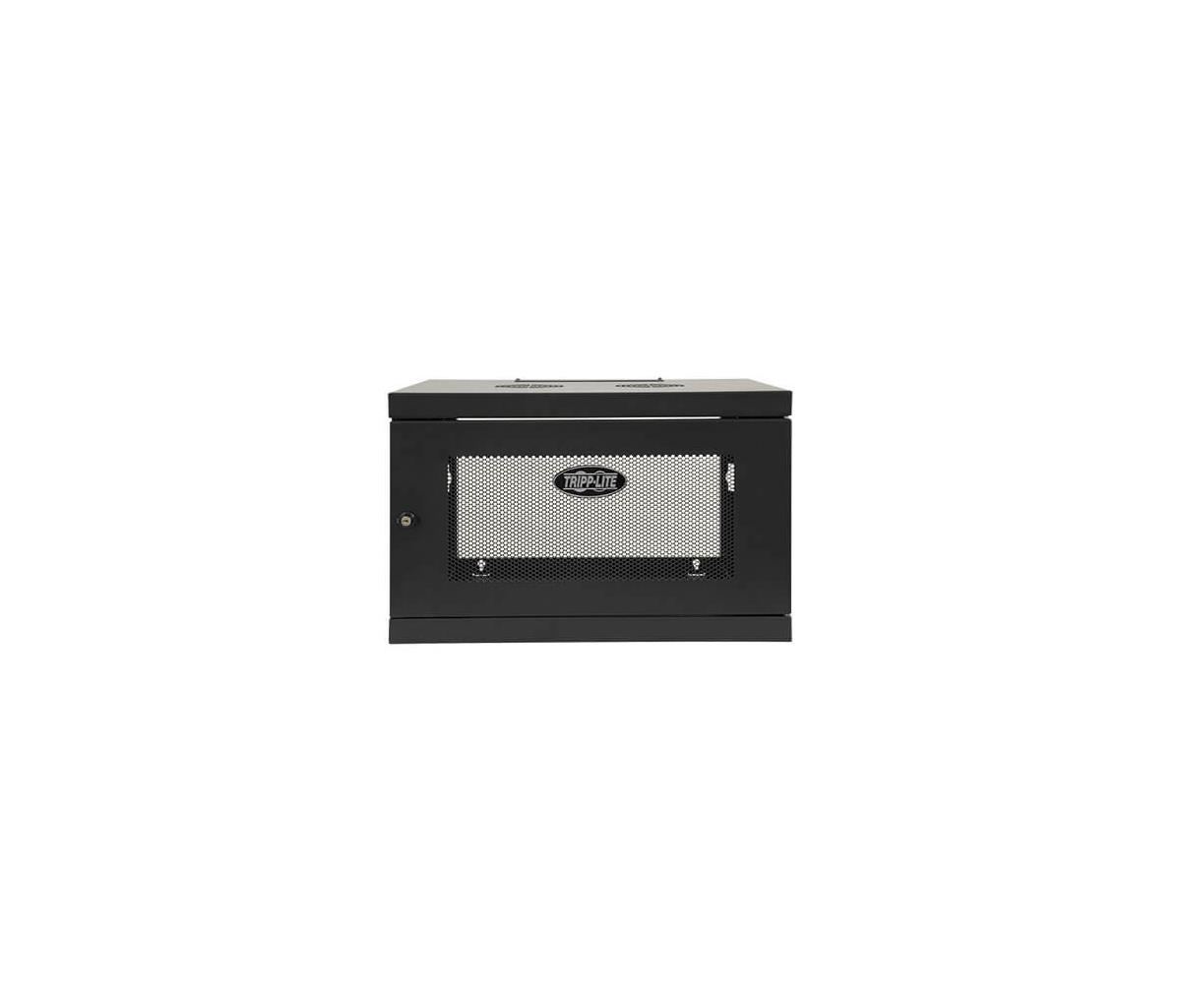

The SRW6UKD SmartRack® 6U Low-Profile Switch-Depth Knock-Down Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lbs (90.7 kgs).
The front door locks securely to help prevent damage, tampering and theft. The front, top, bottom and side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can be installed to open left or right. Convenient top and bottom ports allow easy cable routing.
The SRW6UKD comes unassembled for convenient transport and storage in confined spaces. It easily assembles in minutes using just 12 fasteners, and mounts to the wall to save valuable floor space. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
| Features | |
| Rack capacity | 6U |
| Type | Wall mounted rack |
| Maximum weight capacity | 90.7 kg |
| Product colour | Black |
| Material | Steel |
| Side panels included | Yes |
| Key lock | Yes |
| Number of fans | 4 fan(s) |
| Certification | RoHS, UL/CSA 60950-1, EIA-310-E |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 456 mm |
| Height | 368 mm |
| Weight | 13 kg |
| Packaging data | |
| Wall mounting kit | Yes |
| Quick installation guide | Yes |
| Package width | 515 mm |
| Package depth | 180 mm |
| Package height | 656 mm |
| Package weight | 14.3 kg |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332191561 |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
| Master (outer) case width | 939.8 mm |
| Master (outer) case length | 1049.8 mm |
| Master (outer) case height | 680 mm |
| Master (outer) case gross weight | 145 kg |
| Products per master (outer) case | 10 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
