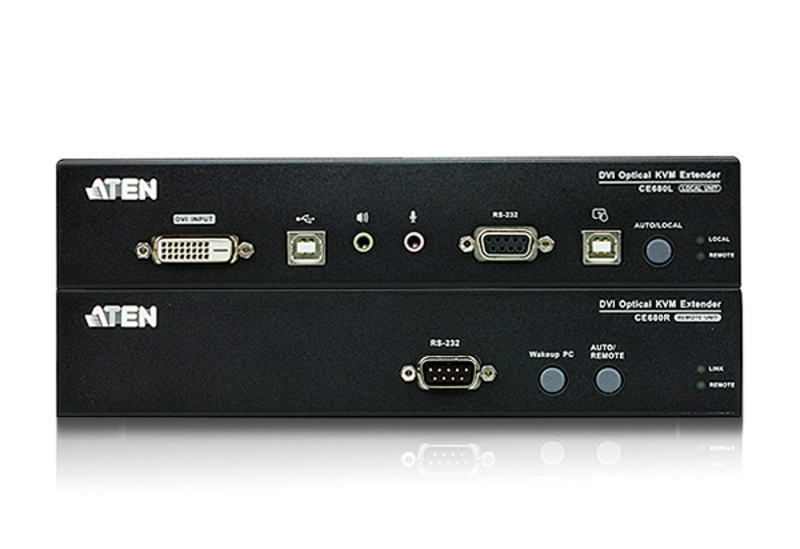

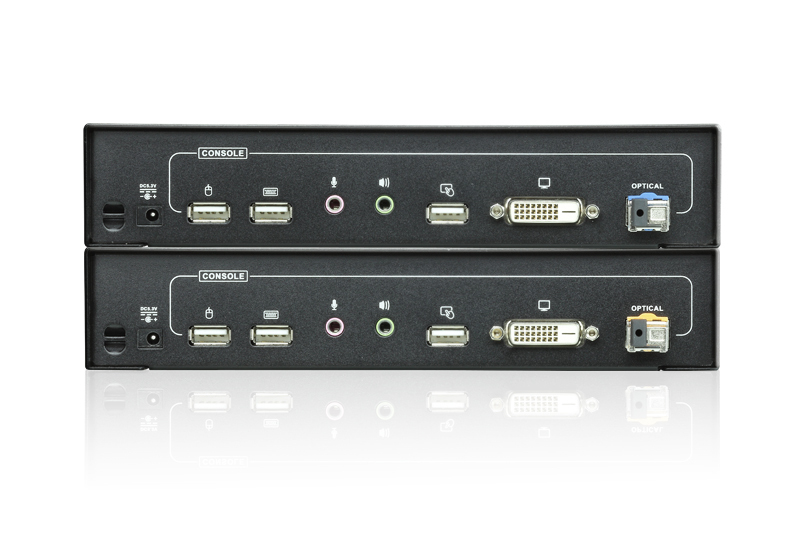

The CE680 is a DVI Optical KVM Extender that overcomes length restrictions of standard DVI cables by using fiber optics to send high definition audio, video and control signals over longer distances. The CE680 can transmit KVM DVI signals very long distances- up to 600 m away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gbps optical link, for resolutions up to 1920 x 1200 @ 60Hz, 24-bits, with picture perfect quality.
1 x CE680L DVI Optical KVM Extender (Local Unit)
1 x CE680R DVI Optical KVM Extender (Remote Unit)
1 x 2L-7D02U Custom KVM Cable Set (1.8m)
1 x LIN6-04U1-V1CG USB Cable (1.8m)
2 x 0AD8-1605-24M1 Power Adapters
1 x Mounting Kit
1 x User Instructions
Features | |
Type | Transmitter & receiver |
Connectivity technology | Wired |
Maximum transfer distance | 600 m |
Rack mounting | Yes |
Maximum digital resolution | 1920 x 1200 pixels |
Supported resolutions | 1920 x 1200 |
Product colour | Black |
Material | Metal |
LED indicators | Link, Power |
Transmitter | |
Transmitter video port type | DVI-D |
Transmitter local keyboard/mouse port type | USB |
Receiver | |
Receiver local video port type | DVI-D |
Receiver local keyboard/mouse port type | USB |
Power | |
AC adapter output voltage | 5.3 V |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 øC |
Storage temperature (T-T) | -20 - 60 øC |
Operating relative humidity (H-H) | 0 - 80% |
Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions | |
Transmitter width | 21.5 cm |
Transmitter depth | 16.3 cm |
Transmitter height | 4.18 cm |
Transmitter weight | 1.1 kg |
Receiver width | 21.5 cm |
Receiver depth | 16.3 cm |
Receiver height | 4.18 cm |
Receiver weight | 1.1 kg |
Packaging data | |
Package width | 247 mm |
Package depth | 556 mm |
Package height | 153 mm |
Package weight | 3.91 kg |
Technical details | |
Weight | 2.98 kg |
Packaging content | |
Manual | Yes |
Quick installation guide | Yes |
Logistics data | |
Master (outer) case net weight | 2.98 kg |
Harmonized System (HS) code | 84733080 |
Master (outer) case width | 247 mm |
Master (outer) case length | 556 mm |
Master (outer) case height | 153 mm |
Master (outer) case gross weight | 3.91 kg |
Products per master (outer) case | 1 pc(s) |
Warranty | |
Base Warranty | Non Non |
