Hdmi Optical Extender 600m Ve882
ITCurry #: 90313325 | Article #: VE882-AT-G
slide 2 of 3
Price:
661.14
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 6 to 10 of 15
Product Information

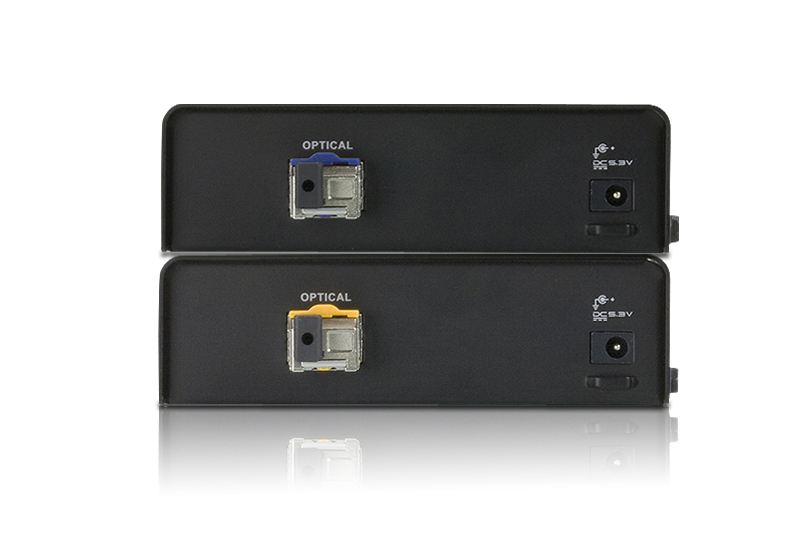

The VE882 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.
1x VE882T
1x VE882R
1x 2XRT-0004G IR Transmitter
1x 2XRT-0003G IR Receiver
1x Mounting Kit
2x 0AD8-1605-24M1 Power Adapters
1x User Instructions
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 600 m |
| Maximum refresh rate | 60 Hz |
| Fiber mode structure | Multi-mode, Single-mode |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Supported video modes | 1080p |
| Bandwidth | 6.75 Gbit/s |
| Bandwidth | 225 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Rack mounting | Yes |
| Impedance | 100 O |
| HDCP version | 1.4 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Fiber optic connector | SFP |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage (transmitter) | 5.3 V |
| Operating voltage (receiver) | 5.3 V |
| Power consumption (TX) | 5.8 W |
| Power consumption (RX) | 4.69 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight | 1.43 kg |
| Receiver dimensions (WxDxH) | 141.7 x 103 x 30 mm |
| Receiver weight | 440 g |
| Transmitter dimensions (WxDxH) | 141.7 x 103 x 30 mm |
| Transmitter weight | 440 g |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.57 kg |
| Logistics data | |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 8.66 kg |
| Master (outer) case net weight | 7.15 kg |
| Products per master (outer) case | 5 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
