DVI KVM Extender. Single Link With Rs-232 Functie Uses One Cat 5e Cable (DVI Single Link) To Support
ITCurry #: 90313088 | Article #: CE600-AT-G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

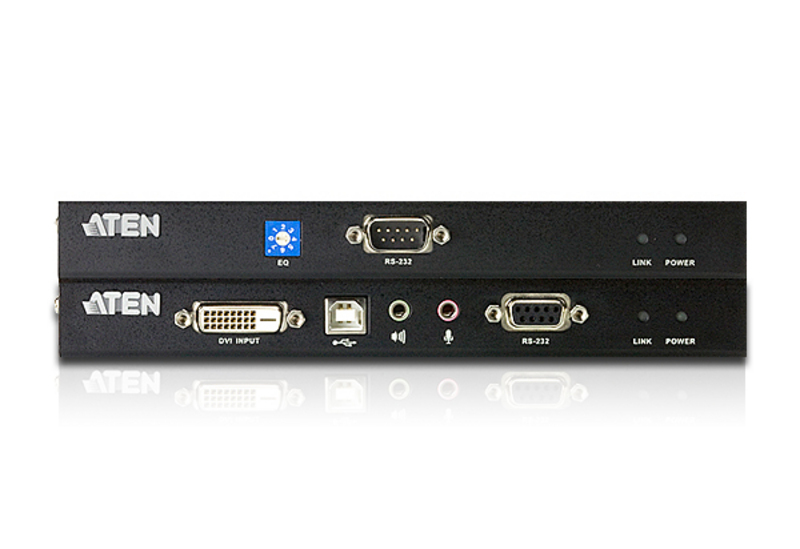

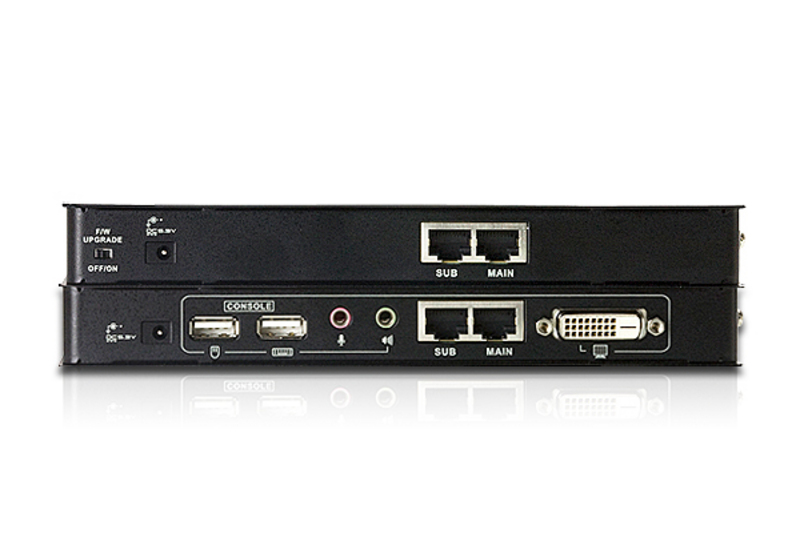

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.
1x CE600L DVI KVM Extender (Local Unit)
1x CE600R DVI KVM Extender (Remote Unit)
1x 2L-7D02U 1.8 m USB DVI-D Single Link KVM Cable Set
2x 0AD8-1605-24M1 Power Adapters
1x Mounting Kit
1x User Instructions
| Features | |
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 60 m |
| Cable types supported | Cat5, Cat5e |
| Rack mounting | Yes |
| Maximum digital resolution | 1920 x 1200 pixels |
| Supported resolutions | 1920 x 1200, 1024 x 768 |
| Product colour | Black |
| Material | Metal |
| LED indicators | Link, Power |
| Transmitter | |
| Transmitter video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 2 |
| Receiver | |
| Receiver local video port type | DVI-D |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 2 |
| Power | |
| AC adapter output voltage | 5.3 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 20.2 cm |
| Transmitter depth | 8.54 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 480 g |
| Receiver width | 20.2 cm |
| Receiver depth | 8.5 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 480 g |
| Packaging data | |
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 1.84 kg |
| Technical details | |
| Weight | 1.79 kg |
| Packaging content | |
| Manual | Yes |
| Quick installation guide | Yes |
| Logistics data | |
| Master (outer) case net weight | 8.95 kg |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 9.76 kg |
| Products per master (outer) case | 5 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
