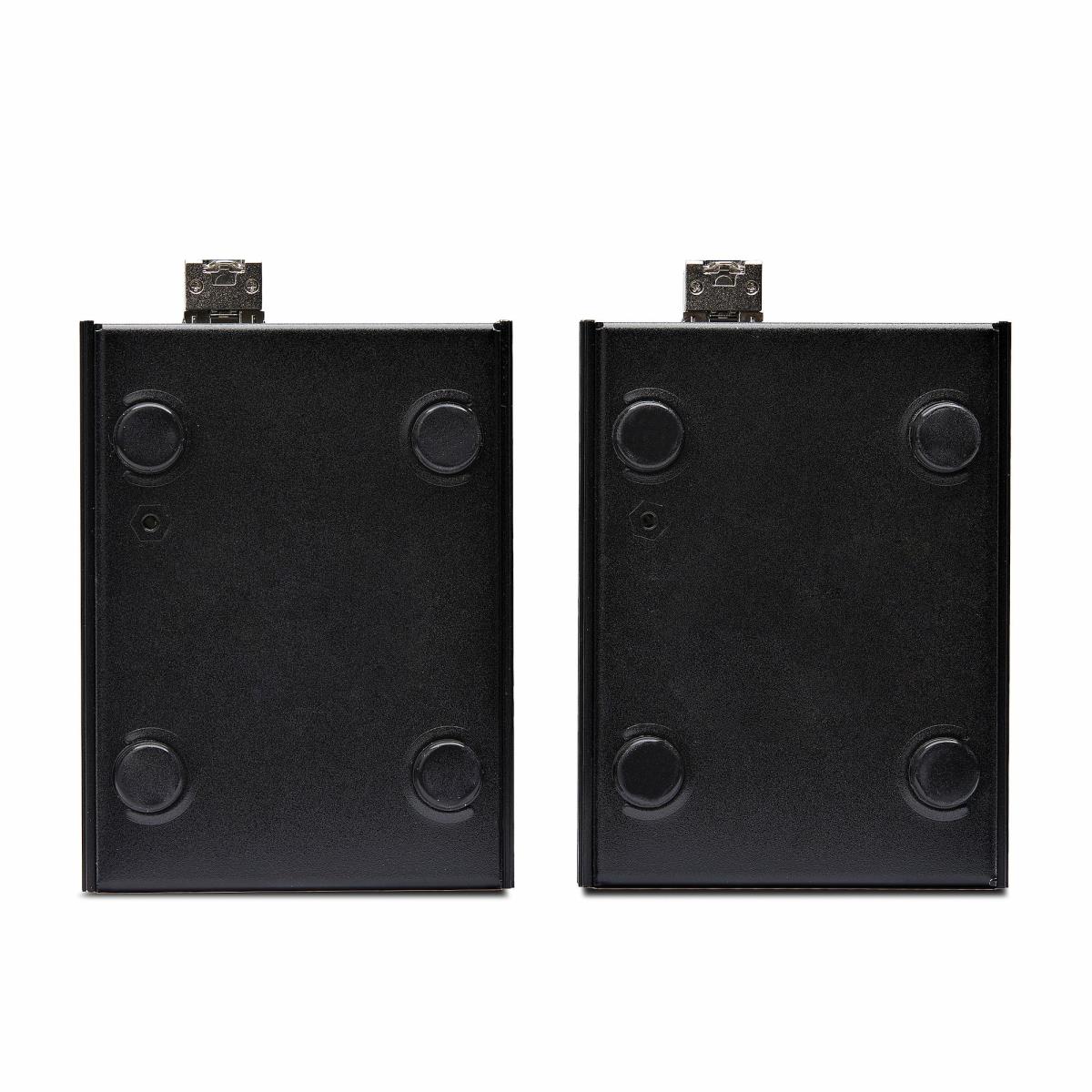

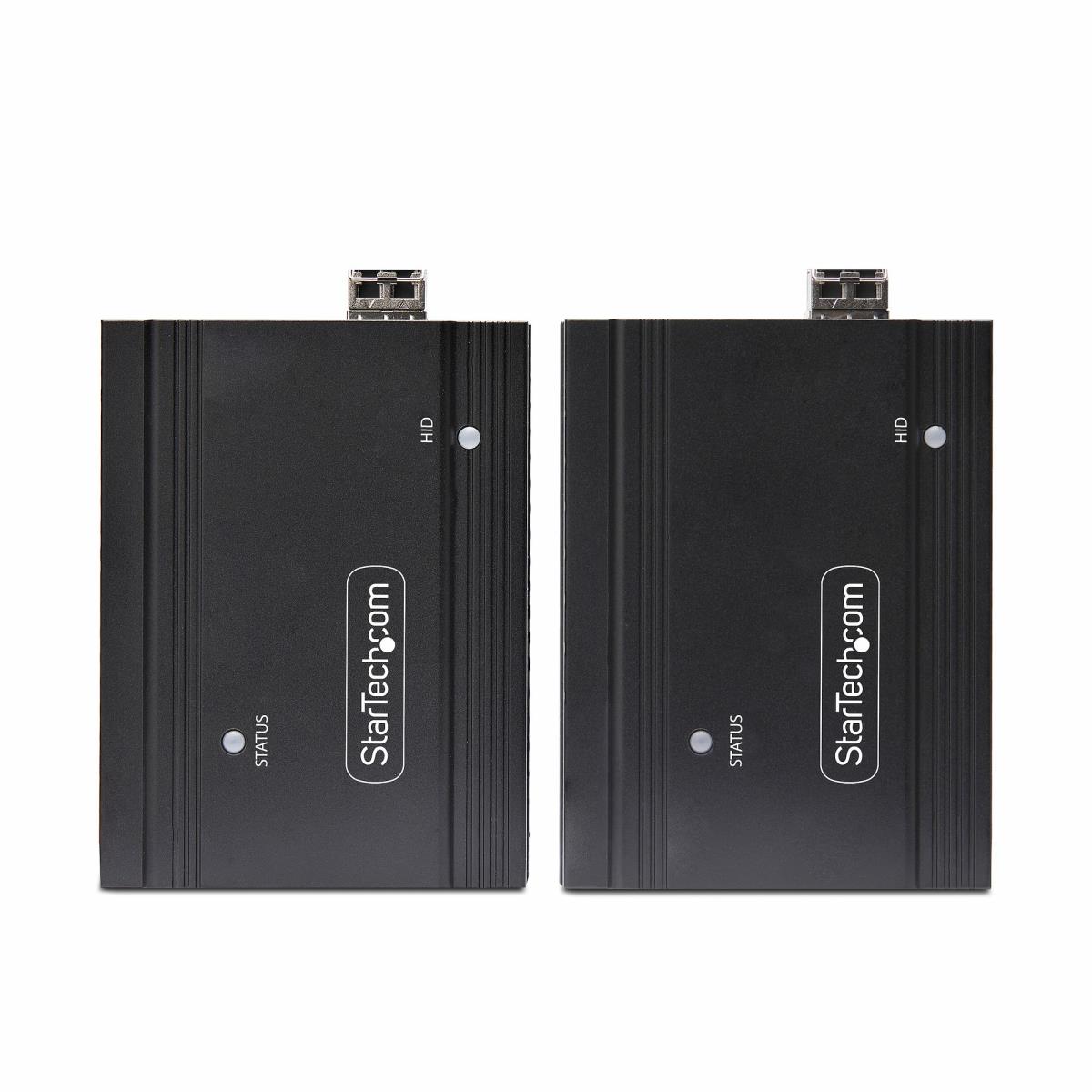

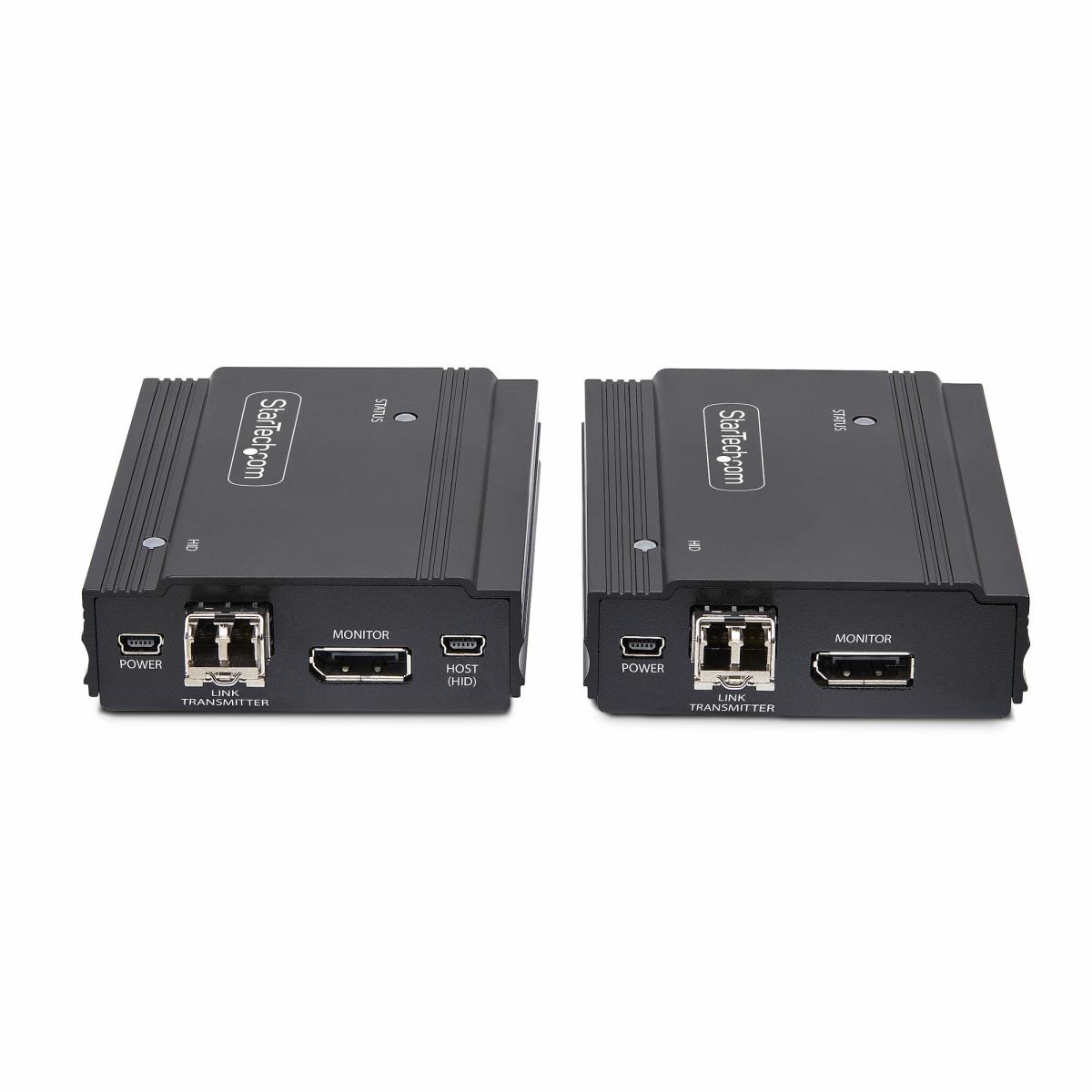

DisplayPort KVM Extender Over Fiber Optic 4k 60hz Console Extender Kit Up To 300m
ITCurry #: 7564C002 | Article #: FD121-KVM-EXTENDER-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Control a DisplayPort-equipped computer or KVM switch up to 300m (985ft) away over fiber-optic cableThe Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).4K 60Hz DisplayPort VideoThe transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.Universal CompatibilityThe KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.Built-In USB HubThree USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.Durable DesignThe extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.The StarTech.com Advantage
| Features | |
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 300 m |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Supported resolutions | 4096 x 2160 @ 60hz 3840 x 2160 @ 60hz 3440 x 1440 @ 60hz 3200 x 1800 @ 60hz 3072 x 1728 @ 60hz 2560 x 1440 @ 60hz 2048 x 1536 @ 60hz 1920 x 1200 @ 60hz 3840 x 1080 @ 60hz 1920 x 1080 @ 60hz 1760 x 990 @ 60hz 1680 x 1050 @ 60hz 1600 x 1200 @ 60hz 1600 x 900 @ 60hz 1440 x 900 @ 60hz 1366 x 768 @ 60hz 1280 x 1024 @ 60hz 1280 x 720 @ 60hz 1128 x 634 @ 60hz 1024 x 768 @ 60hz 800 x 600 @ 60hz |
| Extended display identification data (EDID) | Yes |
| On Screen Display (OSD) | No |
| Product colour | Black |
| USB 1.1 ports quantity | 3 |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 156000 h |
| Transmitter | |
| Transmitter local video port | Yes |
| Transmitter local video port type | DisplayPort |
| Number of displays supported | 1 |
| Transmitter Micro-USB ports quantity | 1 |
| Receiver | |
| Receiver local video port type | DisplayPort |
| Receiver Micro-USB ports quantity | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power consumption (transmitter) (max) | 10 W |
| Power consumption (receiver) (max) | 10 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -10 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 7.4 cm |
| Transmitter depth | 10 cm |
| Transmitter height | 2.8 cm |
| Transmitter weight | 235 g |
| Receiver width | 7.4 cm |
| Receiver depth | 10 cm |
| Receiver height | 2.8 cm |
| Receiver weight | 235 g |
| Packaging data | |
| Package width | 306 mm |
| Package depth | 175 mm |
| Package height | 70 mm |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS, Trade Agreements Act (TAA) |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Packaging content | |
| Cables included | Mini-USB |
| Quick installation guide | Yes |
| Included power plug types | ANZ, EU, NA, UK |
| Ports & interfaces | |

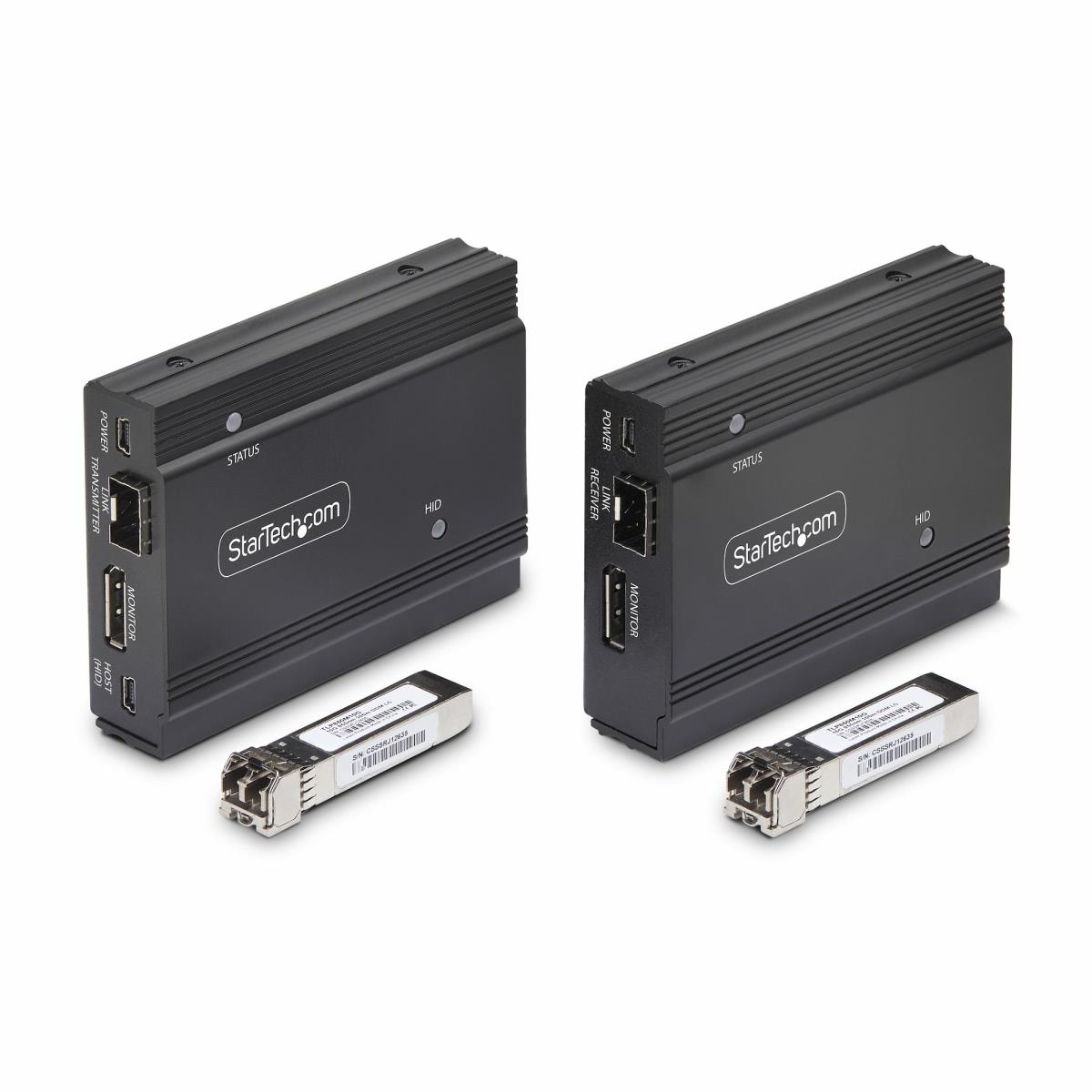

| Installed SFP+ modules quantity | 2 |
| Logistics data | |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 323 mm |
| Master (outer) case height | 275 mm |
| Products per master (outer) case | 6 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
