2-port USB 3.0 4k Hdmi KVMp Switch
ITCurry #: 90313842 | Article #: CS1822-AT-G
slide 2 of 3
Related products
slide 6 to 10 of 15
Product Information

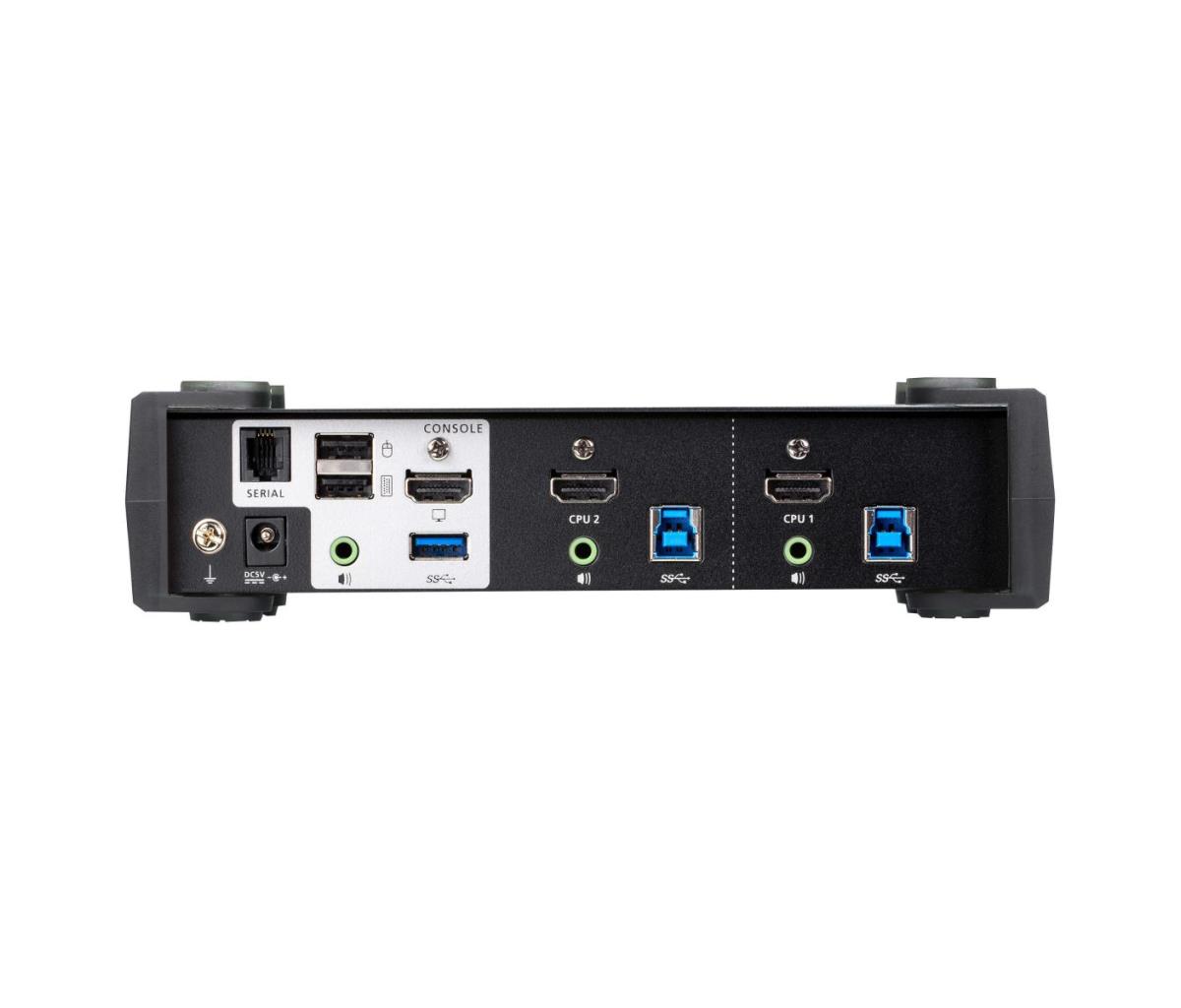

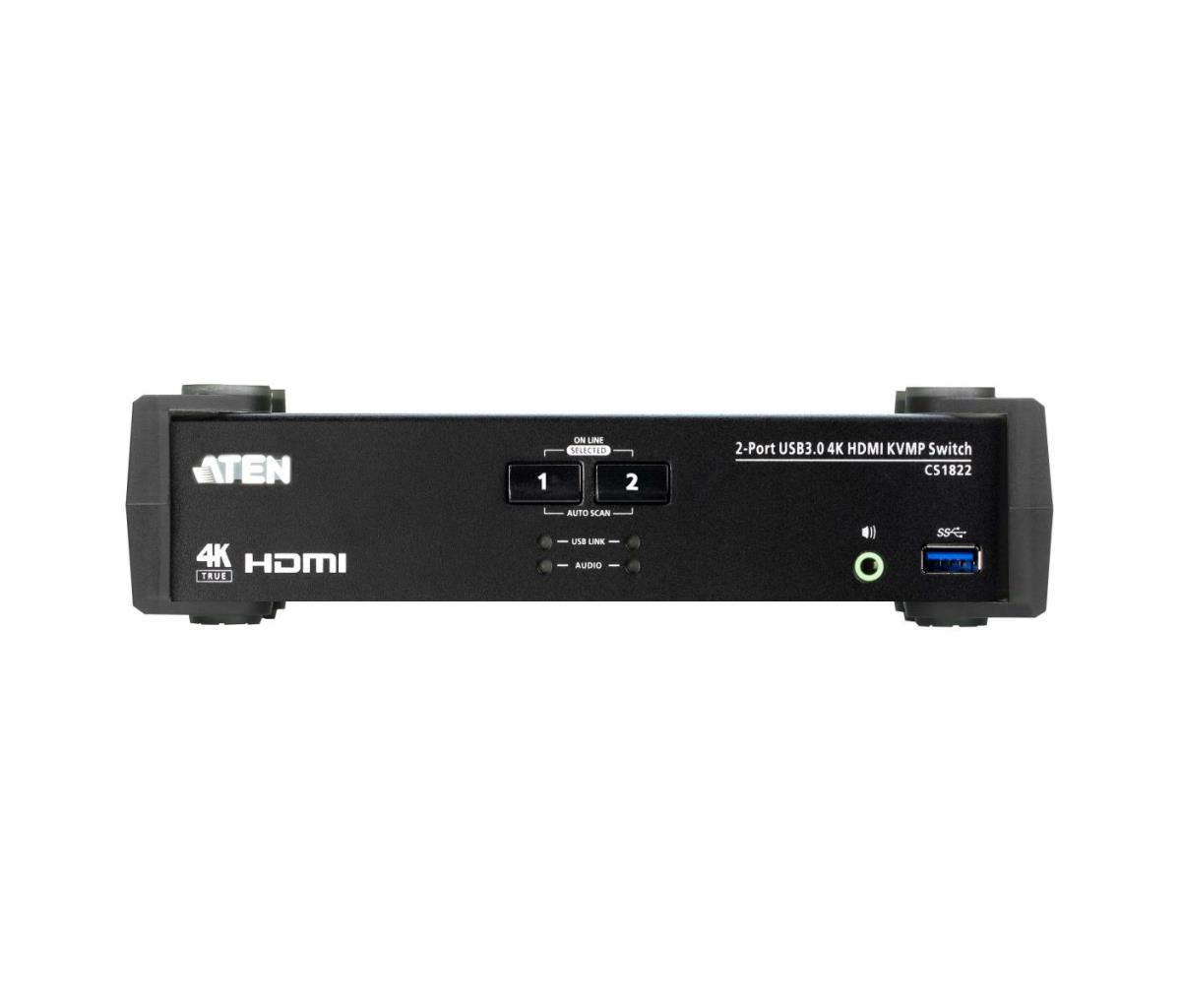

The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1822 optimizes user experience of multitasking.
1x CS1822 2-Port USB 3.0 4K HDMI KVMP™ Switch
2x LIN6-19V1-V18G HDMI 2.0 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adapter
1x User Instructions
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
| Design | |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 1.78 W |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 1.39 kg |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.83 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case net weight | 6.95 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 9.6 kg |
| Products per master (outer) case | 5 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
2-port USB 3.0 4k Hdmi KVMp Switch
288.80
