2-Port HDMI 4K 60Hz KVM Switch USB 3.2 Gen1 (USB 3.0)
ITCurry #: T4057201 | Article #: AC7912-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The AC7912 2-port 4K HDMI KVM switch lets you simplify your workspace by controlling two computers while using a single monitor, a single USB keyboard and mouse. The HDMI output supports a monitor with a resolution up to 4K@60Hz. The AC7912 lets you switch between computers using the buttons on the switch itself, the IR remote control, keyboard hotkeys, a mouse, or RS-232 commands.

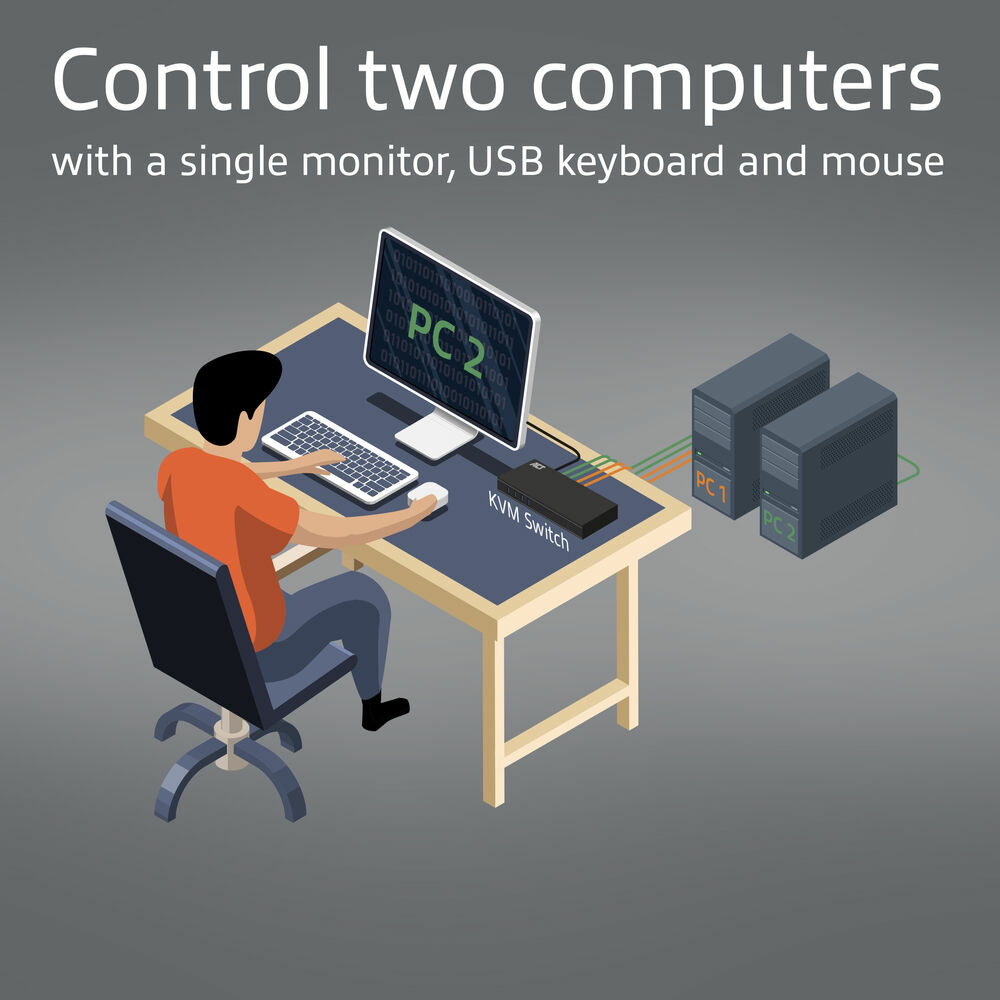

Control two devices with a single monitor, mouse and keyboard
Simplify your workspace by connecting two computers to the AC7912 via HDMI. Connect a single HDMI monitor and a single keyboard and mouse set to the switch and control both computers with minimal setup.

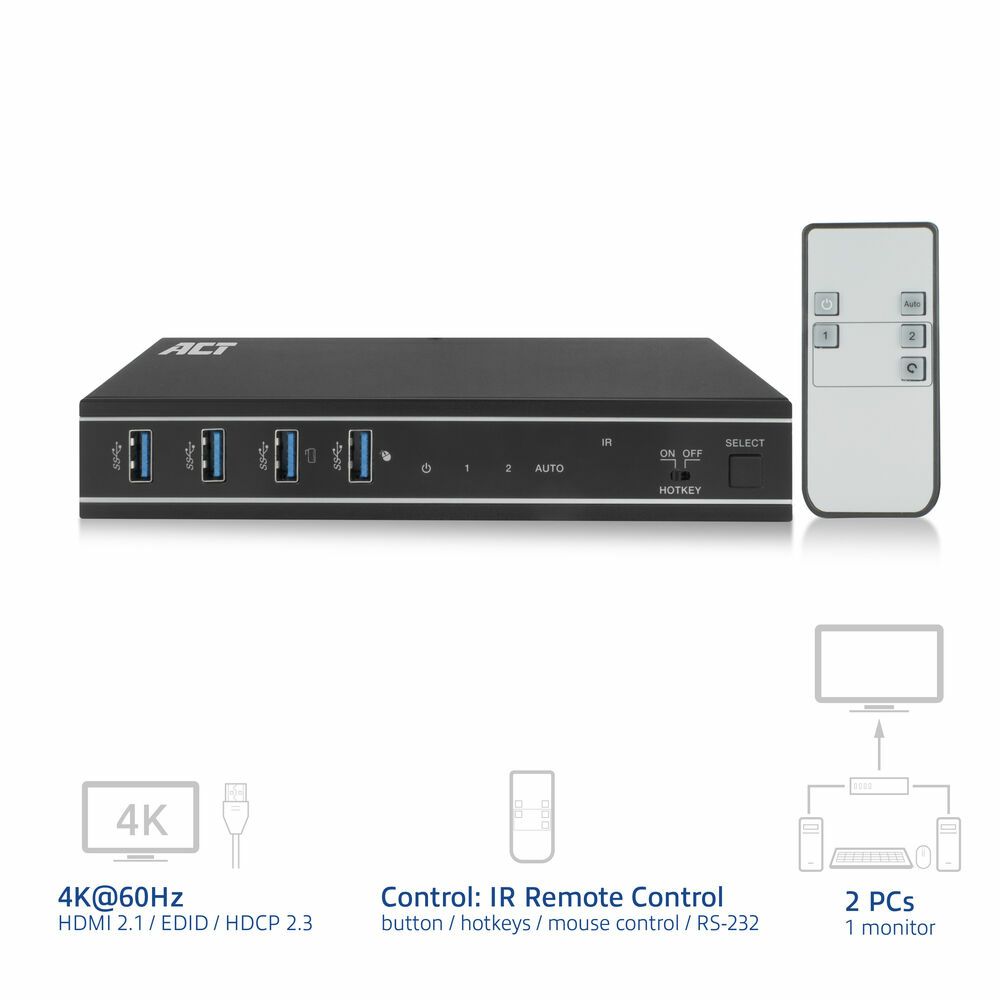

Supports up to 4K@60Hz
The AC7912 HDMI KVM switch supports 4K@60Hz, 4:4:4 12-bit, HDMI 2.0 and is HDCP 2.3 compliant. The EDID emulator in the KVM switch provides the correct display information from the monitor to the connected computer.

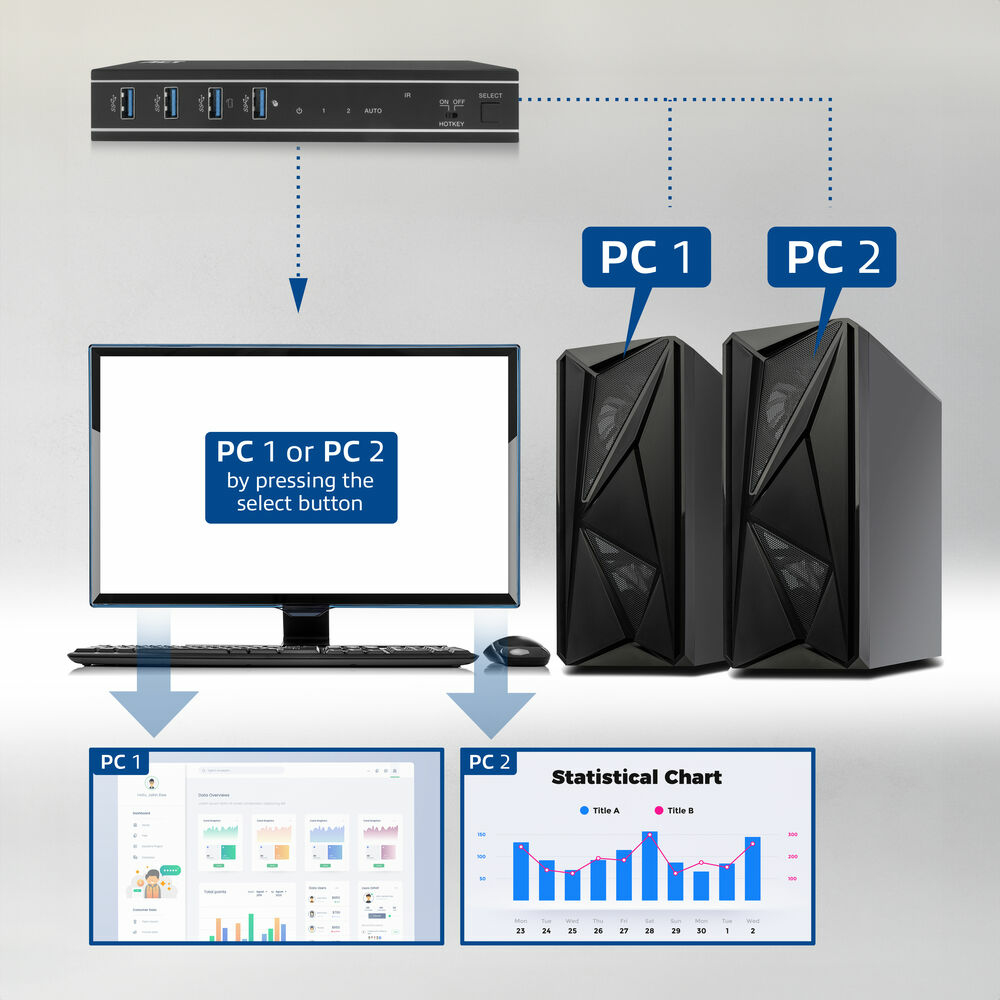

Easy switching between computers

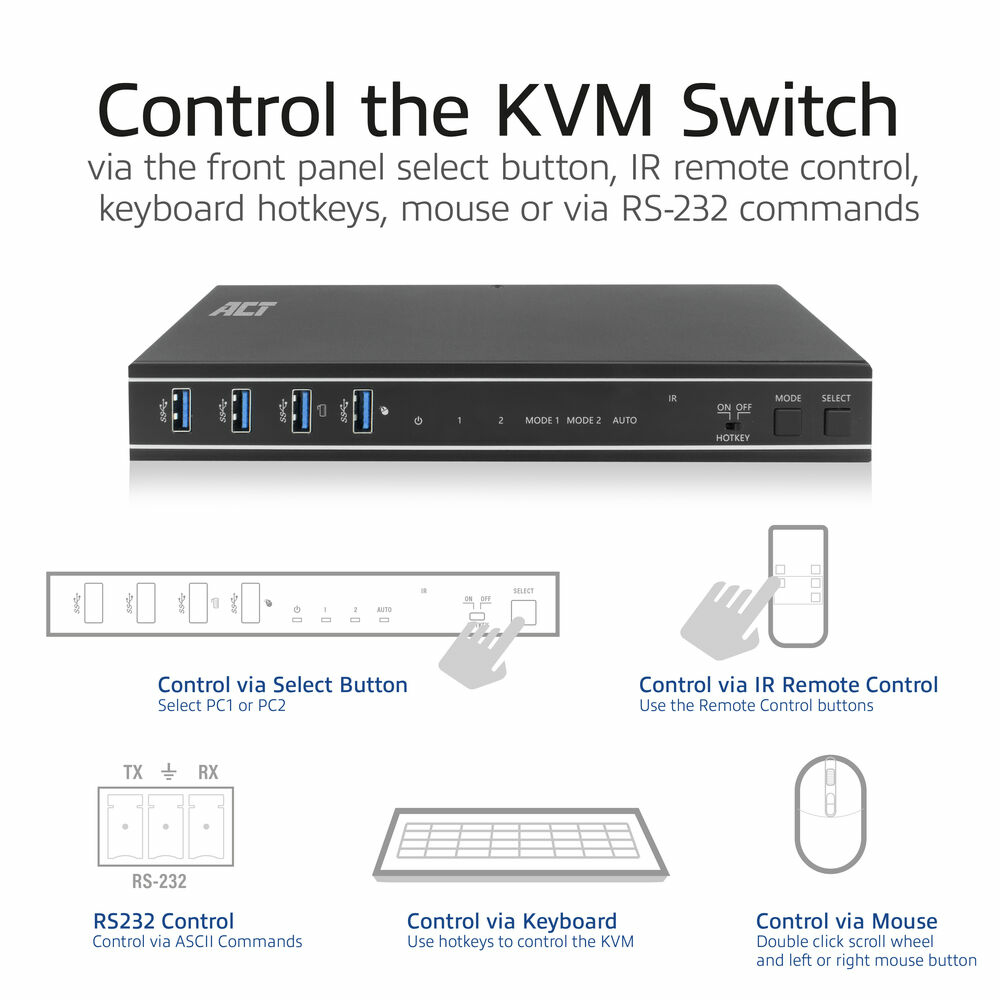

Switching between two connected computers is easy with the dedicated button on the AC7912 KVM switch. Prefer to use IR control, a mouse, keyboard shortcuts or RS-232 commands? This is also supported.
Auto input switching
Have two computers connected to the KVM switch and only one is active? The AC7912 will automatically detect the active device.
Additional features

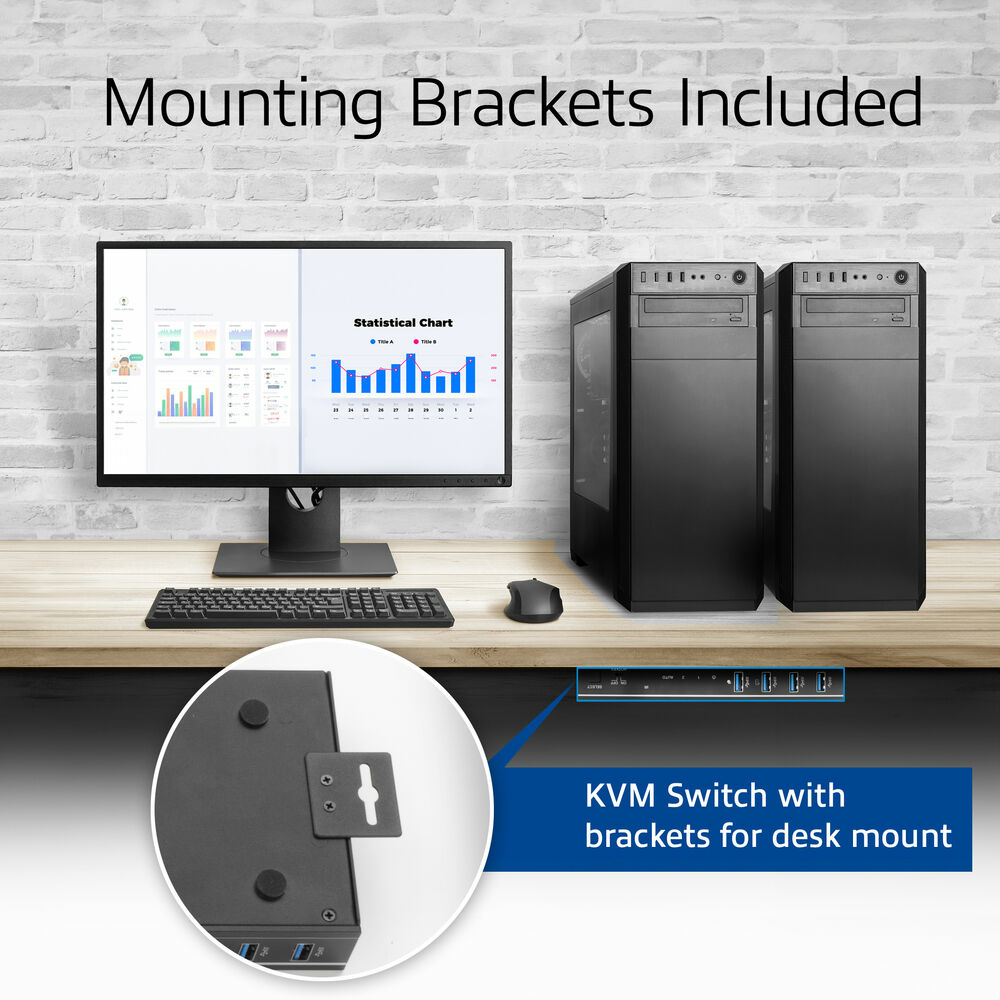

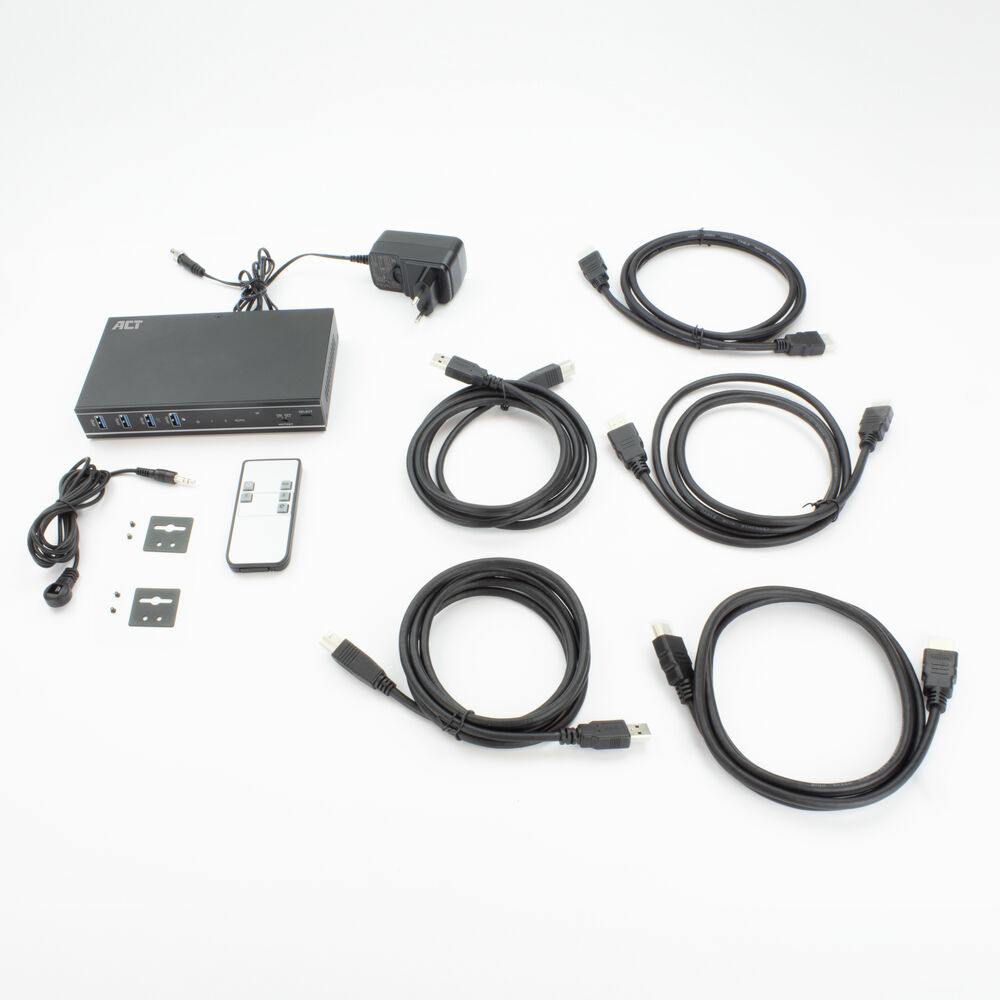

The AC7912 includes four USB 3.2 Gen1 (USB 3.0) 5Gbps ports for sharing peripherals, such as a keyboard, mouse, printer and more. The switch also has a 3.5mm audio jack for connecting headphones or speakers. HDMI cables, USB cables, remote control, RS-232 connector and mounting brackets are included.
Prevent accidental power cord disconnection
The power connection on the KVM switch is secured with a screw lock to prevent accidental disconnection.
User scenarios
Business use:
- Government offices: Control sensitive systems that are isolated from the network.
- Datacenters and server rooms: Troubleshoot, update and maintain servers.
Home use:
- Home office: switch easily between your personal computer and work laptop and use only one monitor, mouse, keyboard setup.
- Gaming: switch between a gaming console/desktop and a personal laptop.
Whether you’re a professional, home user, or gamer, this 2-port HDMI KVM switch streamlines your setup while maintaining performance and security.

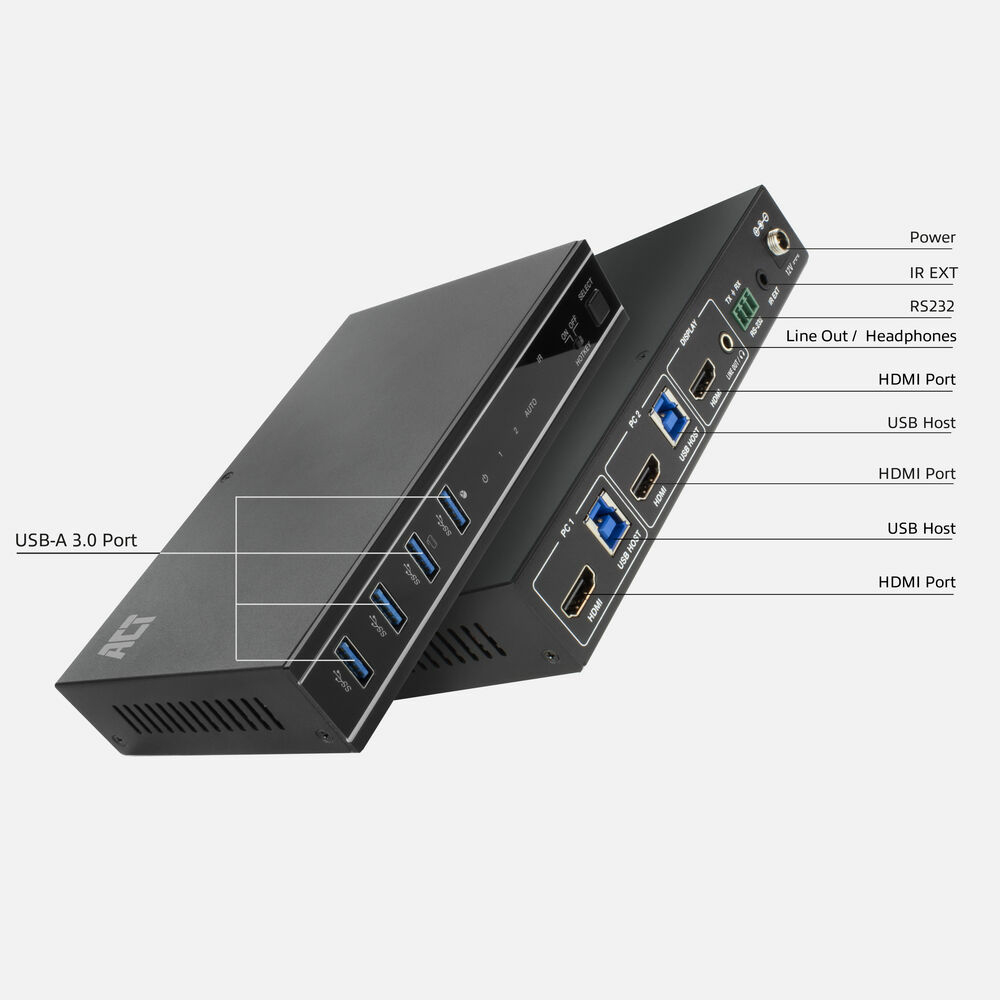

| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A |
| Serial port type | RS-232 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 5 Gbit/s |
| HDCP | Yes |
| Number of displays supported | 1 |
| HDCP version | 2.3 |
| Consumer Electronics Control (CEC) support | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 12 V |
| Input current | 1 A |
| Warranty | |
| Base Warranty | Non Non |
| Packaging content | |
| Cables included | HDMI, IR, USB Type-A to USB Type-B |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Remote control included | Yes |
