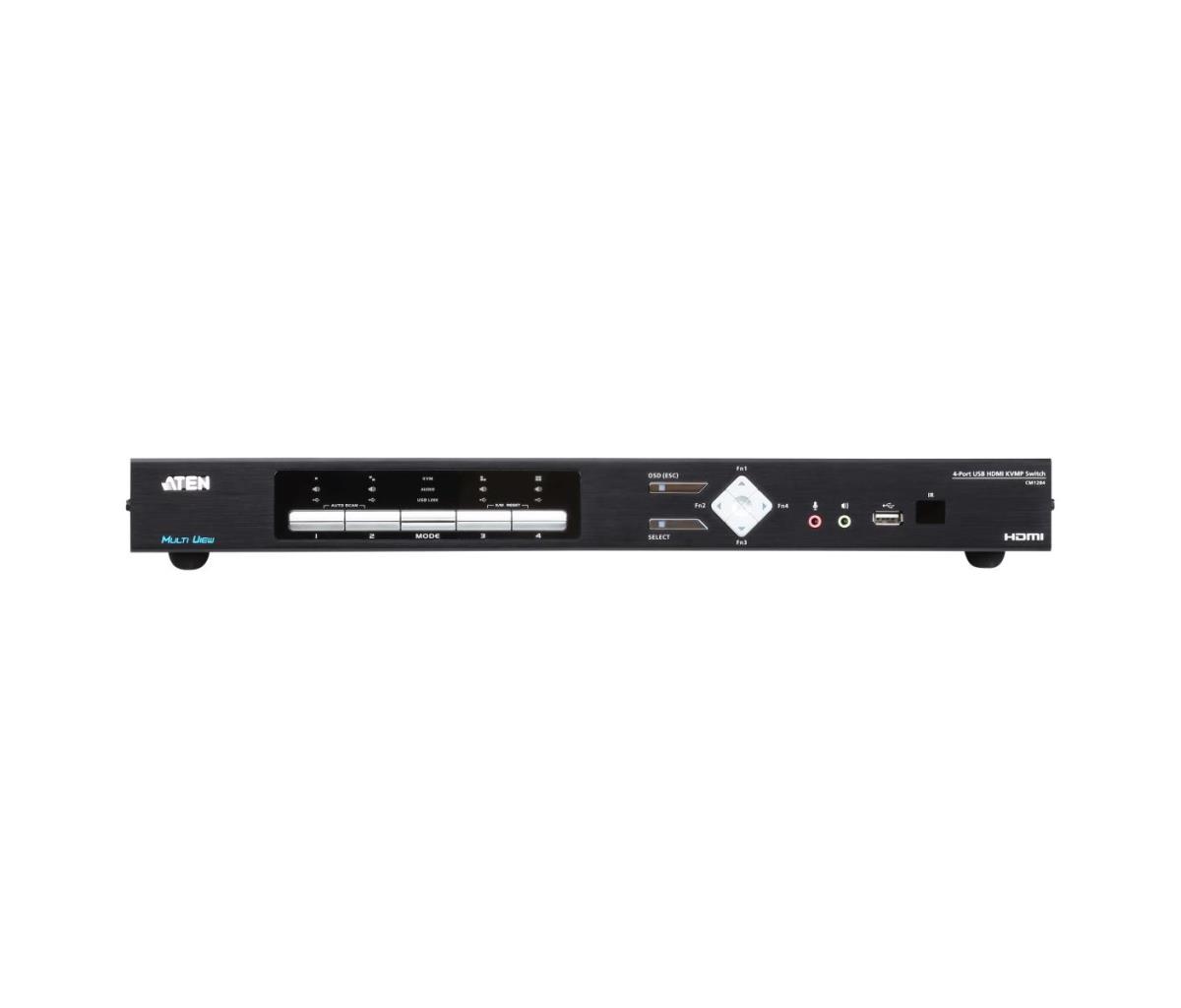

4-port USB Hdmi Multi-view KVMp Switch

ITCurry #: 90313809 | Article #: CM1284-AT-G
Price:
2539.92 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 6 to 10 of 15

Product Information

ATEN CM1284 4-Port USB HDMI Multi-View KVMP™ Switch improves the operational efficiency of real-time monitoring. The CM1284 allows users to manage the data more efficiently by allowing multiple sources to be selected, switched, and displayed at the same time with independent keyboard and mouse control.
1x CM1284 4-Port USB HDMI Multi-View KVMP™ Switch
4x LIN5-28V1-V11G USB HDMI Cables
1x LIN2-418K-E12G Power Cord
1x 2XRT-0013G IR Remote Control
1x Rack Mount Kit
1x User Instructions

Ports & interfaces
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type HDMI
HDMI ports quantity 6
USB 2.0 Type-B ports quantity 4
Console ports 3.5mm headphone, HDMI, RJ-45, USB A
Console USB ports quantity 2
USB hub Yes
USB 2.0 Type-A hub ports quantity 2
USB connector type USB Type-A, USB Type-B
Audio connections Yes
Headphone outputs 6
Number of microphone inputs 6
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 2
Performance
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Video bandwidth 30 Hz
Scan interval 5,10,15,30,60,90 s
HDCP Yes
Hot-Plug support Yes
Daisy chain Yes
Firmware upgradeable Yes
Design
Rack mounting Yes
Rack capacity 1U
Product colour Black
Housing material Metal
Cascadable Yes
LED indicators Yes
Push button Yes
Hot keys Yes
Display
Built-in display No
On Screen Display (OSD) Yes
Power
Power source AC
Input voltage 110 - 220 V
AC input frequency 50 - 60 Hz
Input current 1 A
Power consumption (typical) 16 W
Warranty
Base Warranty Non Non
Sustainability
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 40 øC
Storage temperature (T-T) -10 - 60 øC
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 437.2 mm
Depth 164 mm
Height 44 mm
Weight 3.86 kg
Packaging data
Package width 131 mm
Package depth 540 mm
Package height 233 mm
Package weight 4.26 kg
Packaging content
Cables included HDMI, USB
Manual Yes
AC adapter included Yes
Rack mount kit Yes
Logistics data
Master (outer) case net weight 11.6 kg
Harmonized System (HS) code 85176200
Master (outer) case width 420 mm
Master (outer) case length 555 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 13.8 kg
Products per master (outer) case 3 pc(s)
