4K HDMI Switch 5 in, 1 out
ITCurry #: T4057281 | Article #: AC7841-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

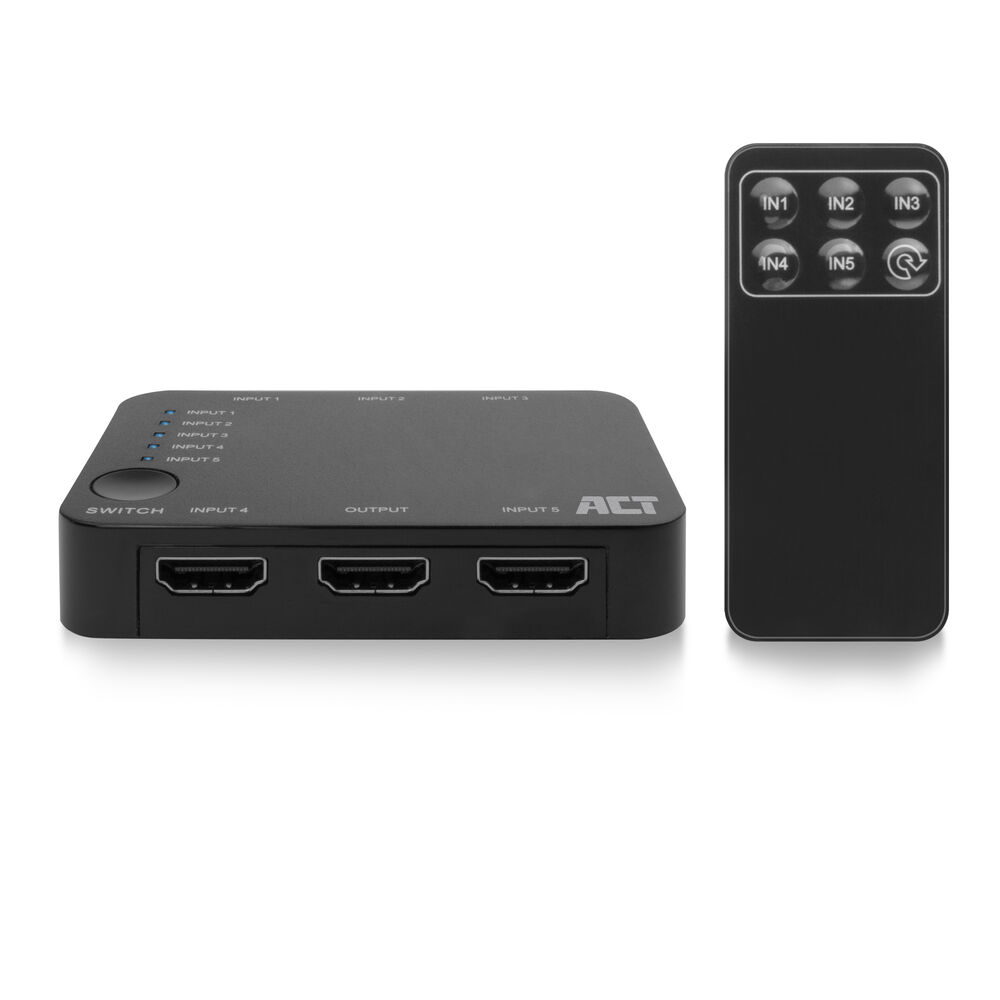

The AC7841 4K HDMI Switch 5x1 allows you to display 5 HDMI sources on one TV/screen. Switching between sources is easy with the included remote control. The AC7841 automatically switches to the first available source via auto input sensing. The maximum supported resolution is 4096x2160 @ 60Hz.
Display five HDMI sources on one TV
Use the AC7841 4K 5x1 HDMI Switch to switch between multiple video sources on a single TV. For example, a laptop, game console or TV streamer. The AC7841 supports Auto Input Sensing which allows the switch to detect available sources. Use the button on top of the switch or the included remote control to select the preferred HDMI source to display on the screen. Status LEDs indicate when the input port is in use.
Connect your devices
Connect the video sources to the HDMI input ports of the AC7841 HDMI Switch using High Speed HDMI cables. Connect a TV/monitor to the output port of the switch using a High Speed HDMI cable. The maximum recommended length of an HDMI cable is 5 meters. The AC7841 is USB powered via the supplied cable.
| Ports & interfaces | |
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 2.0 |
| HDMI in | 5 |
| Number of HDMI outputs | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Features | |
| Product colour | Black |
| Extended display identification data (EDID) | Yes |
| HDCP | Yes |
| Supported video modes | 2160p |
| Bandwidth | 18 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| HDCP version | 2.2 |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 0.9 A |
| Weight & dimensions | |
| Width | 87 mm |
| Depth | 59.5 mm |
| Height | 19 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Remote control included | Yes |
| Cables included | IR, USB |
| Warranty | |
| Base Warranty | Non Non |
