KVM Switch 4x1 DP DP/HDMI Out USB 4Kx2K 60Hz
ITCurry #: M9238723 | Article #: DS-12890-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Operate 4 PCs with one USB keyboard and mouse – switch between four computers by pressing a button or with the remote control
- Use a monitor, a mouse and a keyboard to operate four computers
- USB ports for mouse and keyboard
- Audio connections for microphone/speaker
- Integrated USB hub with 2 x USB 3.0 connections for additional peripheral equipment
- Switching between the PCs via switch on the KVM switch, remote control or hot key on the keyboard
- External receiver for signals from remote control included
- Compatible with HDMI 2.0 / HDCP 2.2 / DisplayPort 1.2 / HDR / FreeSync
- LED status and functional displays on the front side
- Wall installation possible
- Plug and Play - no driver installation required

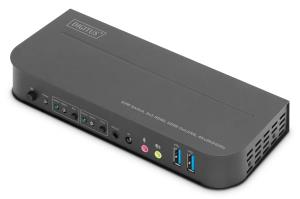

With the DIGITUS® 4-Port KVM Switch, you can operate four 4k-compatible PCs using a single USB keyboard and mouse. By pressing a button or using the remote control included in delivery, you can switch comfortably between the PCs, sparing you the trouble of replugging all cables. Output to a monitor occurs either via the integrated HDMI® or the DisplayPort™ output. You can also switch between the audio signals for the microphone and speaker. In addition, two USB 3.0 ports are included on the front side for use with other peripheral devices like USB sticks or external hard drives on all PCs. If you place the KVM switch in an inaccessible location, you can use the IR receiver and connection cable included in delivery even if the KVM switch itself is not within the range of the remote control. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing and the option of wall mounting.
| Ports & interfaces | |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 5 |
| DisplayPort version | 1.2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB B |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| HDCP | Yes |
| Plug and Play | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Display switch button | Yes |
| Push button | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Input voltage | 100 - 240, 5 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.6 A |
| Output voltage | 5 V |
| Output current | 3 A |
| Power consumption (typical) | 11.75 W |
| External power adapter | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows 2000 Server |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -10 - 80 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 75 mm |
| Depth | 243 mm |
| Height | 26 mm |
| Weight | 505.4 g |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 180 mm |
| Package volume | 2691 cmü |
| Package weight | 1.33 kg |
| Other features | |
| Ports quantity | 8 |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| UK Trade Tariff code | 84718000 |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
