4K HDMI splitter, 1 in 4 out, EDID support
ITCurry #: T4057280 | Article #: AC7832-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

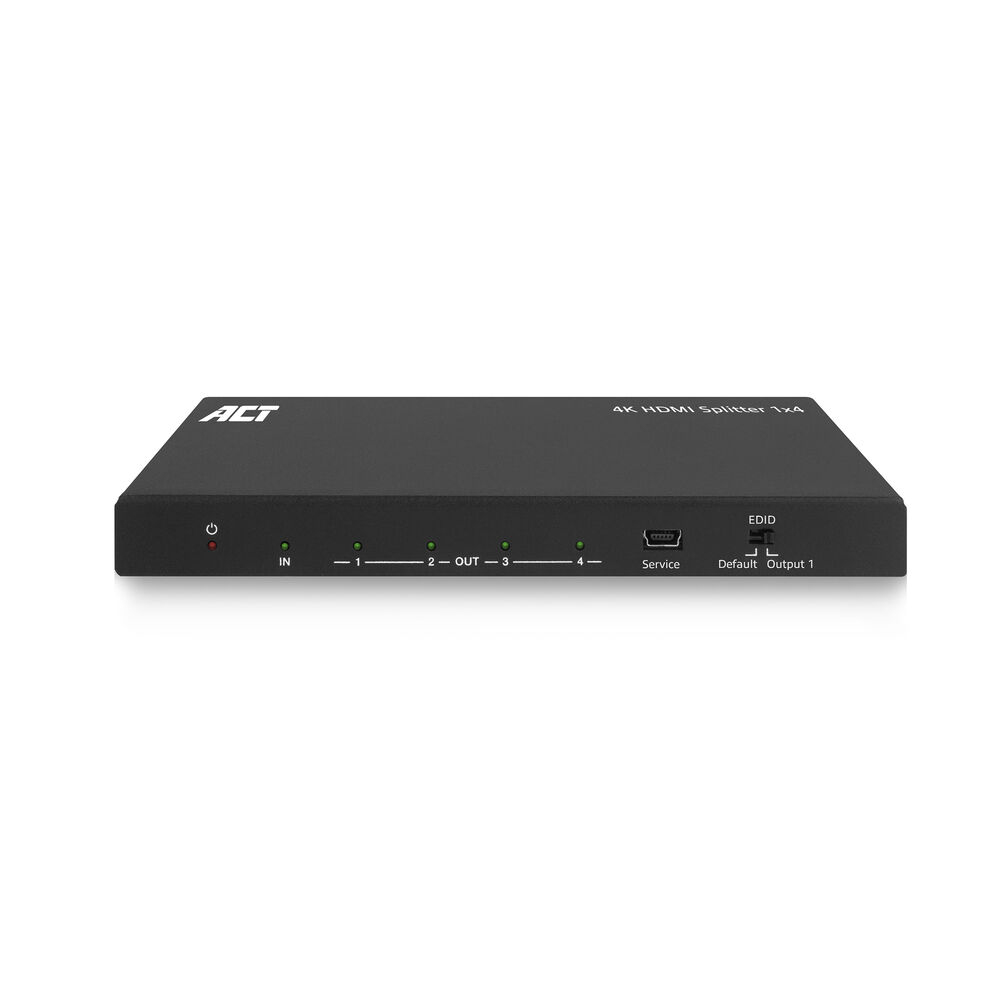

Display a single 4K HDMI signal to four separate TVs or monitors with the AC7832 4K HDMI Splitter. Ideal for use of digital signage in stores, waiting rooms, bars, and offices. With a maximum resolution of 3840x2160 (4K) @60Hz, this splitter supports EDID, Chroma sampling 4:4:4 and HDCP 1.4 ensuring high-quality video transmission. The splitter comes with an external power adapter and detachable mounting brackets.
Split one 4K video source to multiple screens
The AC7832 HDMI splitter is the perfect solution for digital signage up to four separate HDMI screens. The AC7832 features one HDMI input and four HDMI outputs. and includes status LEDs to indicate which screens are connected.
EDID support
The AC7832 can handle 4K@60Hz with ease. The EDID (Extended Display Identification) copy function ensures that the resolution is communicated correctly between the source device and the output devices. The screen connected to HDMI output 1 will determine the resolution for both the input and the other three screens.
Suitable for wall mounting
The AC7832 can be mounted on a wall or desk using the included mounting brackets.
| Ports & interfaces | |
| Video port type | HDMI |
| Video out | 4x HDMI |
| Video ports quantity | 5 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| HDCP version | 1.4 |
| Extended display identification data (EDID) | Yes |
| Data transfer rate | 10.2 Gbit/s |
| HDCP | Yes |
| Power | |
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (typical) | 5 W |
| Weight & dimensions | |
| Width | 163 mm |
| Depth | 63 mm |
| Height | 16 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Packaging content | |
| AC adapter included | Yes |
| Warranty | |
| Base Warranty | Non Non |
