Vfmf50td Motorised Height Adjustable Dual Display Trolley
ITCurry #: Q3823726 | Article #: VFM-F50T/D-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

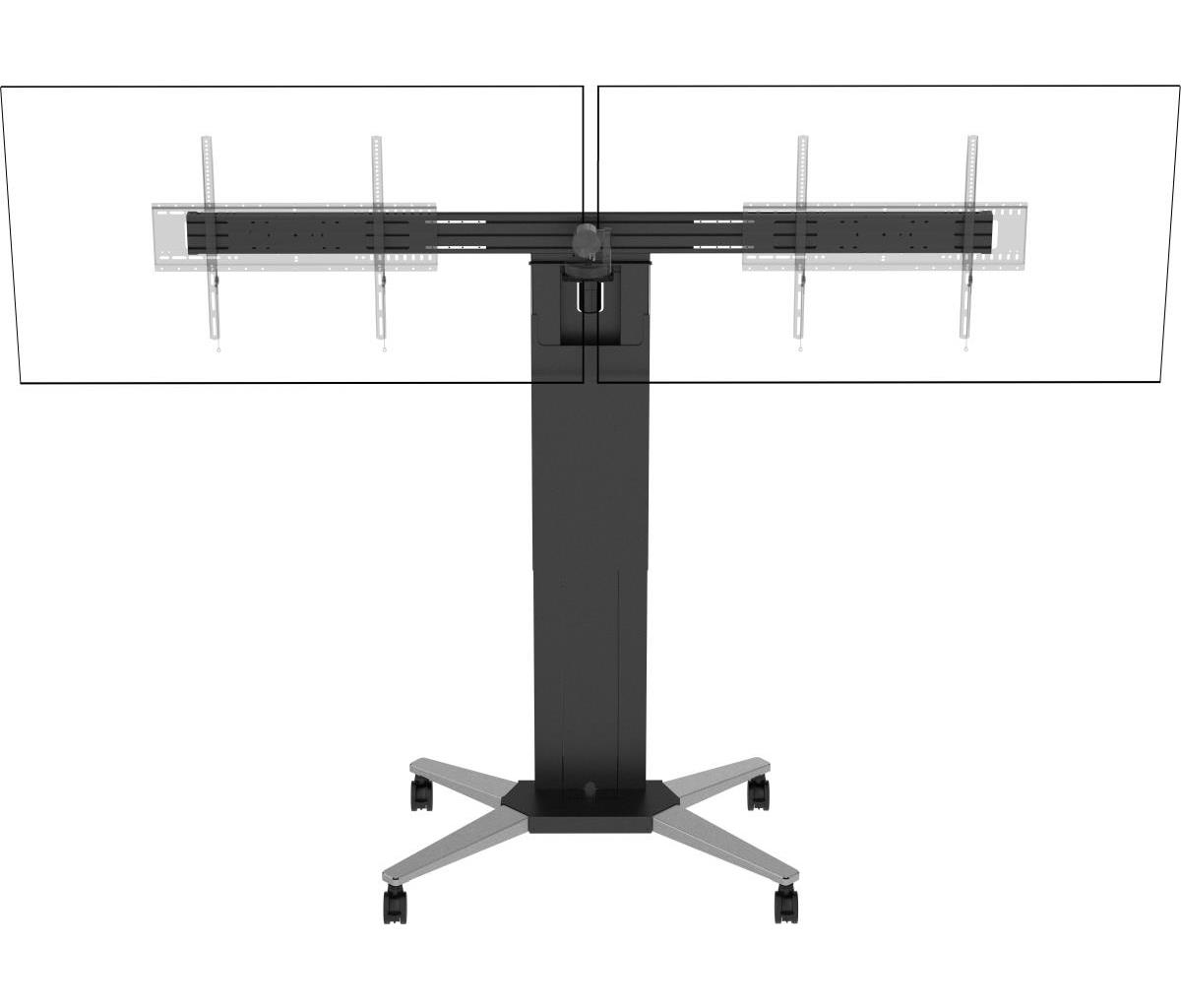

Need to install a Microsoft Teams or Zoom room? Vision’s VFM-F50T Dual trolley makes it easy to install two displays on one floor stand. This kit comprises the portable F50T with a dual-display adaptor rail, and a second wall mount.
The F50T has motorised height adjustment so with a one-button press, you can raise it to so you can raise it high for bigger rooms, or lower it to align with the height of a meeting table.
2 x Displays
Support two displays from 55" to 86". Each display can weight up to 40 kg. The aluminium rail comes in three parts and allows side to side adjustment of the displays.
Glass Walls
If you have a meeting room with a non-structural or glass wall the F50T feet can be reconfigured to safely support the stand leaning against the glass. Removing the wheels and changing the rear leg angle allows positioning of the display hard up against the back wall safely, without placing any load on the wall.
Camera Shelf
A centre shelf is included. It can support a camera above, below, or in the centre between the two screens. If the camera is smaller like the Logitech Brio, the platform part of the shelf assembly can be left off to make it less obtrusive.
Putting the camera at the centre of the two screens creates a more natural impression of eye contact for the remote participants.
Non-Portable Variation
We know sometimes users need a non-portable free-standing solution, so simply remove the wheels and fit the adjustable feet. The feet are low profile to reduce trip hazards.
SWL 80 kg (176 lbs)
The F50T uses heavy-gauge components to take the weight, and a linear drive with twin drive shafts to power the vertical motion. The weight of all displays combined cannot exceed this.
Four cartons
This kit contains 1 x VFM-F50T floor stand (comes in two cartons strapped together), 1 x VFM-F50_DL rail accessory, and 1 x VFM-W8X6 wall mount. If you need a different combination you can order each part separately.
Wired Control or RS-232
A wired remote control is included with simple up and down functions. It fixes to the rear of the display with an adhesive sticker. Alternatively, use a control system to activate the F50T via RS-232 and add pre-set positions, and upper and lower limits.
4" Wheels
Medical-grade 4? (100 mm) castors glide over any bumps, making the stand easy to pull even on deep carpet. Big wheels reduce vibration of your expensive AV equipment. All wheels are lockable.
Hide Mess
Generous cable entry holes make routing cables quick and easy. The front cover can be removed for end users to easily access anything they need. There is also plenty of space to hide cables, media players, mini PCs, and power distribution boards inside the column.
Landscape or Portrait
Vision's VESA mounts support portrait or landscape orientation.
800 mm / 31.5" Motorised Height Adjustment
The height of the display can be altered to suit the audience thanks to motorised height adjustment. The telescopic column movement range is 800 mm / 31.5?.
Increased Safety
If there is obstruction under the display as it is lowered, the weight of the display simply rests on top of the obstruction. It does not pull down and crush the obstruction. There is safety sensor which sensors obstacles and will stop the motor.
| Montage | |
| Minimale schermgrootte | 139,7 cm (55") |
| Maximale gewichtscapaciteit | 80 kg |
| Maximale schermgrootte | 2,18 m (86") |
| Montage interface compatibiliteit (min) | 300 x 300 mm |
| Montage interface compatibiliteit (max) | 800 x 600 mm |
| Paneelmontage-interface | 300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,400 x 600,500 x 400,500 x 500,600 x 400,600 x 600,600 x 500,800 x 400,800 x 500,800 x 600 |
| Aantal displays ondersteund | 2 |
| Montagewijze | Vloer tot wand |
| Ergonomie | |
| In hoogte verstelbaar | Ja |
| Type hoogteverstelling | Electrisch |
| Wielen | Ja |
| Aantal wielen | 4 wiel(en) |
| Vergrendelbare wielen | Ja |
| Verbeterd kabelbeheer | Ja |
| Hijssnelheid | 16 mm/sec |
| Eenvoudig verstelbaar | Ja |
| Design | |
| Kleur van het product | Zwart |
| Materiaal behuizing | Aluminium, Staal |
| Energie | |
| AC-ingangsspanning | 110 - 230 V |
| Lengte stroomkabel | 2,5 m |
| Technische details | |
| Hefgewicht (max) | 80 kg |
| Aantal per verpakking | 1 stuk(s) |
| Gemakkelijk te installeren | Ja |
| Model | Liggend |
| Naleving van duurzaamheid | Ja |
| Certificaten van naleving | CE, Federal Communications Commission (FCC), Laagspanningsrichtlijn (LVD), RoHS, WEEE |
| Inhoud van de verpakking | |
| Meegeleverde kabels | Stroom |
| Montagebeugels meegeleverd | Ja |
| Aantal montagebeugels | 2 |
| Moeren inbegrepen | Ja |
| Gewicht en omvang | |
| Breedte | 1280 mm |
| Diepte (max) | 83,1 cm |
| Hoogte | 2360 mm |
| Gewicht | 78,8 kg |
| Verpakking | |
| Aantal per pakket | 1 paar/paren |
| Afmetingen pakket 1 (BxDxH) | 1112 x 422 x 376 mm |
| Gewicht pakket 1 | 63 kg |
| Afmetingen pakket 2 (B x D x H) | 880 x 235 x 40 mm |
| Gewicht pakket 2 | 6,8 kg |
| Afmetingen verpakking 3 (B x D x H) | 884 x 224 x 237 mm |
| Gewicht pakket 3 | 12,1 kg |
| Warranty | |
| Base Warranty | Non Non |
