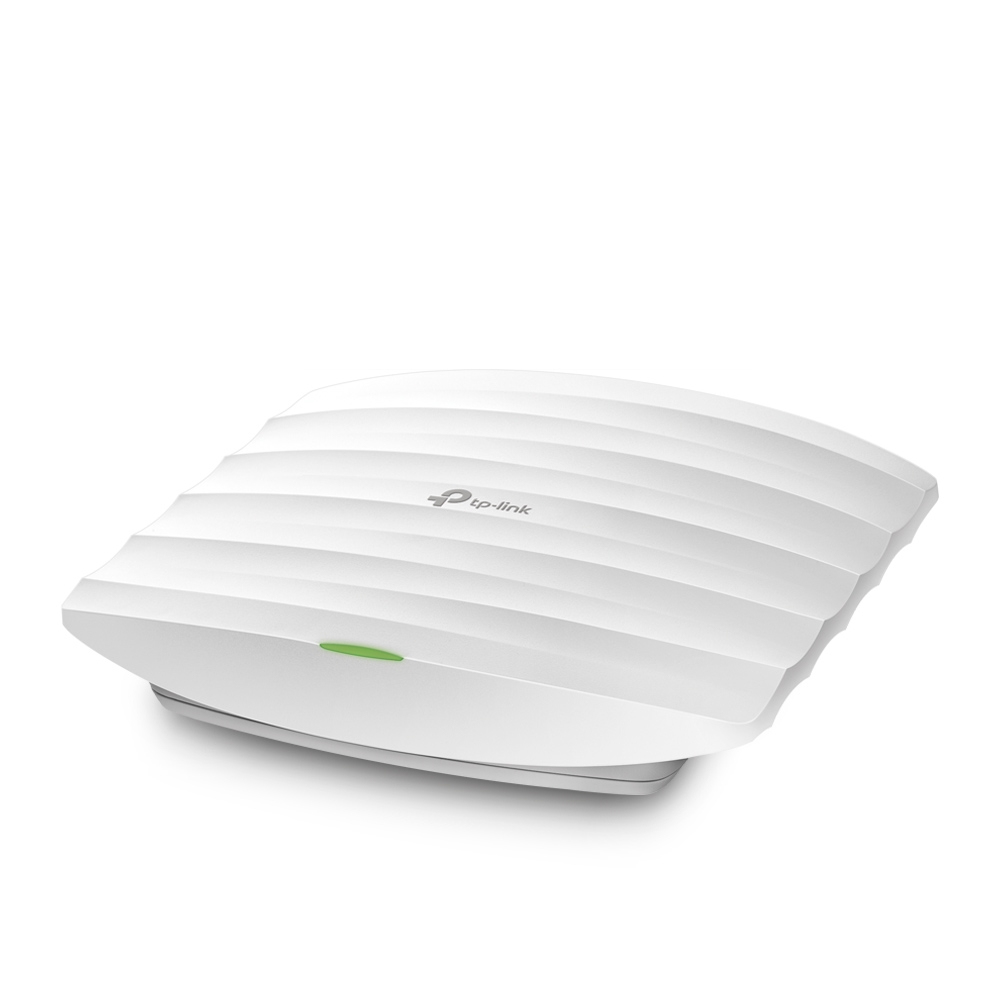

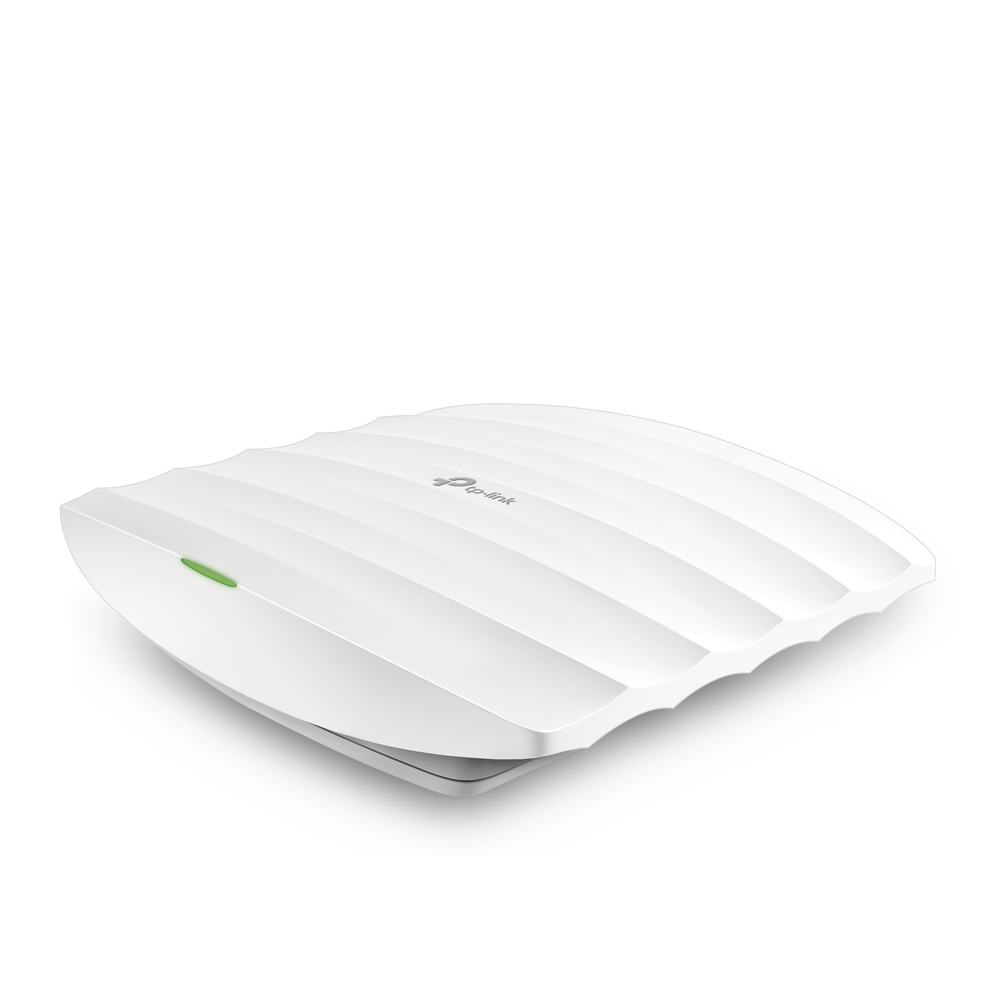

Wireless Dual Band Gigabit Ceiling Mount Access Point Ac1200 (eap225)
ITCurry #: P6042706 | Article #: EAP225-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
An Affordable Business-Class
802.11ac MU-MIMO Wi-Fi Solution
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Secure Guest Network with Facebook Wi-Fi and SMS Authentication
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
| Kenmerken | |
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| 6 GHz | Nee |
| Maximale overdrachtssnelheid van gegevens | 867 Mbit/s |
| Maximale overdrachtssnelheid van gegevens (2.4 GHz) | 450 Mbit/s |
| Maximale overdrachtssnelheid van gegevens (5 GHz) | 867 Mbit/s |
| Automatische kanaalselectie | Ja |
| Automatisch scannen kanalen | Ja |
| MIMO | Ja |
| MIMO-type | Multi User MIMO |
| Wifi Multimedia (WMM)/(WME) | Ja |
| VLAN=ondersteuning | Ja |
| Rate limiting | Ja |
| Draadloze isolatie | Ja |
| Bandbreedteaansturing | Ja |
| Quality of Service (QoS) | Ja |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC adres filtering | Ja |
| Aantal SSID-ondersteuningen | 16 |
| Beheerfuncties | |
| Web-gebaseerd management | Ja |
| Lokaal AP-beheer | Telnet |
| Syslog | Ja |
| Poorten & interfaces | |

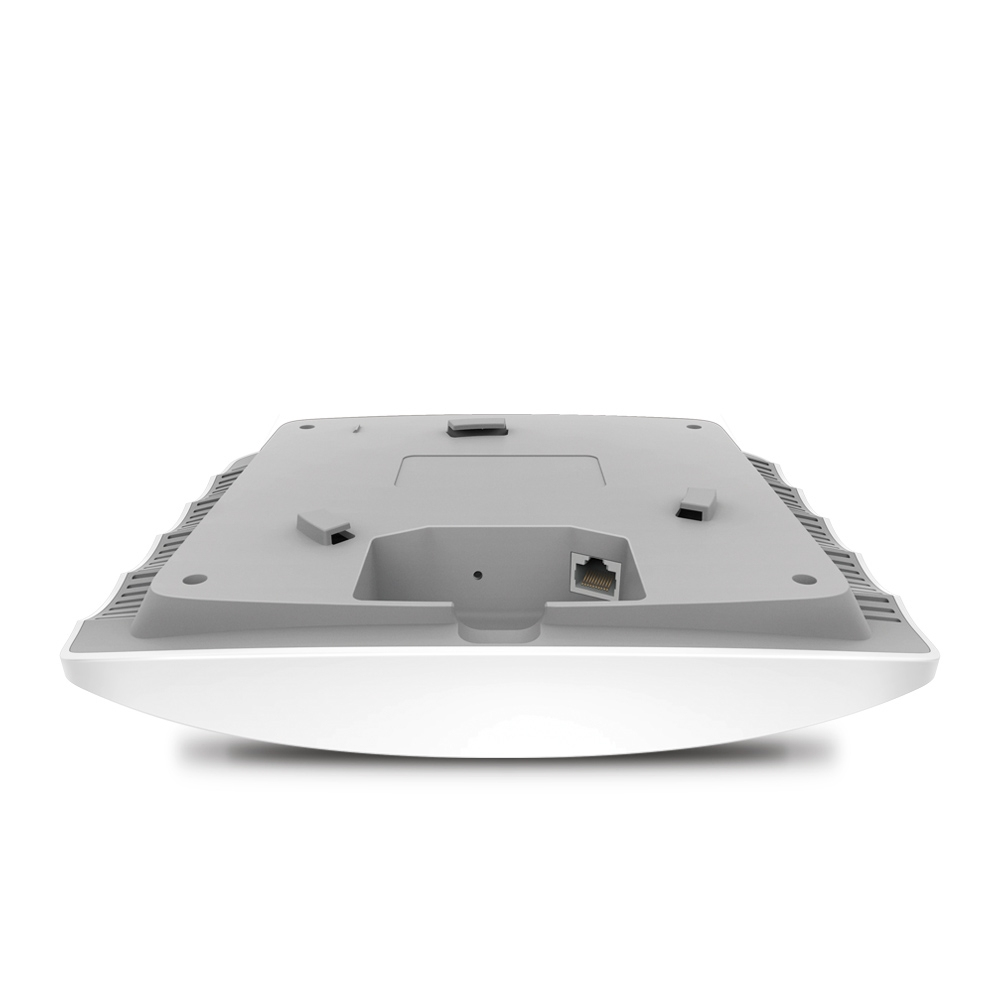

| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Energie | |
| Power over Ethernet (PoE) | Ja |
| Type Power over Ethernet (PoE) ondersteunt | Active PoE, Passive PoE |
| Spanning | 24 V |
| Design | |

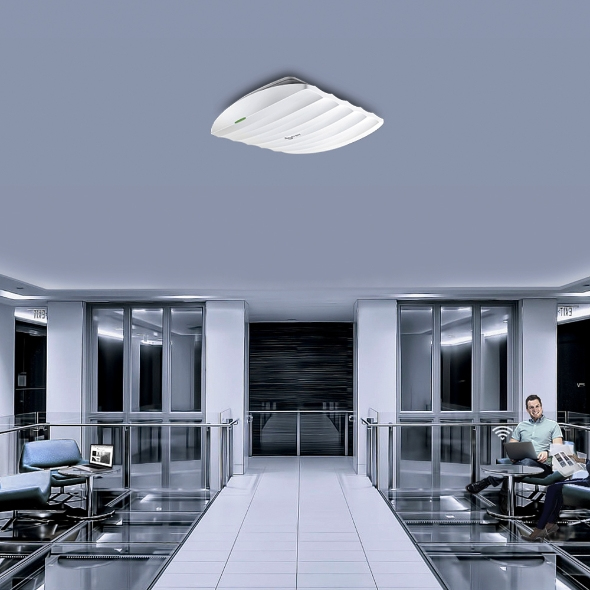

| Plaatsing | Plafond, Muur |
| Kleur van het product | Wit |
| Reset button | Ja |
| LED-indicatoren | Stroom, WLAN |
| Antenne | |
| Soort antenne | Intern |
| Type antennerichting | Omni-directioneel |
| Antennas quantity | 3 |
| Prestatie | |
| Type processor | Ja |
| Certificaten | |
| Certificering | CE, FCC, RoHS |
| Gewicht en omvang | |
| Breedte | 205,5 mm |
| Diepte | 181,5 mm |
| Hoogte | 37,1 mm |
| Verpakking | |
| Breedte verpakking | 340 mm |
| Diepte verpakking | 228 mm |
| Hoogte verpakking | 65 mm |
| Gewicht verpakking | 910 g |

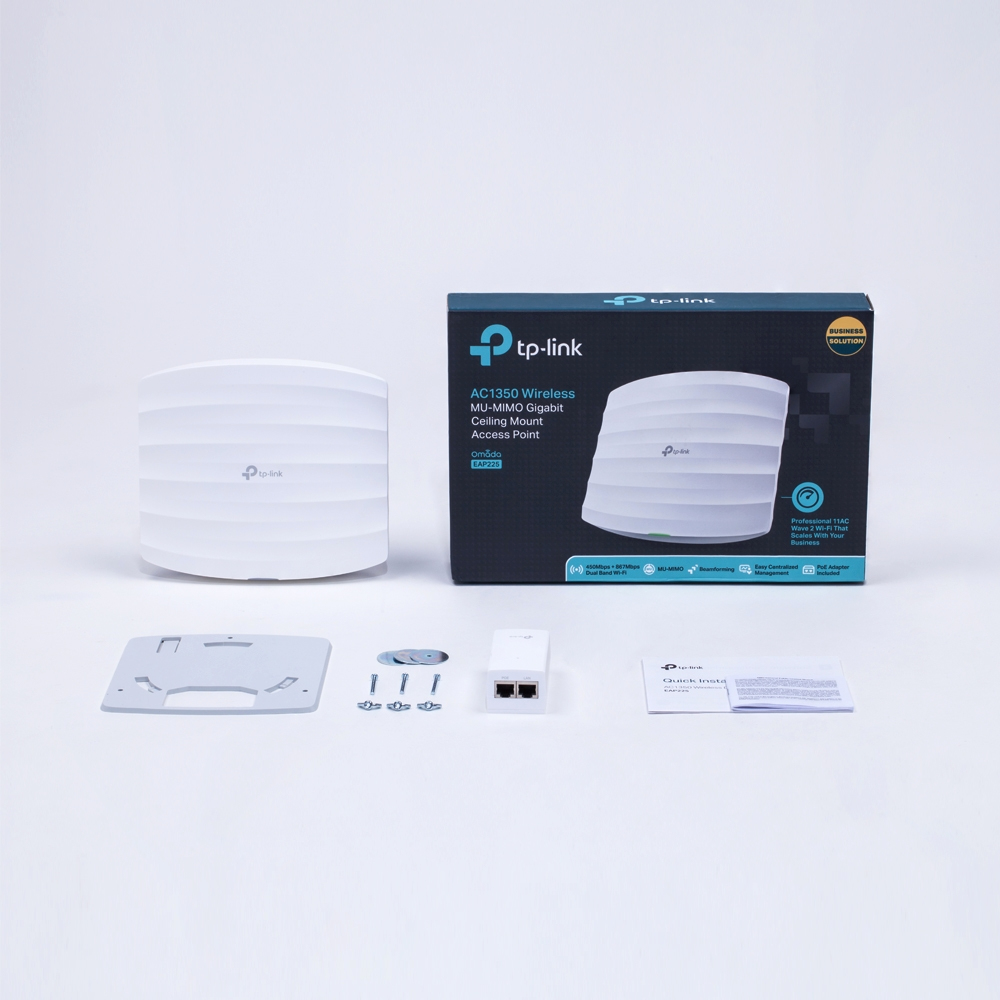

| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Inclusief PoE-adapter | Ja |
| Meegeleverde kabels | AC |
| Montage gereedschap | Ja |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Bedrijfstemperatuur (T-T) | 0 - 60 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
