What This Product Does

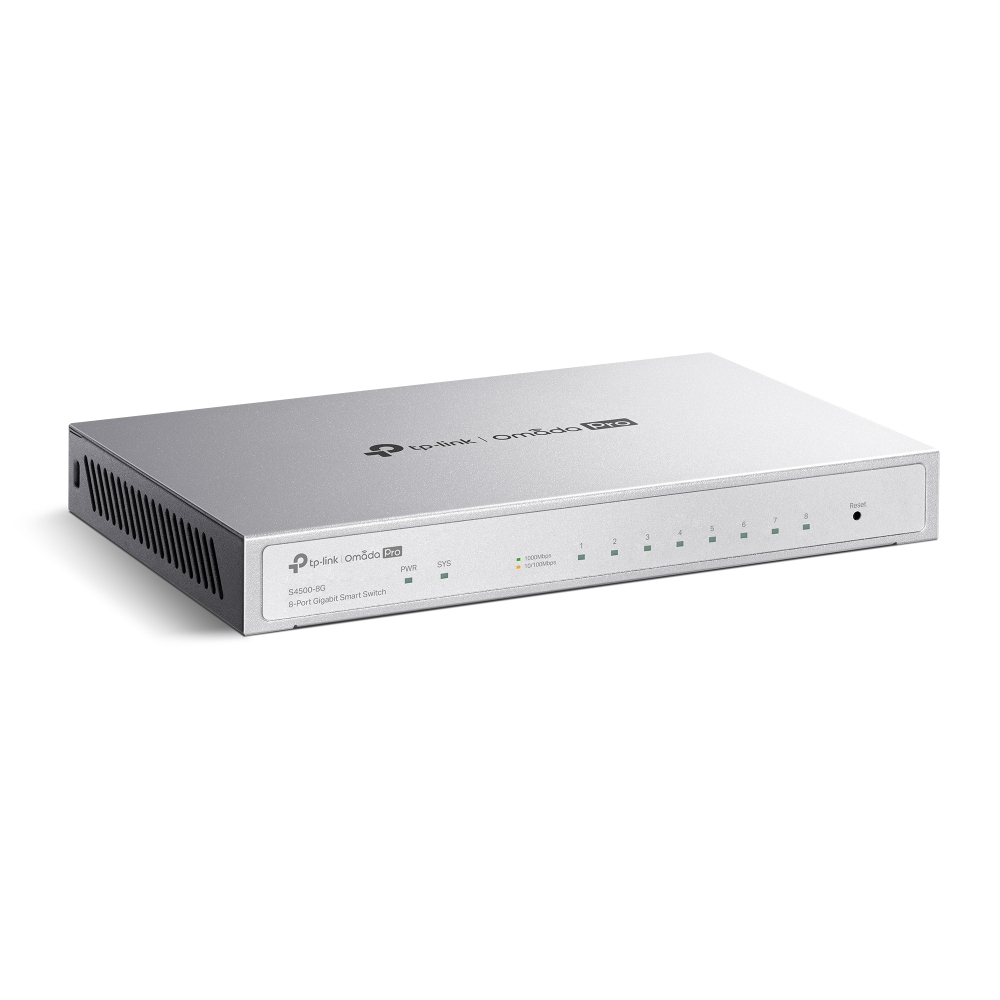

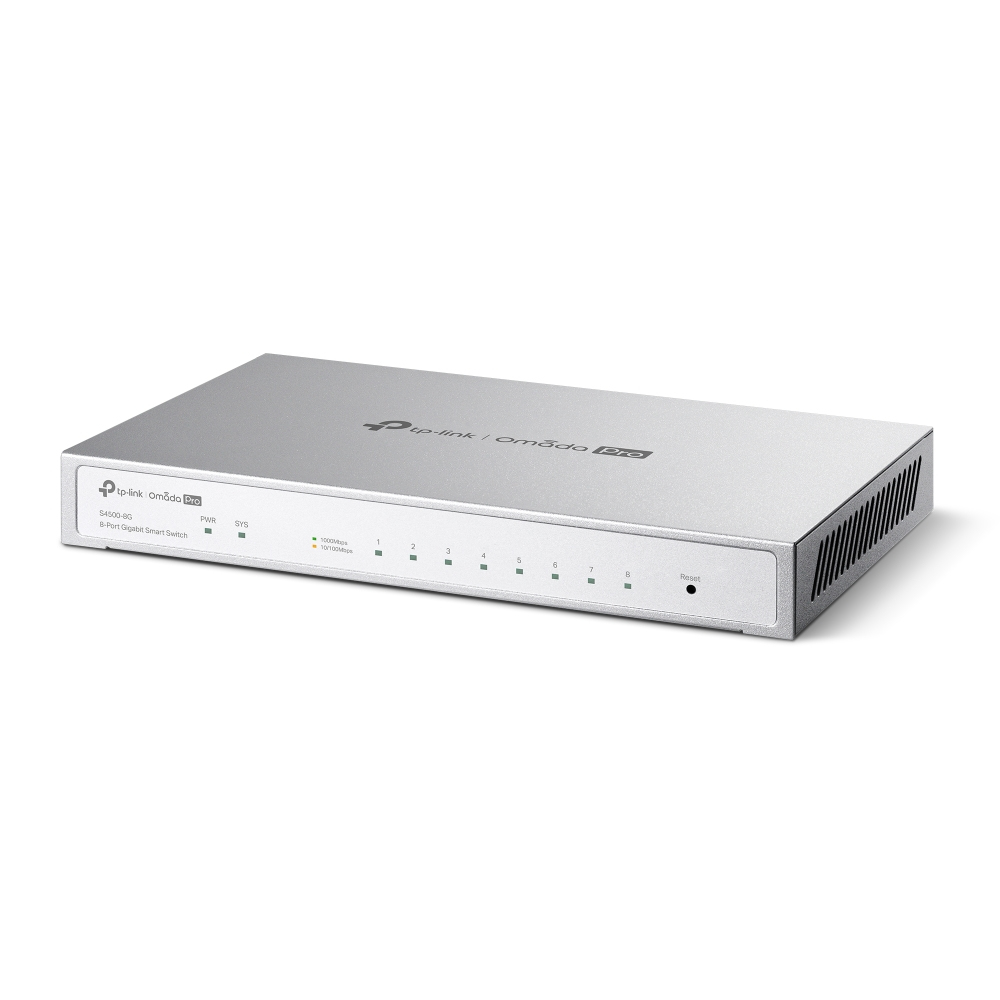

S4500-8G is an enterprise-level switch equipped with eight RJ45 ports (10/100/1000 Mbps). High-performance static routing, enterprise-level QoS, advanced security features, a selection of Layer 2 management options, and integration into the Omada Pro SDN (Software-Defined Networking) make S4500-8G an excellent choice for the access layer of business networking.
Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them.
In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission—even when bandwidth is in short supply.
Abundant L2 and L2+ Features
S4500-8G supports a complete lineup of L2 features, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discovery guarantee that your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.* Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface.
Apart from the ability to be centrally managed via Omada Pro controllers, S4500-8G simplifies management via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2/L2+ |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Traffic-classificatie | Ja |
| System event log | Ja |
| Warranty | |
| Base Warranty | Non Non |
| Poorten & interfaces | |

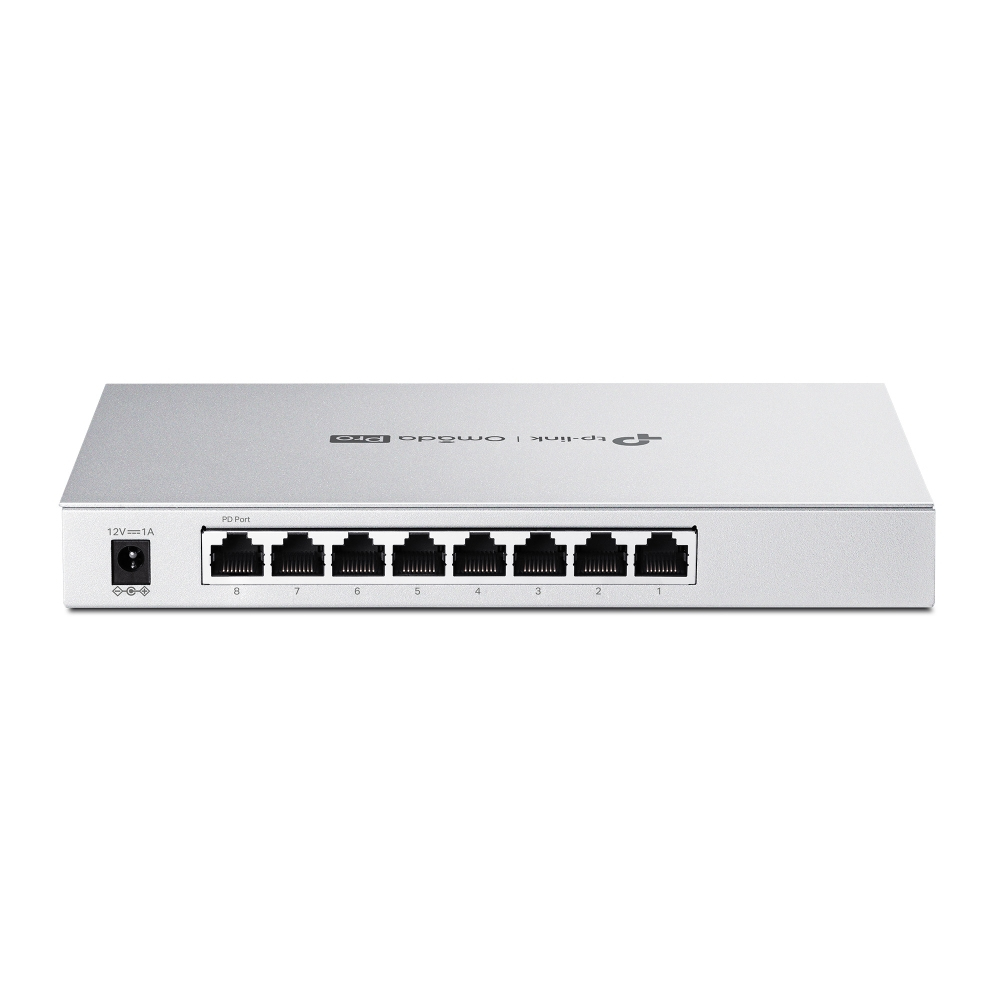

| Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Netstekker | DC-in ingang |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Nee |
| Koperen ethernetbekabelingstechnologie | 100BASE-T, 1000BASE-T, 1000BASE-TX |
| Ondersteundende kabel types | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Rate limiting | Ja |
| Spanning tree protocol | Ja |
| Active Link-detectie | Ja |
| Virtuele LAN-functies | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| Aantal VLANs | 4000 |
| Data-uitwisseling | |
| Switchingcapaciteit | 16 Gbit/s |
| Verzending snelheid | 11,9 Mpps |
| MAC-adrestabel | 8000 entries |
| Store-and-forward | Ja |
| Aantal wachtrijen | 8 |
| Statische route | Ja |
| Aantal statische routes | 32 |
| Aantal IP-interfaces | 16 |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9000 |
| Packet buffergeheugen | 4,1 MB |
| Beveiliging | |
| DHCP-functies | DHCP relay, DHCP server |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| MAC adres filtering | Ja |
| SSH/SSL support | Ja |
| Bescherming lus | Ja |
| Wachtwoordbeveiliging | Ja |
| Authenticatie type | RADIUS |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Design | |
| Rack-montage | Nee |
| Kleur van het product | Grijs |
| LED-indicatoren | Ja |
| Prestatie | |
| Intern geheugen | 256 MB |
| Flash memory | 32 MB |
| Fanloos | Ja |
| Technische details | |
| Certificaten van naleving | CE, Federal Communications Commission (FCC), RoHS |
| Energie | |
| Stroombron | AC/DC |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 220 V |
| AC-ingangsfrequentie | 50 Hz |
| Stroom | 1 A |
| Ingangsspanning | 12 V |
| Vermogensverbruik (max) | 6,4 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Warmtedissipatie | 21,84 BTU/h |
| Gewicht en omvang | |
| Breedte | 209 mm |
| Diepte | 126 mm |
| Hoogte | 26 mm |
| Verpakking | |
| Snelstartgids | Ja |
| Duurzaamheid | |
| Naleving van duurzaamheid | Ja |
