Product Informatie
Always-On Coverage,
Always-On Networking

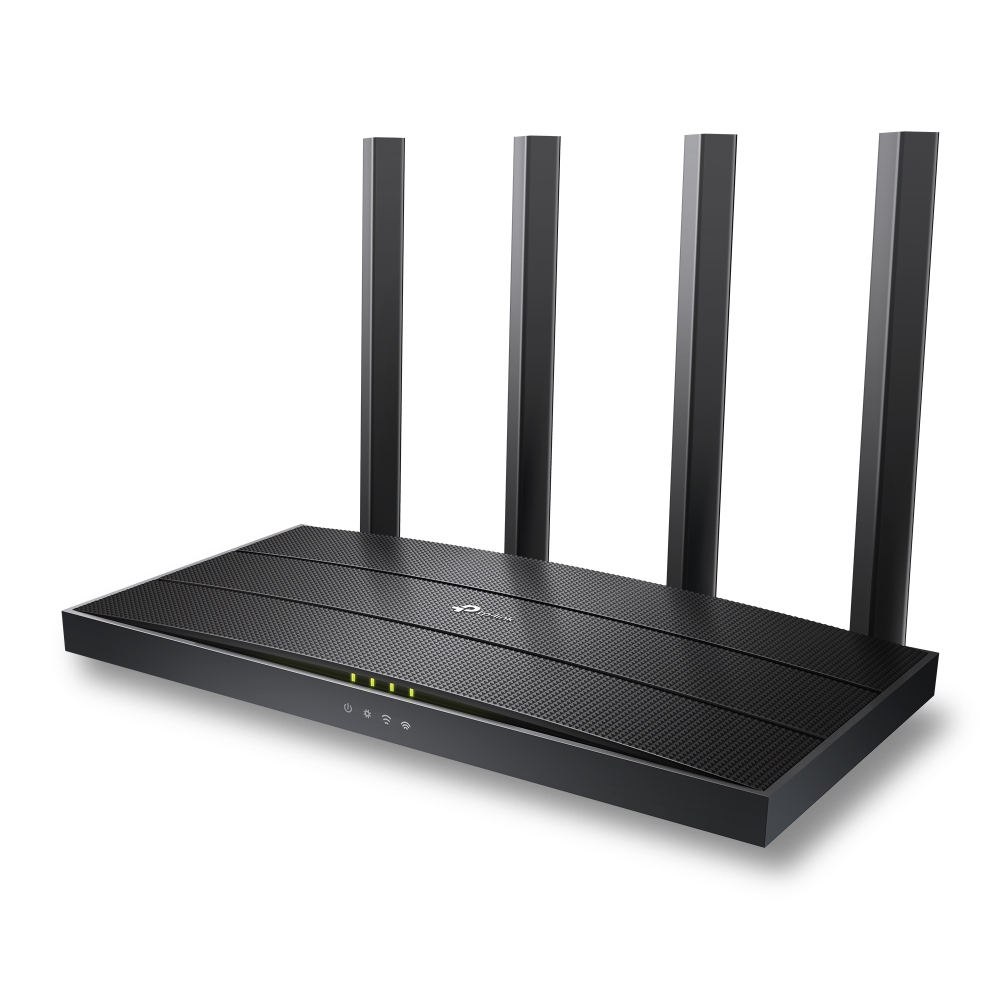

Omada AC1350 Gigabit VPN Router
Smooth Networking Starts with AC1350 Dual Band WiFi
ER605W is a high-performance dual band gigabit VPN router, designed specifically for retail, small shops, small chain stores, branch offices, and more. It creates a reliable network powered by 802.11ac WiFi technology. The 2.4 GHz band provides rates of up to 450 Mbps, ideal for daily tasks like emailing and web browsing, while the 5 GHz band delivers speeds of up to 867 Mbps, perfect for HD video streaming and lag-free online conferencing. ER605W provides your store with a simple, clean wireless network.

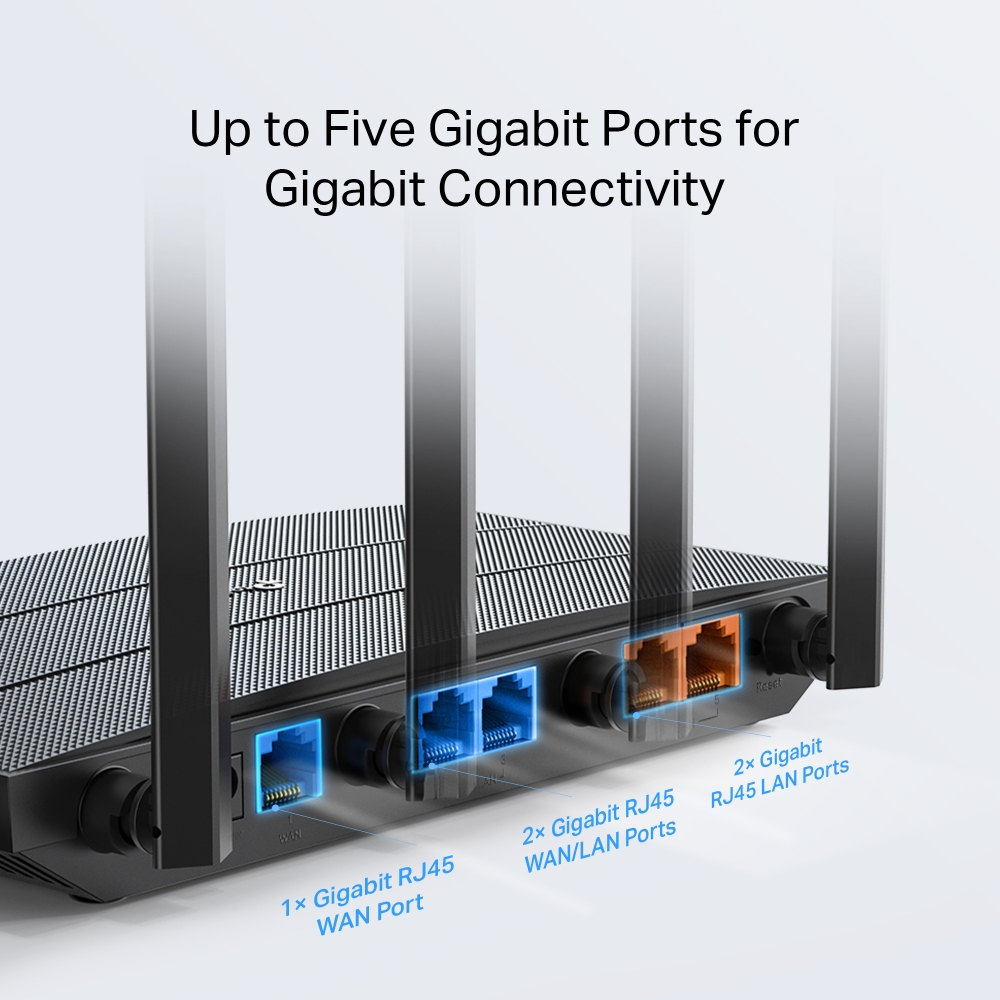

Up to Five Gigabit Ports for Gigabit Connectivity

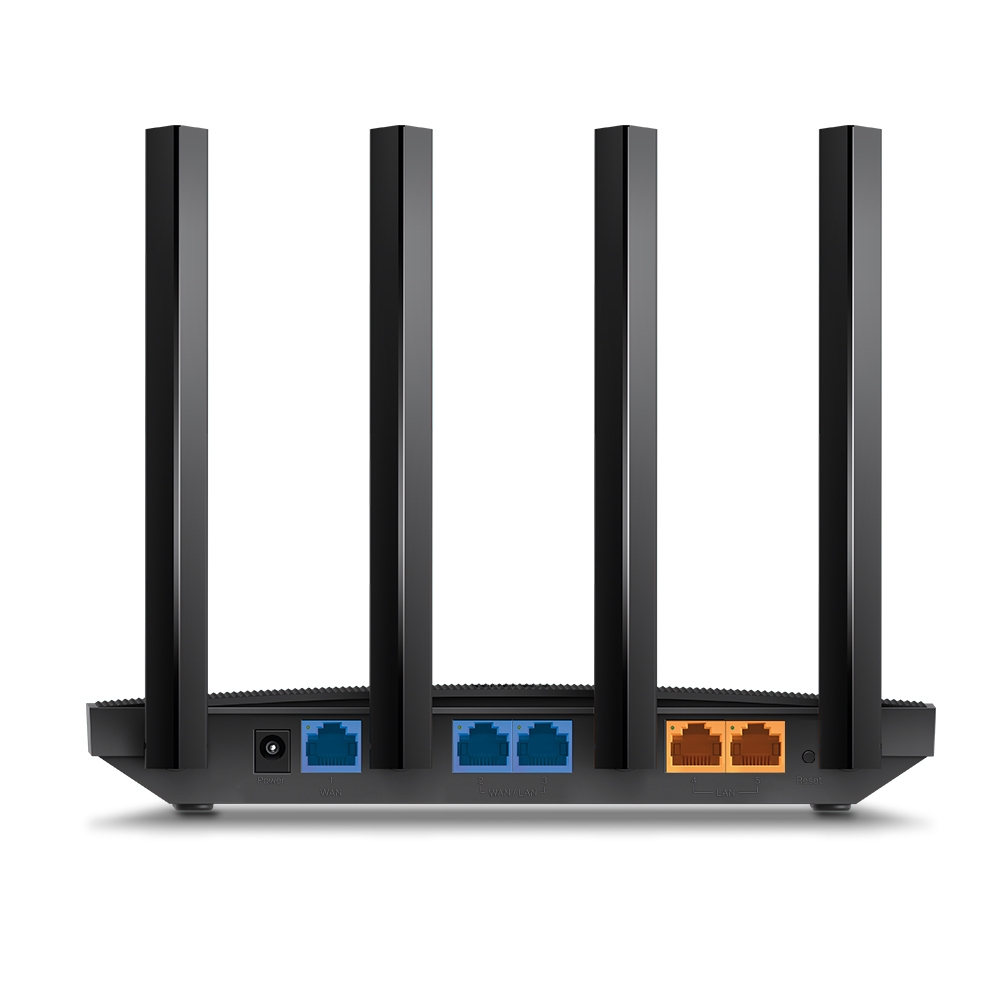

ER605W boasts 1 WAN, 2 WAN/LAN, and 2 LAN ports, meeting diverse internet needs. Attach your wired devices like desktops or 4K HDTVs to ER605W for a seamless experience.

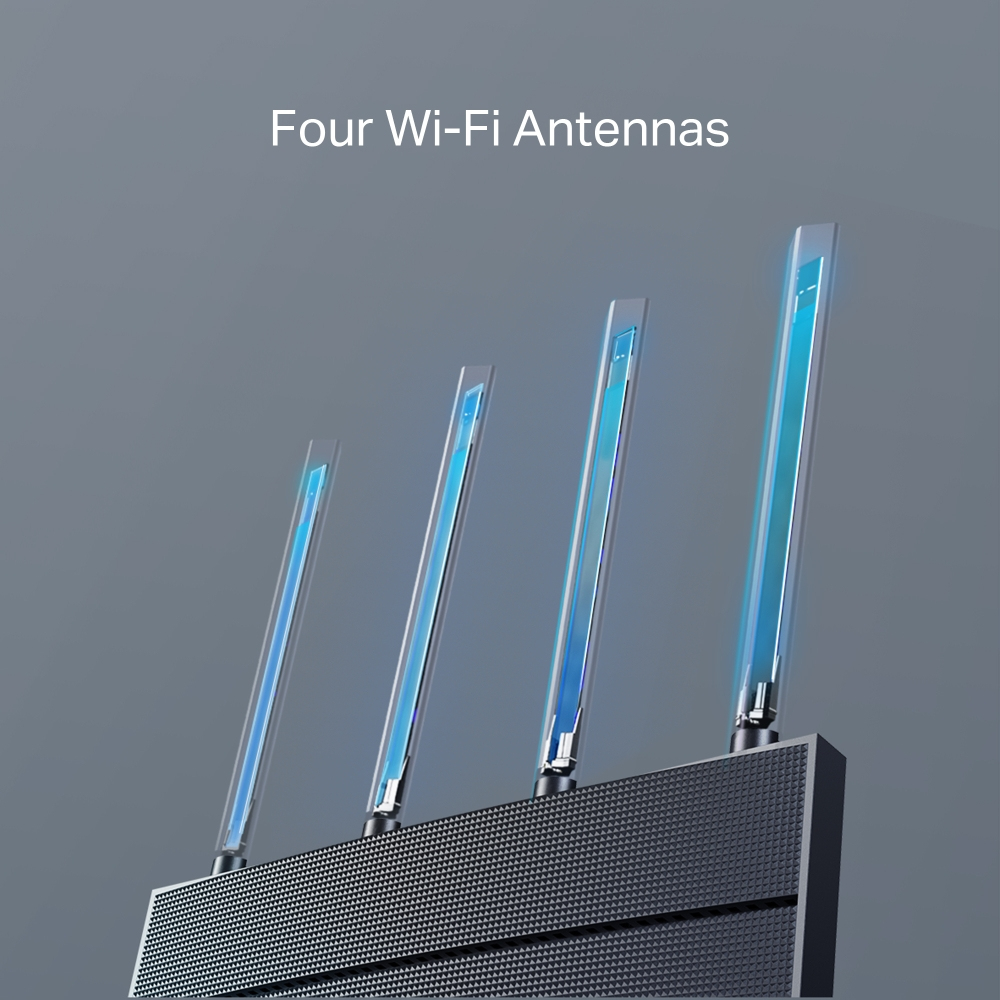

Robust Wireless Coverage Means No Dead Ends
Four external antennas send WiFi signals to every corner of your store. Stay connected and enjoy fast WiFi whether you’re working the shelves or register.

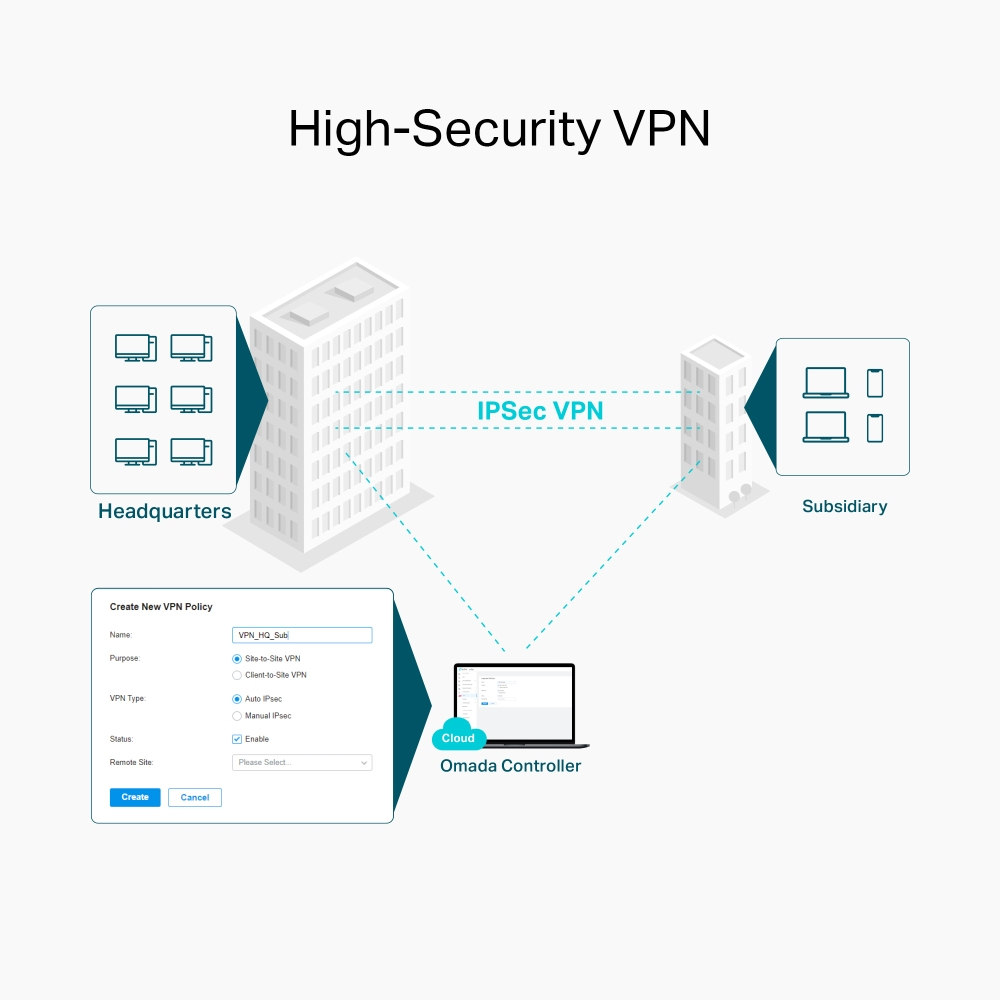

High-Security VPN
ER605W provides comprehensive VPN connection types including IPSec VPN, OpenVPN, PPTP VPN, and L2TP VPN. IPsec VPN is engineered for high-efficiency VPN tunnels, facilitating network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet. All offer users secured remote connections.
Abundant Security Features
Powerful Firewall
Advanced firewall policies protect your network and data.
IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.
Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.
IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec, and PPTP.

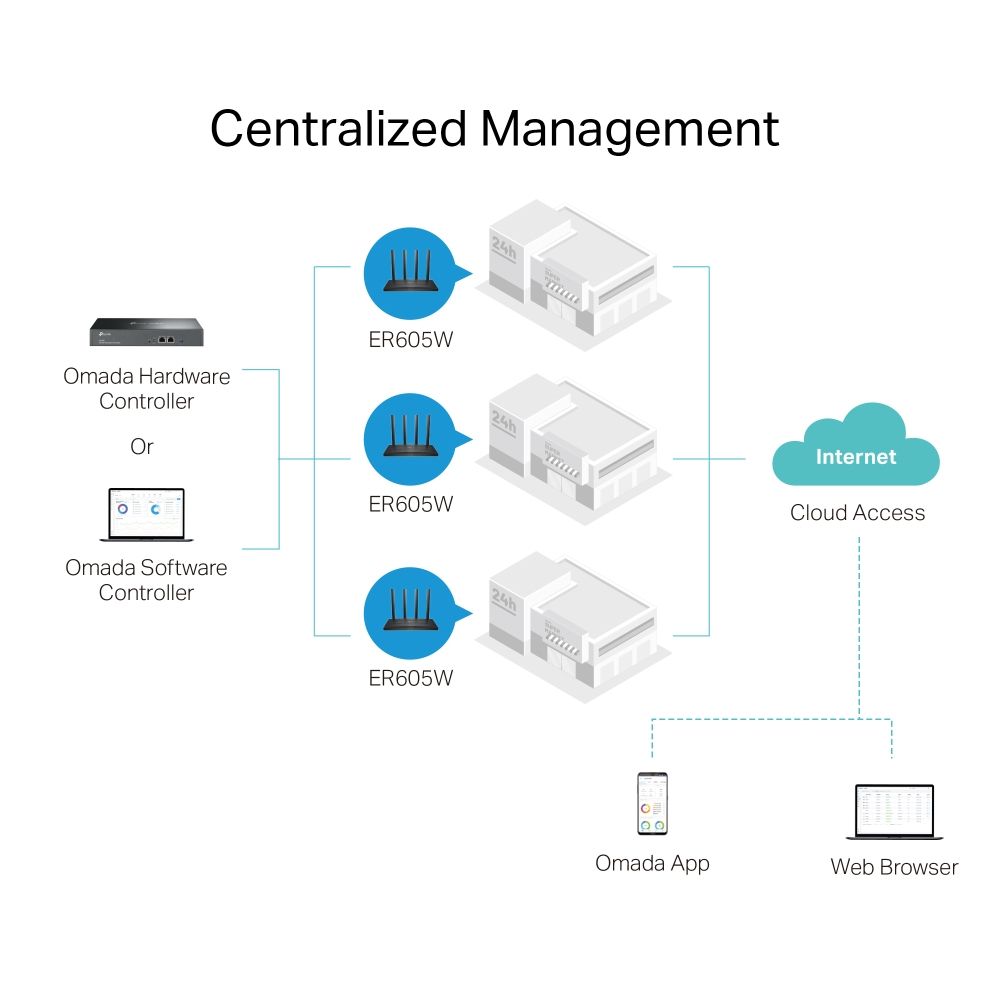

Omada SDN—The Smarter Cloud Solution for Business Networking
The path to the future of wireless begins with the Omada Software Defined Networking (SDN) solution. As the router that seamlessly integrates into the Omada SDN platform, ER605W allows for remote and centralized management, anywhere, anytime.
Easy Management with the Omada App
Users can configure ER605W in both the standalone and controller modes via the Omada app. Standalone management ensures max convenience. No need to set up additional controllers.
Follow the configuration instructions on the app to get set up in minutes. Multi-function configuration is ready to go, including network status monitoring and client management, all from the comfort of a smartphone or tablet.
| WAN-verbinding | |
| Ethernet WAN | Ja |
| DSL WAN | Nee |
| SIM-kaartsleuf | Nee |
| 3G/4G USB modem compatibiliteit | Nee |
| Type WAN-aansluiting | RJ-45 |
| Draadloos LAN | |
| Wifi-band | Dual-band (2.4 GHz / 5 GHz) |
| Wifi-standaard | Wi-Fi 5 (802.11ac) |
| WLAN gegevensoverdrachtsnelheid (max) | 1350 Mbit/s |
| Wi-Fi-standaarden | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN gegevensoverdrachtsnelheid (eerste band) | 450 Mbit/s |
| WLAN gegevensoverdrachtsnelheid (tweede band) | 867 Mbit/s |
| Netwerk | |
| Ethernet LAN | Ja |
| Interfacetype Ethernet LAN | Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Bekabelingstechnologie | 10/100/1000Base-T(X) |
| Netwerkstandaard | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| SSID-gebaseerde VLAN-toewijzing | Ja |
| Aantal gastnetwerken (2.4 GHz) | 1 |
| Aantal gastnetwerken (5 GHz) | 1 |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 5 |
| USB-poort | Nee |
| Aansluiting voor netstroomadapter | Ja |
| Beheerfuncties | |
| Web-gebaseerd management | Ja |
| Reset button | Ja |
| Beveiliging | |
| DMZ support | Ja |
| Network address translation (NAT) | Ja |
| Protocollen | |
| DHCP client | Ja |
| DHCP server | Ja |
| Universal Plug and Play ( UPnP ) | Ja |
| Design | |
| Kleur van het product | Zwart |
| Ophangsysteem voor aan de muur | Ja |
| LED-indicatoren | Stroom, WLAN |
| Type product | Router om neer te zetten |
| Certificaten | |
| Certificering | CE, FCC, RoHS |
| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Antenne | |
| Antenne-ontwerp | Extern |
| Antennas quantity | 4 |
| Afneembare antennes | Nee |
| Kenmerken | |
| Intern geheugen | 128 MB |
| Intern geheugentype | DDR2 |
| Flash memory | 16 MB |
| Energie | |
| Type stroombron | DC |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Gewicht en omvang | |
| Breedte | 215 mm |
| Diepte | 117 mm |
| Hoogte | 32 mm |
| Verpakking | |
| Aantal producten inbegrepen | 1 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
