Gigabit Ethernet Media Converter Single-mode - Mc210cs
ITCurry #: P6042031 | Article #: MC210CS
Verwante producten
Product Informatie
- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 15km

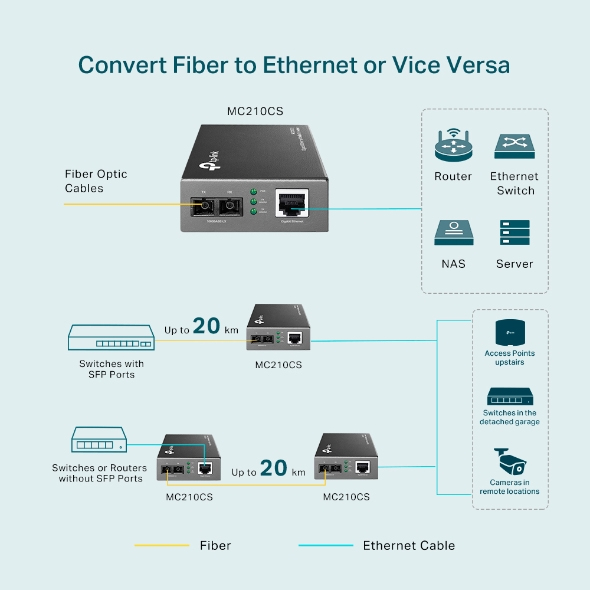

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’ system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
| Netwerk | |
| Maximale overdrachtssnelheid van gegevens | 1000 Mbit/s |
| Netwerkstandaard | IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 1000 Mbit/s |
| Auto MDI/MDI-X | Ja |
| Duplex systeem | Volledig |
| Ondersteundende kabel types | Cat6 |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Fibre channel-poorten | 1 |
| Vezel-optische connector | SC |
| Prestatie | |
| Maximaal bereik | 15000 m |
| Golflengte | 1310 nm |
| Draad modus structuur | Single-mode |
| Design | |
| Intern | Nee |
| LED-indicatoren | Activiteit, Stroom |
| Kleur van het product | Zwart |
| Certificering | FCC, CE |
| Energie | |
| Vermogensverbruik (max) | 5,5 W |
| Gewicht en omvang | |
| Breedte | 94,5 mm |
| Diepte | 73 mm |
| Hoogte | 27 mm |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Verpakking | |
| Breedte verpakking | 165 mm |
| Diepte verpakking | 204 mm |
| Hoogte verpakking | 65 mm |
| Gewicht verpakking | 430 g |
| Technische details | |
| Certificaten van naleving | RoHS |
