Gigabit Ethernet Media Converter Multi-mode - Mc200cm
ITCurry #: P6042030 | Article #: MC200CM
Verwante producten
Product Informatie
What This Product Does

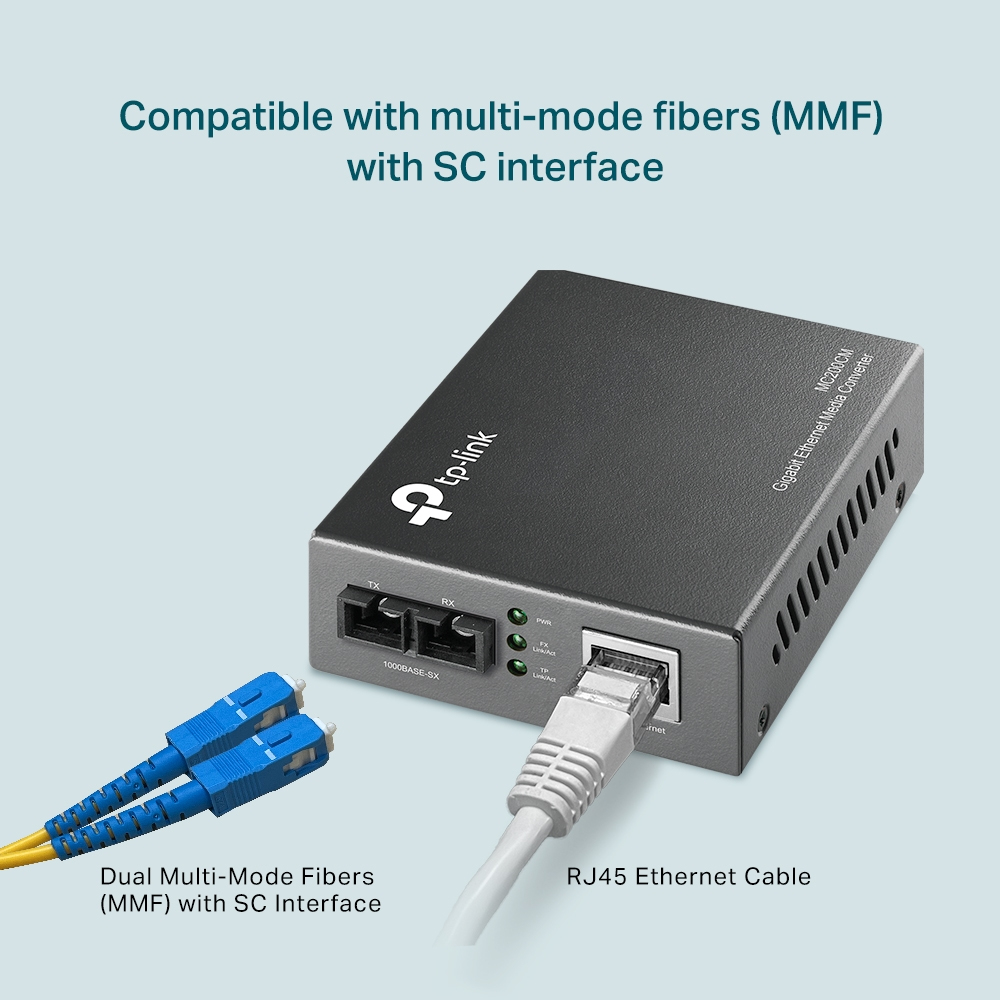

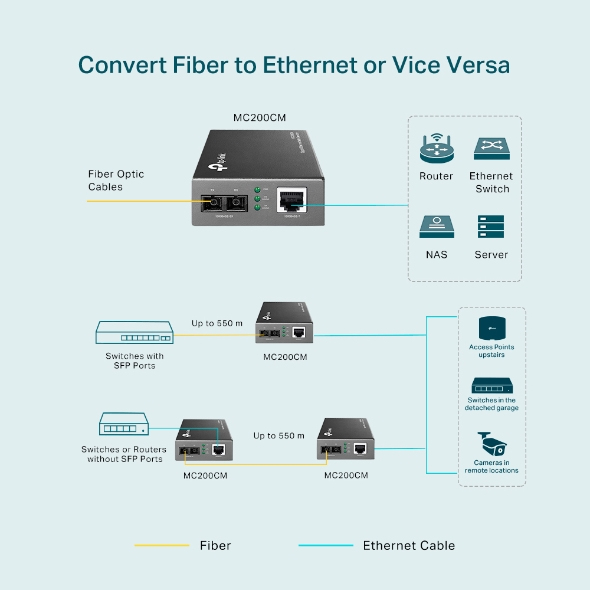

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

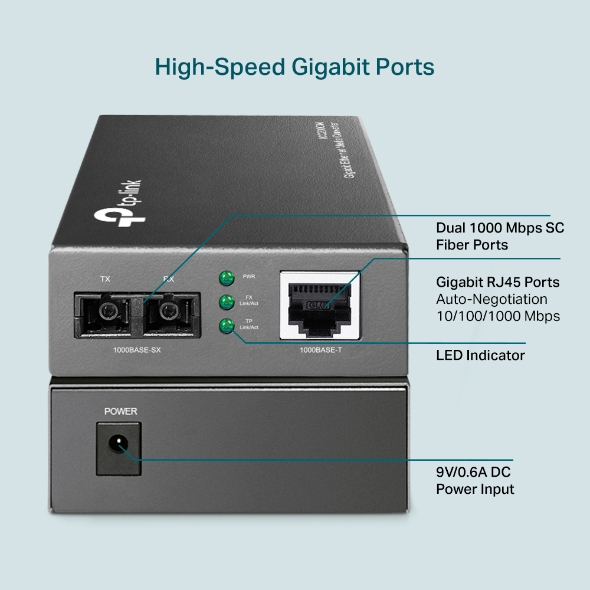

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
| Netwerk | |
| Maximale overdrachtssnelheid van gegevens | 1000 Mbit/s |
| Netwerkstandaard | IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 1000 Mbit/s |
| Fiber ethernet cabling technologie | 1000BASE-FX, 1000BASE-SX |
| Auto MDI/MDI-X | Ja |
| Ondersteundende kabel types | Cat6 |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Fibre channel-poorten | 1 |
| Vezel-optische connector | SC |
| Prestatie | |
| Maximaal bereik | 550 m |
| Golflengte | 850 nm |
| Draad modus structuur | Multimode |
| Design | |
| Intern | Ja |
| LED-indicatoren | Activiteit, Link |
| Kleur van het product | Zwart |
| Certificering | FCC, CE |
| Warranty | |
| Base Warranty | Non Non |
| Energie | |
| Stroomverbruik (typisch) | 5,5 W |
| Gewicht en omvang | |
| Breedte | 94,5 mm |
| Diepte | 73 mm |
| Hoogte | 27 mm |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Verpakking | |
| Breedte verpakking | 165 mm |
| Diepte verpakking | 204 mm |
| Hoogte verpakking | 65 mm |
| Gewicht verpakking | 440 g |
| Technische details | |
| Certificaten van naleving | RoHS |
