Triple Video Docking Station USB4 With 100w
ITCurry #: 55907696 | Article #: DOCK460EUZ-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Harness the power of USB4 (and Thunderbolt™) speeds, in a triple video enterprise-grade dock. This Alternate Mode dock packs all of the ports and power you need and is designed to support and power a wide variety of laptop brands and operating systems - up to 100W.

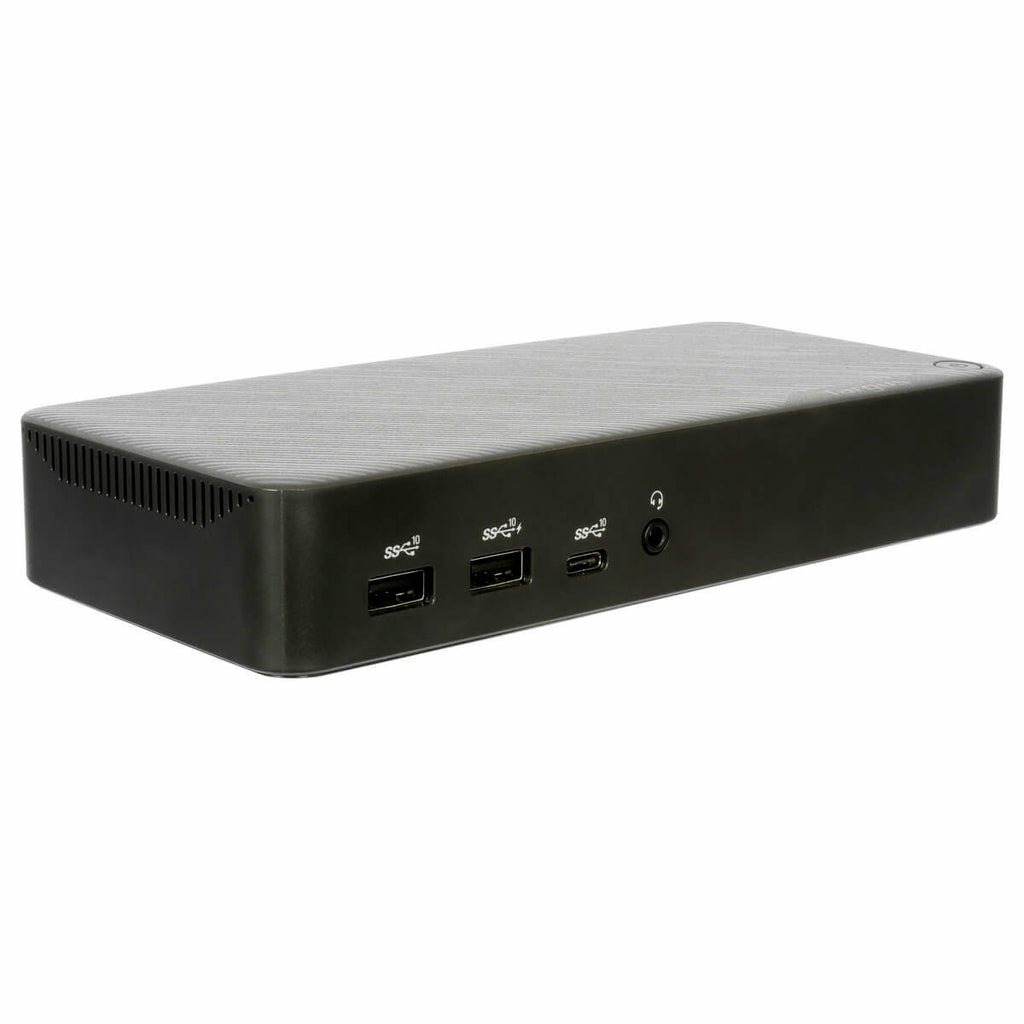

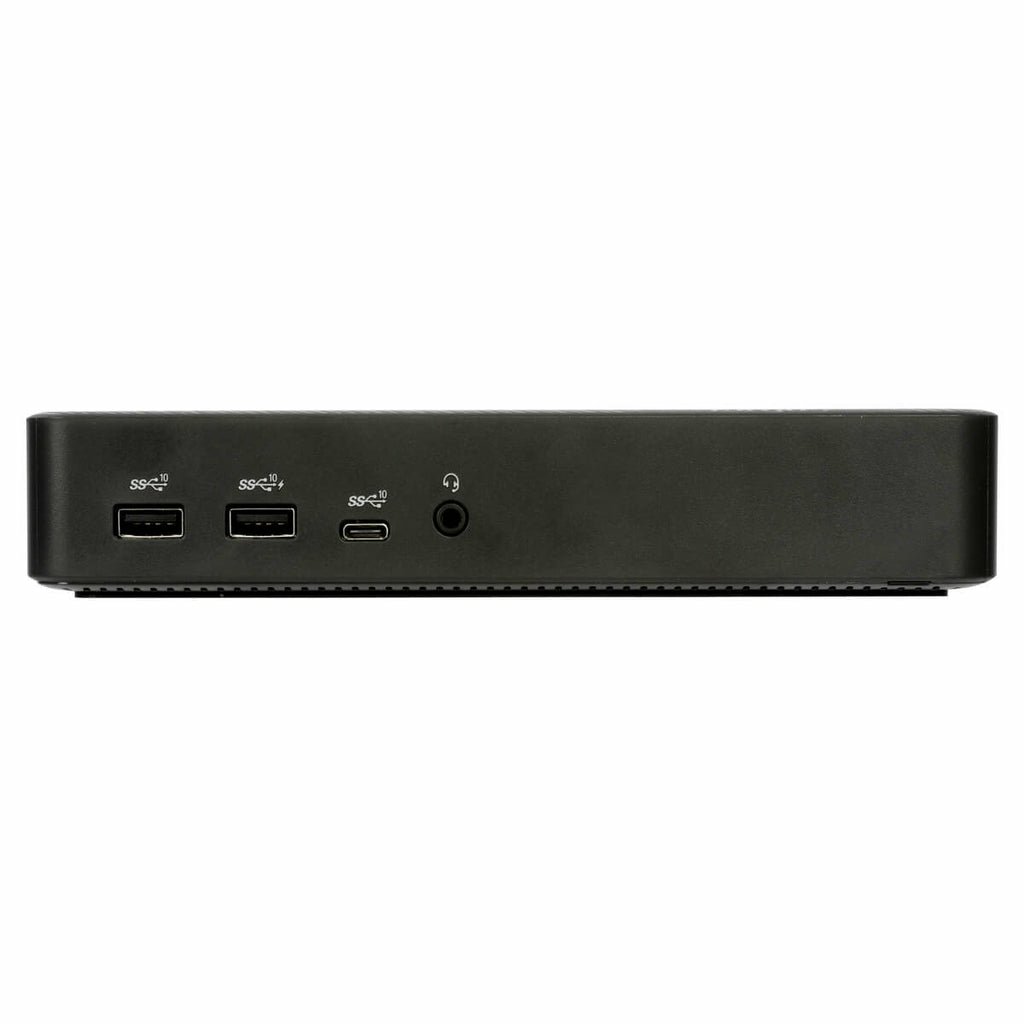

With its integrated USB4 connector, this alternate mode dock can connect to any USB4, Thunderbolt 4 and 3, or and USB-C-enabled host. With its one HDMI port and two DisplayPort™ ports, you can enjoy video performance up to 8K for single display or 8K for dual or 4K for triple displays. Plus, connect all of your favorite accessories with a combination of USB-A (2 USB 3.2 Gen 2 ports; 1 USB 3.2 Gen 2 port), USB-C (1x 3.2 Gen 2), Ethernet and audio ports.

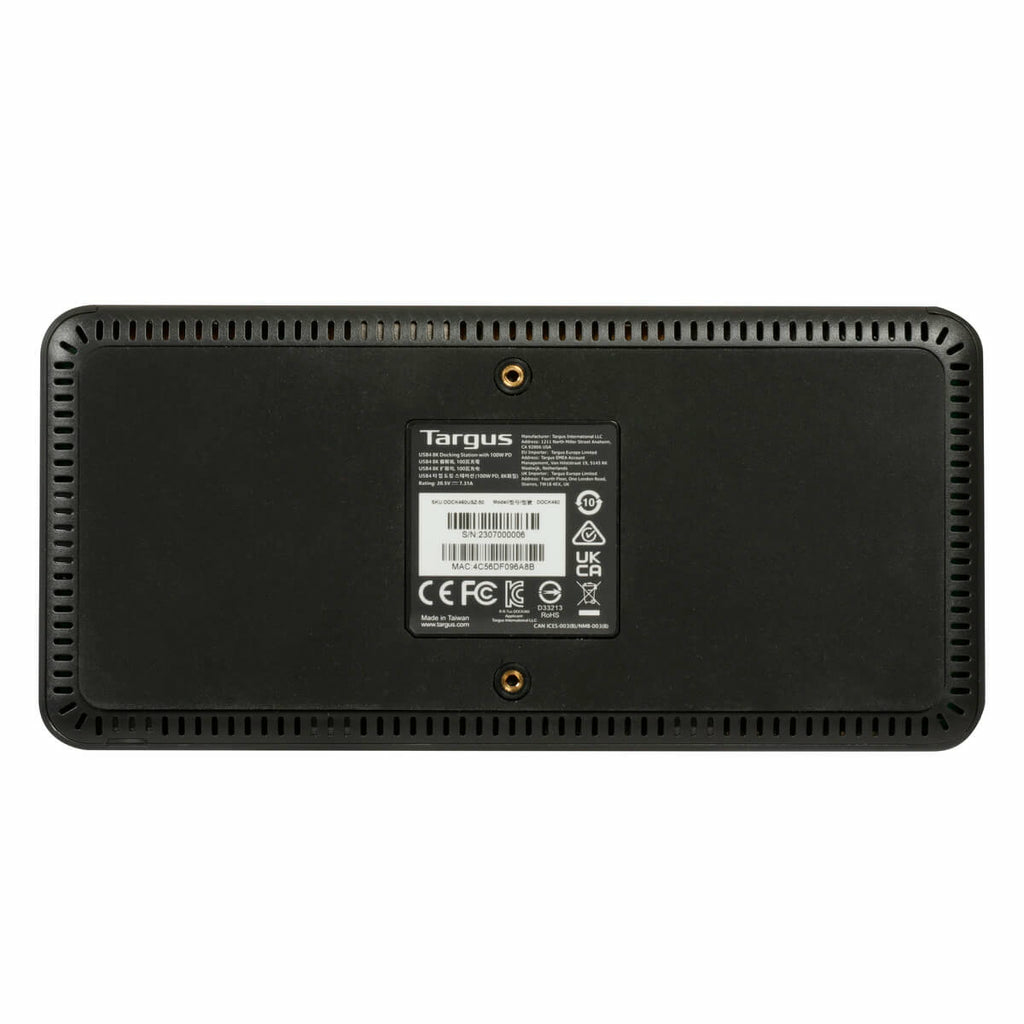

Designed for the modern workstation, the dock comes equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA® Mount Bracket (ACX003GLZ – sold separately) to hold your dock behind your display for even greater space savings.
Triple Video Support

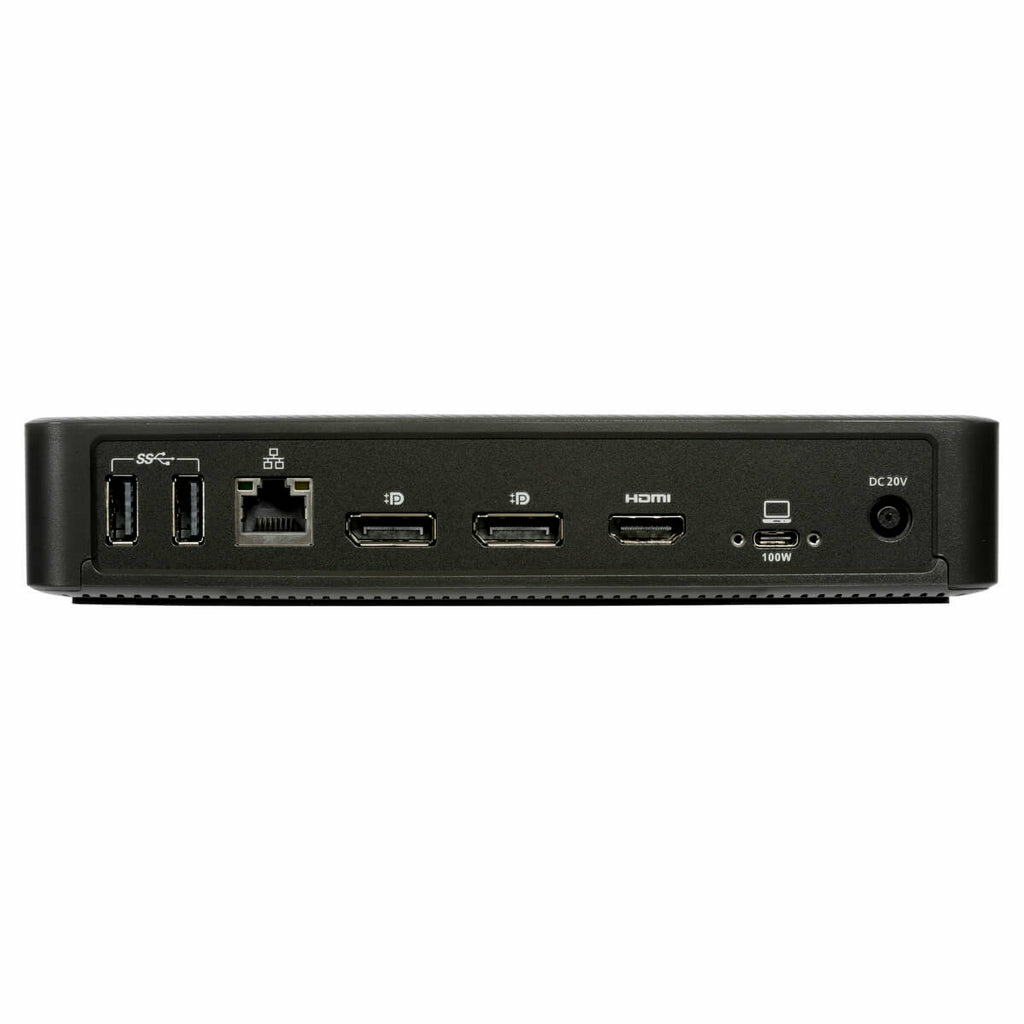

Access the latest display technology with two DisplayPort™ ports and one HDMI port that creates a rich, high-definition viewing experience. The USB4 Triple Video Docking Station with 100W Power supports 8K resolution in single display and resolutions of up to 8K with two or 4K for three monitors*.
Fast Data Transfer Speeds with USB4
Enjoy the high transfer speeds of USB4 technology. With transfer speeds up to 40Gbps, you can transfer high-capacity files in seconds.
2.5G Ethernet Speeds
Whether you’re working, gaming, or streaming, enjoy the ability to support elevated network speeds of 2.5G – that’s 2.5 times faster than the common 1 Gigabit Ethernet port.
Ultimate Compatibility
Don’t have a USB4 host device? No problem. This USB4 dock also works with Thunderbolt 3, Thunderbolt 4, and USB-C devices.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | USB4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aantal USB4-poorten | 1 |
| USB Power Delivery | Ja |
| USB Power Delivery herziening | 3.0 |
| USB Power Delivery tot max. | 100 W |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.1 |
| Aantal DisplayPorts | 2 |
| DisplayPort versie | 1.4 |
| Microfoon, line-in ingang | Ja |
| Combo koptelefoon/microfoon port | Ja |
| Hoofdtelefoonuitgangen | 1 |
| Type aansluitplug | 3,5 mm |
| Aansluiting voor netstroomadapter | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Ethernet LAN, data-overdrachtsnelheden | 2500 Mbit/s |
| Prestatie | |
| Ge‹ntegreerde geheugenkaartlezer | Nee |
| Overdrachtssnelheid | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Aantal displays ondersteund | 3 |

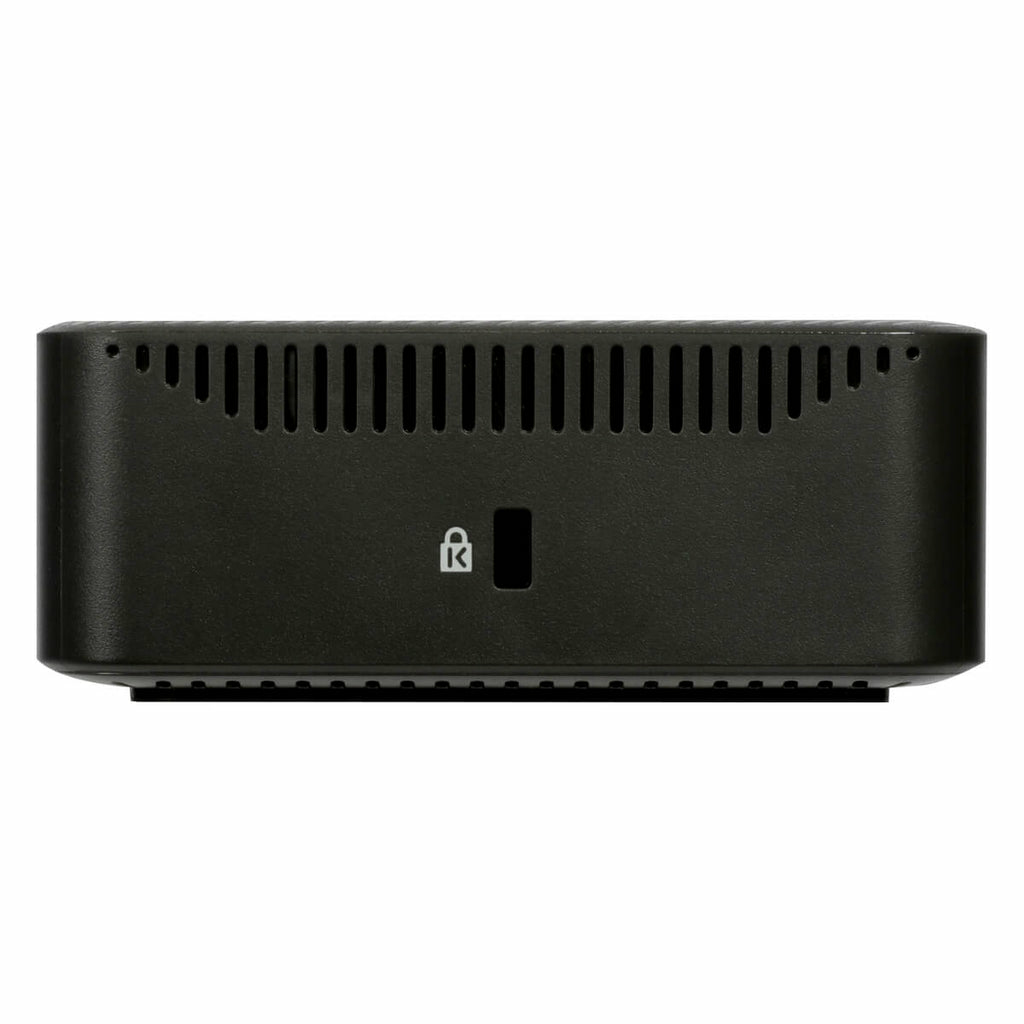

| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kabelslot sleuf type | Kensington |
| Kleur van het product | Zwart |
| Plug and play | Ja |
| Land van herkomst | Taiwan |
| Energie | |
| Type stroombron | DC |
| Software | |
| Ondersteunt Windows | Ja |
| Ondersteunt Mac-besturingssysteem | Ja |
| Ondersteunt Linux | Ja |
| Ondersteunde mobiele besturingssystemen | iPadOS |
| Andere ondersteundende systemen | ChromeOS |
| Gewicht en omvang | |
| Breedte | 92 mm |
| Diepte | 195 mm |
| Hoogte | 37 mm |
| Gewicht | 1,35 kg |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |

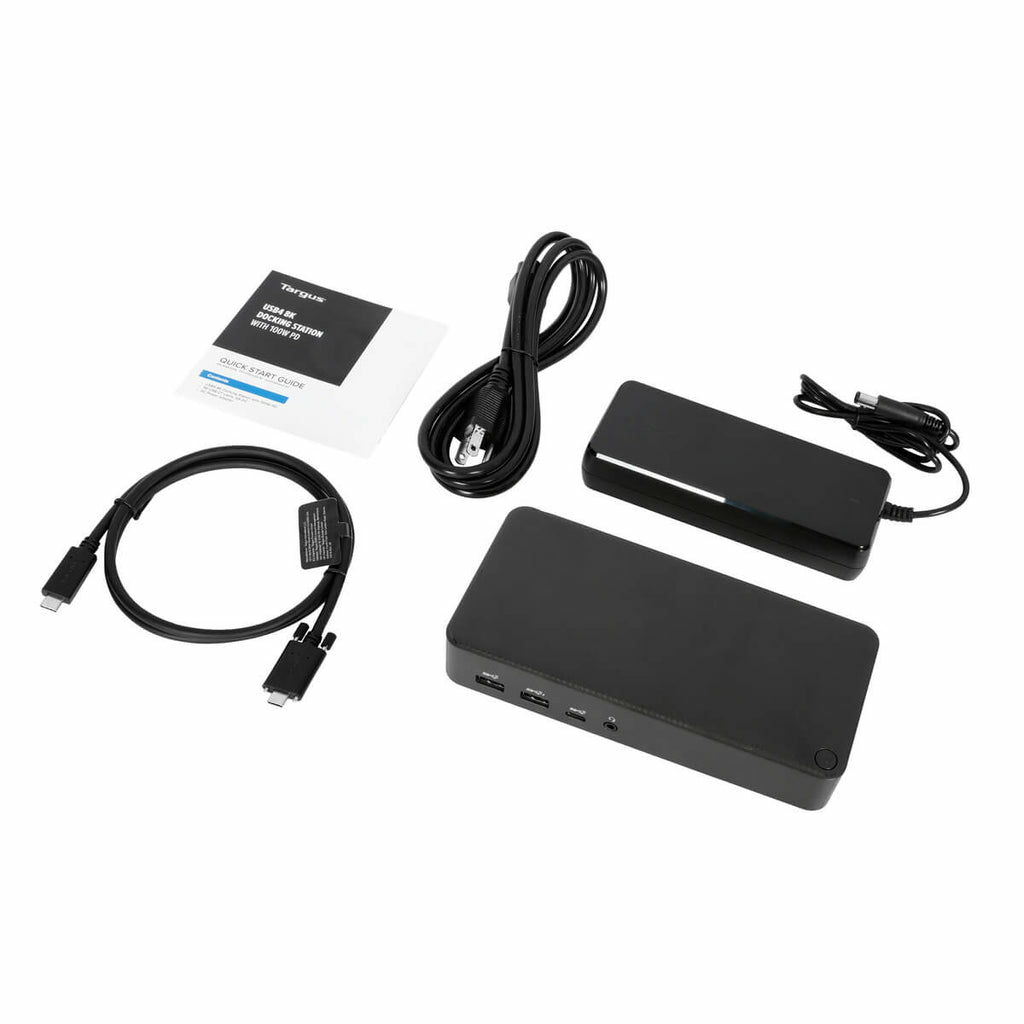

| Inhoud van de verpakking | |
| Meegeleverde kabels | USB Type-C |
| Inclusief AC-adapter | Ja |
| Snelstartgids | Ja |
| Warranty | |
| Base Warranty | Non Non |
