XPC slim - DH610 - LGA1700 - H610 - 2x DDR4 SODIMM - HDMI 2x DP - 120W Power Adapter
ITCurry #: 88702792 | Article #: DH610-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
12th Gen Hybrid Power Makes Multitask Easy
Shuttle XPC Slim series DH610 supports Intel® 12th Gen LGA1700 processors. With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.
Intel® 12th Gen processor

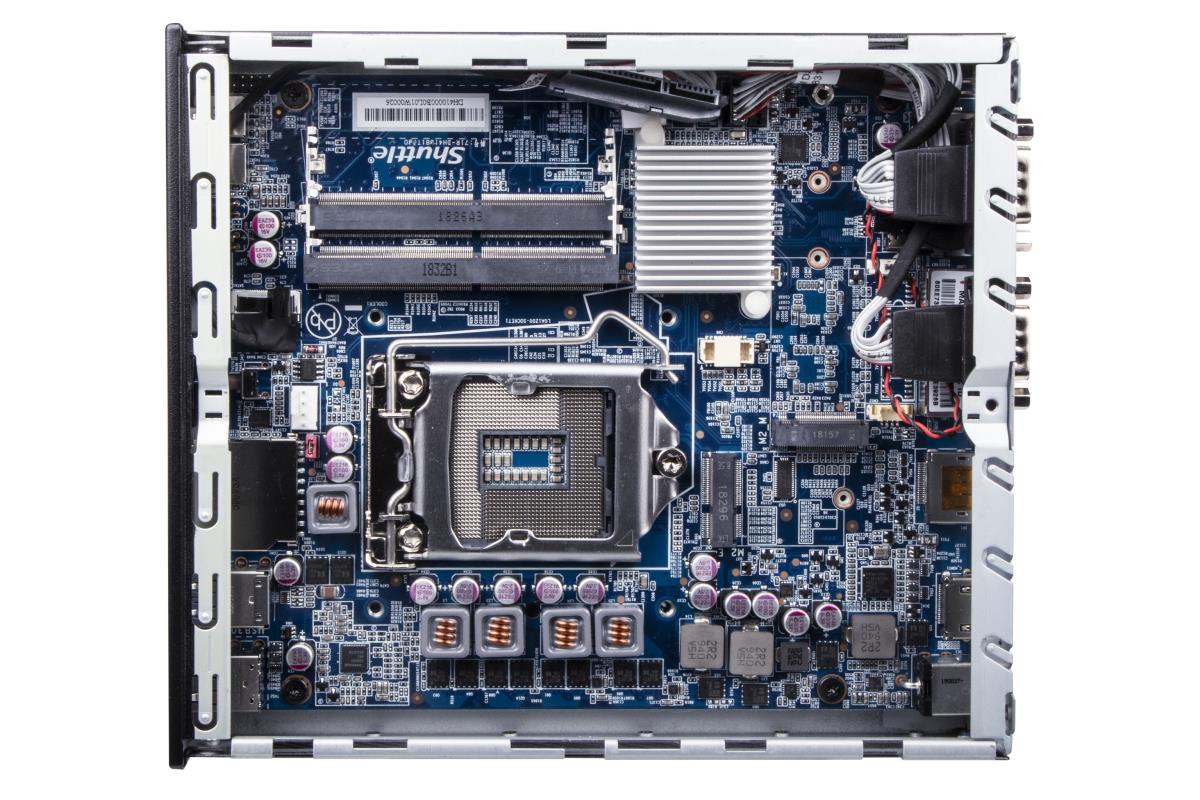

Based on the H610 chipset, DH610 is designed for 12th Gen Intel® processors in the LGA1700 socket and supports up to 64GB (32GBx2) of DDR4-3200 memory, which delivers a performance improvement uplift of up to 28%, providing powerful computing capacity. In addition, with Intel® UHD Graphics 700 series integrated, DH610 is potential for multi-platform AI deployment.
Triple-Display Productivity
With one HDMI 2.0b and two DisplayPort outputs built-in, DH610 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.
Strong Expansion Capacity with M.2
With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.
Rich Connectivity and High-speed Intel® 2.5GbE LAN

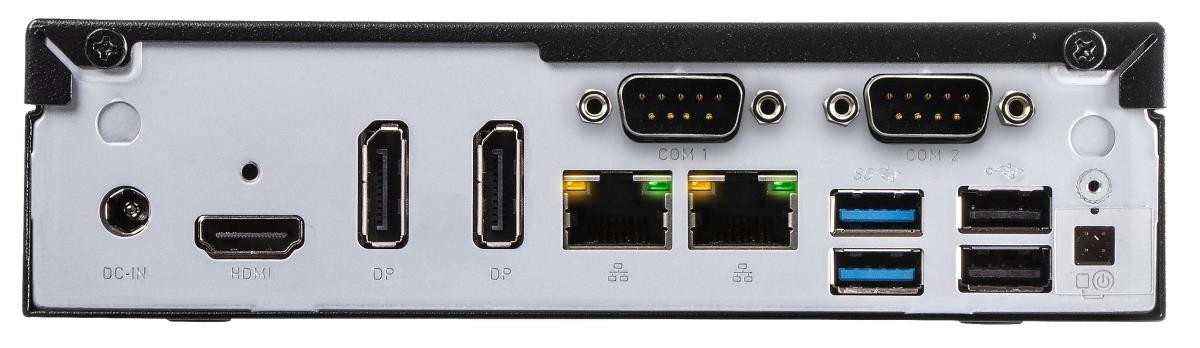

DH610 provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and two RS232 for flexible connectivity options. In addition, Intel® 2.5 GbE and Intel® 1GbE Lan are equipped to support Wake on LAN and Teaming Mode functions to provide high-speed data transfer capability and a better business networking integration.
Exclusive Cooling Technology

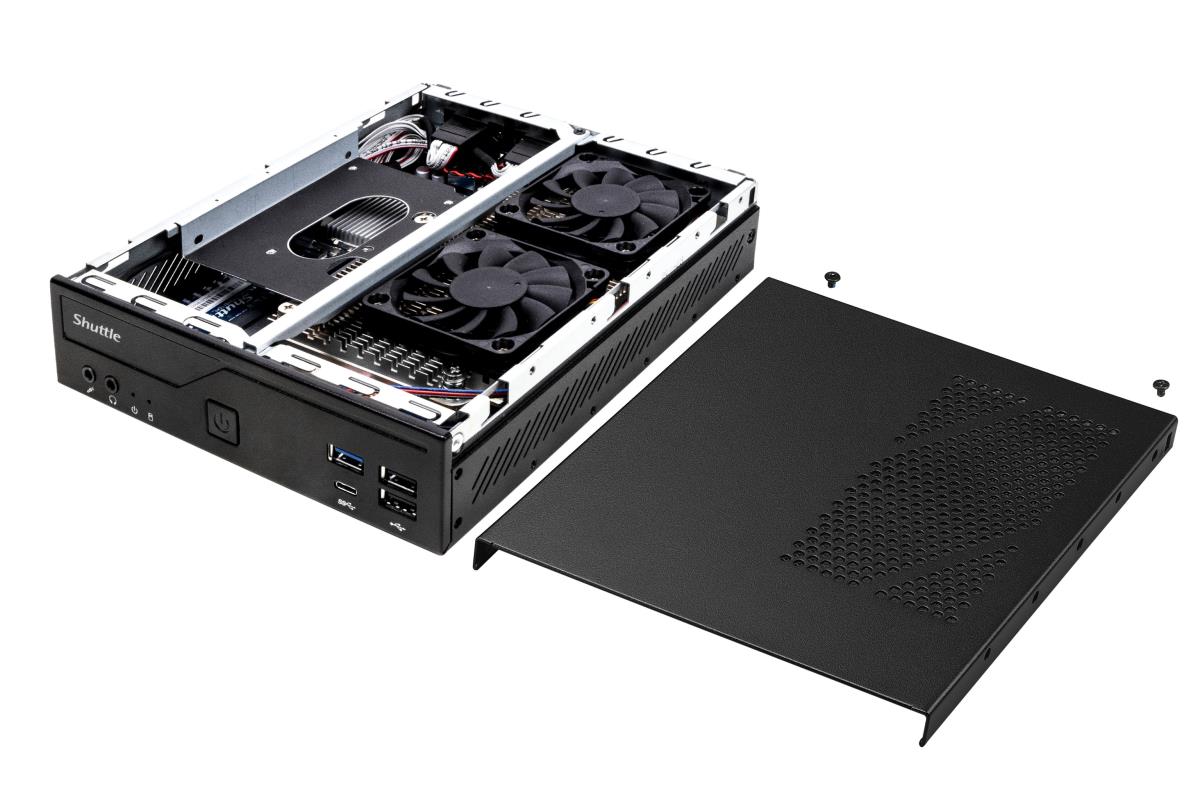

DH610 features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.
| Processor | |
| Type processor | Nee |
| Geheugen | |
| Geheugen slots type | SO-DIMM |
| Aantal geheugenslots | 2 |
| Maximum intern geheugen | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Ondersteunde geheugen types | DDR4-SDRAM |
| Opslagmedia | |
| Ondersteunde types opslag-drives | HDD & SSD |
| Opslagschijf afmetingen ondersteund | 2.5" |
| Opslag schijf-interface | M.2, SATA, SATA II, SATA III |
| Grafisch | |
| Ingebouwde grafische adapter | Ja |
| Grafische adapter-familie | Intel |
| Maximum resolutie | 3840 x 2160 Pixels |
| Aantal displays ondersteund | 3 |
| Audio | |
| Ingebouwde luidsprekers | Nee |
| Netwerk | |
| Ethernet LAN | Ja |
| Wifi | Nee |
| Poorten & interfaces | |
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 1 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.0b |
| Aantal DisplayPorts | 2 |
| Microfoon, line-in ingang | Ja |
| Hoofdtelefoonuitgangen | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Aantal COM-poorten | 2 |
| Aantal SATA III connectors | 1 |
| Aansluiting voor netstroomadapter | Ja |
| Uitbreidingsmodules | |
| Aantal M.2 (M) slots | 2 |
| Design | |
| Type behuizing | 1,3L maat pc |
| Kleur van het product | Zwart |
| Type koeling | Actief |
| Aan/uitschakelaar | Ja |
| LED-indicatoren | HDD, Stroom |
| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kabelslot sleuf type | Kensington |
| VESA-montage | Ja |
| Type product | Mini PC barebone |
| Prestatie | |
| Processor socket | LGA 1700 |
| Aantal ondersteunde processoren | 1 |
| Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
| Ondersteunt Linux | Ja |
| Energie | |
| Soort voeding | Externe AC-adapter |
| Netvoeding | 120 W |
| AC-ingangsspanning | 100 - 240 V |
| AC-adapter, uitgangsspanning | 19 V |
| AC-adapter, uitgangsstroom | 6,32 A |
| Gewicht en omvang | |
| Breedte | 165 mm |
| Diepte | 190 mm |
| Hoogte | 43 mm |
| Inhoud van de verpakking | |
| Inclusief netsnoer | Ja |
| Inclusief AC-adapter | Ja |
| Snelstartgids | Ja |
| Meegeleverde drivers | Ja |
| Warranty | |
| Base Warranty | Non Non |
