XPC aio 1315U - 15.6in touch - i3 1315U - max 2x 32GB DDR5 SO-DIMM - 2.5" bay SATA / M.2-2280

ITCurry #: 88702914 | Article #: P55U3
Prijs:
570,13 Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 6 to 10 of 15

Product Informatie

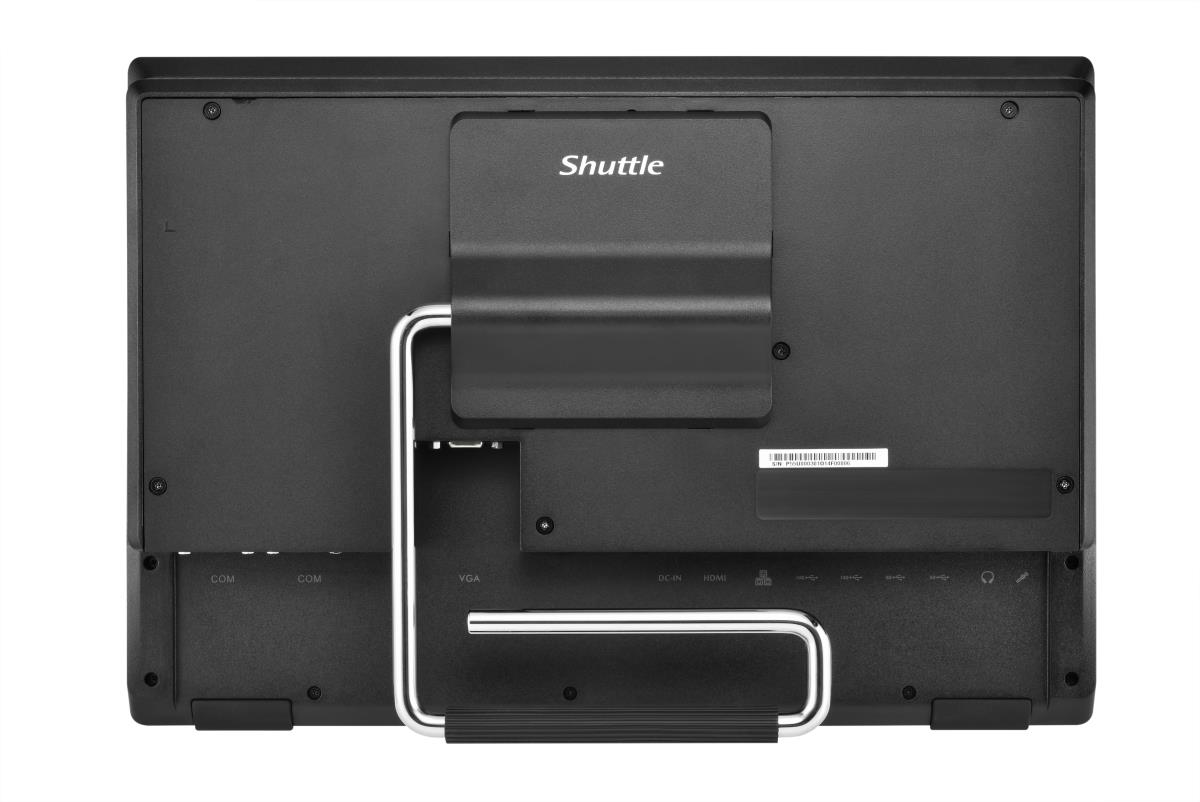

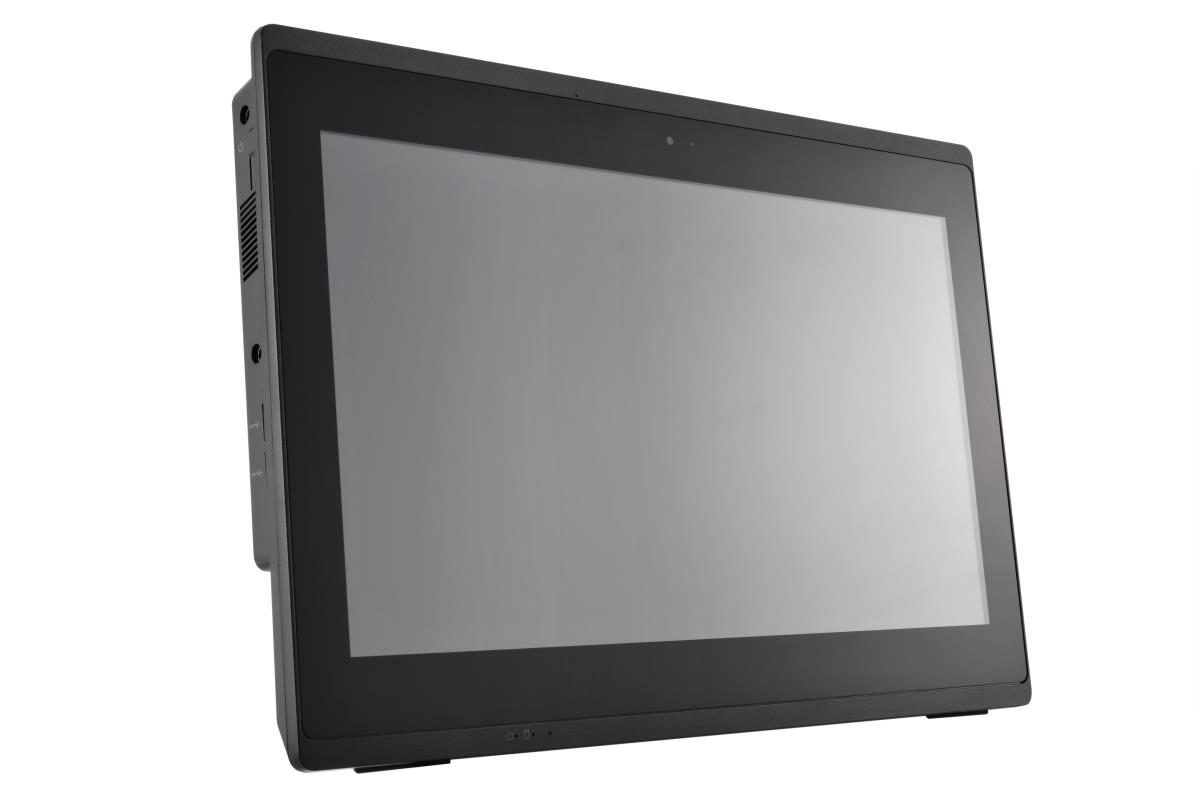

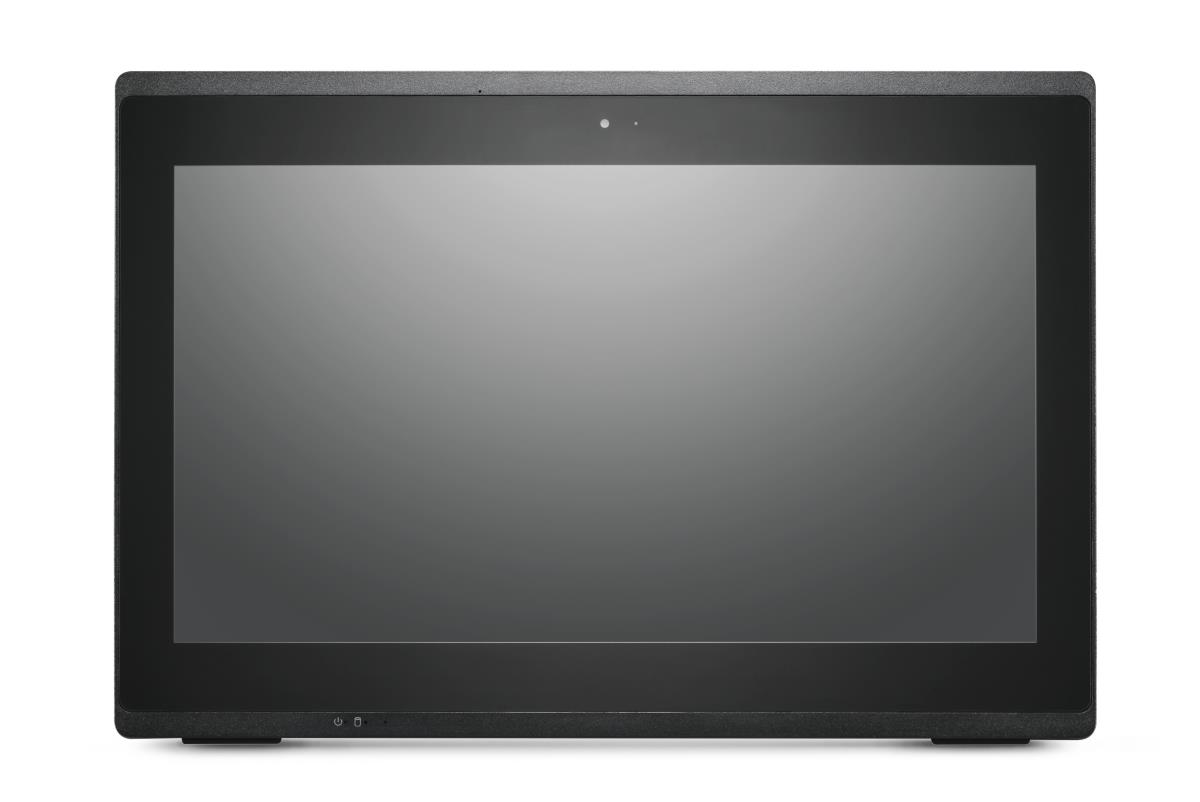

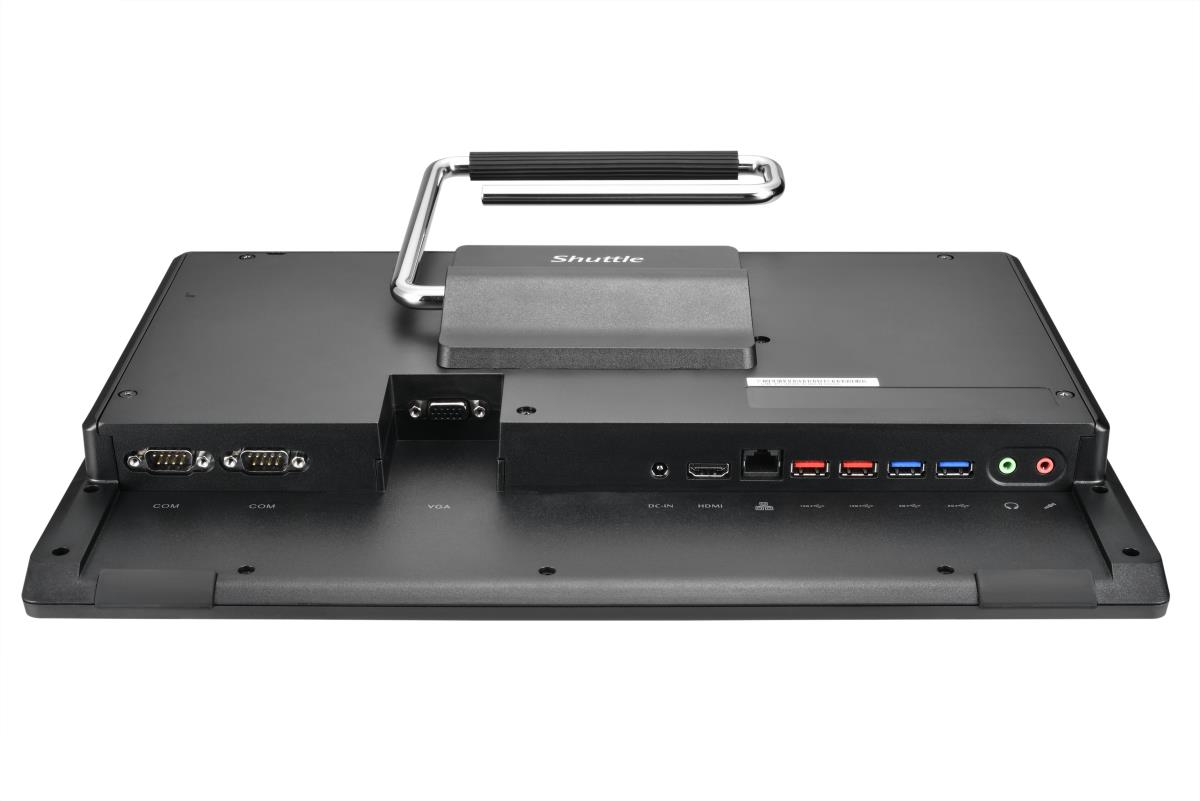

The Shuttle XPC all-in-one PC series P55U comes with a capacitive 15.6" multi-touchscreen in Full-HD resolution and is powered by a Gen12/13 Intel ULV processor. The modern processor architecture has a very positive effect on power consumption and computing performance. The existing WLAN function can optionally be supplemented with a 4G/5G function with up to 4 antennas. Thanks to its passive heatpipe cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

Processor
Processorfabrikant Intel
Processorfamilie Intel© CoreT i3
Processormodel i3-1315U
Aantal processorkernen 6
Processor aantal threads 8
Maximale turbofrequentie van processor 4,5 GHz
Prestatiekernen 2
Effici‰nte kernen 4
Performance-core Max Turbo Frequency 4,5 GHz
Efficient-core Max Turbo Frequency 3,3 GHz
Type processor Ja
Processor cache 10 MB
Geheugen
Geheugen slots type SO-DIMM
Aantal geheugenslots 2
Maximum intern geheugen 96 GB
Supported memory clock speeds 4800 MHz
Ondersteunde geheugen types DDR5-SDRAM
Geheugen kanaal Dubbelkanaals
Geheugen voltage 1.1 V
ECC Nee
Non-ECC Ja
Opslagmedia
Ondersteunde types opslag-drives SSD
Opslagschijf afmetingen ondersteund M.2
SSD-vormfactor M.2
Opslag schijf-interface PCI Express
NVMe Ja
Grafisch
Ingebouwde grafische adapter Ja
Grafische adapter-familie Intel
On-board graphics adapter model Intel© UHD Graphics
Aantal displays ondersteund 3
Beeldscherm
Beeldschermdiagonaal 39,6 cm (15.6")
Resolutie 1920 x 1080 Pixels
Touchscreen Ja
HD type Full HD
Beeldverhouding 16:9
Helderheid 250 cd/mý
Soort paneel IPS
Audio
Ingebouwde luidsprekers Ja
Aantal luidsprekers 2
Gemiddeld vermogen 2 W
Netwerk
Wifi-standaard Wi-Fi 5 (802.11ac)
Wi-Fi-standaarden 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN-controller-model Realtek RTL8821CE
Ethernet LAN Ja
Wifi Ja
LAN controller Intel I219V
Bluetooth Ja
Bluetooth-versie 4.2
Poorten & interfaces
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A 4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A 2
Aantal HDMI-poorten 1
HDMI versie 2.0b
VGA (D-Sub)poort(en) 1
Microfoon, line-in ingang Ja
Hoofdtelefoonuitgangen 1
Aantal Ethernet LAN (RJ-45)-poorten 1
Aantal COM-poorten 2
Aansluiting voor netstroomadapter Ja
Uitbreidingsmodules
Aantal M.2 (M) slots 2
Design
Type behuizing Alles-in-een
Kleur van het product Zwart
Type koeling Passief
LED-indicatoren Stroom, SSD
Bevestigingsmogelijkheid voor kabelslot Ja
Kabelslot sleuf type Kensington
VESA-montage Ja
Paneelmontage-interface 100 x 100 mm
Type product All-in-One PC barebone
Prestatie
Chipset moederbord Intel SoC
Processor socket LGA 1700
Aantal ondersteunde processoren 1
BIOS type AMI EEPROM
Ingebouwde camera Ja
Trusted Platform Module (TPM) Ja
Trusted Platform Module (TPM) version 2.0
Audiochip Realtek ALC888S
Technische details
Certificaten van naleving BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus
Logistieke gegevens
Code geharmoniseerd systeem (HS) 84714100
Software
Ondersteunt Windows Windows 10 x64, Windows 11 x64
Ondersteunt Linux Ja
Duurzaamheid
Duurzaamheidscertificaten ENERGY STAR
Energie
Soort voeding Externe AC-adapter
Netvoeding 90 W
Aantal voedingen 1
AC-ingangsspanning 100 - 240 V
AC-ingangsfrequentie 50/60 Hz
AC-adapter, uitgangsspanning 19 V
AC-adapter, uitgangsstroom 4,74 A
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 40 øC
Relatieve vochtigheid in bedrijf (V-V) 10 - 90 procent
Gewicht en omvang
Breedte 393,6 mm
Diepte 39,8 mm
Hoogte 272,5 mm
Gewicht 3,25 kg
Gewicht verpakking 4,5 kg
Inhoud van de verpakking
Inclusief netsnoer Ja
Inclusief AC-adapter Ja
Snelstartgids Ja
Meegeleverde drivers Ja
Warranty
Base Warranty Non Non
