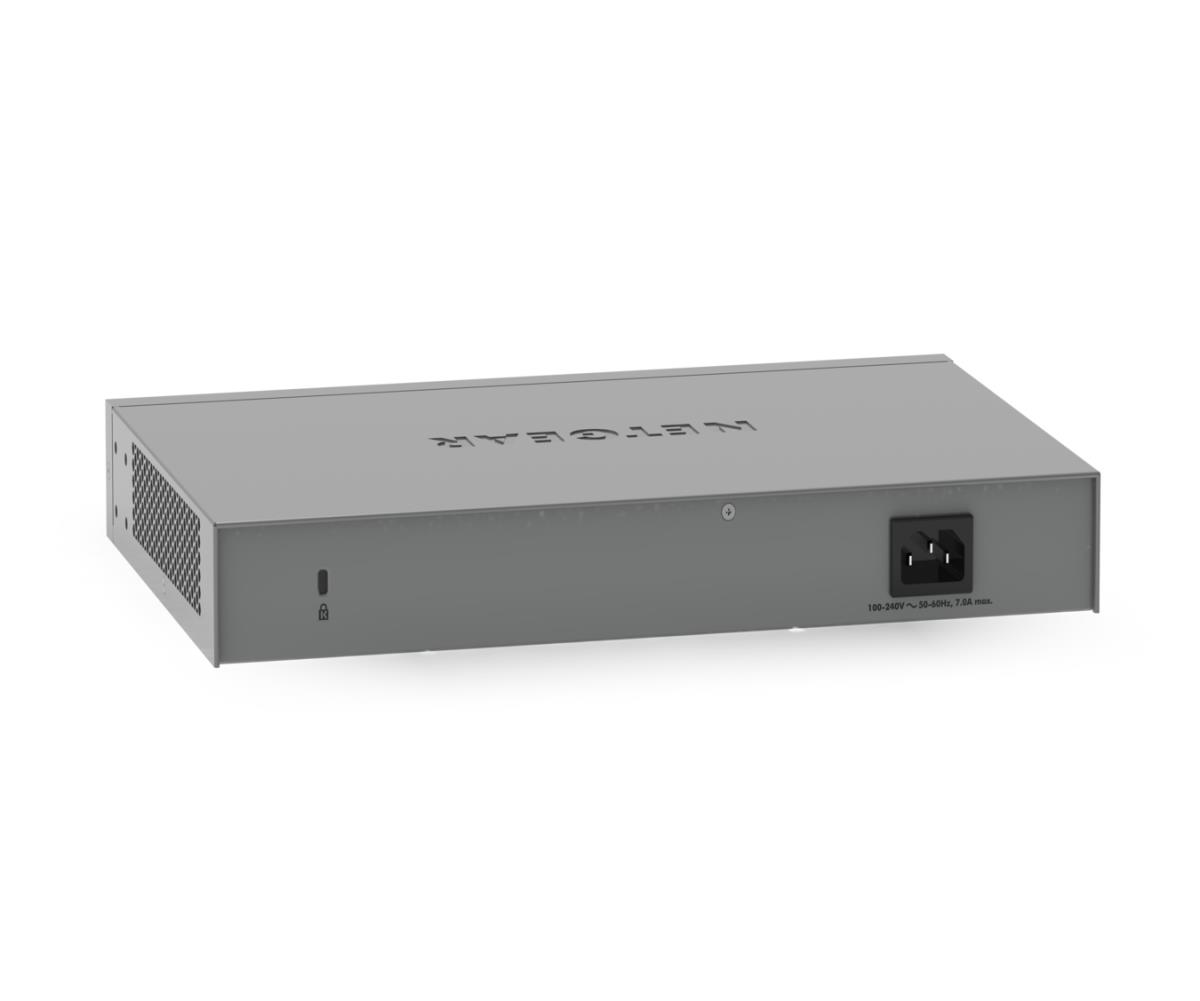

MS510TXUP Smart Switch 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ with 2 SFP+ Ports
ITCurry #: 20325465 | Article #: MS510TXUP-100EUS-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch comes with 2 fiber 10G uplinks. Organizations that buy infrastructure for the long term and want future proofing can now deploy denser PoE+ and even PoE++ devices with 295W power budget and 2.5G / 5G /10G speeds. The ideal companion to the MS510TXUP is the NETGEAR WAX610 WiFi 6 Access Point that features a 2.5G Ethernet port.
MS510TXUP provides a total PoE budget of 295W and advanced PoE features such as uninterrupted PoE for powerful PoE applications. The switch provides four auto-adapt multispeed Gigabit PoE+/PoE++ RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit PoE+/PoE++ RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2/L3/L4 |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Cloud-beheerd | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
| Type basis-switching RJ-45 Ethernet-poorten | 10G Ethernet (100/1000/10000) |
| Aantal moduleslots SPF+ | 2 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| 10G support | Ja |
| Koperen ethernetbekabelingstechnologie | 1000BASE-T |
| Port mirroring | Ja |
| Full duplex | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Spanning tree protocol | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 100,1000,2500,5000,10000 Mbit/s |
| VLAN=ondersteuning | Ja |
| Aantal VLANs | 256 |
| Data-uitwisseling | |
| Switchingcapaciteit | 140 Gbit/s |
| MAC-adrestabel | 32000 entries |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 10000 |
| Beveiliging | |
| DHCP-functies | DHCP client, DHCP server |
| Access Control List (ACL) | Ja |
| Toegangsbeheerlijst (ACL) inkomend | 100 |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | HTTPS, SSL/TLS |
| Bescherming lus | Ja |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Protocollen | |
| Beheerprotocollen | SNMP v1/v2c,SNMP v3 |
| Design | |
| Rack-montage | Ja |
| Kleur van het product | Grijs, Blauw |
| LED-indicatoren | Activiteit, Stroom, Snelheid |
| Prestatie | |
| Type processor | Ja |
| Frequentie van processor | 1000 MHz |
| Intern geheugen | 256 MB |
| Flash memory | 64 MB |
| Energie | |
| Vermogenstoevoer inclusief | Ja |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Hoeveelheid Power over Ethernet (PoE) ports | 8 |
| Vermogen per poort Power over Ethernet (PoE) | 60 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Hoogte bij opslag | 0 - 3000 m |
| Gewicht en omvang | |
| Breedte | 330 mm |
| Diepte | 206 mm |
| Hoogte | 43 mm |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
