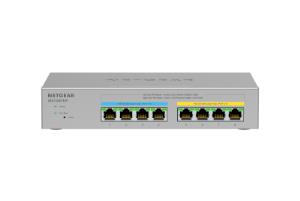

MS108UP - 8-port Multi-Gigabit (2.5G) Ultra60 PoE++ Ethernet Unmanaged Switch
ITCurry #: 20325487 | Article #: MS108UP-100EUS-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.
| Beheerfuncties | |
| Switch type | Unmanaged |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
| Type basis-switching RJ-45 Ethernet-poorten | 2.5G Ethernet (100/1000/2500) |
| Aantal 2.5G Ethernet (koper)poorten | 8 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support | Nee |
| Full duplex | Ja |
| Half-duplex | Ja |
| Auto MDI/MDI-X | Ja |
| Head-of-line (HOL) blocking | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 100,1000,2500 Mbit/s |
| Auto-sensing | Ja |
| VLAN=ondersteuning | Ja |
| Aantal VLANs | 64 |
| Data-uitwisseling | |
| Switchingcapaciteit | 40 Gbit/s |
| MAC-adrestabel | 16000 entries |
| Latentie (1 Gbps) | 3,593 æs |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 12000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet buffergeheugen | 1,5 MB |
| Design | |
| Rack-montage | Nee |
| Materiaal behuizing | Metaal |
| LED-indicatoren | Activiteit, Link, Power over Ethernet (PoE), Stroom |
| Ophangsysteem voor aan de muur | Ja |
| Elektromagnetische compatibiliteit | CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM |
| Certificering | CB, CSA, CCC, BSMI, RCM |
| Prestatie | |
| Fanloos | Ja |
| Mean time between failures (MTBF) | 373643,7 uur |
| Energie | |
| Stroombron | DC |
| Vermogenstoevoer inclusief | Ja |
| DC voltage input | 54 V |
| Stroom | 4.7 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Aantal Power over Ethernet plus (PoE +)-poorten | 8 |
| Totaal Power over Ethernet (PoE)-budget | 230 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 90 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Warmtedissipatie | 923,49 BTU/h |
| Gewicht en omvang | |
| Breedte | 210 mm |
| Diepte | 140 mm |
| Hoogte | 40 mm |
| Gewicht | 900 g |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
