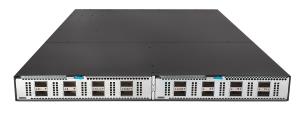

FlexFabric 5945 32QSFP28 Switch, 32 x 100 GB QSFP28 ports,2 x 1 GB SFP ports
ITCurry #: 1171ZS05 | Article #: JQ077A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE FlexFabric 5945 Switch Series are high-density, ultra-low-latency, and top-of-rack (ToR) switches ideally suited for deployment at the aggregation or server access layer of large enterprise data centers. The HPE 5945 is also powerful enough for deployment at the core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers require spine and ToR switches that can meet their throughput requirements. With the HPE 5945, data centers can now support up to 100GbE per port, allowing high performance server connectivity and the capabilities to handle virtual environments. The HPE FlexFabric 5945 Switch Series provides choices that fit your budget and IT environment by cut-through with ultra-low-latency and wire speed, offering different port density and speeds of 100GbE/40GbE/25GbE/10GbE spine/ToR connectivity.
| Beheerfuncties | |
| Switch type | Managed |
| Locatie-instellingen (CLI) configureren | Ja |
| Poorten & interfaces | |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF | 3 |
| Aantal QSFP28-poorten | 32 |
| Netwerk | |
| 10G support | Ja |
| Ondersteundende kabel types | Fiber |
| Data-uitwisseling | |
| Throughput | 2024 Mpps |
| Beveiliging | |
| IGMP snooping | Ja |
| Authenticatie type | RADIUS |
| Design | |
| Rack-montage | Ja |
| Kleur van het product | Zwart |
| Prestatie | |
| Type geheugen | RDRAM |
| Intern geheugen | 32 MB |
| Flash memory | 1000 MB |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroomverbruik (typisch) | 650 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Warmtedissipatie | 1283 BTU/h |
| Gewicht en omvang | |
| Breedte | 460 mm |
| Diepte | 440 mm |
| Hoogte | 43,6 mm |
| Gewicht | 1,31 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
