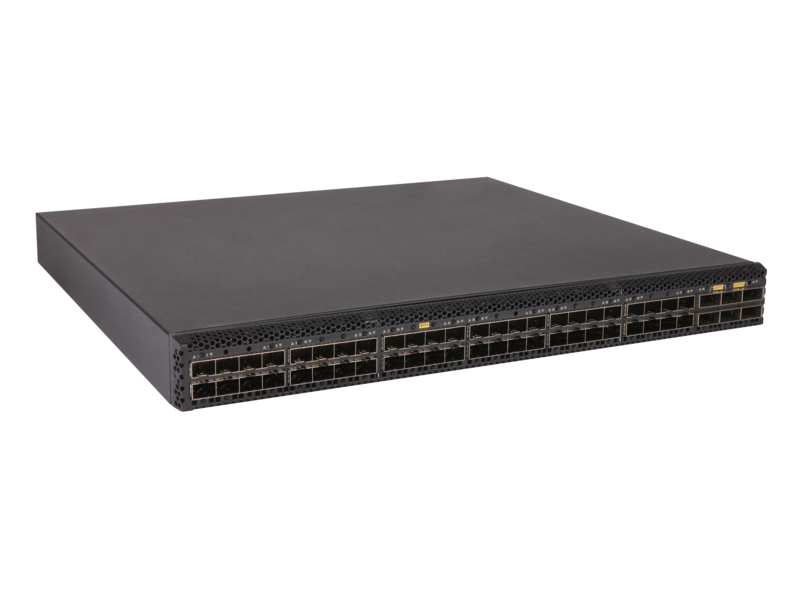

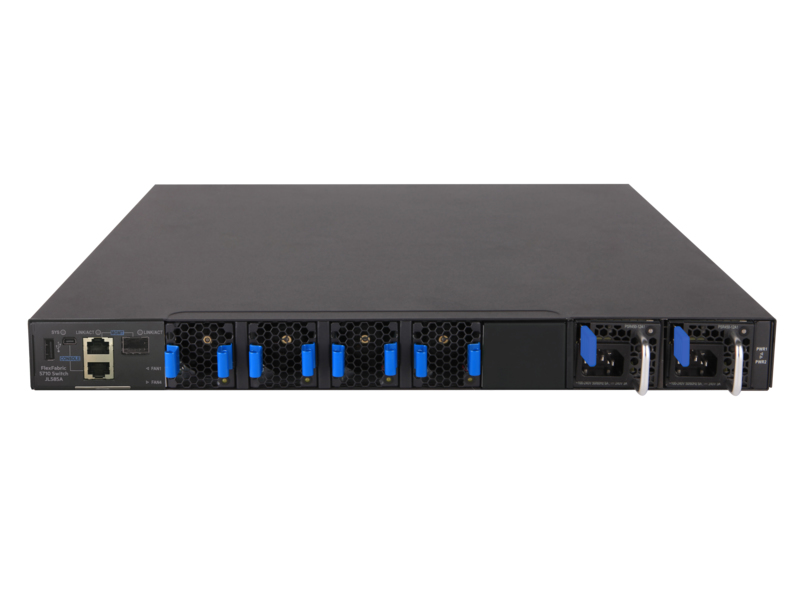

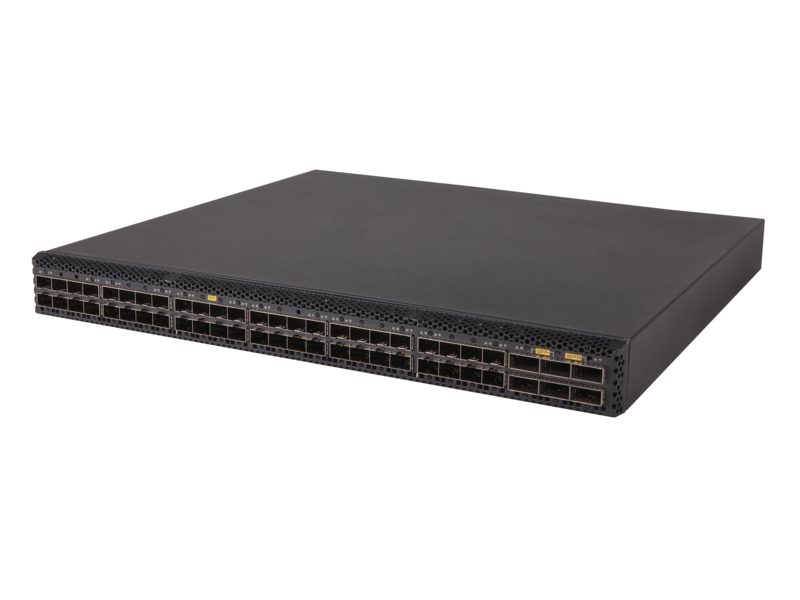

The HPE Networking Comware Switch Series 5710 are purpose built top-of-rack data center switches that address the growth of Web, cloud and dense virtualized environments that require high performance 1/10GbE server connectivity, direct attached IP storage networking and GbE out-of-band server management. The 5710 Series switch is a family of fixed high-performance and low-latency 1/10GbE top-of-rack data center switches designed for small to mid-size data center rack server connectivity. The HPE Networking Comware Switch Series 5710 provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options. Although affordability priced, the 5710 Series switch offers a comprehensive set of data center features including full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.
What is new supporting point:
Delivers up to 1,440 Gbps switching capacity for the most demanding applications.
Low latency, under 1.5 µs 10GbE latency, provides improved throughput and fewer lost packets.
Provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options.
Affordably priced, with full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about "made in China" products
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Type basis-switching RJ-45 Ethernet-poorten | Nee |
| Aantal moduleslots SPF+ | 48 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ah |
| 10G support | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Spanning tree protocol | Ja |
| VLAN=ondersteuning | Ja |
| Aantal VLANs | 4094 |
| Data-uitwisseling | |
| Switchingcapaciteit | 1440 Gbit/s |
| Throughput | 1071 Mpps |
| MAC-adrestabel | 208000 entries |
| Latentie (10 Gbps) | 1,5 æs |
| Jumbo Frames ondersteuning | Ja |
| Packet buffergeheugen | 12 MB |
| Beveiliging | |
| DHCP-functies | DHCP client, DHCP server |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Authenticatie type | IEEE 802.1x, RADIUS |
| Protocollen | |
| Routing protocols | BGP, IP, MPLS, OSPF, RIP, VRRP |
| IPv4-FIB-vermeldingen | 16000 |
| IPv6-FIB-vermeldingen | 8000 |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| Prestatie | |
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 10 |
| Type geheugen | SRAM |
| Intern geheugen | 4096 MB |
| Flash memory | 1024 MB |
| Energie | |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Vermogensverbruik (max) | 250 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Warmtedissipatie | 607 BTU/h |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 400 mm |
| Hoogte | 44 mm |
| Gewicht | 8,65 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
