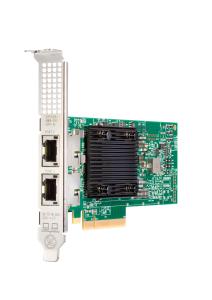

Ethernet 10GB 2-port 562T Adapter
ITCurry #: 1171WY15 | Article #: 817738-B21-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Are you looking for a simple way to migrate to 10G high performance data center with low cost and low power in your data center? The HPE Ethernet 10Gb 2-port 562 Adapters deliver high performance and low latency for Ethernet traffic to and from the server with minimal CPU resources required. Processing of I/O packets on the adapter frees up CPU to do other more important tasks. For environments such as Telco/NFV, high-performance computing (HPC) and ecommerce that deal with large volumes of small packet traffic, these adapters accelerate small packet processing by bypassing processing in the host O/S kernel.
Features
Improve Application Performance
HPE Ethernet 10Gb 2-port 562 Adapters offload packet processing to reduce CPU utilization with tunnel offloads (VXLAN and NVGRE). Now you can distribute network traffic across CPU cores in your data center.
Speeds up packet processing to service more I/O requests utilizing data plane development packet (DPDK).
Increase I/O Bandwidth for Workload Intensive Applications
HPE Ethernet 10Gb 2-port 562 Adapters deliver single root I/O virtualization (SR-IOV) which increases virtual network performance while decreasing CPU utilization.
Provides a seamless performance upgrade from 1GBASE-T to 10GBASE-T with backward compatibility.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | PCI Express |
| Interface | Ethernet |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| PCI versie | 3.0 |
| Netwerk | |
| Maximale overdrachtssnelheid van gegevens | 10000 Mbit/s |
| Netwerkstandaard | IEEE 1588, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ad, IEEE 802.1as, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Ja |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10000 Mbit/s |
| Bekabelingstechnologie | 10GBase-T |
| LAN controller | Intel© X550 |
| Design | |
| Component voor | Server |
| Intern | Ja |
| Energie | |
| Stroomverbruik (typisch) | 11,8 W |
| Verpakking | |
| Aantal | 1 |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
