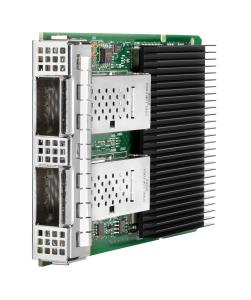

Ethernet 10GB 2-port 537SFP+ OCP3 Adapter
ITCurry #: 1171XV29 | Article #: P08440-B21-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Do you need an adapter that is big on capability and small on CPU utilization?
The HPE Ethernet 10Gb 2-port 537SFP+ FLR Adapter has been designed to efficiently deliver high performance, low latency an minimal CPU utilization by offloading many I/O processing within the adapter. Low latency dramatically improves application performance and frees up CPU resources in the host allowing it to do tasks that are more important.
Features
Improve Application Performance
- HPE Ethernet 10Gb 2-port 537SFP+ FLR Adapters offload packet processing to reduce CPU utilization with tunnel offloads (VXLAN and NVGRE). Now you can distribute network traffic across CPU cores in your data center.
- Speed up packet processing to service more I/O requests by utilizing Data Plane Development Kit (DPDK) feature.
Increase I/O Bandwidth for Workload-Intensive Applications
- HPE Ethernet 10Gb 2-port 537SFP+ FLR Adapters deliver single root I/O virtualization (SR-IOV) which increases virtual network performance while decreasing CPU utilization.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | PCI Express |
| Interface | Fiber |
| Fibre channel-poorten | 2 |
| Vezel-optische connector | SFP+ |
| PCI versie | 3.0 |
| Netwerk | |
| Maximale overdrachtssnelheid van gegevens | 10000 Mbit/s |
| Netwerkstandaard | IEEE 1588, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.2x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x |
| Design | |
| Component voor | Server |
| Intern | Ja |
| Energie | |
| Stroomverbruik (typisch) | 9,084 W |
| Minimale systeemeisen | |
| Ondersteunt Linux | Ja |
| Andere ondersteundende systemen | Ja |
| Ondersteunde server operating systems | Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Gewicht en omvang | |
| Breedte | 214,4 mm |
| Diepte | 246,9 mm |
| Hoogte | 61,7 mm |
| Gewicht | 250 g |
| Warranty | |
| Base Warranty | Non Non |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
