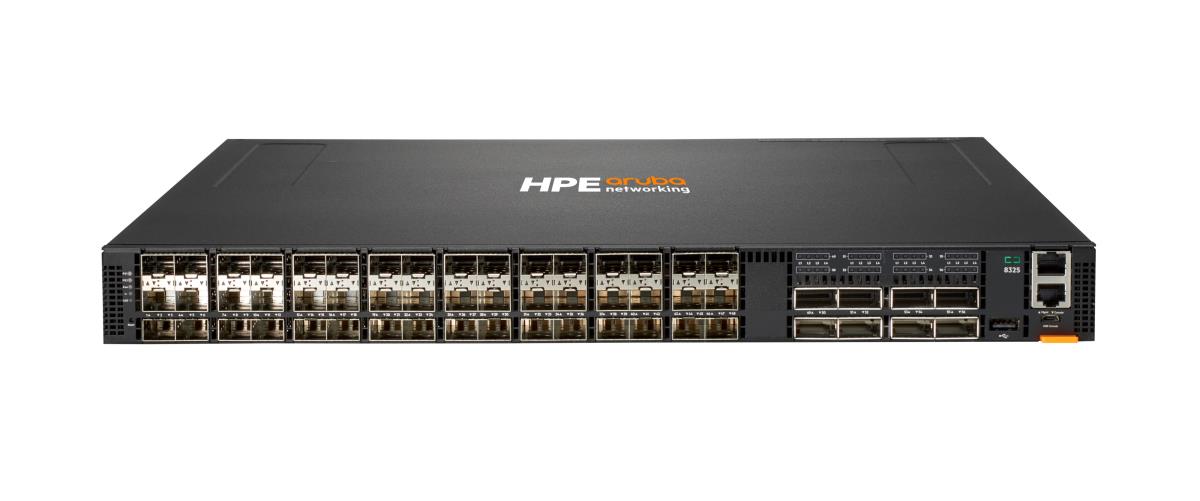

Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle
ITCurry #: 1171AUH3 | Article #: R9F65A#ABB-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Aruba Networking CX 8325 Switch Series serves as both a campus (core and aggregation) and data center (ToR and EoR) switch. This game-changing solution offers a flexible, innovative approach to meet demands in the mobile, cloud, and IoT era. The CX 8325 series is based on AOS-CX, with its microservices style modular architecture, REST APIs, Python scripting capabilities and NAE is a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. CX 8325 series provides line rate 1/10/25/40GbE in a compact 1U form factor. The CX 8325P models, deliver key solutions for providers in their 5G (Radio access network) and edge computing deployments. CX 8325H models are high-performance 1/10/25/40/100GbE half-width switches ideal for smaller, edge or colocation data centers, and wide variety of compute and storage networking use cases.
What is new supporting point:
AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. High-availability with industry-leading VSX redundancy, and redundant power supplies and fans
Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity. Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, EVPN, IGMP and IPv6.
High-performance with 2000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or end of row (EoR)
Intelligent monitoring, visibility, and remediation with HPE Aruba Networking CX Network Analytics Engine and dynamic VXLAN for deep segmentation in data center and campus networks with BGP-EVPN
CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock
CX 8325H has two variations: • 2.16 Tbps half-width fixed switch that supports 18 ports of 1/10/25GbE and 4 ports of 40/100GbE • 4 Tbps half-width fixed switch that supports 16 ports of 40/100GbE
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Type basis-switching RJ-45 Ethernet-poorten | Nee |
| Vezel-optische connector | QSFP+, QSFP28, SFP, SFP+, SFP28 |
| Console port | RJ-45/micro-USB |
| Aantal QSFP28-poorten | 8 |
| Aantal SFP28-poorten | 48 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z |
| 10G support | Ja |
| Port mirroring | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Spanning tree protocol | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 1000,10000,25000,40000,100000 Mbit/s |
| VLAN=ondersteuning | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 6400 Gbit/s |
| Throughput | 1905 Mpps |
| MAC-adrestabel | 98304 entries |
| Jumbo Frames ondersteuning | Ja |
| Packet buffergeheugen | 32 MB |
| Beveiliging | |
| DHCP-functies | DHCP server |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| SSH/SSL support | Ja |
| Authenticatie type | RADIUS, TACACS+ |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Protocollen | |
| Routing protocols | BGP, BGP4, OSPF, OSPFv2, OSPFv3, RIPng |
| IPv4- & IPv6-functies | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Overtollige fans ondersteuning | Ja |
| Ventilatiesysteem | Luchtstroom achter-naar-voor |
| Luchtstroomrichting | Luchtstroom achter-naar-voor |
| Aantal ventilatoren | 6 ventilator(en) |
| Prestatie | |
| Type processor | Ja |
| Frequentie van processor | 2200 MHz |
| Type geheugen | SDRAM / Flash |
| Intern geheugen | 16000 MB |
| Flash memory | 8000 MB |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Ja |
| Aantal voedingen | 2 |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| DC voltage input | 36 - 72 V |
| Vermogensverbruik (max) | 618 W |
| Energieverbruik opmerking | Maximum: 618W depending on the model Idle: 143W depending on the model |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Overige specificaties | |
| Geheugen en processor | For CX 8325 models: CPU: 2.2 GHz Memory: Drive and Flash 16 GB RAM, 64 GB SSD, 8 GB Flash Packet Buffer: 32 MB For CX 8325P models: CPU: 2.2 GHz Memory, Drive and Flash: 32 GB RAM, 128 GB SSD, 4 GB Flash Packet Buffer: 32 MB For CX 8325H models: CPU: AMD x86 8-core processor Memory: 32 GB, 120 GB SSD Packet Buffer: 32 MB |
| Aansluitingen | (48) 25G SFP28 ports and (8) 100G QSFP28 ports |
| Prestatiebeheer | Industry-standard CLI with hierarchical structure SNMP v2c and v3 sFlow (RFC 3176) Remote monitoring (RMON) Precision Time Protocol (PTP) Class C (G.8275.1 and G.8275.2) REST APIs RJ-45 serial console RJ-45 Ethernet port Micro-USB console |
| Gewicht (imperiaal) | 10 kg (22.1 lbs) |
| Fan | Field-replaceable, hot-swappable, and up to 6 fans or 4 fixed fans (N+1) in CX 8325H models |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Hoogte, in bedrijf | 0 - 3048 m |
| Hoogte bij opslag | 0 - 4600 m |
| Gewicht en omvang | |
| Breedte | 43,2 mm |
| Diepte | 438,4 mm |
| Hoogte | 535,9 mm |
| Gewicht | 10 kg |
| Warranty | |
| Base Warranty | Non Non |
