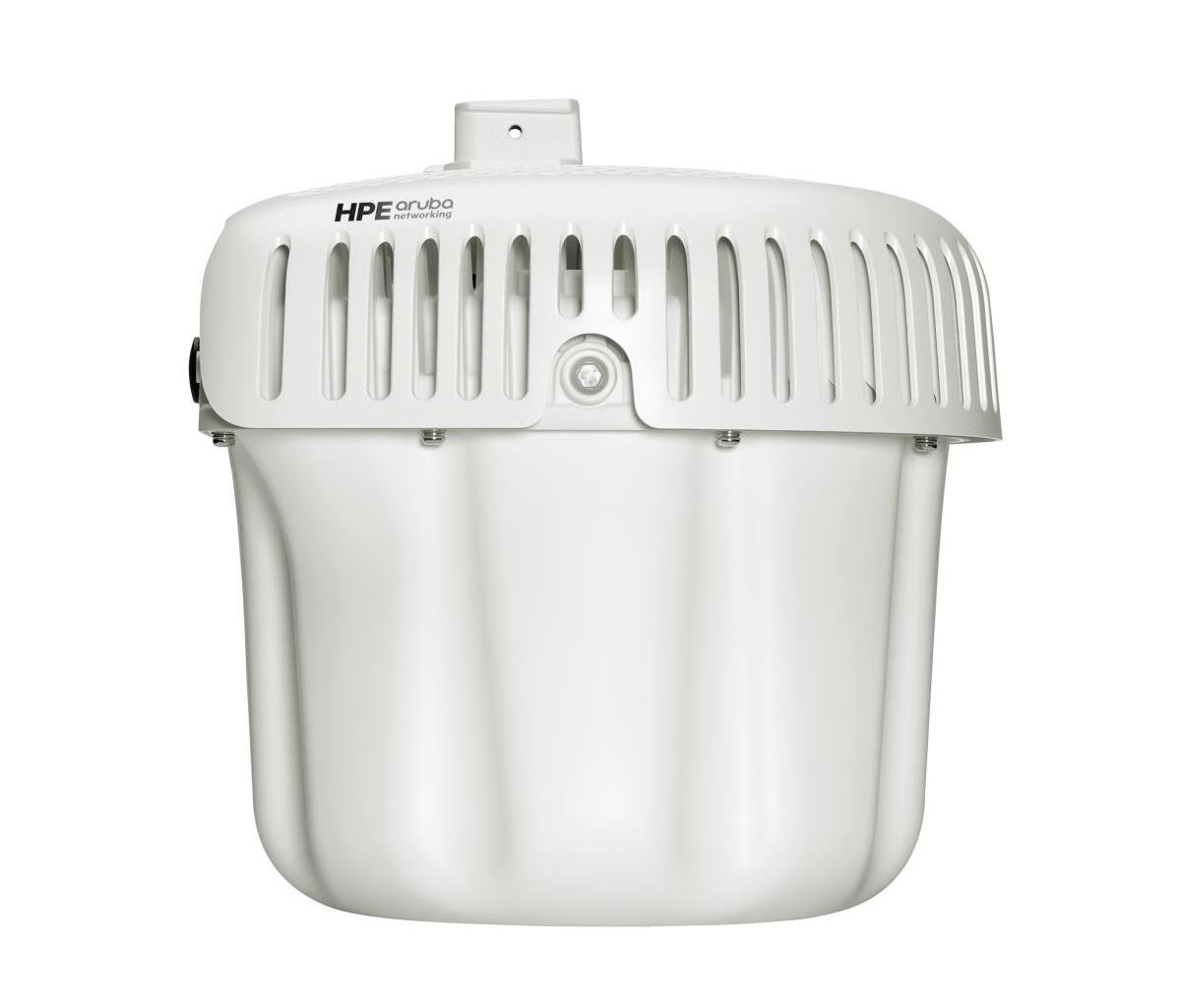

Aruba Networking AP-585EX (RW) Dual Radio 4x4 802.11ax Internal Omni Ants Unified HazLoc AP
ITCurry #: 1171AMU1 | Article #: R7T30A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
HPE Aruba Networking 580EX Series Hazardous Location Access Points are weatherproofed and temperature hardened to support hazardous environments, including outdoor oil rigs, industrial manufacturing, and transportation sites. With Wi-Fi 6 capabilities, high power Bluetooth and 802.15.4/Zigbee radios, and maximum aggregate data rate of 2.97 Gbps, the 580EX Series delivers the speed and reliability needed for demanding Industrial IoT environments. Purpose-built to survive one of the harshest outdoor environments, the 580EX Series withstands exposure to extreme high and low temperatures and persistent moisture, are fully sealed to keep out airborne contaminants, and include industrial surge protection. The 580EX Series offers flexible power and management options to meet the needs of diverse environments and can be deployed using existing mounts. The 580EX Series is Wi-Fi 6 certified and backed by a limited lifetime warranty.
What is new supporting point:
Wi-Fi 6 capabilities to deliver multi-gigabit performance and speed with a maximum aggregate data rate of 2.97 Gbps.
Purpose-built to survive in one of the harshest outdoor environments with Hazardous Location Class 1 Division 2, and ATEX Zone 2, and IP66 rating for hazardous locations.
Seamless connectivity with RF automation (AirMatch), client optimization (ClientMatch), and AIOps (AI Insights) for built-in configuration recommendations.
The AP supports for 5 Gbps multi-gigabit Ethernet ports and 802.3bt Class 6 power or AC power included, no need for add-on AC power adapters.
Features high power Bluetooth [1] and 802.15.4/Zigbee support for Industrial IoT.
| Kenmerken | |
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| 6 GHz | Nee |
| Maximale overdrachtssnelheid van gegevens | 2970 Mbit/s |
| Ethernet LAN, data-overdrachtsnelheden | 1000,5000,10000 Mbit/s |
| Netwerkstandaard | IEEE 802.11ax |
| Aantal gebruikers | 1024 gebruiker(s) |
| Bluetooth | Ja |
| Bluetooth-versie | 5.0 |
| MIMO | Ja |
| MIMO-type | Multi User MIMO |
| Spread spectrum methode | DSSS, OFDM, OFDMA |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | WPA2, WPA3 |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Aantal USB 2.0-poorten | 1 |
| USB-connectortype | USB Type-C |
| Energie | |
| Power over Ethernet (PoE) | Ja |
| Spanning | 110 - 240 V |
| Stroomverbruik (typisch) | 71 W |
| Design | |
| Plaatsing | Plafond, Paal, Muur |
| Kleur van het product | Wit |
| Internationale veiligheidscode (IP) | IP66 |
| Antenne | |
| Soort antenne | Intern |
| Type antennerichting | Omni-directioneel |
| Antennefuncties | Ingebouwde antenne |
| Antennas quantity | 4 |
| Antenne versterkingsniveau (max) | 5,8 dBi |
| Certificaten | |
| Certificaten van naleving | Federal Communications Commission (FCC), ISED, CE, Elektromagnetische compatibiliteit (EMC), Laagspanningsrichtlijn (LVD) |
| Certificering | None |
| Gewicht en omvang | |
| Breedte | 324 mm |
| Diepte | 313 mm |
| Hoogte | 320 mm |
| Gewicht | 5,24 kg |
| Verpakking | |
| Breedte verpakking | 431 mm |
| Diepte verpakking | 415 mm |
| Hoogte verpakking | 442 mm |
| Gewicht verpakking | 7,81 kg |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 93 procent |
| Bedrijfstemperatuur (T-T) | -40 - 65 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Hoogte, in bedrijf | 0 - 3000 m |
| Warranty | |
| Base Warranty | Non Non |
