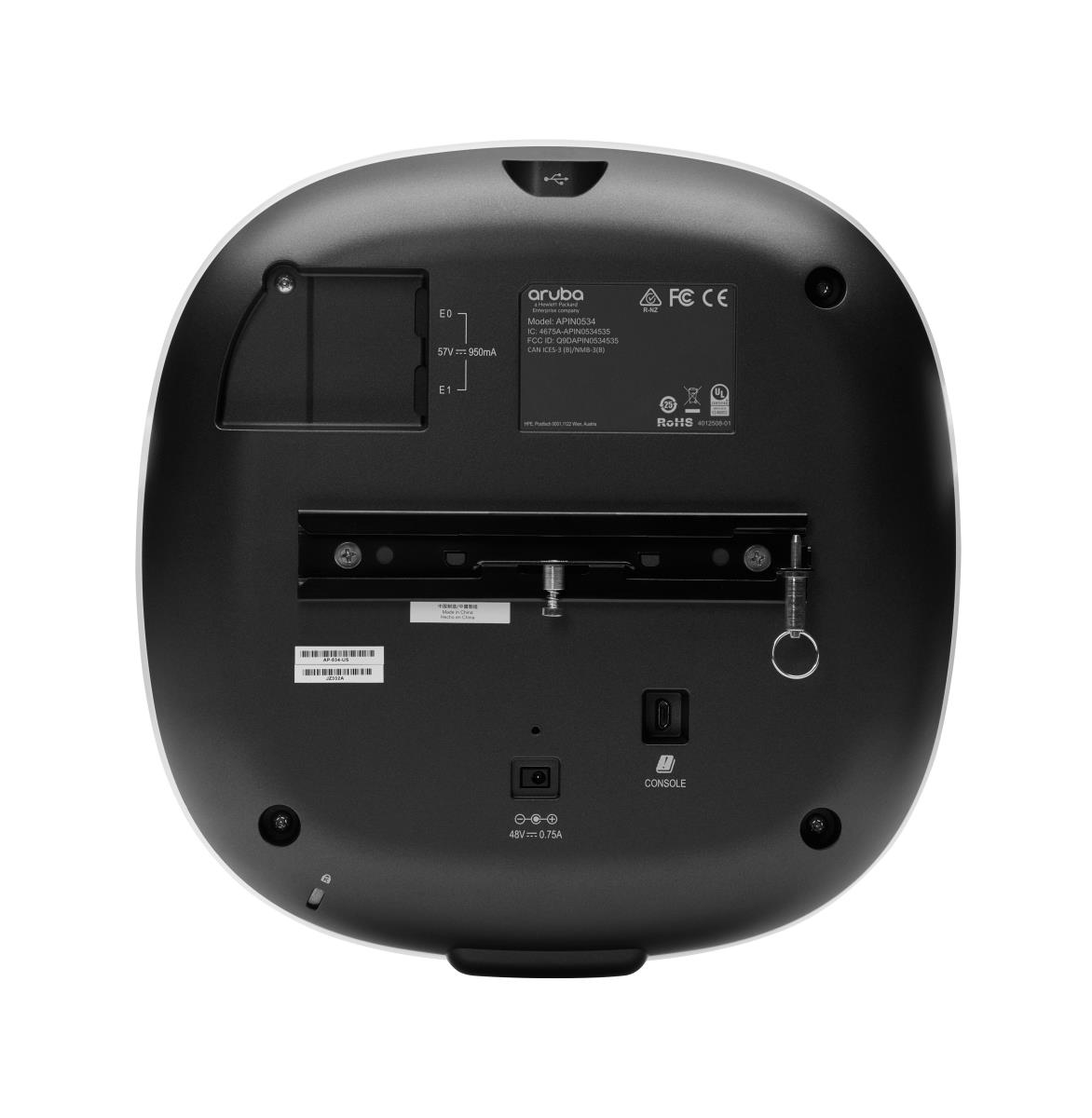

Aruba AP-534 (RW) Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP
ITCurry #: 1171YG67 | Article #: JZ331A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The Aruba 530 Series with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software features are designed to deliver high performance connectivity in extreme density deployments of mobile and IoT devices.
The 530 Series is designed to simultaneously serve multiple clients and types of traffic, boosting overall network performance by up to 4X versus 802.11ac APs.
In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity and WPA3 certified security.
Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.
Enhanced performance
Aruba's ClientMatch feature intelligently groups Wi-Fi 6 clients onto the best AP's to leverage 802.11ax multi-user capabilities.
Smart power management
Aruba Intelligent Power Monitoring (IPM) allows APs to operate even if existing Ethernet switches lack adequate PoE power.
IoT and location ready
Leverage your Wi-Fi infrastructure to support Zigbee and Bluetooth use cases, devices and applications.
| Kenmerken | |
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| Maximale overdrachtssnelheid van gegevens | 3550 Mbit/s |
| Maximale overdrachtssnelheid van gegevens (2.4 GHz) | 1148 Mbit/s |
| Maximale overdrachtssnelheid van gegevens (5 GHz) | 2402 Mbit/s |
| Ethernet LAN, data-overdrachtsnelheden | 100,1000,2500,5000 Mbit/s |
| Netwerkstandaard | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3z |
| Auto MDI/MDI-X | Ja |
| MIMO | Ja |
| Spread spectrum methode | DSSS, OFDM |
| Modulatie | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | WMM, WPA, WPA2 |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Aantal USB 2.0-poorten | 1 |
| USB-connectortype | USB Type-A |
| Energie | |
| Power over Ethernet (PoE) | Ja |
| Vermogensverbruik (max) | 23,3 W |
| Design | |
| Plaatsing | Plafond, Muur |
| Kleur van het product | Wit |
| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kabelslot sleuf type | Kensington |
| Antenne | |
| Soort antenne | Extern |
| Antennas quantity | 4 |
| Aansluiting antenne | RP-SMA |
| Aantal connectors | 4 |
| Gewicht en omvang | |
| Breedte | 240 mm |
| Diepte | 240 mm |
| Hoogte | 57 mm |
| Gewicht | 1,27 kg |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 93 procent |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Luchtvochtigheid bij opslag | 5 - 93 procent |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
