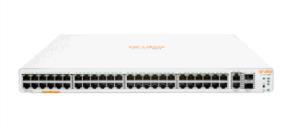

Aruba Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W Switch
ITCurry #: 1171AFE6 | Article #: S0F35A#ABB-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.
Features
High-level Gigabit with 10GbE Networking for Advanced Small Businesses
- Each model of the Aruba Instant On 1960 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches.
- Two connections of 10GBASE-T deliver 10GbE over copper Category 6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.
- With PoE models, up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones.
Simplify Network Deployment and Management for Small Organizations
- The Aruba Instant On 1960 Switch series offers a complete portfolio of choices for increased small business flexibility. It consists of five models including two (2) 24-port and two (2) 48-port models in PoE and non-PoE configurations, and a 12 port 10-Gigabit aggregation switch.
- The 24-port and 48-port PoE models come with a power budget of 370W and 600W respectively to support the latest PoE-powered IoT devices.
- The Aruba Instant On 1960 Switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
- Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch.
- The tag includes a QR code that includes switch ID information (SKU number, SKU name, serial number, and MAC address) for easy switch onboarding through Instant On mobile app.
Ease of Use with Cloud-Managed Stacking
- The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four (4) Aruba Instant On 1960 switches and manage as a single entity.
- The Aruba Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely.
- Automated configurations and streamlined workflows allow users to manage all stack members through one single dashboard without the need for device reboot.
Robust Security to Protect Your Network
- The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users.
- Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network.
- Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
| Beheerfuncties | |
| Switch type | Managed |
| Web-gebaseerd management | Ja |
| Cloud-beheerd | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal 2.5G Ethernet (koper)poorten | 4 |
| Aantal moduleslots SPF+ | 2 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Ja |
| Port mirroring | Ja |
| Full duplex | Ja |
| Half-duplex | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Auto MDI/MDI-X | Ja |
| Spanning tree protocol | Ja |
| Auto-sensing | Ja |
| Auto-negotiation | Ja |
| VLAN=ondersteuning | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 116 Gbit/s |
| Throughput | 172 Mpps |
| MAC-adrestabel | 16000 entries |
| Latentie (10-100 Mbps) | 4,1 æs |
| Latentie (1 Gbps) | 1,8 æs |
| Latentie (10 Gbps) | 2,8 æs |
| Jumbo Frames ondersteuning | Ja |
| Packet buffergeheugen | 1,5 MB |
| Beveiliging | |
| DHCP-functies | DHCP relay, DHCP snooping |
| IGMP snooping | Ja |
| SSH/SSL support | Ja |
| Authenticatie | Poortgebaseerde authenticatie |
| Authenticatie type | RADIUS |
| Protocollen | |
| Beheerprotocollen | SNMPv1, SNMPv2c, SNMPv3 |
| Ondersteunde netwerkprotocollen | HTTPS |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Ophangsysteem voor aan de muur | Ja |
| Prestatie | |
| Physical stacking (units) | 4 |
| Type processor | Ja |
| Processormodel | ARM Cortex-A9 |
| Frequentie van processor | 800 MHz |
| Type geheugen | DDR3-SDRAM |
| Intern geheugen | 1024 MB |
| Flash memory | 512 MB |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Vermogensverbruik (max) | 790 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Totaal Power over Ethernet (PoE)-budget | 480 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 15 - 95 procent |
| Luchtvochtigheid bij opslag | 15 - 90 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Gewicht en omvang | |
| Breedte | 443 mm |
| Diepte | 350 mm |
| Hoogte | 43,9 mm |
| Gewicht | 5,24 kg |
| Warranty | |
| Base Warranty | Non Non |
