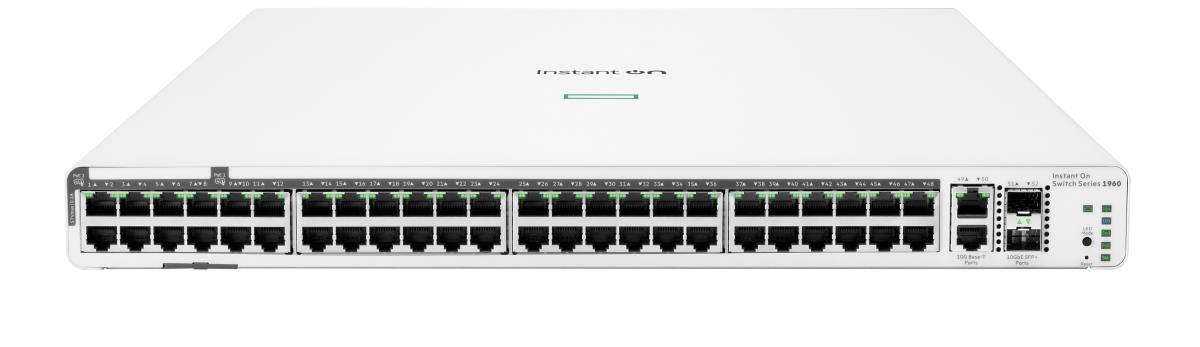

Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch

ITCurry #: 1171ZJ60 | Article #: JL809A#ABB
Prijs:
1020,75 Excl. btw
Levering in Benelux:
GRATIS Levering.
Leverbaar in 3 dagen.
Hoeveelheid:

Verwante producten

slide 7 to 11 of 14

Product Informatie

HPE Networking Instant On Switch 1960 series, consist of advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. The Instant On 1960 switches are made to handle the today bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.

What is new supporting point:
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.

Beheerfuncties
Switch type Managed
Switch-laag L2+
Quality of Service (QoS) Ja
Web-gebaseerd management Ja
Cloud-beheerd Ja
ARP-inspectie Ja
System event log Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten 48
Type basis-switching RJ-45 Ethernet-poorten Gigabit Ethernet (10/100/1000)
Aantal 10G Ethernet (koper)poorten 2
Aantal moduleslots SPF+ 2
Netwerk
Netwerkstandaard IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z
10G support Ja
Port mirroring Ja
Full duplex Ja
Datastroombeheer Ja
Verbindingsaggregatie Ja
Rate limiting Ja
Auto MDI/MDI-X Ja
Spanning tree protocol Ja
Auto-sensing Ja
VLAN=ondersteuning Ja
Data-uitwisseling
Switchingcapaciteit 176 Gbit/s
Throughput 131 Mpps
MAC-adrestabel 16000 entries
Latentie (10-100 Mbps) 4,4 æs
Latentie (1 Gbps) 2,2 æs
Latentie (10 Gbps) 1,1 æs
Jumbo Frames ondersteuning Ja
Jumbo frames 9216
Packet buffergeheugen 1,5 MB
Beveiliging
DHCP-functies DHCP snooping
Access Control List (ACL) Ja
IGMP snooping Ja
SSH/SSL support Ja
Authenticatie Poortgebaseerde authenticatie
Authenticatie type RADIUS
Multicast-functies
Multicast-ondersteuning Ja
Protocollen
IPv4- & IPv6-functies IPv4/IPv6 access-control list (ACL)
IPv4-FIB-vermeldingen 32
IPv6-FIB-vermeldingen 32
Design
Rack-montage Ja
Stapelbaar Ja
Vormfactor 1U
Kleur van het product Wit
Prestatie
Physical stacking (units) 4
Type processor Ja
Processormodel ARM Cortex-A9
Frequentie van processor 800 MHz
Type geheugen DDR3-SDRAM
Intern geheugen 1024 MB
Flash memory 512 MB
Energie
Stroombron AC
Vermogenstoevoer inclusief Ja
AC-ingangsspanning 200 - 240 V
AC-ingangsfrequentie 50 - 60 Hz
Vermogensverbruik (max) 760 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Ja
Totaal Power over Ethernet (PoE)-budget 600 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 40 øC
Temperatuur bij opslag -40 - 70 øC
Relatieve vochtigheid in bedrijf (V-V) 15 - 95 procent
Luchtvochtigheid bij opslag 15 - 90 procent
Hoogte, in bedrijf 0 - 3000 m
Gewicht en omvang
Breedte 402,8 mm
Diepte 442,5 mm
Hoogte 44 mm
Gewicht 4,9 kg
Logistieke gegevens
Code geharmoniseerd systeem (HS) 85176990
Warranty
Base Warranty Non Non
