TRIPP LITE USB 2.0 Hi-Speed Hub 7-Port Rugged Industrial with 15KV ESD Immunity and metal case Mountable
ITCurry #: 57904576 | Article #: U223-007-IND-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

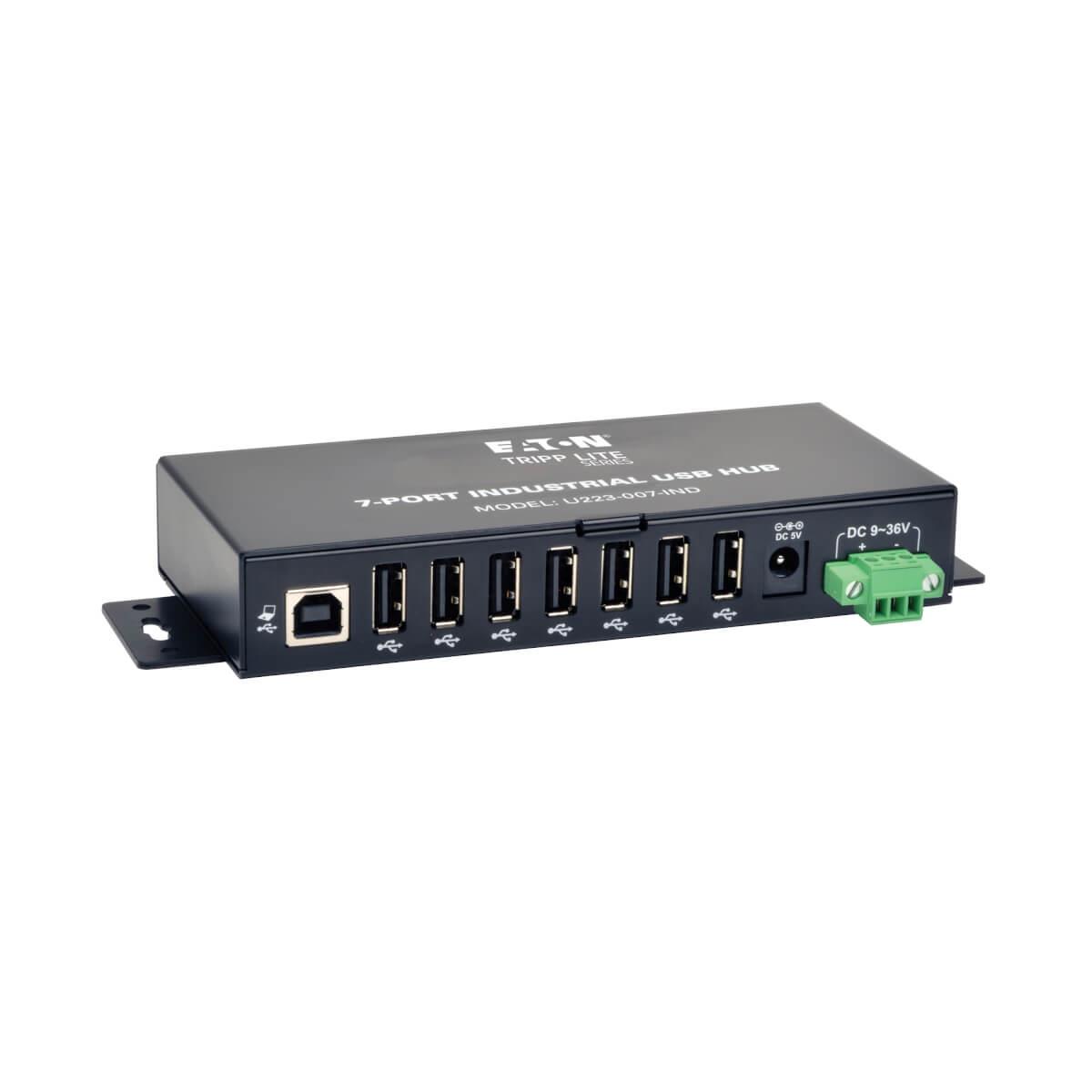

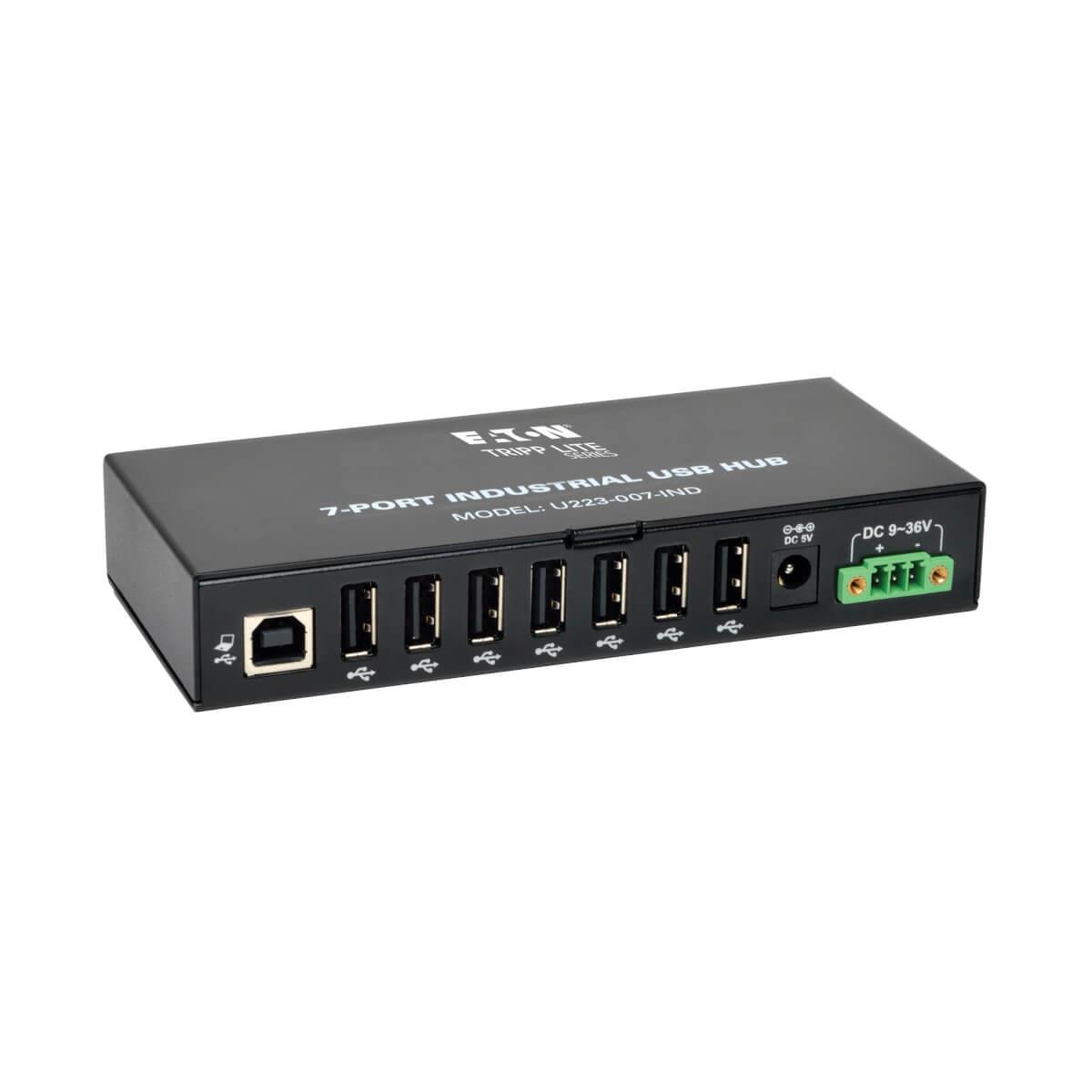

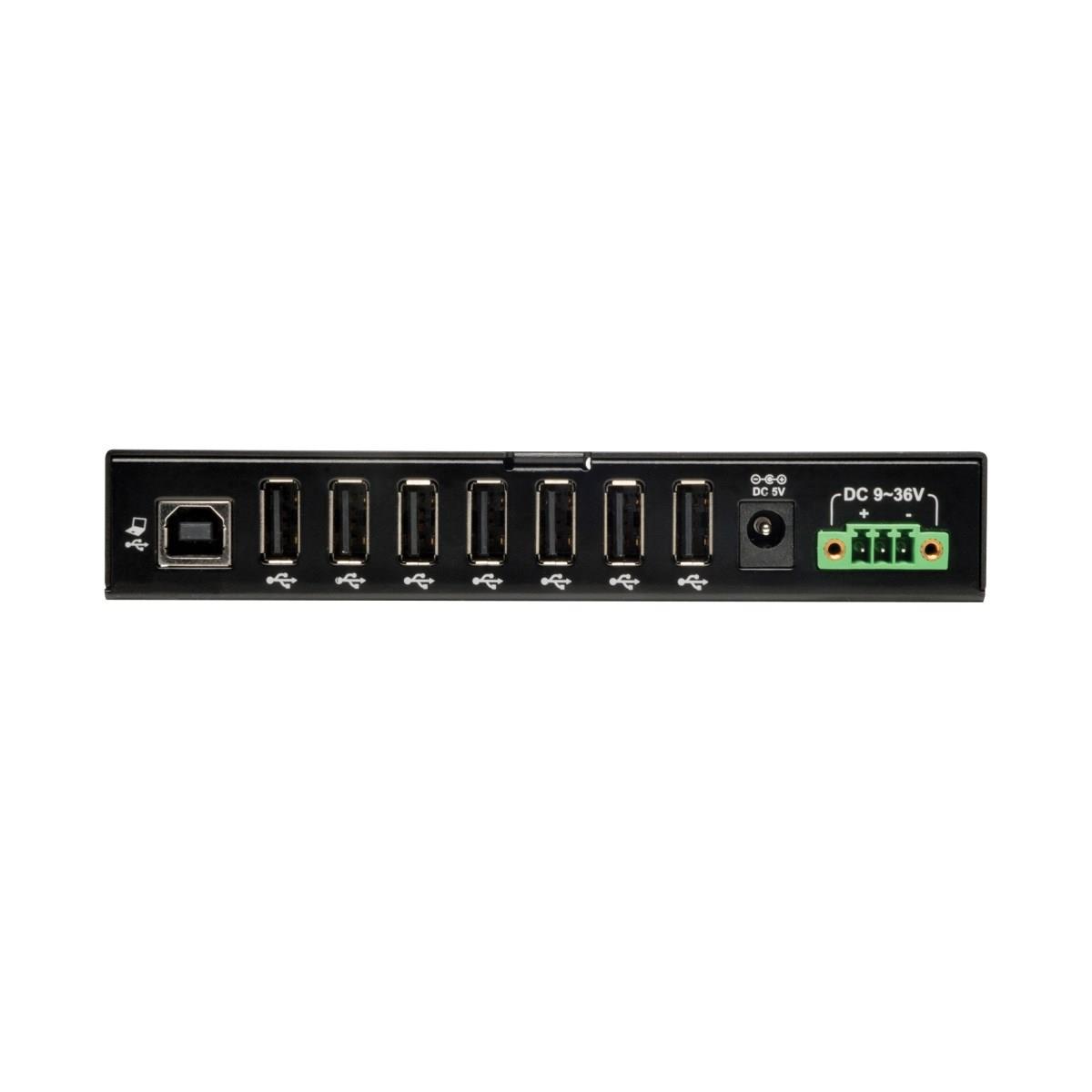

Industrial-Grade USB 2.0 Hub Adds up to 7 USB Devices to Your Computer
This USB 2.0 hub with a heavy-duty all-metal housing connects as many as seven USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. The hub supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 devices.
Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This seven-port hub includes ESD protection to ±15 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with overcurrent protection to safeguard your connected devices against damage and data loss from power surges.
Plug-and-Play Hub Offers Flexible Power and Mounting Options

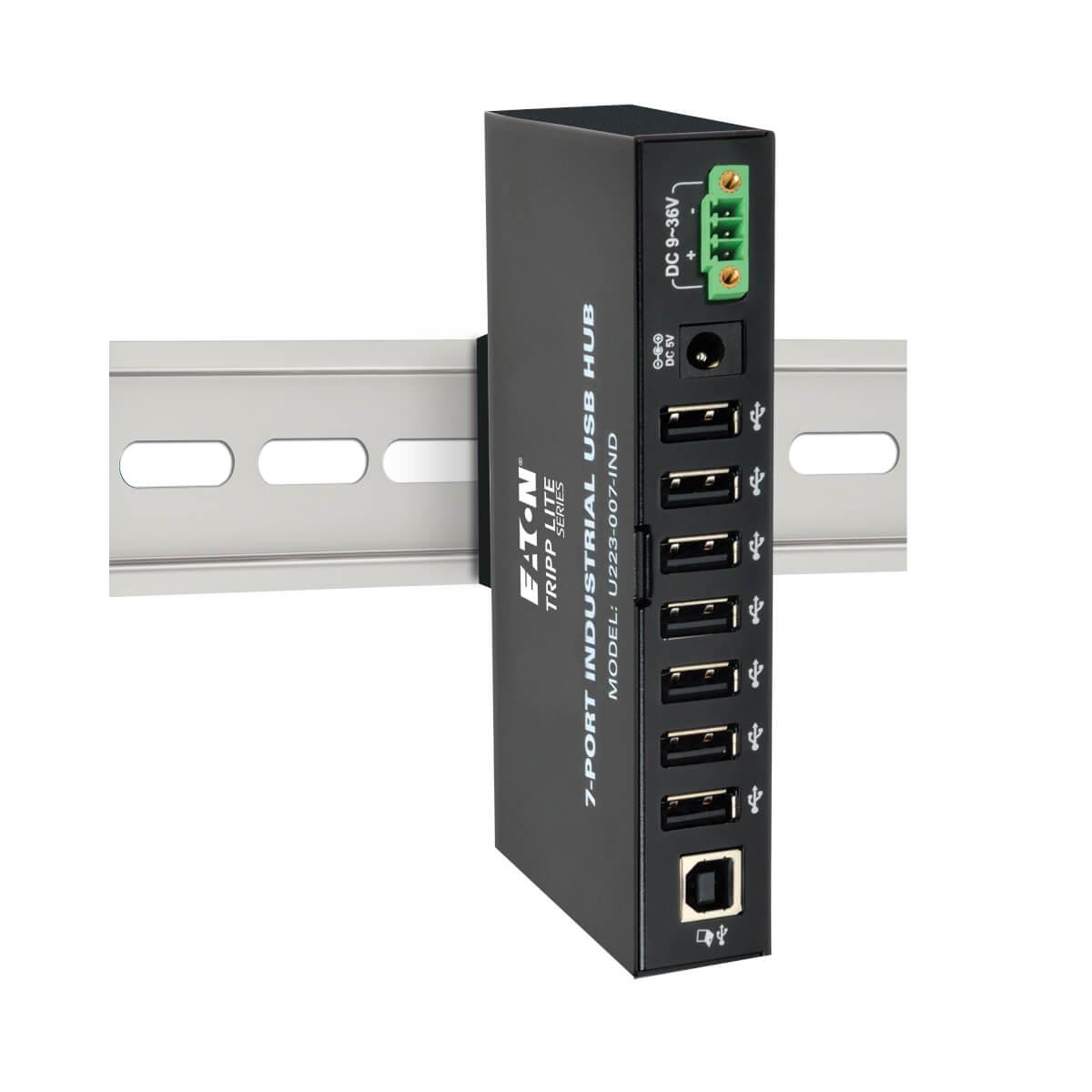

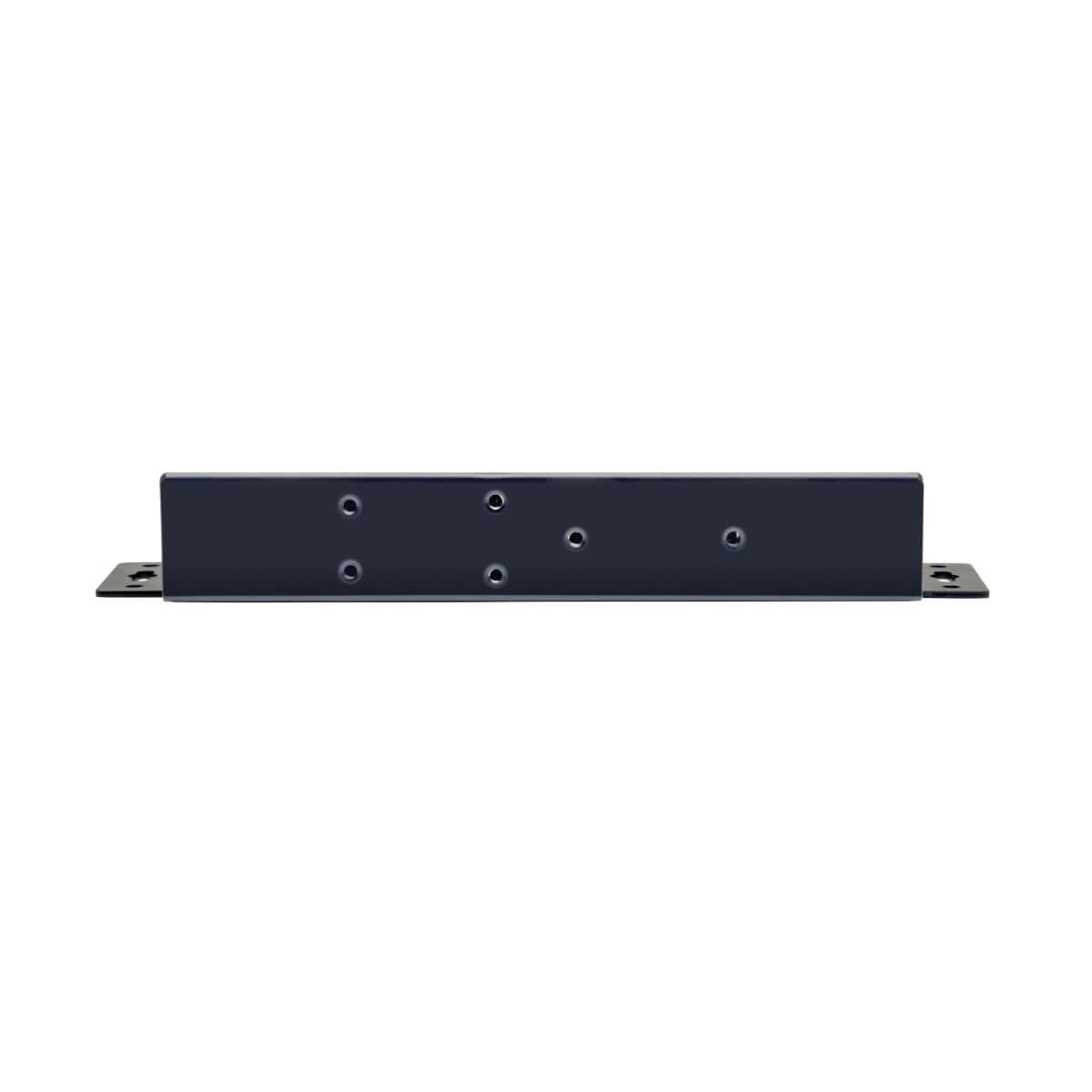

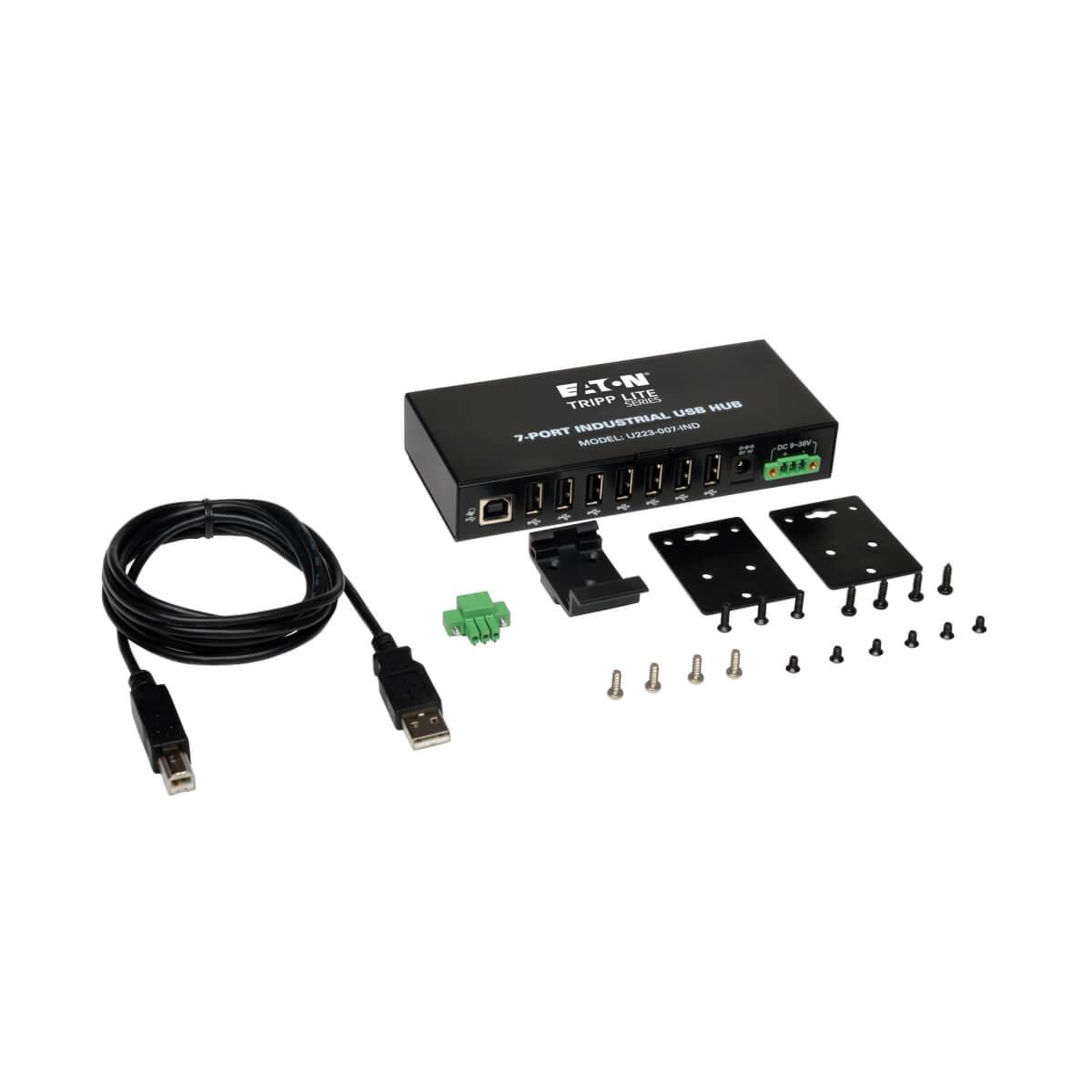

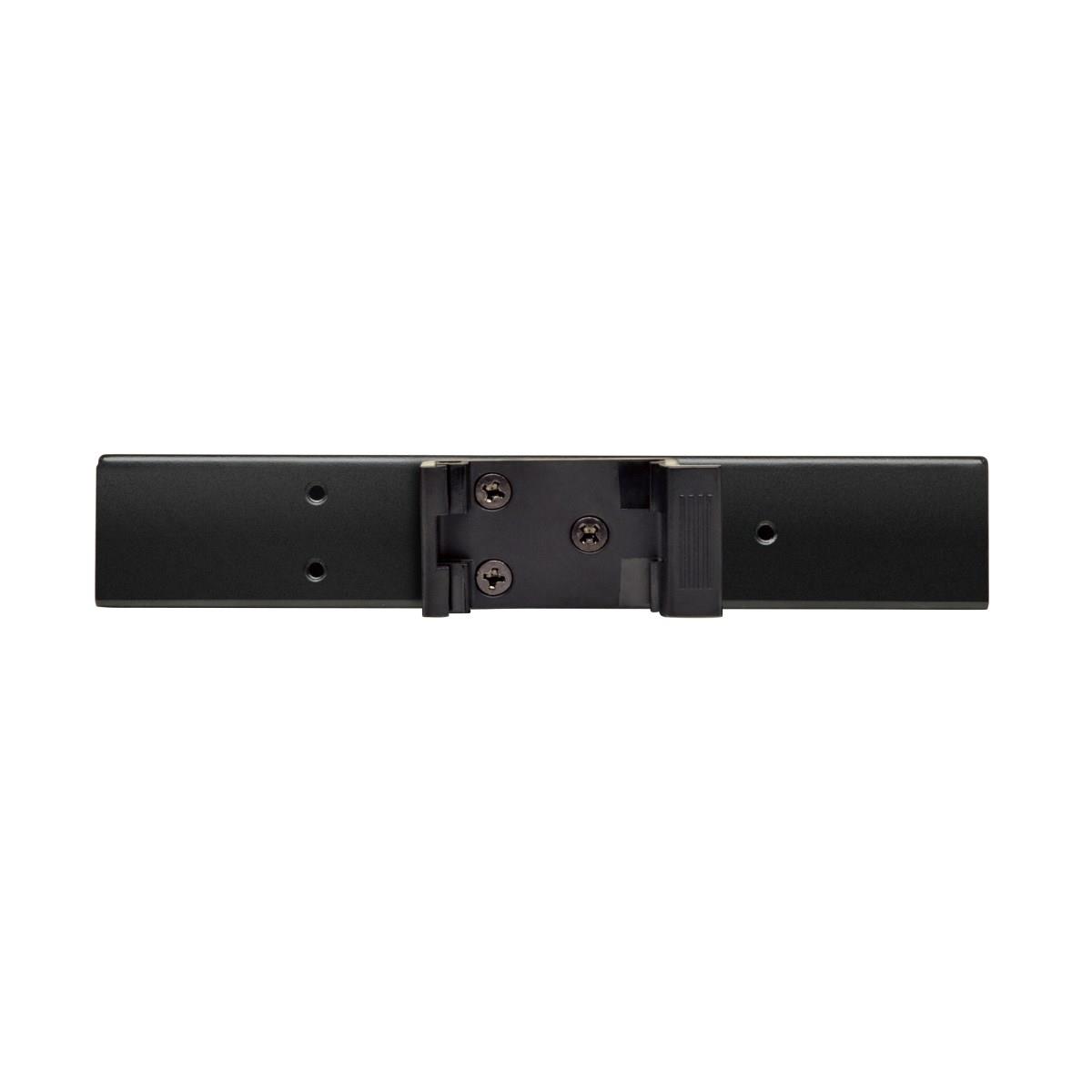

The U223-007-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 5V 3A DC power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.
| Poorten & interfaces | |
| Hub-interfaces | USB 2.0 |
| Aantal USB 2.0-poorten | 8 |
| Aantal poorten | 7 |
| Kenmerken | |
| Overdrachtssnelheid | 480 Mbit/s |
| Kleur van het product | Zwart |
| Materiaal behuizing | Metaal |
| Plug and play | Ja |
| Land van herkomst | China |
| Gewicht en omvang | |
| Breedte | 139,7 mm |
| Diepte | 63,5 mm |
| Hoogte | 25,4 mm |
| Gewicht | 320 g |
| Verpakking | |
| Breedte verpakking | 231,1 mm |
| Diepte verpakking | 160 mm |
| Hoogte verpakking | 71,1 mm |
| Gewicht verpakking | 540 g |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Logistieke gegevens | |
| (Buitenste) hoofdverpakking breedte | 485,1 mm |
| (Buitenste) hoofdverpakking lengte | 337,8 mm |
| (Buitenste) hoofdverpakking hoogte | 383,5 mm |
| (Buitenste) hoofdverpakking brutogewicht | 11,9 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 20 stuk(s) |
| GTIN (EAN/UPC)-nummer (buitenste) hoofdverpakking | 10037332181425 |
| Code geharmoniseerd systeem (HS) | 84719000 |
| Warranty | |
| Base Warranty | Non Non |
