TRIPP LITE Industrial-Grade USB 3.0 SuperSpeed Hub - 20 kV ESD Immunity, Iron Housing, Mountable 10-Port
ITCurry #: 57906305 | Article #: U360-010-IND-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

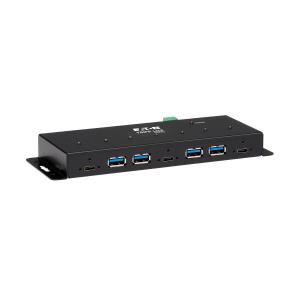

Industrial-Grade USB 3.0 Hub Adds up to 10 USB Devices to Your Computer
This 10-port USB 3.0 hub with a heavy-duty all-metal housing connects as many as 10 USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.
Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers
The hub supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. It is especially recommended for high-bandwidth USB 3.0 devices, such as security cameras and high-resolution webcams. Each downstream port provides up to 900 mA for charging mobile devices. The hub is backward compatible with previous USB standards, so you can also continue using older peripherals while getting maximum performance from current devices.
Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This 10-port hub includes ESD protection to ±20 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.
Plug-and-Play Hub Offers Flexible Power and Mounting Options
The U360-010-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 9–40V DC LPS power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.
| Poorten & interfaces | |
| Hostinterface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Hub-interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 10 |
| Aantal poorten | 10 |
| Klemmenblokpoort | Ja |
| Kenmerken | |
| Overdrachtssnelheid | 5000 Mbit/s |
| Kleur van het product | Zwart |
| Materiaal behuizing | SGCC |
| Overstroombeveiliging | Ja |
| LED-indicatoren | Ja |
| Plug and play | Ja |
| Land van herkomst | Maleisi‰ |
| Certificering | CE, FCC, RoHS, REACH |
| Energie | |
| Vermogensverbruik (max) | 51,3 W |
| Ingangsspanning | 100 - 240 V |
| Stroom | 0.6 A |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Spanning | 9 - 40 V |
| Output current | 3 A |
| USB oplaadpoort | Ja |
| Gewicht en omvang | |
| Breedte | 201 mm |
| Diepte | 81 mm |
| Hoogte | 33 mm |
| Gewicht | 430 g |
| Verpakking | |
| Breedte verpakking | 114,3 mm |
| Diepte verpakking | 228,6 mm |
| Hoogte verpakking | 66 mm |
| Gewicht verpakking | 640 g |
| Type verpakking | Doos |
| Inhoud van de verpakking | |
| Meegeleverde kabels | USB |
| Wand montagekit | Ja |
| Gebruikershandleiding | Ja |
| Klemmenblok inclusief | Ja |
| DIN-railset inbegrepen | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Bedrijfstemperatuur, bereik | 32 - 104 øF |
| Temperatuur bij opslag | -10 - 55 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 90 procent |
| Logistieke gegevens | |
| (Buitenste) hoofdverpakking breedte | 246,4 mm |
| (Buitenste) hoofdverpakking lengte | 350,5 mm |
| (Buitenste) hoofdverpakking hoogte | 256,5 mm |
| (Buitenste) hoofdverpakking brutogewicht | 6,94 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 10 stuk(s) |
| GTIN (EAN/UPC)-nummer (buitenste) hoofdverpakking | 10037332231243 |
| Code geharmoniseerd systeem (HS) | 84719000 |
| Warranty | |
| Base Warranty | Non Non |
